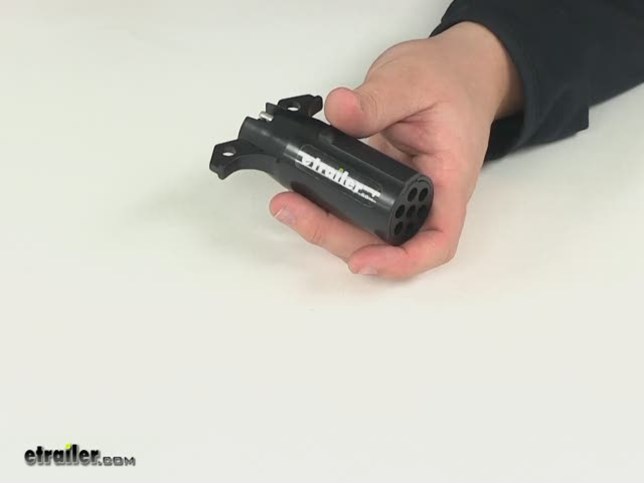

7-Way Round Pin to 4-Flat Adapter

Ask the Experts about this Tow Ready Wiring

• Wiring US 4-Way Trailer Connector to Trailer with European 7-Way Trailer Wiring
  Since you want to go from a 4-way on your vehicle to a trailer with a European 7 flat, you will simply be able to use the Tow Ready Vehicle to Vehicle Tail Light Converter # 118158 or Curt # C56196 if your trailer has LED lights. This will take the combined stop and turn signal wires on your 4-way and separate them for your European 7-way. You will connect the 4-way color-for-color and the running light will run around this adapter versus through it, and the ground will need to be spliced...
  view full answer...
• Wiring US 4-Pole Trailer Connector 2014 Ford F150 to For Trailer with European 7-way
  I am not aware of the existence of an adapter, but one could be easily constructed. You will need to find a vehicle-side socket to receive the plug from your trailer. We do not carry them, so you will need to obtain one locally. You will also need a vehicle to vehicle taillight converter like part # 118158 and a trailer side 4-pole like part # 18004. You would then wire the converter as shown in the diagram I provided. Using this adapter will separate the turn signal back out so that...
  view full answer...
• Parts Needed to Flat Tow a 2016 Ford F-150 King Ranch with LED Tail Lights Behind an RV
  For tow bar wiring for your 2016 Ford F-150 I recommend going with a magnetic kit # C-ATL20A. The issue is that the diode kits and converters that go with them are not rated for use with LED tail lights. The best option then is going to be a magnetic kit. And having a wireless system means you won't have to run any wires or worry about complicated installations on the truck. Since the lights are magnetic you may need to use tow light partners # TLP01 in the windows of the truck if the...
  view full answer...
• Can a European 7-Way Trailer Connector be Converted to a U.S. 4-Way
  You have 2 options. First you can convert the Escalade wiring harness, after installed, to match the trailer. Or you can convert the trailer connector to match the vehicle connector, once it is installed. The easiest thing to do would be to convert the trailer but there may be certain lights and functions required in Europe that are not required in the U.S. I will try to cover both ways for you but there is no simple adapter for either method. To convert the vehicle, first you will...
  view full answer...
• Wiring US 4-Pole Trailer Connector to For Trailer with European 7-way
  I am not aware of the existence of an adapter, but one could be easily constructed. You will need to find a vehicle-side socket to receive the plug from your trailer. We do not carry them, so you will need to obtain one locally. You will also need a vehicle to vehicle taillight converter like part # 118158 and a trailer side 4-pole like part # 18004. You would then wire the converter as shown in the diagram I provided. Using this adapter will separate the turn signal back out so that...
  view full answer...
• Light Kit to Flat Tow a 2015 Ford F-150 Behind a Motor Home
  For your 2015 Ford F-150 you can use 4-diode kit # RM-154. This is a more permanent installation that does require tapping into the vehicle wiring. For a more temporary solution you could use a magnetic kit such as # C-ATL20A but you would need to also use tow light partners # TLP01 because of the aluminum used in the 2015 Ford F-150s.
  view full answer...
• European 7-Pin to US 4-Way Flat Trailer Wiring Adapter for a Land Rover Defender
  There is a specific adapter for Land Rovers that have that European 7-Way connector # 118710. One end plugs into the vehicle 7-Way and the other end has a connector for a 4-Way flat connector used on US trailers.
  view full answer...
• Adapter Availability for Converting European Trailer Wiring for Use with 4-Pole U.S. Connector
  We do offer a range of wiring adapters for U.S. standard trailer wiring to convert from, for example, 7-way to 4-way, 5-way or 6-way wiring. These various connector types are shown in the linked article on trailer wiring. However, European trailer wiring does not combine multiple functions on one wire like U.S. wiring. U.S. 4-pole trailer connectors combine stop and turn signals on one wire; the yellow wire carries stop and left turn; the green wire carries stop and right turn. Since...
  view full answer...
• Changing a US Style 7-Way Vehicle Connector to a European Style 7-Way Connector
  The European 7-Way does the same thing that the US 4-Way does. There isn't an adapter available because the European 7-Way has separate circuits for nearly every function on each side of the trailer. The US style 4 or 7-Way has combined brake lights and turn signals. What you will have to do is change over the US style 7-Way to a European one. You will need 1 European style vehicle side 7-Way and one special converter that separates the combined signals to separate ones. You will...
  view full answer...
• Will the Tow Ready 7 Round Pin Adapter Allow My Freightliner Pull My Utility Trailer With a 4-Way
  If the plug on your Freightliner is a traditional vehicle side 7-way round pin connector like the one in the picture provided, and it is pinned the same then the Tow Ready 7 way to 4-Flay adapter part # 118709 would work out great. If you use this connector then no additional diodes would be needed.
  view full answer...
• Splicing in a 7-Way Trailer Connector to Trailer Tail Light Kit # TL5RK
  The issue is that on the 7-Way you bought the wire colors and functions do not match the 4-Way in the light kit. On the 7-Way it has the following wire colors and functions: White is ground Red is left turn/brake lights and will connect to the yellow wire on the light kit Brown is right turn and brake and will connect to the green wire on the light kit Green is tail lights and will connect to the brown wire on the light kit Blue is for trailer brakes Black is for 12 volt power Yellow...
  view full answer...
• Can a European 7-Way Trailer Connector be Converted to a U.S. 4-Way
  You have 2 options. First you can convert the Ford Focus wiring harness, after installed, to match the trailer. Or you can convert the trailer connector to match the vehicle connector, once it is installed. The easiest thing to do would be to convert the trailer but there may be certain lights and functions required in Europe that are not required in the U.S. I will try to cover both ways for you but there is no simple adapter for either method. To convert the vehicle, first you will...
  view full answer...
• Can a European 7-Way Trailer Connector be Converted to a U.S. 4-Way
  No. The 7-Way end in the # 118709 adapter is made for the North American style of 7-Way round pins. A European 7-Way, see picture, has separate turn signals and brake lights and a circuit for fog lamps. The tail lights are also separate. You would need to fabricate a special adapter to get the 2 to work together. I would need to know which end has the European 7-Way, the vehicle or the trailer. It would also require a semi-permanent change to the connector on the vehicle or possibly...
  view full answer...
• 7-Way European Socket to US 4 Way Recommendation
  Bascially, there is no easy way to convert the European 7-Way to a US 4-Way. We do not carry any kind of adapter that you could use. You are left with 2 options. First, you would install a separate wiring harness which would be the easiest. Or, you could attempt to fabricate an adapter. You would need to use a converter, # RM-732. The red wire on the input side would attach to the brake light wire on the vehicle wiring. The white wire grounds to the frame. The yellow wire will attach...
  view full answer...
• Are Diodes Needed If Vehicle to Vehicle Tail Light Converter 118158 Is Used to Tow European Trailer
  You will not necessarily need diodes because the back feeding would only be slight and should not be enough to cause any problems. But if you wanted you can still use diodes, # RM-690, one on the right turn/brake and one on the left turn/brake circuits on harness 18252. Basically, they will go before the # 118158 harness on the green and yellow wires.
  view full answer...
• Best Location to Wire a Tail Light Isolating Diode System
  The diodes in the Roadmaster 6-diode wiring kit # 154-792-118158 will be installed after the converter # 118158 (included in the Roadmaster 6-diode wiring kit) when using this kit. The easiest place to install the diodes is right behind the tail light assemblies where the wiring is easily accessible. I included a couple helpful articles, video review and a picture for you to view.
  view full answer...
• Is a European 13-Way to US 4-Way Adapter Available
  Unfortunately we do not have an adapter to go from a European 13-way trailer connector to a U.S. style 4-way trailer connector. European trailers typically have separate brake light and turn signal circuits, but U.S. trailers use a combined wiring system that use one wire for the turn signals and brake lights. You could make an adapter using a universal 4-way flat tail light converter like part # 119130, but you would need to find a European trailer side 13-way connector that can be...
  view full answer...
• Converting a Trailer with 12 volt Lights to 24 volt Lights for Compatibility with a Euro Spec Truck
  I think your only real option would be to replace the trailer lights on your trailer with lights that are compatible with 24 volt systems since there isn't an adapter available that we offer that would work for converting your 24 volt system to work with a 12 volt lighting system. Right now, we have a few select 24 volt tail lights. We have # STL23R24B and # STL90R24B. For turn/marker lights we have # STL90A24B and # STL23A24B. And for reverse lights we have # BUL23C24B and # BUL90C24B.
  view full answer...
• Can a 12 Volt Battery on a Dump Trailer be Charged from a 7-Way Trailer Connector
  The 12 volt circuit on most 7-Way trailer connectors is fused at 30 amps/12 volts. At best it can provide a maintenance charge to a trailer mounted battery. But it cannot charge up a battery; at least not one that is the size of the battery used to operate functions on a dump trailer. Most vehicle alternators are not strong enough and the tow package wiring not large enough for enough amperage to get back to the battery. I recommend using an AC charger when you can to charge and recondition...
  view full answer...
• Using a Taillight Converter to Wire a 2008 Chevy Uplander for a European 7-Way Trailer Connector
  There are 2 ways you can tow the European trailer with a US 4-Way flat connector. You will either need to change the connector on the vehicle or change the connector on the trailer. Depending on which one you choose the converter # 118158 will either be on the vehicle side or the trailer side. No diodes are needed. 1). With your current setup, you will not need any diodes. The intended purpose of the diodes when used in conjunction with the taillight converter # 118158 is for a flat...
  view full answer...
• Flat Towing Wiring Options for 2014 Ford F-150 Platinum
  Strictly speaking, both you and your friend are correct. It just depends on which type of toad wiring harness is used. The link at right will show you all flat-towing wiring kits for the 2014 Ford F-150 Platinum. These include a custom-fit option from Hopkins, part # HM56000. This kit installs without cutting and splicing by plugging in to the F-150 tail lights and includes integrated diodes to prevent feedback. This operates as a combined lighting system.
  view full answer...
• Using Separate Brake Lights and Turn Signals on a European Trailer with US Chevy Silverado
  The issue is that trailers in the US use a combined lighting system where the brake lights and turn signals are on the same circuit. European trailers have a separate circuit for each function. The wiring harnesses for US spec vehicles will take the separate brake light and turn signals and combine them for use with a US trailer. If you plug in a European trailer then it would function like a US trailer. To fix this issue you can install a converter on the European trailer. Converter...
  view full answer...
• Trailer Wiring Harness Recommendation for a 2014 Volkswagen Golf TDI
  The wiring harness you would need for your 2014 Volkswagen Golf TDI would be the Tow Ready wiring harness part # 119190KIT. This is a universal install harness that will require you to tap into the turn signal wiring to install and will require you to run a wire up to the vehicle battery. I attached an install video and a help article that details how to find the best way to route the power wire up to the battery. To access the taillight wiring you will need to remove the interior...
  view full answer...
• Converter To Wire 4-Way Connector On 2009 Jeep Compass To 7-Way European Connector On Trailer
  We do not carry the vehicle-side plug for a European plug like you mentioned is on your motorcycle trailer. You will need to find one locally. You can use the tail light converter like part # 118158, and along with a 4-way harness like part # 18004, you can make an adapter that will work for you. I have attached a photo with all of the wires for input and output noted you can check out. Diodes will not be needed because the trailer will not backfeed through the system.
  view full answer...
• Lamp Out Light Comes On in 2014 Audi A6 When Trailer Is Connected and Trailer Lights Flash Quickly
  It sounds to me like you are experiencing the hyperflashing phenomenon that can occur with LED lights. In this case I recommend wiring in load resistors, like part # P230004A-2, to the left turn, right turn, and running light circuits of your trailer. My suggestion is to wire these in right behind your taillights. On the left hand side, one for the left turn wire and one for the running light wire. For the right side you would do the same, one for the right turn wire and one for the running...
  view full answer...
• Connecting Wires on Trailer Side 7-Way
  What you can do is simply use butt connectors. We have exactly what you need with the Bargman 7-Pole Round Connector w/ Hardware # 54-67-525. This is a 7-way trailer end connector that comes with butt connectors and will allow you to easily connect your wires. If you already have a 7-way you can just use butt connectors. For 12-10 gauge wire you can use # DW05745-5 and for 16-14 gauge wire you can use # DW05744-5.
  view full answer...
• 7-Way Round to 4-Way Flat Adapter Recommendation
  As long as the 7-way round you have on your trailer is wired so that the stop/turn circuits are on the same circuits the # 118709 would be perfect for what you are trying to do. If the 7-way you have is a Euro style that has separate taillight circuits then you would need to make an adapter, but I doubt this is this case. If your 7-way is wired like the diagram I attached you would be good to go.
  view full answer...
• Diode Wiring Kit Recommendation for 2014 Ford F-150 Towed by Motorhome
  I recommend Roadmaster Universal Hy-Power Diode Wiring Kit part # RM-154. This kit is a confirmed fit for your 2014 Ford F-150. It wires diodes into your existing F-150 wiring and will use the factory lights when towing. We have detailed instructions for you to review, see link, and a video installation of this kit also.
  view full answer...
