Tekonsha 7-Way, RV-Style Tester for Brake Controllers - LED Test Lights

Tekonsha 7-Way, RV-Style Tester for Brake Controllers - LED Test Lights

Item # 6562

lowest price pledge

Retail:$52.04

Our Price: $39.11

You Save: 25%
Wiring

Orders above $99 qualify for Free Shipping

Shipping Weight: 0.29 lbs

Quantity:
In Stock, Ships Today
Tekonsha Wiring - 6562
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

In Use/Installed

Customer Photos


  • Tools for Wiring
  • Testers
  • Tow Function Tester
  • Tekonsha
Use this tester to check the connection between your tow vehicle's 7-pole, blade-style connector and your brake controller. Tester emulates trailer to confirm connectivity. LED lights illuminate to show each function is working. Lowest Prices for the best wiring from Tekonsha. Tekonsha 7-Way, RV-Style Tester for Brake Controllers - LED Test Lights part number 6562 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (69)
  • Q & A (28)
  • Videos (2)
  • Photos
  • Why etrailer?

Tekonsha Wiring - 6562

Use this tester to check the connection between your tow vehicle's 7-pole, blade-style connector and your brake controller. Tester emulates trailer to confirm connectivity. LED lights illuminate to show each function is working.


Features:

  • 7-Way tester checks your brake controller's connection to your tow vehicle's 7-way connector
    • Simulates electric trailer brakes to confirm connectivity without hooking up your trailer
    • Also checks the functions of your 7-way connection
  • Built-in, red LED lights offer easy troubleshooting
    • LEDs illuminate to confirm each function is working
  • Compatible with Tekonsha and Draw-Tite aftermarket brake controllers
    • Also works with 2013 and older Ford OEM brake controllers
    • Compatible with some brake controllers from other manufacturers


Specs:

  • Function codes
    • LT: left turn
    • TL: tail lights
    • RT: right turn
    • 12V: 12-volt power feed
    • BK: brake controller output
    • BU: back-up/reverse
  • Limited 1-year warranty


6562 Tekonsha 7-Pole, Blade-Style Trailer Emulator for Brake Controllers






California residents: click here

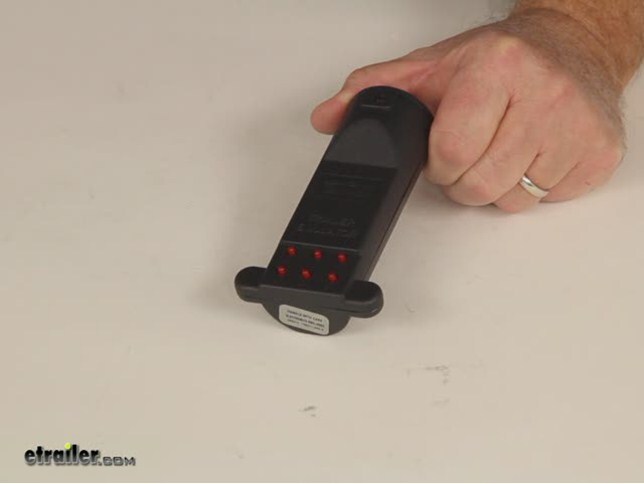

Video of Tekonsha 7-Way, RV-Style Tester for Brake Controllers - LED Test Lights

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Tekonsha 7 Way Trailer Emulator Connector Review

Today we're going to review a Tekonsha 7-Way Trailer Emulator Blade Style Connector, part number 6562. With this part number this is what you get: one nice handheld unit that basically copies all functions of a trailer. With this tool you can use it on any truck or RV with a 7-way connector and verify all the functions are working. Now you notice there is six LEDs here for your functions, and we have a 7-way connector. Number seven is actually for the ground. All right, let's go ahead and put it into our 7-pole connector.

Make sure it's firmly seated. Put the lid down, and you can see right off the bat it's picking up 12 volt signal. That tells us there's a constant 12 volt power supply from the battery coming out to the trailer. Now our truck also has a brake controller installed on it, and a lot of brake controllers will send a small pulse signal out to verify it's still connected to your trailer or not. With this LED set up, you can see that it actually pulses every now and then, and you can see the brake controller looking for a trailer. Now this emulator will work with a variety of after market brake controllers, basically almost all of them out there.

This will also work with most trucks that come with a factory installed brake controller as well. This emulator will actually emulate the trailer brakes as well, so when you take a look at your brake controller it will tell you that it's connected. I'll activate the brake controller, and we can see output on our emulator. As I operate the manual lever slowly back and forth, you can see the LED match the rate that I'm moving the lever. We put it in reverse and we can see that we have indication that the reverse light circuit is working. Put it back into park and as we do that you can see how the brake lights come on for our turn signals.

All right, let's go ahead and try the left turn signal. We get our indication there. Let's try our right signal. Now that works as well. All right, lets try the running lights.

This is labelled TM on our emulator, and you can see how it comes on. What this emulator . This is the perfect tool to keep in back of your vehicle if you tow multiple trailers. That way you can verify if your truck is working correctly or not, so you don't have to be chasing down problems on a trailer if you don't have to. That will finish it for our review of the Tekonsha 7-Way Trailer Emulator Blade Style Connector, part number 6562.


Customer Reviews

Tekonsha 7-Way, RV-Style Tester for Brake Controllers - LED Test Lights - 6562

Average Customer Rating:  4.8 out of 5 stars   (69 Customer Reviews)

Use this tester to check the connection between your tow vehicle's 7-pole, blade-style connector and your brake controller. Tester emulates trailer to confirm connectivity. LED lights illuminate to show each function is working.

- 6562
by:

Thanks 455048



- 6562
by:

Product is excellent! Have used it for around a year now without any problems! 246482


Comments

I havent had any problems with my Tekosha. It has worked without a hitch! No pun intended

James G - 04/25/2017

23311

- 6562
by:

Works for checking wiring 134989


Comments

Work as it should. Shipping was fast and the product was of good quality.

Greg - 06/10/2015

12439

- 6562
by:

Did exactly what it's suppose I tried a cheaper version of the "TowReady" and it will not test the brake controller. The Tekonsha "Emulator" will along with every other function on a 7-pin connector. With the 6562 installed, you can drive and watch the brake controller working. I dont know why Tekonsha didnt put a "lock" on the device to make sure it stays in for test-driving the vehicle with it installed. A minor issue. I highly recommend the 6562 for the ultimate in 7-pin testing with a brake controller installed. 2878



- 6562
by:

Disappointed that it does not check 12 volt for trailer battery without trailer connected. The whole reason to own this is to check all functions without trailer connected. 595306


Comments

The reason that the emulator doesnt read the 12-V output circuit is because the 2017 F-Series trucks are equipped with a smart trailer connector. The connector must sense the electrical load of a trailer before it activates.

-- Mike L - 01/07/2019

48314

- 6562
by:

Great product. Works as specified. But just proved I have an issue with my towing vehicle not the trailer!! 562982



- 6562
by:

Works as advertised, though not able to completely emulate a trailer for my 2015 Ford F-150 - the instructions have a clearly worded warning that this might occur. The labels on the LEDs are tiny black letters on a black body - kind of hard to see with so little contrast. Also, be mindful of the position of the LEDs and whether the lights will face up or down when plugged in to the tow vehicle. In my case, the lights are facing the ground, making it a bit more difficult to diagnose. That's a factor of how the factory installed the outlet in my truck and how Tekonsha built the Emulator. Perhaps there's a different 7-way emulator that would have had the lights on top when installed in my particular truck, but it's not a problem and the product works just fine. There's no changing anything - I just have to bend down to look upwards at the LEDs. All that said, it does what it needs to do and it's great to be able to check for proper operations before hooking up the trailer - and especially handy if there's a problem and a need for some troubleshooting. 426193



- 6562
by:

I bought the emulator because I plow and have a back up warning buzzer in the cab. Since I have a salt spreader on the back, the alarm goes off every time I put the 2013 f350 truck in reverse. Plugging in your trailer emulator tricked the system into believing there is really a trailer on the back of the truck. No more alrm!! exactly what I was looking for. 103311



- 6562
by:

Helpful in finding the issue I had. 563183



- 6562
by:

great little tester, I bought it to fix the messed up wiring job that the "mechanics" at "best Rv" in Turlock , Ca. did to my truck and brand new Rv, then said good to go and sent me on my way. coming over the grapevine south on I5 I noticed my brakes were coming on with my lights( turn signal and 4-way). totally messed up my truck. after purchasing this little tester I was able to repair their screw-up in no time. once I had the truck fixed I plugged in the trailer to the truck and repaired that mess. great little tool. I have used it a couple times helping out some other RVers also. works great every time. the only thing to be sure of is make sure you plug it in all the way (look for the power light.). 258445


Comments

Still working

gregg - 06/06/2017

24718

- 6562
by:

Never any problems with etrailer Reasonable prices large inventory. I don't bother to look at other retailers. 651064



- 6562
by:

No issues. Working perfectly 625381



- 6562
by:

Excellent product 615912



- 6562
by:

This product is THE tool to use for this type of trailer wiring diagnosis. Got the job done quickly and accurately. I used this to demonstrate diagnostics to my students. They know how to use this powerful tool as well. Thanks. 609362



- 6562
by:

awesome product thanks. 605136



- 6562
by:

Best price I found on-line. Product arrived on time and new as described. I would order from them again. 599299



- 6562
by:

Arrived on time in excellent condition and was as described. I used it to test my new installation of in bed RV Plug. Worked as described. 597194



- 6562
by:

Works great 589528



- 6562
by:

Device worked as advertised. I can test my trailer brake connection without having to connect the trailer (a 32 foot camper) itself. It helped me isolate an issue with the brake voltage regulator inside the truck and not the trailer itself. Well worth the money 570590



- 6562
by:

My trailer hitch caused the lights on the tester to be facing down when plugged in. This is really not an issue as the lights are bright. I use it to test my installation, worked great. 570497



- 6562
by:

Good diagnostic tool, good value from e trailer.com 561828



- 6562
by:

This worked as advertised. I have an Audi Q7 and wanted to check out the circuitry and pairing of my RF Tekonsha brake controller. The simulated load worked well, and the circuit checks (LED lighting) was good. Recommended. 559949



- 6562
by:

Excellent Product, worked as advertised, My 11 year old son was able to run all the test on his own, of course Dad doubled checked. 518735



- 6562
by:

Easy to check brakes and lights before you take off! 484027



- 6562
by:

Looks good but I have not tried it yet 457103



- 6562
by:

. 449400



- 6562
by:

Great device. It made installing the 7 way plug much easier, particularly since this plug was being installed on an older vehicle that was not prewired. I could easily verify that each connection was made, without having to use my multi-meter and probes each time. 447025



- 6562
by:

Great parts at a very reasonable price. The Product Expert was also extremely helpful in finding the right items for the job. 415295



- 6562
by:

A real time saver when trouble shooting. With trailer wiring problems in the field, it's often difficult to discern whether the fault is in the truck or the trailer. With this unit, half the time is saved in the first few minutes. Great product. 373213



- 6562
by:

Love this product. I do a lot of towing, and in my experience the 7 pin connectors are the most temperamental. Having a tester that you can quickly plug into the tow vehicle to verify all circuits are operating properly is invaluable. I am able to test the trailer electric brake circuits, as well the positive lead wire to boat trailers with disc surge brake systems which locks out the trailer brakes when reverse gear, It is a great safety check. A real time saver, Purchased this model for each of my tow vehicles, always in the glove box for a quick check before hitting the road. 367786



- 6562
by:

This emulator did not work with the brake controller on my 2014 Ram 2500. 363837



- 6562
by:

Easy to find on the web site, delivery was on time, product is exactly what I was wanting. 358000



- 6562
by:

This tester has allowed me to set up trailer brake controller prior to picking up our new to us used travel trailer. Since then, i have helped and tested several other peoples tow vehicles to work out wiring problems for towing trailers. It is a great tool and the brake control test circuit is worth the extra money. 357546



- 6562
by:

Worked exactly as expected. Buyers should understand that this not simply a signal tester, but a break emulator as well. In other words, it "pretends" to be a trailer with electric brakes: it allows the brake controller to apply braking voltage, presents a load to the controller, and sinks braking current so the controller believes a real set of brakes is present . I drove around for a bit with the emulator plugged in, and was able to see my controller (Tekonsha P-3) working. This will have a permanent home in the vehicle for future troubleshooting. 345876



- 6562
by:

Works great! 342206



- 6562
by:

Very handy to check the wiring / brake controller and know all is well on the tow vehicle. 334289



- 6562
by:

works great 324803



- 6562
by:

Works Great! 320462



- 6562
by:

Just what I needed to make sure all the terminals on my trucks 7 way plug worked without having to hookup up the camper. 315676



- 6562
by:

This worked as advertised checked it out on my truck everything is good to go. 295329



- 6562
by:

Helped to find a problem with the brake signal on my son's truck. 277084



- 6562
by:

Tried unit on my 2003 F150 to verify my 7 pin receiver and brake controller was still working OK. Will be using to test 2012 F150 and Chevy 2500HD this weekend. Very easy to use and read the LED lites. Will be a great troubleshooting tool in the future and expect it will be used by many friends and neighbors in the years to come' 213665



- 6562
by:

Easy to test installation of the recent (today) installation of my Tekonosha P2 213590



- 6562
by:

Excellent Product. Exactly as represented. Worked straight out of the box with bothering to read the instructions. 211448



- 6562
by:

I ordered a trailer emulator, to check my wiring for my 2014 F-250 ,that I tow my 5th wheel camper with. It arrived one day early and it works just as advertised. Thanks Chris S. P.S. I will order from etrailer again. 202538



- 6562
by:

This did the trick testing the newly wired vehicle side connector. It is great being able to test the vehicle side connector without the trailer being hooked up. 181464



- 6562
by:

This is a must have item! Great product, price and fast shipping!!! 180925



- 6562
by:

Wonderful tool! Get this one from ETrailer!!! FAST shipping!!!! 179130


Comments

Very good product, a must have for checking system!

Ranger - 03/16/2016

17128

- 6562
by:

Worked great for testing my new install of the 7 way adapter kit with Tekonsha Prodigy 2 controller. Even though I didn't hook up my camper this quickly told me that everything was functional and could sense the different wires were hooked up correctly. 175054



- 6562
by:

This was received in Etrailer's usual expeditious time line. The emulator blade is high quality and performed exactly as described by etrailer. The wiring for a 1999 Ford F350 with a Tekshona braking unit is difficult to follow and this makes it much easier to detect miswiring . Anyone who tows should have this in their bag. I originally bought from etrailer because of their helpful online website advice. However they provide excellent products and service. I have yet to be disappointed after several purchases. They are on my "favorites" list for both advice and their products and I use them without hesitation. 166645


51
70
Show More Reviews

Ask the Experts about this Tekonsha Wiring
Do you have a question about this Wiring?


  • Recommend Trailer Wiring Connectors To Test Functions Of 7-Way
  • It sounds like you are looking for the LED testers integrated into your wiring. If you want the trailer side 7-way with LED, I recommend the Hopkins 7-Way RV Style Trailer Connector w/ LED Test Lights - Trailer End # HM48503. This will let you know if power is being received from the tow vehicle for each function to make testing and troubleshooting easy. This is already integrated in the Hopkins 7-Way RV Style Connector w/ Molded Cable and LED Test Lights - Trailer End - 8' Long # HM20087....
    view full answer...

  • Troubleshooting Poor Trailer Brake Performance
  • I would first check all the grounds of the trailer and make sure they are making solid corrosion-free connections. The next thing to check would be the magnets in the brake assemblies. When these wear out can get poor brake performance. If the magnets show abnormal wear or if you can see the windings beginning to show through the friction surface of the magnet then they will need to be replaced. I attached an FAQ on troubleshooting brake magnets for you to check out. Another possible...
    view full answer...

  • Comparison of the Tekonsha 7-Way Trailer Emulator # 6562 and the Tow Ready 7 Way Tester TR20117
  • Yes, both the Tekonsha 7-Way Trailer Emulator, item # 6562, and the Tow Ready 7 Way Tester, item # TR20117, will test the function of the left turn and stop, right turn and stop, tail/marker lights, 12 volt power, electric brake, and the backup circuit in the 7-Way vehicle side connector. With both testers, the electric brake test will tell you that the circuit is supplying power for the trailer brakes at the plug, but will not check for actual, or correct, voltage. A multi-meter, item...
    view full answer...

  • BK Light on Tekonsha # 6562 Trailer Emulator Flashes When Plugged Into 7-way of 2008 Toyota 4Runner
  • To check the lighting functions of your trailer connector using the Tekonsha # 6562 Trailer Emulator, plug the unit into the 7-way and activate the lighting functions (right turn, left turn, brake lamp and running lights) one by one. As each function is activated, the corresponding LED on the tester should light. As for the BK lamp, I'm assuming you have a brake controller installed. Modern brake controllers send a pulse back to the trailer connector to determine if the trailer is plugged...
    view full answer...

  • Troubleshooting Tekonsha Brake Controller Installation that Shows Trailer Not Connected
  • You can test the brake circuit output at your truck's trailer socket by using your volt meter on the appropriate pin while you have a helper press the manual override. Press the controller's manual override with the power/boost settings at maximum. You should detect close to 12 volts on the truck's brake circuit. If you don't check the vehicle wiring for wear spots or cracks in the insulation that could be causing a short. You can also test the trailer brakes directly by bypassing the...
    view full answer...

  • Can the 7-Way Trailer Brake Emulator # 6562 be used with the 2010 Ford Integrated Brake Controller
  • I spoke with the electrical engineer at Tekonsha to find out if the Tekonsha 7-Way Trailer Emulator Blade Style Connector, item # 6562, will properly test the brake controller output from your Ford factory integrated brake controller. My concern was that this brake controller has a pressure switch that is activated by the master cylinder and that it may interfere somehow with the testers ability to properly read the output from the brake controller. I was informed that the tester will...
    view full answer...

  • Best Tool to Check Ford Integrated Brake Control System
  • When looking to check an integrated brake control system for correct operation, I recommend using a Tekonsha 7-Way Trailer Emulator Blade Style Connector, # 6562. This tool has simple function codes to let you know what is working or not working in your system. I've attached some videos of this tool for you.
    view full answer...

  • What Do the LED's of the Tekonsha 7-way Trailer Emulator Indicate
  • According to to my buddy at Tekonsha, the 7-way Trailer Emulator is compatible with the OEM brake controller used on Ford trucks, but NOT on Dodge or GM trucks. The LEDs indicate the following: LT-Left Turn/Brake Lamp TL-Tailllights RT-Right Turn/Brake Lamp 12V-12-V Accessory Power from Battery BK-Brake Output Voltage from Brake Controlller BU-Back-Up Lamps. The Emulator will work great with any vehicle equipped with many different aftermarket brake controllers.
    view full answer...

  • Prodigy Brake Controller Only Shows n.c Code after Charging the Vehicle Battery
  • There are certainly a few troubleshooting steps that we can try that will tell us where the issue lies. Changing or charging a vehicle battery with the brake controller connected can cause different and random issues. It could be possible that something in the brake controller was damaged during the charging process if the battery cables were still attached to the battery. The first step that we will want to take is to reset the brake controller. This is done by simply unplugging the...
    view full answer...

  • 2015 GMC 2500 Sierra Brake Controller and Install Harness Recommendation
  • Your 2015 GMC Sierra 2500 came pre-wired for a brake controller. All you would need is the correct install harness for the truck. If you went with a Tekonsha brake controller like our best selling P2 part # 90885 all you would need is the install harness part # 3016. For a brake controller I would recommend the Prodigy P2 Brake Controller part # 90885. This is our best selling brake controller because of how well it works and how easy it is to setup. This is a proportional brake controller...
    view full answer...

  • Troubleshooting Trailer Wiring when 2015 GMC Sierra DIC Message Says To Check Trailer Wiring
  • Based on my research and information from the 2015 GMC Sierra 2500's owner's manual, the "check trailer wiring" message means that either a trailer with electric brakes has disconnected from the Sierra, or there is a short in the wiring to the trailer's electric brakes. The owner's manual says that when this message appears, it means there is not longer power running to the trailer brakes. You will want to check the wiring on both the vehicle and trailer that leads to the trailer's...
    view full answer...

  • Would Trailer Emulator part # 6562 Help Troubleshoot Open Ground on P3 Brake Controller
  • You can use the emulator part # 6562 to help narrow down where the problem is. If the controller shows a normal brake controller connection when it is plugged in then you know the problem is on the trailer side. If the problem persists you know the problem is on the trailer side. The owner's manual for the Tekonsha Prodigy P3 states 4 possible causes of a "NO Trailer Connection!" warning: the trailer is not connected to the tow vehicle, the trailer is connected with an open circuit on...
    view full answer...

  • If Brake Controller Works with Emulator but But Does not Show Connection Will It Work
  • If your trailer emulator is reading that the controller is working with the brake pedal and the override lever it sounds like everything is fine. Normally an emulator would trick the controller into showing a trailer connection but yours may not be able to put enough of an amperage draw on the controller for it to read the connection. If the controller is working like you described you would be good though.
    view full answer...

  • Manual Override Not Activating Trailer Brakes from Tekonsha Prodigy P2 on 2012 Dodge Ram
  • It is very unusual for the brake controller to work with the brake pedal but not with the manual override lever. I recommend testing your wiring and brake controller with the Tekonsha 7-way Trailer Emulator Blade Style Connector # 6562. This emulator is designed to work with Tekonsha brake controllers, like the P2 # 90885, and simulates a load bearing trailer. With the emulator you will be able to confirm if you are getting brake power with the brake pedal but not with the manual lever....
    view full answer...

  • Troubleshooting Not Connected Display on Brake Controller
  • A display reading on your brake controller that shows n.c. which changes to . . means there is power to the brake controller, but the trailer is not connected to your vehicle. When your trailer is connected you should not be receiving this message. The first step that we will want to take is to reset the brake controller. This is done by simply unplugging the brake controller for about 20 seconds and then reconnecting the brake controller. If the brake controller continues to show...
    view full answer...

  • What Brake Controllers is Tekonsha 7-Way Trailer Emulator Blade # 6562 Compatible With
  • It's hard to say if the # 6562 will work with your factory Chevy brake controller. The only ones we can say for certain will work with this tester are the Tekonsha brake controllers and the integrated Ford controllers.
    view full answer...

  • Guide for How to Troubleshoot Trailer Brake Magnets
  • If you check out the link I attached to this page you'll see a help article on how to troubleshoot trailer brake magnets by testing them. There are options for testing them individually and still on the trailer.
    view full answer...

  • Will Tekonsha 7-Way Trailer Emulator Work on a 2010 Dodge Ram 2500 with Factory Brake Controller
  • Factory integrated brake controllers are sort of hit and miss in terms of compatibility with items such as the Tekonsha emulator, # 6562. It all depends on the power draw required to tell the integrated brake controller there is a trailer connected. However, there is a load resistor inside this unit that creates a power draw that simulates what actual trailer brake magnets draw, so it is very likely that it will work. You may need to turn the gain up on the factory brake controller if...
    view full answer...

  • Troubleshooting Trailer Brake Controller of 2014 Ram 2500 that Blows Fuses
  • The Tekonsha 7-Way, RV-Style Tester for Brake Controllers # 6562 doesn't always work with every brake controller we've found. There's a chance it may work on your truck but since I can't guarantee that it's hard for me to recommend this for you based on what you are looking for. If your OEM brake controller fuse keeps blowing when you connect a trailer to it and apply the brakes it's most likely the trailer having a short. This is commonly where the problem is and it's typically exposed...
    view full answer...

  • No Trailer Brake Signal on Factory 7-Way Using Prodigy P2 Brake Controller on 2003 F-250
  • Given the 11-year-old age of your vehicle (and presumably its 7-way factory-installed trailer connector) the issue you are having with no brake signal at the brake circuit pin on the 7-way could be a result of a corroded or damaged 7-way. You can use # HM40975 as a replacement for a factory 7-way. First I suggest you carefully inspect both sides of the F-250's 7-way looking for any signs of damaged wire, worn insulation or even slight greenish or whitish discoloration. Corrosion does...
    view full answer...

  • How to Complete 12 Volt Accessory Circuit of 2011 Acura MDX 7-Way
  • Sounds like the 12 volt accessory circuit of the 7-way on your 2011 Acura MDX is not ran. Is there wire ran to the back of the pin that carries this circuit? This will be the 1:00 position on the 7-way as you look at it from the front. Most likely you will need to run the wire for this circuit. You would need 10 gauge wire like part # 10-1-1 (sold by the foot) and a breaker part # 9510 to complete this circuit.
    view full answer...

  • Would the Tekonsha 7-Way Emulator Connector # 6562 Work on 2013 Ram Integrated Brake Controller
  • The Tekonsha 7-Way Trailer Emulator Blade Style Connector # 6562 that you referenced SHOULD work with the factory brake controller you have in your 2013 Ram 2500. However, we do know for a fact that this won't work on the 2009-2012 Dodge controllers Factory integrated brake controllers are sort of hit and miss in terms of compatibility with items such as the Tekonsha emulator, # 6562. It all depends on the power draw required to tell the integrated brake controller there is a trailer...
    view full answer...

  • Circuit Tester Recommendation thats Designed to Test 7-Way of Trailer
  • For a tester that allows you to test the 7-way of your truck all you'd need is the part # 6562 which plugs right in and will tell you which circuit is being activated.
    view full answer...

  • Can Trailer Wiring Function be Tested without Trailer Connected
  • You can definetely test the pins of your trailer connector for correct voltage without a trailer connected. If you check out the video I attached you can see how this is done with a similar 4-way connection. Another option you have would be an emulator tester like the part # 6562 which would plug right into your 7-way (if that's what you have) and with it's light displays for each circuit you'll know if all of the circuits are active.
    view full answer...

  • No Trailer Lights When Using Tow Vehicle 2014 Volkswagen Tiguan
  • The issue with a trailer connector tester like part # 6562 is that they do not always work on other brand's wiring harnesses. This can make it difficult to determine where the fault is in the wiring or if one is even present so we always recommend using a test light as these are much more precise. With that being said it sounds very likely that there is an issue on both your Tiguan and trailer. I would first start off by checking the fuse box on the vehicle for any blown fuses that relate...
    view full answer...

  • Installation of a Reverse lockout Circuit or Brake Controller on a 2000 GMC Sierra
  • I believe we can help. We will need to determine whether you have a trailer with surge brakes or with electric brakes. Surge brakes on trailers are not electrically activated, they are activated by the pressure created between the vehicle and trailer when the vehicle slows. Many times surge brake couplers have an electric lockout, so the trailer can be backed without applying the brakes. This electrical connection is spliced into the vehicles backup light circuit so the lockout is activated...
    view full answer...

  • Troubleshooting Dimly Lit Tail Light Circuits on a Tekonsha 7-Way Emulator with 2002 Toyota Tundra
  • If the Tekonsha 7-Way Trailer Emulator # 6562 that you referenced is picking up a small amount of voltage then that issue is coming from your 2002 Toyota Tundra and not the trailer. Some vehicles will have a small amount of voltage available on certain tail light circuits. If the tail lights of your trailer seem to work when connected to your vehicle then I would not let this bother you. If you are still concerned you could take a multimeter like our part # BTMT15 and test to see how...
    view full answer...

  • Could Draw Tite Emulator part # 6562 Test Function of Dodge Integrated Brake Controller
  • The Draw Tite Emulator part # 6562 that you referenced has been confirmed to work with Tekonsha and Draw-Tite aftermarket brake controllers and Ford OEM brake controllers. Other factory integrated brake controllers are sort of hit and miss in terms of compatibility with items such as the Tekonsha emulator, # 6562. It all depends on the power draw required to tell the integrated brake controller there is a trailer connected. However, there is a load resistor inside this unit that creates...
    view full answer...
