Hopkins Endurance Quick-Install 7-Way Trailer Connector with Universal Pigtail Harness - Vehicle End
(46 reviews)
Price: $33.39
Hopkins Endurance Quick-Install 7-Way Trailer Connector with Universal Pigtail Harness - Vehicle End
Item # HM47210
Retail:$37.25
Our Price: $33.39
You Save: 10%
Orders above $50 qualify for Free Shipping
In-stock alternatives that are ready to ship
- All Info
- Reviews (46)
- Q & A (61)
- Videos (3)
- Photos
- Why etrailer?
Hopkins Wiring - HM47210
- Trailer Connectors
- Vehicle End Connector
- 7 Round - Blade
- Plug and Lead
- Hopkins
This kit lets you add a Quick-Install 7-way, RV-style trailer connector to your vehicle. Included pigtail harness hardwires into your truck's existing wiring, and the 7-way connector plugs into the harness.
Features:
- 7-Blade, RV-style trailer connector for your vehicle
- Simple installation
- Pigtail harness hardwires into truck's existing wiring
- 7-Way connector plugs into harness
- Lid opens 180 degrees for easy connections
- Keeps out dirt and moisture
- Enhanced weatherproofing with internal seals and corrosion-resistant terminals
- Extremely durable ABS plastic construction and oversize lid hinge
- Mounting screws and dielectric grease packet included
- 3-Year limited warranty
47210 Hopkins Endurance Quick-Install 7-Way Trailer Connector with Universal Wiring Kit - Vehicle End
California residents: click here
Video of Hopkins Endurance Quick-Install 7-Way Trailer Connector with Universal Pigtail Harness - Vehicle End
Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.
Video Transcript for Hopkins Wiring - Trailer Connectors - HM47210 Review

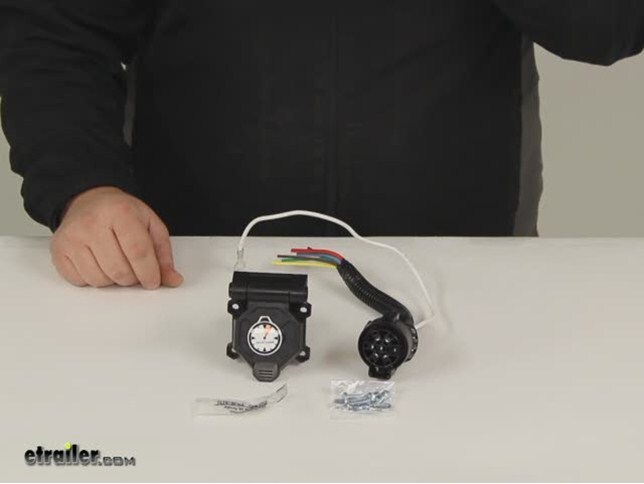

Today we'll be reviewing part number Hm47210. This is the Hopkins endurance quick qnstall 7-way trailer connector with a universal pigtail harness for the vehicle end. The 7-blade, RV-style trailer connector for your vehicle is a pretty simple install. The pigtail harness just simply hardwires into the truck's existing wiring, and the 7-way connector flows directly into our harness. You just push them together after you've got them lined up right, until you hear them click into place. You do want to be sure that you match up your wires to the correct wires on your vehicle.
The white is going to be our ground wire. Yellow is going to be our left turn. Green is going to be our right turn. Brown is going to be our tail light. Red is going to be the auxiliary power lead.
Blue is going to be our electric break, and purple is going to be the back up or reverse light. The lid does open 180 degrees for easy connections. It's also going to help keep out dirt and moisture. This does have enhanced weather proofing with the internal seals and currosion-resistant terminals. It comes from a durable, AVS plastic with an over-sized lid hinge. The mounting screws and the grease are included.
Our mounting screws are separated by an inch-and-a-half here on the side, and two-and-one-quarter inches here on the bottom. You're going to have a mounting of one-and-a-half-inch by two-and-a-quarter-inch. That's going to complete today's review of part number Hm47210, the Hopkins Endurance quick install 7-way trailer connector. .
Customer Reviews
Hopkins Endurance Quick-Install 7-Way Trailer Connector with Universal Pigtail Harness - Vehicle End - HM47210
Average Customer Rating: 4.9 out of 5 stars (46 Customer Reviews)
This kit lets you add a Quick-Install 7-way, RV-style trailer connector to your vehicle. Included pigtail harness hardwires into your truck's existing wiring, and the 7-way connector plugs into the harness.
- HM47210
by: Nathan C.09/20/2013
Overall, I was very impressed by this connector. I used it as an in-bed connector for my gooseneck trailers. The plug seems to be a quality product, engineered to stand up to some abuse. I like how the mounting bolt heads recess into the connector and also how the bottom of the connector is elongated to help support the weight of the plug and wiring. I think it has a great shot at lasting for a very long time. The hinge is predominately plastic that will not corrode and break like the many I've had in the past.
- HM47210
by: George08/11/2021
Good solid plastic lid. Very easy to install. Drilled 2 1/4 hole in bumper and used 1 1/4 self tapping screws to fasten it.
- HM47210
Jack G - 08/11/2018
by: Jack G.08/11/2017
Purchased Rv trailer socket for "in bed" installation in my Ram truck. Installation went smoothly and etrailer videos were most helpful in visualizing the install. Product works as described and ordering and delivery were on schedule. Thanks for the great service!
Comments
product is working fine-easy installation
Jack G - 08/11/2018
- HM47210
by: Edward10/23/2021
good product but shipping is slow
- HM47210
by: Dude s Garage01/08/2015
Although I have just installed this I believe it to be very good quality and it should last a long time based on my inspection of it. Be sure to order a mounting bracket if you don't already have one as this unit doesn't come with a bracket. Hopkins bracket part # is 48615. I like the fact that the harness plugs into the connector instead of having to strip and connect every wire into the connector individually. That should help inhibit corrosion which is the #1 cause of trailer electrical issues and it makes things much easier if I have to replace the connector later.
- HM47210
by: george12/23/2016
I had the loose wire pigtail already under my f250 sd. I clipped the factory sealant off the end of the wires on the truck, stripped em back and attached with heat seal butt connectors. You will need the blue and yellow connectors as the factory wires are different gauges. Etrailer has excellent how-to videos and detailed information about all their products it seems. It made buying and installing the right parts a breeze. They do the homework for you, their prices are better than most other online retailers and they ship fast. They earned my repeat business.
- HM47210
by: JIm G05/04/2017
This connector is just want I was looking for. It gives me a way to power my trailer via an external battery. I have attached battery clips to the leads. The construction is solid, and the documentation for each lead is excellent. For my cargo trailer, I use the lead for the running lights. For my travel trailer, I use the lead called accessories, I think.
- HM47210
by: Doug T.09/04/2013
Exactly what I needed for less than half the price a local dealer quoted for purchase ($44, not including installation! He also wouldn't sell me just the kit, for the kit with installation he wanted over $100!) Do it yourself and save a bundle - make a few simple wire connections and plug and go - etrailer.com makes it quick and easy! Shipping is prompt.
- HM47210
by: John K06/08/2018
The Hopkins Endurance Quick-Install 7-Way Trailer Connector with Universal Pigtail Harness - Vehicle End - HM47210 works well no problem with the installation. All fit the original bracket.
- HM47210
by: Jerry07/23/2018
The item with a good layout of color coding where to install was awesome. I installed and plug in to my boat trailer and tested ... everything works in correct light function. I will do business again with your company. Keep it up.
- HM47210
by: Kenny S10/29/2014
Quick and easy to install. Just splice wires( I use the shrink type connectors). No messing around trying to get wires under screws. And if the plug connector ever gets broke, all you have to replace is the connector. The wires are in a waterproof housing that unplugs from connector.
- HM47210
by: Mike Y08/18/2017
works just as intended. Install was easy, I did not use the included bracket because it would hang below the bumper. I mounted it inside the well on the bumper where you would put a bumper hitch. It is used only about once a month. I did have to run a brake controller wire because my truck was not equipped with it. 13 f150 xl
- HM47210
by: George02/26/2018
Product is great and easy to install. I only wish it would have come with the crimp connectors and heat shrink however that was my fault for selecting the wrong product.
- HM47210
by: Bobby09/09/2017
Well made product. Will need to purchase mounting hardware and splicing material. Wire colors matched standard chevrolet wire colors with the exception of the backup/reverse which is purple on the pigtail vice light green on my truck.
- HM47210
by: Charlie S08/25/2014
I have purchased from etrailer several times and the products have always been as described. They ship fast and the products are packaged well. I hit my wiring harness on a log and needed to replace it. etrailer was less money then the auto stores and I did not have to drive 28 miles into Durango and back. Gas prices make online purchases great. Thank You for being in business. Charlie S Vallicito, Colorado
- HM47210
by: Bobby S.04/03/2014
Work great. Just wish truck driver would quit moving the wires so that the plug pulls out and breaks the plastic. Easy to replace once the back plug is wired.
- HM47210
by: Steve M04/01/2020
I have always been happy with the items from etrailer and intend to continue buying their products
- HM47210
by: Dennis08/02/2018
This was just what I was looking for. I have a motorized trailer dolly that I wanted to add this item to in order to operate my electric boat winch rather than having to back the truck up to the trailer.
- HM47210
by: Daniel02/23/2018
Excellent Will definitely order again excellent customer service
- HM47210
by: Jim G04/23/2017
Works for me exactly as I hoped. A way to wire up a spare battery to run the lighting on the cargo trailer so as to not drain the truck battery.
- HM47210
by: Jeff09/06/2015
Great product! Seals up nice and if you ever have to replace the socket, just buy a new socket and plug it in.
- HM47210
by: Billy11/05/2019
with wiring harness installation was easy ...worked well
- HM47210
by: Douglas11/14/2020
Great exactly what I ordered
- HM47210
by: Brian06/17/2014
just installed and very happy with the quality, what a great value for the price
- HM47210
by: Tom06/16/2018
EXCELLENT SERVICE AND GOOD SHIPPING THANK YOU TOM
25
46
Show More Reviews
Ask the Experts about this Hopkins Wiring
- Can 7-Way Be Added to Freightliner Semi TruckWe can help with a basic 7-way and wiring but we do not have anything that's going to actuate ABS brakes. You can hardwire in a 7-Way, # HM47210 though. For this 7-Way the white wire is ground, yellow is left turn signal and brake lights, green is right turn signal and brake lights, brown is the tail light wire, red is auxiliary power, blue is output to electric brakes, and purple is reverse lights. If the turn signals and brake lights are not combined on the same circuits then instead...
view full answer... - Diagram of Functions on 7-Way PlugI made a diagram for you which shows the function a 7-way plug for both a vehicle-side plug like what you get with the Hopkins Endurance Quick-Install 7-Way Trailer Connector with Universal Pigtail Harness # HM47210 or Adapter 4 Pole to 7 Pole Vehicle End Trailer Connector # 30717, as well as a trailer-side plug like the 7-Way Molded Connector w/ 15' Cable - Trailer End # 50-67-103 or 7-Way Connector - Trailer End # 54-77-003. I have also added a link to a help article on trailer wiring...
view full answer...![Image 1 for]()
- Converting a Semi 7-Way Trailer Connector to an RV 7-Way Trailer ConnectorThere are a number of factors involved when converting a semi 7-way to an RV 7-way. Semis generally use a 7-pin round pin socket, similar to # PK11720. And RV style 7-way uses blades, like # PK12706. We do not offer any pre-made adapters to make this conversion that will carry all of the electrical functions required by the RV. Another thing to be aware of is fifth wheel trailers use a combined wiring system where the brake lights and turn signals are on circuit. Your semi connector...
view full answer...![Image 1 for]()
- How to Change Out 4-Way at Rear of Motorhome to Work with 7-Way on TrailerThank you for the pictures! What you may be able to do is install the Hopkins # HM47210 on your motorhome to replace your current 4-Way round connector. I'm guessing the 2 wires for your brake controller system are for 12V power and for the brake controller signal. If this is the case then you will need to connect the following functions on your motorhome wiring with the following wires from the Hopkins connector: White - Ground Yellow - Left Stop/Turn Green - Right Stop/Turn Brown...
view full answer...![Image 1 for]()
![Image 2 for]()
![Image 3 for]()
![Image 4 for]()
- Wiring Harness for 1999 Ford F-250 and F-350 Super DutyIf your 1999 F-250 Super Duty pickup had a factory 7-Way wiring harness and the, under vehicle connector has not been damaged you could use the Ford Replacement OEM Tow Package Wiring Harness, 7-Way (Super Duty), item # 118243, and if you had a factory 6-Way connector then you could use the Ford Replacement OEM Tow Package Wiring Harness, 6-Way (Super Duty), item # 20029, to replace your pigtail. If you would like to hard wire a new connector to the truck then you will need to use a...
view full answer... - How to Connect Auxiliary Battery to Popup Camper 7-Way for Off Grid CampingIf you were wanting to just plug in your current 7-Way on your popup to a 7-Way that is connected to your auxiliary battery then you could install the Hopkins # HM47210 on your trailer. Then you would need to ground the white wire to a clean, bare-metal surface on your trailer and run some 10 Gauge Wire # 10-1-1 from the Red wire on this connector to your battery. Even though this would work it wouldn't be as clean as just hardwiring your battery into the 12V Power circuit on your trailer....
view full answer...![Image 1 for]()
- 7-Way Wiring Harness for 2015 Ford F-150There is a simple solution for you, but there is no trick to getting the wires of the # 118283 back out since the wires are different gauges due to the brown wire being for the right turn/stop functions and the blue wire being for the trailer brakes. What you can do is cut off the 7-way on the # 118283 and replace it with 7-way connector # HM47210 that has a pigtail; you'll only need butt connectors # DW05745-5 and # DW05744-5 to connect your splices.
view full answer... - Compatibility of Hopkins 7-Way # HM47210 With # 41157 Gooseneck/Fifth Wheel Wiring HarnessIt sure would. The Pigtail of the # HM47210 unplugs from the pigtail, and the # 41157 would plug inline between the pigtail and the 7-way connector as shown in the photo I've edited for you. If you click the provided link, you can see the # 41157 being installed on a 2011 Ram truck.
view full answer...![Image 1 for]()
- Adding a 7-Way Trailer Connector to a 2015 Ford ExpeditionFirst check under your 2015 Ford Expedition for a round connector, perhaps in the vicinity of the frame rail or spare tire, that could plug into the round connector on 4- and 7-Way # C55774. If that connector is present under the vehicle then you just have to plug it into the 20119 and then mount the connector. If you do not have that connector but have a 4-Way then you will have to hardwire in the 7-Way and brake controller using # ETBC7.
view full answer... - Replacement 7-Way and Wiring Harness for 2012 Ford F-250The Hopkins Endurance Quick-Install 7-Way Trailer Connector with Universal Pigtail Harness # HM47210 would work well for you if you somehow damaged the wiring harness of your 2012 Ford F-250 and need a new connector with wiring and a new 7-way. I attached an install video for this kit on a similar Ford truck as yours as well.
view full answer... - How To Install a 7-Way Trailer Connector On a 1999 Dodge DakotaYes, assuming that plug you have found does indeed contain the trailer brake and battery charge circuits you can clip this off and then hardwire in a 7-way for which I recommend using the Hopkins Endurance Quick-Install 7-Way Trailer Connector with Universal Pigtail Harness part # HM47210. I can't tell you what color wires go where though so you will need to test this yourself. In order to complete your towing setup you will need a brake controller, the Draw-Tite I-Command Trailer Brake...
view full answer...![Image 1 for]()
- Wiring Connections for Hopkins Endurance on a 1997 Dodge Ram 2500According to my research the wiring for your 1997 Dodge Ram 2500 are for the following functions: Black/orange - Tail/Running Red/Tan - 12V Power Green/Red - Left Turn/Stop Brown/Pink - Right Turn/Stop Light Blue - Trailer Brake Purple/Black - Reverse Black - Ground This means that if you are installing the Hopkins Endurance Quick-Install # HM47210 you will want to connect the wiring from your Dodge Ram to the following wires on the Hopkins Endurance: Black/orange - Brown Red/Tan...
view full answer...![Image 1 for]()
- Which Trailer Connector is the Hopkins Endurance Trailer Connector # HM47210 Compatible WithThe 7-way trailer connector you mention, # HM47210, is compatible with a standard 7-way blade-type RV connector like part # A7WCB. See the photo I edited for you.
view full answer...![Image 1 for]()
- What are the Mounting Hole Dimensions for Hopkins Endurance Quick-Install 7-Way Trailer ConnectorI went out to the warehouse and pulled Hopkins 7-Way # HM47210 from the warehouse to measure it for you. From side to side the mounting holes are 2-1/4 inches apart on center. And from top to bottom they are 1-1/2 inches apart on center. I have included a picture and a video for you.
view full answer...![]()
![Image 1 for]()
- Can Hopkins 7-Way part # HM47210 be Installed on Trailer and Connect to Trailer BatteryYes, what you described is very common and would work well. The part # HM47210 that you referenced can have it's 12 volt power circuit wire ran to a trailer battery that is powering an electric tongue jack. People do this all the time and it works very well. Or if you wanted to use a pin on this connector as a different way to connect wiring to a battery that's possible as well.
view full answer...![Image 1 for]()
- Installing 7-Way Trailer Connector on 1999 Explorer w/ 12-Volt Power Circuit for Trailer BatteryTo install a 7-way trailer connector on your Explorer, you'd first need a functioning 4-pole. If you don't have a 4-pole, you can install one using part # 118345. At this point, you'll need to decide if you need the 7-way to provide the lighting and battery circuits only to the trailer, or if you need to install a brake controller on the Explorer as well. If you just need the lighting and battery feed circuit, you can use an adapter like part # 37185. The adapter would plug into your...
view full answer... - Gauge of Power Wire on the Hopkins Endurance Quick-Install 7-Way Trailer Connector The Hopkins Endurance Quick-Install 7-Way Trailer Connector with Universal Pigtail Harness - Vehicle End # HM47210 will have 10 gauge wire for the 12V, ground, and brake controller output wires. For your 12V power, I recommend using the # 10-1-1 wire along with circuit breaker # 9510 and Butt Connectors # DW05745-10.
view full answer... - European Round 7-way Plug to a Standard RV 7-WayA Euro 7-way does not have the same functions as the traditional 7-way, it is basically the equivalent to a traditional 4-way. In order to convert from a euro 7 to a US 7 way you will need to cut off your current one and hardwire a 7-way. You will also have to add wiring for the other functions. I recommend the Hopkins Endurance Quick-Install 7-Way Trailer Connector # HM47210 for the 7-way. In order to install it you need to these the wires that you currently have and connect them to the...
view full answer... - Troubleshooting Trailer Brakes that Lock Up When Blinker is AppliedSounds like you have a short between the brake output circuit on your trailer wiring and one of the stop/turn circuits which is causing the brakes to get the full 12 volts of braking power when the blinker is on. So what you'll want to do is go over the trailer wiring and vehicle's trailer wiring looking for any obvious signs of a short like exposed wire or corrosion and fix as needed between the two circuits. I also attached a help article on brake controller troubleshooting for you...
view full answer... - Wire Gauge Used on the Hopkins 7-Way part # HM47210 The white, red, and blue wires of the Hopkins 7-Way part # HM47210 are 12 gauge and the yellow, green and brown wires are 14 gauge.
view full answer... - Installing Vehicle Side Trailer Connector to Trailer Deep Cycle Battery to Power 12V Interior LightsThe Hopkins Endurance Quick-Install 7-Way Trailer Connector with Universal Pigtail Harness - Vehicle End # HM47210 can be connected directly to your trailer battery. You will run the Red wire to the positive terminal on your battery, but the white ground wire will connect to your trailer frame, just like the negative terminal of your battery does. You just want to make sure that connection to your frame is free of rust or corrosion for a bare metal to metal connection. That will give...
view full answer... - Replacing a 6-Way Trailer Connector in Truck Bed with a 7-WayYou sure can. I recommend using a 7-way with wire leads like part # HM47210. This way the wire connections are easier to make. Your 6-way is probably lacking the reverse light circuit which may not even be needed on your trailer. On the # HM47210 connector that's the purple wire. It connects to your truck's reverse lights or if you don't need it you don't need to make that connection. The other wires will work function for function from your 6-way to the 7-way. Just make sure to...
view full answer... - Solution for Connecting 5-Way Flat on Tow Vehicle to 7-Way on TrailerI do have a solution for you, however there is not currently an adapter available that will connect to the 5-Way on your Toyota Tacoma and provide a 7-Way on the other end to connect with your trailer. Your best option may simply be to cut off the 5-Way flat connector on your truck and connect the wires to a 7-Way like the Hopkins Endurance # HM47210. You will want to test the vehicle wires for function with a circuit tester like # PTW2993 and make sure you connect them to the appropriate...
view full answer...![Image 1 for]()
- Wire Gauges for Hopkins Endurance Trailer Connector with Universal Pigtail Harness # 47210I reached out to my tech contact at Hopkins and the wire gauges for the Hopkins Endurance 7-Way Trailer Connector with Universal Pigtail Harness # HM47210 are as follows: Red, Black, and Blue--14 gauge White--12 gauge Purple, Yellow, Green and Brown--18 gauge So for your heat shrink butt connectors you will want # DW05743-5, # DW05744-5, and # DW05745-5. This kit is compatible with the Hopkins Smart Hitch Backup Camera and Hitch Aligner System # HM50002 and is an easy installation....
view full answer... - 7 Pole Wiring Repair for 1991 Ford F-250 Diesel TruckThe # 118316 T-One connector is the correct replacement harness for the 1991 F-250 and should replace the 4 way connector on your pickup as long as no modifications have been made. If there is some other connection you could send me a picture or let me know what it is and where it is connected and I will try to help you out. If the T connector will work you can use the 4 pole to 7 pole adapter, part number # 37185, to complete the rewire of your 7-way connector. If you do not already...
view full answer... - Pigtail Length of Hopkins Endurance Quick-Install 7-Way Trailer ConnectorI journeyed out to the warehouse to measure the pigtail leads of the Hopkins Endurance Quick-Install 7-Way Trailer Connector with Universal Pigtail Harness # HM47210 for you and found that they were approximately 8-1/2 inches long, while the ground lead was approximately 15 inches long.
view full answer... - Recommended 7-Way Trailer Connector For 2003 Volvo XC90We do not offer any adapters that convert a Euro 7-way plug like you have on your Volvo to an RV-style plug needed for your trailer. The only solution I can recommend is to cut the Euro 7-way off of your vehicle and wire a new 7-way to your vehicle by function. You would need to use a circuit tester like part # 40376 to determine the functions of the wires by having someone run through the functions in the car while you test the wires with the 3808 to determine what each wire function...
view full answer...![Image 1 for]()
