Plug and LeadItem # H20044
Retail:$47.90
Our Price: $39.02
You Save: 19%Orders above $99 qualify for Free Shipping
Trailer Connector RV Style 7-Way Blade with 6' lead
| Wiring Code | ||
|---|---|---|
| Molded Connector | Function | Usual Trailer Wire |
| White Wire | Ground | White Wire |
| Red Wire | Left Turn and Brake | Yellow Wire |
| Brown Wire | Right Turn and Brake | Green Wire |
| Green Wire | Tail Lights | Brown Wire |
| Blue Wire | Brake Power | Blue Wire |
| Black Wire | 12 volt (hot lead) | Black Wire |
| Yellow Wire | Aux. | - |
Hopkins # 20044
California residents: click here

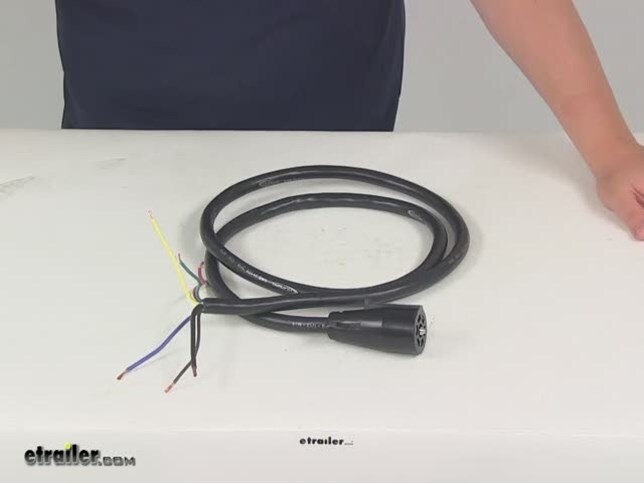

Video of 7-Way Molded Trailer Wire Connector, 6' Long
Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.
Today on our enclosed trailer we're going to be installing the Hopkins 7-way molded trailer wire connector, 6" long, part number H20044. Now to begin our install we'll go ahead and feed the wiring through the frame. Quick tech tip: to help feed the wire into place through the hole here in the body we're just going to go ahead and tape up our wires to help keep them together. Using some black electrical tape we're just going to go ahead and do a quick wrap-up of the wiring. Then we'll take the wire, feed it into place. Now we've moved to the inside. We need to find the 7-pole harness here inside the panel and pull it out when we have access to it.
There, now we have access to our y-pole wiring. We're going to add the Spectro trailer wiring junction box, part number 38656. Our junction box is going to get mounted to the wall so we can route the wiring into the junction box and make a nice clean connection point. I can go ahead and remove the electrical tape we put over our wiring. Now to mount the junction box I'm just going to use a couple self-tappers. To route into our box we can remove one of the plugs, install one of the grommets that has a pre-made hole in it, then put the grommet back into place.
You'll note that we left one wire out as it will get routed and directly connected to the break-away switch battery box. We'll go ahead and add our ring terminals here to our wiring. We'll go ahead and start making our connections with the junction box terminals. Note, they will not all match color for color. Here we have the blue wire that comes from our 7-pole harness, and it's going to go onto the blue terminal. It's also known as the hot lead for your trailer braking.
We'll take the black wire from the trailer side that runs back to the trailer braking and connect it to the same terminal. To secure it we'll use the star washer and nut provided. We'll just tighten it down hand tight this time. The next terminal over will say brown or running light circuit. For this one it will be our green wire and on the trailer side it will be our brown wire.
We'll move to the next terminal which will say green or right turn signal. For this one, coming from our 7-pole harness we'll have the brown wire, and from our trailer side it will be the green wire. The next terminal over will be left blank as it's not going to be hooked up. This would typically be for your yellow wire or reverse lights for a trailer. Since we're not using that in this application we're just going to dead-end the wire. Then we'll have the driver side turn signal. That will be the red wire from our harness and the red wire from our 7-pole connector. Then we're going to have the hot lead terminal. This is where you'll provide battery power coming from the vehicle to your trailer. That will be the black wire from our 7-pole connector and the black wire that will go to the interior lighting for the enclosed trailer. Then our final terminal here is going to be for the white or ground circuit. That will be the white wire coming from our 7-pole connector and the two white wires on our trailer side. Next we'll move to the outside of our trailer. We'll take the 7-pole wire that we brought it inside and we're going to secure it here to the trailer tongue using a Redline metal loom clamp, part number A0500. To secure the clamp we'll just use a self-tapping screw. There, now that we have it secured to hold it when we're not using it we'll just simply wrap it around the trailer jack. This will complete the install of the Hopkins 7-way molded trailer wiring connector, 6" long, part number H20044, on our enclosed trailer. .
