Price: $51.93

Curt 5th Wheel/Gooseneck Custom Wiring Harness w/ 7-Pole Connector - 7' Long

Item # C56070

lowest price pledge

Retail:$70.01

Our Price: $51.93

This item qualifies for Free Shipping

Select Ground or 3 Day Shipping for delivery before Christmas

Quantity:

In Stock
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

curt custom fit vehicle wiring 7 blade 5th wheel/gooseneck harness w/ 7-pole connector - 7' long
curt custom fit vehicle wiring fifth wheel and gooseneck 5th wheel/gooseneck harness w/ 7-pole connector - 7' long
curt custom fit vehicle wiring fifth wheel and gooseneck 7 blade c56070
curt custom fit vehicle wiring fifth wheel and gooseneck 5th wheel/gooseneck harness w/ 7-pole connector - 7' long
curt custom fit vehicle wiring fifth wheel and gooseneck
curt custom fit vehicle wiring 7 blade c56070
curt custom fit vehicle wiring fifth wheel and gooseneck 7 blade 5th wheel/gooseneck harness w/ 7-pole connector - 7' long
curt custom fit vehicle wiring fifth wheel and gooseneck

In Use/Installed

2016 gmc sierra 2500 custom fit vehicle wiring curt fifth wheel and gooseneck in use
2016 gmc sierra 2500 custom fit vehicle wiring curt fifth wheel and gooseneck 7 blade c56070
2016 gmc sierra 2500 custom fit vehicle wiring curt 7 blade c56070
2016 gmc sierra 2500 custom fit vehicle wiring curt 7 blade in use
2016 gmc sierra 2500 custom fit vehicle wiring curt fifth wheel and gooseneck 7 blade 5th wheel/gooseneck harness w/ 7-pole connector - 7' long

  • Custom Fit
  • Fifth Wheel and Gooseneck Wiring
  • Curt
  • 7 Blade
  • 7 Feet Long
Mount this 7-way, RV-style connector in your truck bed for quick, simple hookup of your 5th-wheel or gooseneck trailer. Custom harness plugs in-line with your existing factory wiring so that you can retain use of your vehicle's factory 7-pole. Call 800-298-8924 to order Curt custom fit vehicle wiring part number C56070 or order online at etrailer.com. Free expert support on all Curt products. Guaranteed Lowest Price and Fastest Shipping for Curt 5th Wheel/Gooseneck Custom Wiring Harness w/ 7-Pole Connector - 7' Long. Custom Fit Vehicle Wiring reviews from real customers.



Curt Custom Fit Vehicle Wiring - C56070

Mount this 7-way, RV-style connector in your truck bed for quick, simple hookup of your 5th-wheel or gooseneck trailer. Custom harness plugs in-line with your existing factory wiring so that you can retain use of your vehicle's factory 7-pole.


Features:

  • Provides 7-way, blade-style connector in your truck bed for hassle-free hookup of 5th-wheel and gooseneck trailers
    • Connector mounts in truck-bed sidewall, tailgate post or wheel well
  • Retains factory 7-pole trailer connector at rear of truck (if present)
  • Plugs into factory wiring - no cutting or splicing
    • 7' Long, insulated wiring harness reaches from rear bumper to truck bed
    • Requires that truck have factory tow package
  • Custom fit for your vehicle
  • Includes zip-ties and self-tapping screws for installation


Specs:

  • Harness length: 7'
  • Wire configuration:
    • Yellow: reverse lights
    • Green: tail lights
    • Brown: right turn and brake lights
    • Blue: electric brakes
    • Black: 12V battery charge
    • Red: left turn and brake lights
    • White: ground wire
  • Limited 1-year warranty


56070 CURT Fifth Wheel and Gooseneck OEM Extension Harness - 7-Way RV Blade Plug - 7' Long



C56070 Installation InstructionsInstallation Details C56070 Installation instructions

This Product Fits The Following Vehicles

2009 - 2014 Dodge Ram Pickup 1500 with factory 7-Way

2010 - 2014 Dodge Ram Pickup 2500 and 3500 Pickup with factory 7-Way

2001 - 2003 Ford F-150 Flareside or SuperCrew with factory 7-Way connector

2000 - 2000 Ford F-150 Flareside with factory 7-Way connector

1997 - 1999 Ford F-150 and F-250 Light Duty Flareside with factory 7-Way connector

2004 - 2004 Ford F-150 Heritage Series Flareside with factory 7-Way connector

2001 - 2003 Ford F-150 non-Flareside or non-SuperCrew with factory 7-Way connector

2000 - 2000 Ford F-150 non-Flareside with factory 7-Way connector

1997 - 1999 Ford F-150 and F-250 Light Duty non-Flareside with factory 7-Way connector

2004 - 2004 Ford F-150 Heritage Series non-Flareside with factory 7-Way connector

2010 - 2018 Ram 1500 with factory 7-Way

2010 - 2018 Ram 2500 with factory 7-Way

2010 - 2018 Ram 3500 with factory 7-Way

2004 - 2014 Ford F-150 with factory 7-Way

1999 - 2014 Ford F-250 and F-350 Super Duty with factory 7-Way

2015 - 2016 Ford F-250 Super Duty with factory 7-Way

2015 - 2016 Ford F-350 Super Duty with factory 7-Way

2008 - 2016 Ford F-450 Super Duty with factory 7-Way

1999 - 2013 GMC Sierra with factory 7-Way

2014 - 2018 GMC Sierra 1500 with factory 7-Way

2014 - 2018 GMC Sierra 2500 with factory 7-Way

2014 - 2018 GMC Sierra 3500 with factory 7-Way

2007 - 2007 GMC Sierra Classic with factory 7-Way

2007 - 2007 GMC Sierra New Body with factory 7-Way

1999 - 2013 Chevrolet Silverado with factory 7-Way

2014 - 2018 Chevrolet Silverado 1500 with factory 7-Way

2014 - 2018 Chevrolet Silverado 2500 with factory 7-Way

2014 - 2018 Chevrolet Silverado 3500 with factory 7-Way

2007 - 2007 Chevrolet Silverado Classic with factory 7-Way

2007 - 2007 Chevrolet Silverado New Body with factory 7-Way

See All Vehicle Fits

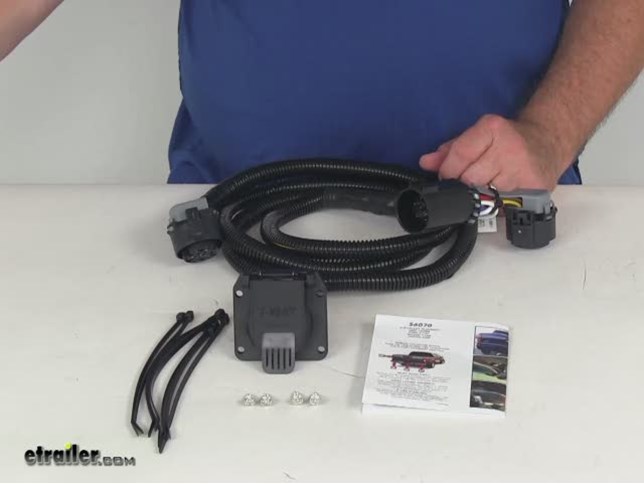

Video of Curt 5th Wheel/Gooseneck Custom Wiring Harness w/ 7-Pole Connector - 7' Long


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Curt Custom Fit Vehicle Wiring C56070 Review

Today we're going to review part number C56070. This is the Curt 7-foot-long gooseneck wiring harness with the 7-way connector. Now this is a custom-fit part. It is designed to fit many Chevrolet, GMC, Dodge, and Ford trucks with the factory 7-way connector starting in 1997. Because it fits so many vehicles, I would recommend to go to our website, use our fit guide, put in your year, model, vehicle, and it'll tell you if this will work for your application. This will provide a 7-way blade-style connector in your truck bed for hassle-free hookup of a fifth wheel or gooseneck trailer. The connector will mount in your truck bed side roll 00:00:39, tailgate post, or even in your wheel well.

Now, when you do hook up the harness, it will still retain the factory 7-way trailer connector that's at the rear of your truck if it is present. This will plug into your factory wiring, so there's no cutting or splicing. It's just a plug-in. Again, it's about a 7-foot long insulated wiring harness that'll reach from the rear bumper to your truck bed. Again I mention that it has the factory tow package to plug into. It is custom-fit for your vehicle and they do even include some cable ties.

If you have any length of wire you need to pull up from hanging down, you can use the cable ties. It comes with some self-tapping screws for installing the 7-way in your truck bed. It does also have a nice set of detailed instructions you can see here that'll tell you how to install it and even show pictures of installing it. When you go to install this what you'll do is go back to the back of your truck. Usually, if you have a 7-way on the vehicle, you'll go behind that and unplug the wiring harness from the back of the 7-way and then you'll take this T-connector, and this shorter connector right here will plug into the 7-way that's on your vehicle, and then you'll plug your wiring harness right into this longer connector right here. Since it's plugged in, it'll still allow you to use that 7-way at the rear of your truck, and then run this 7-foot length of wiring harness up to the truck bed.

Lots of times you can run it underneath and go up the side of the truck bed. Then, if you'll notice, the connector for the 7-way in the truck bed is a 90-degree angle, so it gives you some clearance there so you can put it in the truck bed. Then what you do is drill a hole for that to fit through and just push this in and it'll snap into place. Then use your mounting screws to mount this into the truck bed, and you'll have a 7-way that's easier to access when you're hauling a fifth wheel or a gooseneck. You can plug in right there instead of having to have a cord that would run all the way back to your bumper. That should do it for the review on part number C56070. This is the Curt 7-foot-long gooseneck wiring harness with the 7-way connector..
