5th Wheel/Gooseneck 90-Degree Wiring Harness w/ 7-Pole Plug - GM, Ford, Dodge, Toyota - 7' Long

Item # 54701-003

lowest price pledge

Retail:$129.47

Our Price: $93.96

This item qualifies for Free Shipping

Select Ground or 3 Day Shipping for delivery before Christmas

Quantity:

In Stock
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

  • Custom Fit
  • Fifth Wheel and Gooseneck Wiring
  • Bargman
  • 7 Blade
  • 7 Feet Long
T-Connector works with fifth-wheel and gooseneck trailers and retains use of your vehicle's factory 7-way connector. It connects your factory 7-pole at the bumper to a new 7-pole in the truck bed. Adapter has a 90-degree angle for tight spaces. Call 800-298-8924 to order Bargman custom fit vehicle wiring part number 54701-003 or order online at etrailer.com. Free expert support on all Bargman products. Guaranteed Lowest Price and Fastest Shipping for 5th Wheel/Gooseneck 90-Degree Wiring Harness w/ 7-Pole Plug - GM, Ford, Dodge, Toyota - 7' Long. Custom Fit Vehicle Wiring reviews from real customers.



Bargman Custom Fit Vehicle Wiring - 54701-003

T-Connector works with fifth-wheel and gooseneck trailers and retains use of your vehicle's factory 7-way connector. It connects your factory 7-pole at the bumper to a new 7-pole in the truck bed. Adapter has a 90-degree angle for tight spaces.


Features:

  • Enables hassle-free hookup of 5th-wheel and gooseneck trailers using 7-way, RV-style connector
    • 7' Long, insulated wiring harness easily reaches from rear bumper to truck bed
    • Adapter head is designed with 90-degree angle to fit into tight spaces in truck-bed side rails
      • Constructed of flame-retardant material
    • Molded-on cable protects the wiring from water and debris
  • Plugs between OEM wiring harness and your factory-installed 7-way connector
    • Requires that your vehicle have factory tow package with a 7-pole trailer connector
    • Retains use of factory 7-pole connector at the rear of your vehicle
  • Includes mounting bracket and self-tapping, stainless steel screws for installation


Specs:

  • Harness length: 7'
  • Wire configuration:
    • Yellow: center auxiliary
    • Green: tail and license lights
    • Brown: right turn and stop lights
    • Blue: electric brake
    • Black: battery charge
    • Red: left turn and stop lights
    • White: ground wire
  • Wire gauges:
    • Black/white: 10
    • Blue: 12
    • Brown/red/green/yellow: 14
  • 1-Year limited warranty


54701-003 5th Wheel/Gooseneck 90-Degree Wiring Harness w/ 7-Pole Plug - GM, Ford, Dodge, Toyota - 7' Long

54700-003



54701-003 Installation InstructionsInstallation Details 54701-003 Installation instructions

This Product Fits The Following Vehicles

2009 - 2014 Dodge Ram Pickup 1500 with factory 7-Way

2010 - 2014 Dodge Ram Pickup 2500 and 3500 Pickup with factory 7-Way

2001 - 2003 Ford F-150 Flareside or SuperCrew with factory 7-Way connector

2000 - 2000 Ford F-150 Flareside with factory 7-Way connector

1997 - 1999 Ford F-150 and F-250 Light Duty Flareside with factory 7-Way connector

2004 - 2004 Ford F-150 Heritage Series Flareside with factory 7-Way connector

2001 - 2003 Ford F-150 non-Flareside or non-SuperCrew with factory 7-Way connector

2000 - 2000 Ford F-150 non-Flareside with factory 7-Way connector

1997 - 1999 Ford F-150 and F-250 Light Duty non-Flareside with factory 7-Way connector

2004 - 2004 Ford F-150 Heritage Series non-Flareside with factory 7-Way connector

2010 - 2018 Ram 1500 with factory 7-Way

2010 - 2018 Ram 2500 with factory 7-Way

2010 - 2018 Ram 3500 with factory 7-Way

2004 - 2014 Ford F-150 with factory 7-Way

1999 - 2014 Ford F-250 and F-350 Super Duty with factory 7-Way

2015 - 2016 Ford F-250 Super Duty with factory 7-Way

2015 - 2015 Ford F-350 Super Duty with factory 7-Way

2008 - 2015 Ford F-450 Super Duty with factory 7-Way

2006 - 2008 Lincoln Mark LT with factory 7-Way

1999 - 2013 GMC Sierra with factory 7-Way

2014 - 2018 GMC Sierra 1500 with factory 7-Way

2014 - 2018 GMC Sierra 2500 with factory 7-Way

2014 - 2018 GMC Sierra 3500 with factory 7-Way

2007 - 2007 GMC Sierra Classic with factory 7-Way

2007 - 2007 GMC Sierra New Body with factory 7-Way

1999 - 2013 Chevrolet Silverado with factory 7-Way

2014 - 2018 Chevrolet Silverado 1500 with factory 7-Way

2014 - 2018 Chevrolet Silverado 2500 with factory 7-Way

2014 - 2018 Chevrolet Silverado 3500 with factory 7-Way

2007 - 2007 Chevrolet Silverado Classic with factory 7-Way

See All Vehicle Fits

Video of 5th Wheel/Gooseneck 90-Degree Wiring Harness w/ 7-Pole Plug - GM, Ford, Dodge, Toyota - 7' Long


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Bargman Custom Fit Vehicle Wiring 54701-003 Review

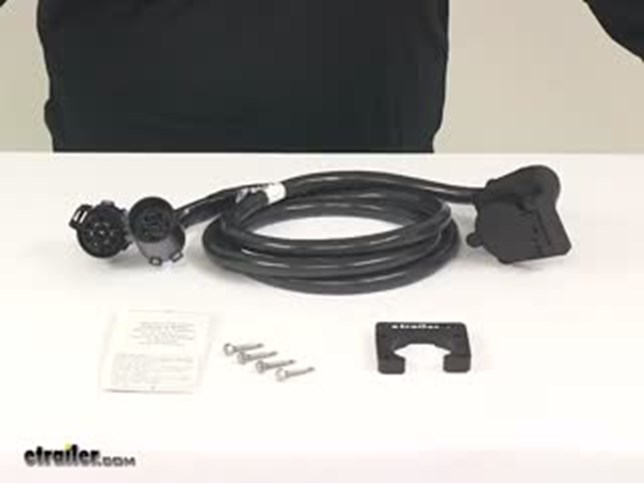

Today were reviewing part number 54701-003 from Bargman. This is a fifth wheeler gooseneck 90 wiring harness with a 7-pole plug. It fits Chevy, GMC, Dodge, Ford, Nissan, and Toyota trucks that have a factory tow package. Ill show you that in a moment. This is the seven-way that fits on the side of your truck bed, and it fits just like that. It does come with a cover to protect it from the elements.

You have the 90 angle that will allow it to fit neatly inside the truck bed on the side, and the only part of the seven-way that you actually will see inside the truck is the plug itself. You will not see the elbow or the cord. So if you have a fifth wheel or gooseneck with a seven-way thats too short to reach the bumper, you can use this basically it serves as an extension thats permanently mounted. It does come with the self-tapping screws that you need for installation and it also comes with printed instructions. If by any chance this is too close, this part is too close to your side of your truck, you can use the included spacer like that and you see that now makes it thicker so therefore its farther away from the side of your truck, and the other end connects, of course, to the seven-way at your bumper so you always are able to use your seven-way thats at the bumper because you have these connectors also.

This is made in the United States, and it does come with a one-year limited warranty, and there you have it for part number 54701-003 from Bargman. This is the fifth wheel gooseneck 90 wiring harness with seven-pole plug.
