Pro Series RB3 Weight Distribution System with Shank - Round Bar - 10,000 lbs GTW, 550 lbs TW

Pro Series RB3 Weight Distribution System with Shank - Round Bar - 10,000 lbs GTW, 550 lbs TW

Item # PS49581

lowest price pledge

Retail:$469.72

Our Price: $241.36

You Save: $228.36
Weight Distribution

This item qualifies for Free Shipping

Shipping Weight: 81 lbs

Quantity:
In Stock, Ships Today
PS49581 - Includes Shank Pro Series Weight Distribution
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Customer Photos


  • WD Only
  • 400 lbs
  • Pro Series
  • Fits 2 Inch Hitch
  • Includes Shank
  • Electric Brake Compatible
  • Standard
Enjoy a smoother, more controlled towing experience by distributing the load over the axles of both your tow vehicle and trailer. This weight-distribution system includes an adjustable welded shank and round spring bars. Hitch ball sold separately. Lowest Prices for the best weight distribution from Pro Series. Pro Series RB3 Weight Distribution System with Shank - Round Bar - 10,000 lbs GTW, 550 lbs TW part number PS49581 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (93)
  • Q & A (59)
  • Videos (2)
  • Photos
  • Why etrailer?

Pro Series Weight Distribution - PS49581

Enjoy a smoother, more controlled towing experience by distributing the load over the axles of both your tow vehicle and trailer. This weight-distribution system includes an adjustable welded shank and round spring bars. Hitch ball sold separately.


Features:

  • Evenly distributes weight over axles of tow vehicle and trailer for stability and control
    • Creates a more level ride for both tow vehicle and trailer
  • Round, tapered spring bars flex appropriately over uneven terrain for a controlled, even ride
  • Adjustable spring-bar tension - just switch links in lift chains to fine-tune
  • Desired tilt is achieved with traditional washer design
    • Add or remove washers from spacer rivet to tilt head up or down
  • Clamp-on brackets secure in place with clips
  • Welded steel shank offers adjustable height
  • Fabricated head is compatible with friction-style sway-control systems (sold separately)
  • Powder coated steel is durable and corrosion resistant
  • Snap-up lever eases installation by reducing lifting required by trailer jack
  • System includes head assembly, adjustable shank, spring bars, snap-up brackets, lift handle, pin and clip, and all necessary hardware
    • Hitch ball sold separately - requires 1-1/4" diameter shank


Specs:

  • Maximum tongue weight: 550 lbs
  • Maximum gross towing weight: 10,000 lbs
  • Application: 2" x 2" trailer hitch receivers rated for use with weight-distribution systems
  • Shank length: 12-1/2"
  • Maximum rise: 6-1/2" from top of hitch receiver opening
  • Maximum drop: 1-1/2" from top of hitch receiver opening
  • 10-Year limited warranty


Included w/ PS49581Required - Sold SeparatelyOptional Add-Ons
  • Adjustable Shank
  • System Head
  • Lift Brackets
  • Spring Bars
  • Hitch Ball w/ 1-1/4" Diameter Shank
  • Bar-Style Friction Sway Control

Weight Distributing Hitch

Create a stable ride for your tow vehicle and trailer with a weight-distribution hitch. Adding spring bars to your towing system applies leverage, which transfers the load that is pushing down on the rear of your vehicle to all the axles on both your tow vehicle and your trailer, resulting in an even distribution of weight throughout. The result is a smooth, level ride, as well as the ability to tow the maximum capacity of your hitch.



Selecting a Weight-Distribution System

The tongue weight rating is the most important factor in determining which size weight-distribution system you should use. If the bars of the system you choose are rated too high for your setup, they will create a rigid ride, which can result in a bouncing trailer. If, on the other hand, the bars are not rated high enough, the system will be unable to properly distribute the weight, rendering it virtually useless.


To determine the proper weight rating for a weight-distribution system, you must first determine your trailer's tongue weight. Then add to that the weight of the cargo behind the rear axle of your tow vehicle. These two measurements make up the tongue weight rating for a weight-distribution system.



49581 ProSeries Round Bar Weight Distribution Hitch with Hitch Bar



PS49581 Installation InstructionsInstallation Details PS49581 Installation instructions


California residents: click here

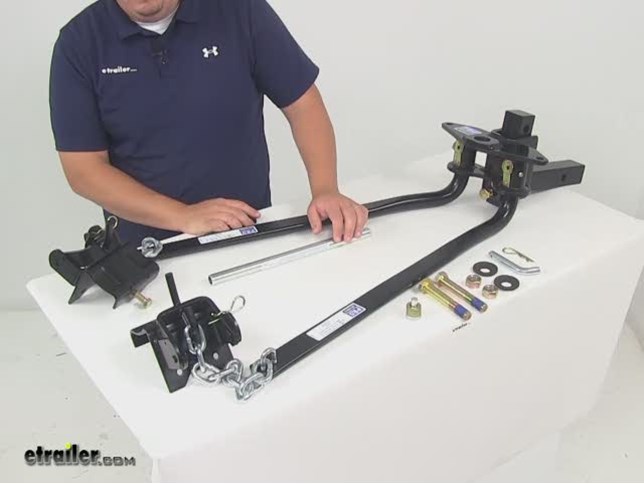

Video of Pro Series RB3 Weight Distribution System with Shank - Round Bar - 10,000 lbs GTW, 550 lbs TW


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Pro Series Weight Distribution - WD Only - PS49581 Review

Today we're going to be taking a look at part number PS49581. This is the Pro Series RB3 Weight Distribution System. The unit's going to help evenly distribute weight over the axles of your tow vehicle and trailer, offering stability and control. Ultimately, it's going to create a more level ride for both the tow vehicle and the trailer. This unit's going to feature your round, tapered spring bars, these are going to flex appropriately over uneven terrain for a nice, controlled, even ride. You can see right here how they slide into the head assembly, and then they're going to have these locking tabs to help hold them in place. Located on each end of the head assembly, right where those spring bars go in, we're going to have the Zerk fitting, that's going to allow for easy maintenance.

You can simply attach a grease gun to that an pump in the grease, that way you can lubricate that area. When it comes to the head assembly, you can easily tilt the head so you can get the desired angle that you need. It's going to use the traditional spacer rivet and washer design right here. It's going to come with all the washers you need, and a spacer rivet. That's going to go in this area right here, then there's a hole for the rivet to come through. Then you can add or remove washers from the spacer rivet to tilt the head up or down. It's also going to have a set screw down here, so once you have your hardware installed on the shank and the head assembly holding it on to the shank, you can tighten that down, and that's going to be your set screw.

That is included, it's already going to be installed in the head unit, that way all you have to do is tighten it or loosen it for your application. The head is a fabricated head that's going to be compatible with friction-style sway-control systems. Those systems are going to be sold separately. It's going to come with a welded steel shank. This is going to offer an adjustable height. It can be used in either rise or drop position.

Solid steel construction with a nice black powder coat finish on it, so it's going to last a long time. Now, I took a measurement of it earlier, and I measured from the very back to the very front. We'll just go ahead and do that measurement for you real quick. Very back to very front, that measurements going to measure about 12 inches. That measurement from the center of the adjustable holes here that our head's going to mount into, to the center of the pinhole, that's going to give us a measurement of about 7 3/4 of an inch. This part number does include the shank. Again, it's a nice, solid shank.

It's also going to come with all the mounting hardware that you need to get the head installed onto the shank. You're going to get your washers, you're going to get your bolts, and you're going to get your nuts for that. It also comes with your 5/8 inch hitch pin, as well as a clip. That way you can secure that shank inside of your 2 inch by 2 inch hitch. These right here are going to be our lift brackets. It does feature adjustable spring-bar tension simply by switching the links right here on the chains. That way you can fine-tune your system. It's also going to come with your snap-up lever. This is going to ease the installation by reducing the lifting that's required by the trailer jack. Now, the unit is going to be a complete steel construction. It's all going to have a nice black powder coat finish on it to resist rust and corrosion. It's got the nice powder coated steel. These right here are going to be positioned on the frame of our trailer. We're going to have our installation bolts right there. Then the lift brackets are going to be secured in place using the pin right here. Excuse me, the clip. While these are up, in place, you simply install that clip and that's going to hold that up. The system is going to include everything that you see here on the table. It does require a hitch ball that's going to be sold separately, and that's going to need to have an 1 1/4 inch diameter shank. Now on this unit, when it comes to the maximum tongue weight, we're looking at 500 pounds. The maximum gross towing weight is 10,000 pounds. The unit is designed for 2 inch by 2 inch trailer hitch receivers that are rated for use with a weight-distribution system. The lift brackets are going to take up about 5 inches along the trailer frame, and the area that goes around the trailer frame, that's going to give us and opening of about 3 inches. Now I did mention earlier that this unit can be used in either the drop or rise position. When it's installed in the rise position, the maximum rise we're going to have, with the head assembly installed at the highest setting, is going to be 6 1/2 inches. That's measuring from the inside top edge of the receiver tube of our hitch to the ball platform. If we use this in the drop position with the head assembly at the lowest setting, that's going to give us a maximum drop of 1 1/2 inches, measuring from the same point. Again, we've got the snap-up lever that's going to ease our installation. All the hardware is included, and this is a really nice, solid, dependable weight-distribution system. That's going to do it for our review of part number PS49581.


Customer Reviews

Pro Series RB3 Weight Distribution System with Shank - Round Bar - 10,000 lbs GTW, 550 lbs TW - PS49581

Average Customer Rating:  4.8 out of 5 stars   (93 Customer Reviews)

Enjoy a smoother, more controlled towing experience by distributing the load over the axles of both your tow vehicle and trailer. This weight-distribution system includes an adjustable welded shank and round spring bars. Hitch ball sold separately.

- PS49581
by:

Great quality product for the price. One third the price the camper dealer wanted for a similar hitch. Allowed me to level and control my vehicle while towing my trailer. 517287



- PS49581
by:

The purchase was quick, easy, and economical. The quality of the pro-series weight distribution hitch is impressive. I can't wait for the next camping trip to see how much better the towing experience is. 419842


Comments

I am happy with the pro Series weight distribution hitch. Bouncing has been reduced and the truck sits very level.

Paul A - 08/14/2018

42304

- PS49581
by:

The hitch works great. I'm not very mechanical but I was able to get the hitch put together with help from my brother. I've only used the hitch once so far but had no issues. Once it is all together it is very easy to use. 406433



- PS49581
by:

It is a great product and a good price 342674



- PS49581
by:

This system was used with a RAV4 and a 14 foot tow behind camper. I would give 5 stars regarding the system's intended performance for weight distribution. My one reservation related to the requirement to jack the tongue up so high in order to reach the desired chain link. With one less link we experienced times when the lower end of the arms/U bolts dragged when going over things like speed bumps. 312908



- PS49581
by:

The hitch was exactly as advertised and functioned very well. Used on a small travel trailer and it reduced the "tail wagging the dog" quite a bit. I would certainly recommend it. 309330



- PS49581
by:

Although I've mounted this hitch, I have not yet used it. I've been buying from etrailer for some time and I've never been disappointed. Products are first rate, service and shipping are exceptional, and I'm a happy camper.....8~) 297747



- PS49581
by:

this hitch is VERY heavy-duty! put it together yesterday, easy to do. Instructions are well-done and shipment arrived on time. I have yet to connect to trailer but as far as workmanship of product, it's top notch! 296055



- PS49581
by:

Hitch works better than I expected. It arrived on time and in perfect shape. If I had a complaint, it would be that the instructions are a little vague and the list of needed tools is wrong. I happen to have the experience and tools to interpret the instructions and install it correctly, but first timers should really have it professionally installed. It's a safety thing. 285660



- PS49581
by:

Works excellent with my Xtera to make towing my trailer and truck level. 273422



- PS49581
by:

Great product just was missing the 3/8 u bolts got the chains would love to have all the parts 264799



- PS49581
by:

Ordered the product Monday night, received it Thursday UPS to my door. Package was a little rough and need to put it together, but all in all a great transaction to this point. Thanks!! 239962



- PS49581
by:

I have a 2011 Dodge Nitro 4.0 liter compact SUV, which I am using to tow our Mighty Lite travel trailer. I needed a good weight dist. hitch to accomplish handling the 3850 GVWR of the trailer. This system brought up the towing capacity of our Nitro to 5000 lbs., and installs much easier than I expected! We had no sway problems during our 2 journeys with this system so far, even with the high winds we encounter up in the CA. high desert area where we live. My one complaint would be the heavy weight of the solid steel shank which will make you grunt when lugging it out from the shank, but since this hitch is rated up to 10,000 lbs. I guess that is to be expected! Otherwise, My I am VERY happy with the durability of this product, and the price was great. 228819


Comments

The hitch is doing great! Another nice thing about it are the grease fittings provided on the springbar sockets, allowing for quick lubrication of the springbars while hitch is installed. Great price for a great product!

Ernie B - 10/01/2016

21357

- PS49581
by:

product arrived soon and seemed to be just what I wanted. Thanks. Havent got to try it yet b/c of all the rain. 201774



- PS49581
by:

Better than expected. Well made. Easy to put together. 185898



- PS49581
by:

Very pleased with the product and the customer service. I would definitely use Etrailer again 185690



- PS49581
by:

Great item for price. 163111



- PS49581
by:

The Pro Series hitch arrived on time and the instructions made it easy to adjust and we were on the road in no time! Knowing the tongue weight made it simple to order the right size hitch. This is a well built hitch! Great price for a great product. 143929



- PS49582
by:

Review from a similar Pro Series RB3 in Weight Distribution


This is a very solid, well built product at a great price. I only need this hitch occasionally, so I really like that it is cost effective and does the job. 161567



- PS49583
by:

Review from a similar Pro Series RB3 in Weight Distribution


This is a replacement for one that we were using with mismatched bars. Towing with the new and balanced system install has made a Hugh difference especially at freeway speeds. 311270



- PS49583
by:

Review from a similar Pro Series RB3 in Weight Distribution


The hitch does a very good job of redistributing the hitch weight. I have an extended (12") shank so I can open my tailgate, and the hitch helps overcome this. The only problem is disconnecting the spring bars. The retaining pins for the spring bars have a very small flange to grip when pulling the pins to release the spring bars, and it can be hard to manipulate. Other than that, I am very satisfied with the hitch. 265515



- PS49583
by:

Review from a similar Pro Series RB3 in Weight Distribution


I've always received great service from eTrailer and this transaction was no different. Having owned 5th wheel trailers in the past I had no experience with weight distributing hitches. I had a sales rep from Hensley trying to convince me I needed their $1700 set up but I liked the price of the RB3, however the adage, "You get what you pay for" was nagging me. My wife was also nagging me about spending $1700 on a hitch and since I like sleeping indoors, I went with the RB3. Tow vehicle - 2000 Ford Expedition 4x4 Eddie Bauer. 5.4l and factory towing package. Rated for 6800lbs Trailer - 2014 Dutchman 275. 27.5' no slides, empty weight 4618lb, gross 7800lbs, average towing weight 6000lbs I contacted the eTrailer techs to figure out what I needed capacity wise and placed my order. Hitch was shipped promptly and to my surprise was very well packaged. The cardboard box was robust. It was taped, stapled and strapped well beyond UPS's ability to destroy. Inside the parts were secured in fitted foam pockets so the paint was not damaged. All the parts were well painted and fit together correctly. The RB3 is stout and well designed. My only brief scare was the owners manual. The part number on the manual indicated I had received the lighter duty hitch however when I double checked the part numbers on the components, I had received the correct product. The instructions were clear and I had the hitch assembled and set up in about 2 hrs. Hitching up is simple once all the settings are dialed in. We went on a 900 mile maiden voyage that involved freeways with brutal cross winds, very steep mountain passes and narrow winding forest service roads with huge washouts. The hitch performed perfectly and I was impressed how well the Expedition-Dutchman combo performed. I didn't order the optional anti-sway and one time on the trip for about 5 miles we had an extreme crosswind that pushed us around and I had to slow down to 40mph. I blame that more on my Load range C tires on the Expy than the trailer pushing us. In checking on the Expedition forums, the consensus was Load range E tires would fix the sway problem. 210210



- PS49583
by:

Review from a similar Pro Series RB3 in Weight Distribution


Can't speak highly enough of eTrailer.com's customer service. I had accidentally ordered the incorrect product spec for my setup (2015 F150 towing a 8.5x20 ATC toy hauler) and they were able to get me the correct product within the same week and provided an easy process for returning the incorrect hitch. Regarding the hitch itself, installation was a breeze, though I had to get a couple new tools due to the standard sizing of the nuts bolts, rather than metric. It would be very helpful if the instructions posted online would have a required tool listing with specific sizes required so you can be prepared ahead of time. After installing the hitch and taking initial measurements, it was very easy to fine-tune to get the setup perfect. Before installing the hitch, my truck would sit nearly 1.5 inches higher up front and 3 inches lower in the back with the trailer hooked up compared to stock, with very light steering feel when going down the road. With the hitch installed and dialed in, the front sits back at the stock height and only 1.75 inches lower in the rear, creating an essentially flat ride profile, and the trailer itself is perfectly level. Riding down the road the difference in feel is amazing. Much better steering response without the "light" feeling, tracks much more planted when going down the highway, and bumps and undulations in the road surface are absorbed much more smoothly now that both the truck and the trailer are sharing the workload. 322233


Comments

Thanks so much for your business and review, Ryan. The required tools for installation are listed in the upper left-hand corner of the instructions.

-- Laura E - 12/09/2016

22021

- PS49583
by:

Review from a similar Pro Series RB3 in Weight Distribution


Great WD hitch - Great price- Prompt Shipping. Instructions were easy to follow, worked perfectly the first time. Night and day Towing experience. 2003 Suburban towing 21' keystone Hideout 3750 lbs, with tw of 600lbs the truck has soft OEM spring set up, and sits low already. First added air shocks to get rid of the sag, but the addition of the WD hitch made all the difference, before WD had to run 140lbs of pressure just to maintain ride height, now I only run 40lbs in shocks now and she sits perfect, not to mention Steering is normal and all the jerky pushing and pulling is gone its nice and smooth now. 185252



- PS49583
by:

Review from a similar Pro Series RB3 in Weight Distribution


works like a champ 649128



- PS49583
by:

Review from a similar Pro Series RB3 in Weight Distribution


Always works, take the time to adjust h [email protected] 619970



- PS49583
by:

Review from a similar Pro Series RB3 in Weight Distribution


The system was relatively easy to install (read the instructions!). We have a Toyota Tundra which we use to tow a travel trailer. First used it with a 21 ft Micro Minnie (ca. 4,000 Lbs), and now we use it with a 27-ft Airstream, which weighs around 6000 Lbs. It makes a world of difference! The trailer tracks very well, and we have no need for additional sway control. Great investment! 564218



- PS49583
by:

Review from a similar Pro Series RB3 in Weight Distribution


Installation is so much easier than other brands. Has made it easier for me to decide to hook up and hit the road. No more back pains. 542039



- PS49583
by:

Review from a similar Pro Series RB3 in Weight Distribution


I recently installed a new trailer hitch on my 2002 Tundra Limited. I needed a receiver for the hitch as I intended to tow a 5000 lb boat and trailer combo. I was unsure of the drop needed for the trailer (which I had not yet seen) and felt the PS 49683 receiver was just the ticket! This setup is HEAVY DUTY! Proper height and drop setup is a breeze. Well made and should provide years of service. George from etrailer is excellent with his email communication and has kept me advised of the order status throughout the entire process from order to delivery. 541609



- PS49582
by:

Review from a similar Pro Series RB3 in Weight Distribution


We recently upgraded from a pop-up to a 24' travel trailer and this hitch will balance things out nicely. Shipping was quick. 509125



- PS49583
by:

Review from a similar Pro Series RB3 in Weight Distribution


Great product , easy to assemble with a little help. Everybody needs one if pulling an rv . 493435



- PS49582
by:

Review from a similar Pro Series RB3 in Weight Distribution


Everything is in good order and assembly was easy 488459



- PS49583
by:

Review from a similar Pro Series RB3 in Weight Distribution


This was what I wanted and more! 474903



- PS49583
by:

Review from a similar Pro Series RB3 in Weight Distribution


Easy to install and tow with 430436



- PS49583
by:

Review from a similar Pro Series RB3 in Weight Distribution


Hitch came a day early which was awesome. The package had been abused quite well, however I don't think it was e trailer but from the shipping company. Anyway everything was there in mint condition. Went together like a fine oiled machine with no issues. 422172



- PS49583
by:

Review from a similar Pro Series RB3 in Weight Distribution


Great product fast shipping excellent c ompany 414607



- PS49583
by:

Review from a similar Pro Series RB3 in Weight Distribution


This is my first experience with a weight distribution hitch. I was very impressed with the improvement in the ride while pulling my travel trailer. It greatly reduced the bounce and increased stability. I use this hitch with a friction "swag" bar that I had purchase previously. 408165



- PS49583
by:

Review from a similar Pro Series RB3 in Weight Distribution


So far so good, only complaint was a missing nut for the bolt to hold hitch on.....but I did get an extra cotter pin. Although I replaced these with the much friendlier snap pins. Now my camping adventure can continue in a safer fashion?? 378886



- PS49583
by:

Review from a similar Pro Series RB3 in Weight Distribution


Everything was packed very well and everything was right and everything was what I ordered 366172



- PS49582
by:

Review from a similar Pro Series RB3 in Weight Distribution


This product works perfect. 363032



- PS49583
by:

Review from a similar Pro Series RB3 in Weight Distribution


The order was quick and the delivery was faster that I expected. I have not used the unit yet but used similar in the past so don't expect any surprises. The price was best I found anywhere for the same unit and the service/delivery was top notch. I will look here 1st for any future products. Thanks etrailer. 353737



- PS49582
by:

Review from a similar Pro Series RB3 in Weight Distribution


worked really good for 22ft Traillite trailer behind 2001 Grand Cherokee. Went on a 4000 mile road trip and had no problems. Be sure to use grease on the ball and bars. sold it with the trailer but bought another for our new trailer. Yes I bought the same one again! 350838



- PS49583
by:

Review from a similar Pro Series RB3 in Weight Distribution


All that I ordered was excellent quality no problem with the order would definitely recommend buying their products 347726



- PS49583
by:

Review from a similar Pro Series RB3 in Weight Distribution


Just received product fast delivery .haven't had a chance to install the hitch. Will let u know at later date .how it works on my trailers. And send pictures thanks 342771



- PS49583
by:

Review from a similar Pro Series RB3 in Weight Distribution


The only problem I encountered on the installation of the head was getting the washers on the rivet. Fingers too big and area too small, plus having to take the thing apart several times to get what seemed to be the best position for the spring arms in relation to the trailer tongue. Will be making a two thousand mile trip beginning tomorrow, hope is all works as good as advertised. 324726



- PS49583
by:

Review from a similar Pro Series RB3 in Weight Distribution


I can say nothing but good about this hitch. It is easy to put together and mount. There are enough adjustments so that the trailer can run level regardless of the weight on the truck. 320487



- PS49582
by:

Review from a similar Pro Series RB3 in Weight Distribution


This system worked out pretty well for me. Initially, I had it installed and adjusted by the RV dealer. However when I changed vehicles, I was able to make the adjustments myself with the easy to follow video on this site. Having had an Equalizer before, I would probably buy this style again because I personally think it's easier to put on and remove. I 316915



- PS49583
by:

Review from a similar Pro Series RB3 in Weight Distribution


I am very happy with your products! 313027


Comments

They work great. Just like advertised!!!

David B - 11/02/2017

30458

- PS49582
by:

Review from a similar Pro Series RB3 in Weight Distribution


Everything arrived in a timely manner and as expected. It was great to be able to ask a question and confirm that I was getting exactly what I needed! 310827



- PS49583
by:

Review from a similar Pro Series RB3 in Weight Distribution


Shipped same day and had it 4 days later. Great product 295761


52
95
Show More Reviews

Ask the Experts about this Pro Series Weight Distribution
Do you have a question about this Weight Distribution?


  • Recommendation For Snap Up Replacement Brackets For Weight Distribution System
  • Snap up brackets are somewhat interchangeable within their family branding. For example, the current Replacement Lift Bracket, Item # RP21501, works with the Reese family of weight distribution systems which includes Reese, Draw-Tite, Hidden Hitch, or Pro Series. The difference between all the snap up brackets involves how heavy duty they are and what weight distribution systems they work with. The Curt Replacement Hook Up Brackets, Item # C17208, are designed for Curt weight distribution...
    view full answer...

  • Weight Distribution Recommendation for 2012 Honda Odyssey Towing 240 lb Tongue Weight
  • For your tongue weight of 240 lbs and your budget the best setup is the Pro Series RB3 part # PS49581. When it comes to cost efficient WD systems that work great the Pro Series line is the way to go. For a 2 inch ball you would want part # A-90 and for a 2-5/16 inch ball # 19286.
    view full answer...

  • Hitch and Weight Distribution Recommendation for 1998 Isuzu Amigo
  • For your 1998 Isuzu Amigo you'll first need a trailer hitch that is rated for weight distribution. For that the Curt part # C13235 is a great choice. Then you can use a weight distribution system like the Pro Series kit part # PS49581 which has a tongue weight range of up to 550 lbs. For a 2 inch ball you would want part # A-90 and for a 2-5/16 inch ball # 19286. For trailer wiring you'd then want the Hopkins kit part # HM43215.
    view full answer...

  • Can a Trailer with a Straight Tongue Use a Weight Distribution System
  • There is a way to use a weight distribution system like the part # PS49581 with a straight or pole tongue trailer like what you have. All you need is a pole tongue adapter like part # RP3280 for if your setup will have a tongue weight of lower than 750 lbs or part # RP58393 for if you will have a tongue weight of up to 1,400 lbs. The best way to pick out a weight distribution system is to base it off of the loaded tongue weight of the setup when it is loaded and ready to tow. This figure...
    view full answer...

  • Shank with More Drop for Pro Series Weight Distribution System # PS49581
  • The shank that comes with Pro Series weight distribution system # PS49581 has a drop of 1-1/2 inches so for a shank that has 2-1/2 inches of drop you can use # C17100. But you may want to go with something that offers more rise/drop options just in case you need it in the future. For that I recommend # 17120. For a round bar weight distribution system it offers up to 5-3/4 inches of drop and up to 9-1/4 inches of rise. Both shanks listed above are compatible with your weight distribution...
    view full answer...

  • Weight Distribution System Recommendation for a Trailer with 350 lbs of Tongue Weight
  • You want to pick out a weight distribution that has a tongue weight range that matches up well with the tongue weight of your trailer. Getting a system rated too high will result in an overly stiff ride, and if you go too low the system won't distribute any weight to the front axles. Right in the middle is ideal. For your 350 lbs of tongue weight the Reese Weight Distribution System # RP66540 would be ideal. This system has a tongue weight range of 200-600 lbs which would be ideal for...
    view full answer...

  • Can I Upgrade the Spring Bars On A Pro Series Weight Distribution System
  • It sounds like you have the Pro Series RB3 Weight Distribution System with Shank part # PS49581. If that is the case then we do have the correct upgraded spring bars for you, the Replacement Round Bars for Pro Series Weight Distribution System part # PS58441 therefore you don't have to replace your entire system. These spring bars are rated for up to 1,000 lbs of tongue weight so if you need the higher capacity for your new trailer then this will be your most cost effective option. Please...
    view full answer...

  • How to Mount Weight Distribution Spring Brackets on Tubular Trailer Frame
  • The trailer frame spring bar lift brackets in the Pro Series RB3 Weight Distribution System # PS49581 are clamp-on types designed to work with tubular trailer frames. The frame member does NOT have to be open to install the lift brackets. If you prefer bolt-on hangers Reese offers # RP58305 which bolt on to the sides of your trailer frame using included 3-1/2-inch bolts.
    view full answer...

  • Recommended Weight Distribution Hitch for a Ford F150 Towing a Jayco Jayflight Baja Trailer
  • To choose a weight distribution system you will need to go by the total tongue weight of the set up. This is calculated by taking the tongue weight of the trailer, when loaded and ready to tow, and adding to that the weight of anything loaded behind the rear axle of the tow vehicle. The Pro Series weight distribution hitch # PS49583 you referenced will be more of an overkill because the tongue weight won't be high enough on a 3,200 pound trailer. The two I recommend are the Pro Series...
    view full answer...

  • Do Pro Series Weight Distribution Systems Come without Shanks
  • The Pro Series weight distribution systems such as # PS49581 all include shanks. There are other systems that do not come with shanks such as Equal-I-Zer system # EQ37061ET. I have linked a video review that covers the features of the Equal-I-Zer systems for you.
    view full answer...

  • Trailer Hitch and Wiring Recommendations for a 2007 Dodge Nitro SXT
  • Weight distribution is a separate item. The Curt trailer hitch # 13334 has separate ratings when using a weight distribution system and when towing like normal (weight carrying). Your 2007 Dodge Nitro 3.7 liter with factory coolers installed is rated for 3,500 pounds gross trailer weight and 350 pounds tongue weight or 5,000/500 pounds when used with weight distribution (consult your owner's manual to confirm). If you are only towing the trailer one time for the move I say that weight...
    view full answer...

  • Are Air Bags Needed to Tow Trailer with Weight Distribution System
  • If you have a properly rated weight distribution system for your 7,300 pound RV, then adding air bags to your 2014 F-150 should not be necessary. While technically the two systems can be used together, I do not recommend it as often they can actually work against each other. The best solution for reducing rear end sag on the tow vehicle caused by towing a trailer is a weight distribution system. Installing an air bag system works best when the vehicle sag is caused by heavy loads carried...
    view full answer...

  • Pro Series RB3 Weight Distribution System Recommendation for Trailer with 393 lbs of Tongue Weight
  • If your loaded tongue weight is 393 lbs when you are ready to tow the RB3 part # PS49581 would be a great option as it has a tongue weight range up to 550 lbs. If you need more tongue weight range you would then want the part # PS49582 which goes up to 750. For a 2 inch ball you would want part # A-90 and for a 2-5/16 inch ball # 19286.
    view full answer...

  • Replacement Weight Distribution System Recommendation for Stolen Husky WD Components
  • Sorry to hear about your weight distribution system getting stolen. Due to the price of the individual parts you need (head, ball and shank) it is most likely going to be a better option to replace the entire system. We only have the one replacement Husky head # HT31516 and when you combine it's price with a new shank like # RP3215 you are at the price of some systems. Actually a Pro Series Round Bar system like part # PS49583 would cost almost as much as just one of the above mentioned...
    view full answer...

  • Choosing a Weight Distribution System for a 2014 Ford Explorer
  • The Pro Series RB3 Weight Distribution System with Shank part # PS49581 is an excellent weight distribution system. As long as your total tongue weight is under 550 lbs. and your trailer hitch is rated for use with a weight distribution system then it will work well for you. The Pro Series Friction Sway Control Kit part # 83660 can be used with this weight distribution system. In order to be sure you are choose the correct weight distribution system, you will want to find the total...
    view full answer...

  • Recommended Weight Distribution System for 2014 Toyota Tacoma Towing TrailManor 2720
  • The key to selecting the correct weight distribution/sway control (WD/SC) for your TrailManor 2720 is to load it up with all your usual gear and supplies and to measure its actual tongue weight (TW) in this road-ready condition. To this you need to add the weight of anything in the truck bed that sits behind the rear axle, such as a generator or loaded cooler. According to the TrailManor website the dry hitch weight for the different versions of the 2720 have a dry hitch weight of either...
    view full answer...


Do you have a question about this Weight Distribution?




  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality weight distribution for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate weight distribution information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Expert Research:
Michael L
Written by:
Lindsey S
Expert Research:
Michael H
Expert Research:
Jameson C
Video Edited:
Joshua S
Expert Research:
Adam R
Updated by:
Laura H
Video by:
Dustin K
Photos by:
Jim W
Installed by:
Cole B
Installed by:
Hayden R
Updated by:
Alexander C
Updated by:
Amanda M

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.
