Sway Command Electronic Sway Control System for Electric Trailer Brakes - 1 to 2 Axles

Sway Command Electronic Sway Control System for Electric Trailer Brakes - 1 to 2 Axles

Item # LC380605

lowest price pledge

Retail:$402.61

Our Price: $334.95

You Save: $67.66
Weight Distribution

This item qualifies for Free Shipping

Shipping Weight: 5 lbs

Quantity:
In Stock
Lippert Components Weight Distribution - LC380605
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images


  • Sway Control Only
  • Lippert Components
  • Reduces Sway
  • Electric Brake Compatible
Electronic sway control system helps correct sway in trailers with or without weight distribution. Monitors trailer movement and calculates most effective braking action to correct sway. Activates trailer brakes to counteract sway. Lowest Prices for the best weight distribution from Lippert Components. Sway Command Electronic Sway Control System for Electric Trailer Brakes - 1 to 2 Axles part number LC380605 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Q & A (2)
  • Videos (1)
  • Photos
  • Why etrailer?

Lippert Components Weight Distribution - LC380605

Electronic sway control system helps correct sway in trailers with or without weight distribution. Monitors trailer movement and calculates most effective braking action to correct sway. Activates trailer brakes to counteract sway.


Features:

  • Electronic sway control system limits side-to-side movement of trailer during towing
    • Unit corrects sway by activating your trailer's electric brakes
    • More effective than friction sway control systems by getting ahead of sway event
  • Solid-state gyroscope senses sway and activates all trailer brakes simultaneously
  • Accelerometer monitors speed and determines the brake force needed to correct sway at that speed
  • Light pod mounts on the front of the trailer and signals when the system is functioning properly
    • Solid green light illuminates when no issues are detected
    • Various green and red light patterns signal when a fault is detected
  • Molded construction is water resistant and durable to protect internal components
  • Self-calibrating design - no need to set up or continually adjust
  • One-time, maintenance-free installation
    • Module mounts 4' to 10' behind hitch ball, along trailer centerline - some drilling required
    • Main harness from unit wires to your trailer's junction box


Specs:

  • Application: trailers with 1 to 2 axles (2 to 4 brake assemblies)
    • Compatible with electric drum trailer brakes
  • 1-Year warranty


Note: Do not use Lippert Sway Command with 2014 or newer GM trucks and SUVs equipped with an integrated trailer brake control module (ITBCM).



380605 Lippert Components (LCI) Trailair Sway Command Sway Control System for Electric Drum Trailer Brakes - 1-2 Axles



LC380605 Installation InstructionsInstallation Details LC380605 Installation instructions

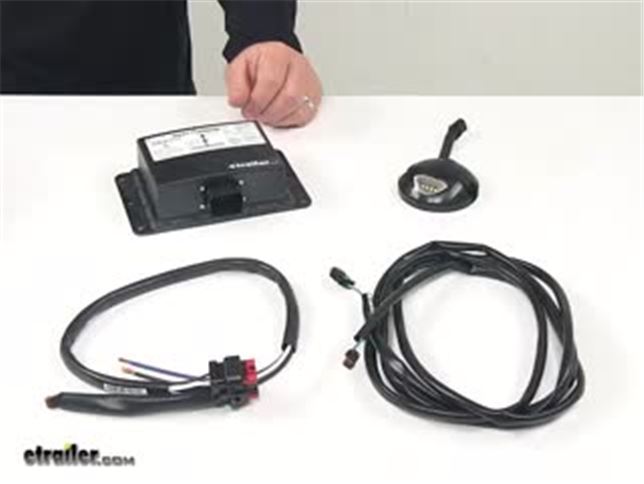

Video of Sway Command Electronic Sway Control System for Electric Trailer Brakes - 1 to 2 Axles


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Lippert Components Weight Distribution - Sway Control Only - LC380605 Review

Speaker 1: Today we're taking a look at the Sway Command Electronic Sway Control System. Now, this system is designed for trailers with one to two axles, which would two to four break assemblies, and it is compatible with electric drum trailer breaks.Now this is an electronic sway control system that, ultimately, is designed to limit side to side movement of your trailer when towing. So this unit corrects the sway by activating your trailer's electric breaks. It's more effective than friction sway control systems by correcting sway before it really begins- or before it becomes noticeable.The unit features a solid state gyroscope which senses sway and activates all the trailer breaks simultaneously, and it has an accelerometer that monitors the speed and determines the appropriate break force needed to correct sway at that speed. It also comes with a light pod that mounts no the front of your trailer and signals the system, um, is functioning properly.So what that does is that allows you to look in your rear view mirror and see the status of the sway control system. Solid green illuminates when no issues are detected, and then various green and red light patterns signal when a fault is detected.The unit features a nice molded construction.

It's water resistant and durable to protect the internal components. It features a self-calibrating design, so that way there's no need to set up or continually adjust. It just requires a one-time maintenance-free installation.This module mounts four to ten feet behind the hitch ball, along the trailer's center line, and then the main harness from the unit wires to your trailer's junction box. Very simple, straight forward design.Now when it comes to this box right here, a few measurements to go over with real quick. Edge to edge measures about six and five-eighths inches.

Going this direction, it's about four and seven sixteenths inches. And the overall thickness, or height, top to bottom, is about one and fourteen sixteenths of an inch to one and seven eights.The light pod has a diameter measurement of three inches and the mount holes on that are separated on center by two and five-eighths inches.The mount holes here on this unit: separated on center by about six inches side to side. There's three holes on each side and those are separated on center, pretty close to one and three quarter inches on center.Now please note: This is not to be used with a 2014 or newer GM truck, an SUV that's already equipped with an integrated trailer break control module.I do want to point out that installation hardware, all that's sold separately. But it does come with your main module. It comes with the light pod.

Has a multi-LED design, so it's gonna be extremely visible. And as you look through your rear-view mirror- and it comes with all the necessary wiring, with quick connect systems, so it's plug and play into the units.And the wires are protected with nice jackets. That way we don't have to worry about anything damaging or corroding or harming the wiring on this system.That's gonna do it for today's look at the Sway Command Electronic Sway Control System.

0
0

Ask the Experts about this Lippert Components Weight Distribution
Do you have a question about this Weight Distribution?


  • Electronic Trailer Sway Control System for 2009 Audi Q7
  • You are correct that some trailer hitches are not rated for use with a mechanical weight distribution/sway control system, including the Curt Class III model # C13136 that you referenced. Please note this hitch does NOT fit your 2009 Audi Q7; it fits the Q5 from 2009 through 2017. This exclusion from using WD will be due to either the hitch's vehicle-specific design or the ultimate strength of the vehicle frame. In some cases components on the vehicle will require a hitch design that...
    view full answer...

  • Weight Distribution and Sway Control Recommendation to Tow 4.5K Trailer with 2018 Chevy Colorado
  • Since your 2013 Ford F-150 was heavier than your 2018 Chevy Colorado Z71 it helped in giving you a better towing experience. The Reese Pro Series weight distribution (WD) system that uses the friction sway control bar, like part # PS49903, is an entry level WD system which is why you have such a drastic change in towing performance with the lighter pickup. I recommend swapping out your WD system with a higher-end option that has the sway control integrated into it. Not only is this...
    view full answer...
