Suspension Enhancement > 2008 > Honda > Odyssey

2008 Honda Odyssey Air Lift AirLift 1000 Air Helper Springs for Coil Springs - Rear

Air Lift Vehicle Suspension

(96 reviews)


Code:   AL60815

Retail:$128.72

Price:$88.62


Shipping Special

Shipping Weight: 2 pounds

Quantity:






2008 Honda Odyssey - Air Lift AirLift 1000 Air Helper Springs for Coil Springs - Rear

1,000-lb Capacity. Upgrade your Honda Odyssey's rear coil spring suspension with this kit. Molded polyurethane air springs fit inside your existing coil springs for added support when hauling heavy loads. Improves handling, braking, and overall ride.


Confirmed to fit your 2008 Honda Odyssey



Features:

  • Provides your Honda Odyssey with up to 1,000 lbs of load-leveling support, reducing strain on your rear suspension and improving both safety and ride quality
    • Designed to support your existing rear coil spring suspension when you're hauling or towing
  • Keeps your Honda Odyssey level when you are hauling a heavy load
    • Improves steering and braking performance
    • Helps to maintain safe headlight aim
    • Keeps your tires from wearing unevenly
  • Lets you manually adjust air pressure to get the even load distribution and support that you need
    • Level your Honda Odyssey front to rear
    • Inflate each spring independently for side-to-side leveling of off-center loads (with installation of dual air lines)
  • Reduces the strain on your OEM suspension caused by extremely heavy loads
  • Improves overall stability and ride quality
    • Diminishes sway and absorbs road shock for a smooth ride
  • Constructed of durable, molded polyurethane
  • Installs inside your Honda Odyssey's rear coil spring suspension
    • Manual inflation valves are typically mounted on bumper for easy access

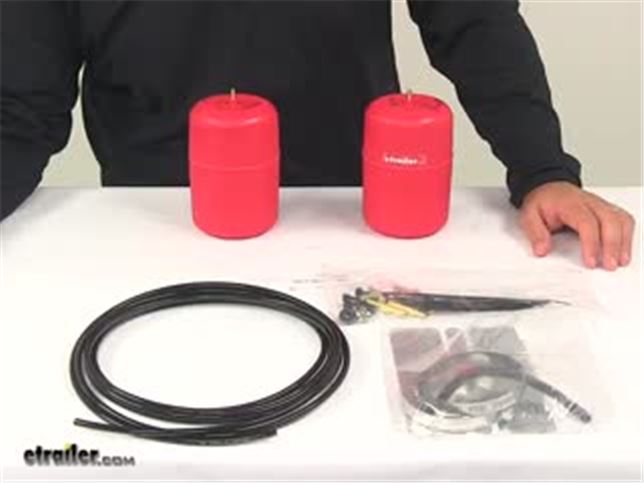

  • Includes 2 air springs, hardware, tubing, and Schrader valves for manual inflation
    • Add a compressor system with in-cab gauges (sold separately) to monitor and automatically adjust air pressure
  • Made in USA


Specs:

  • Load-leveling capacity: up to 1,000 lbs
    • AirLift 1000 springs will not increase your Honda Odyssey's weight-carrying capacity. Do not exceed the manufacturer's recommended weight limit.
  • Adjustable air pressure: 5 psi - 35 psi
  • Lifetime warranty
  • 60-Day satisfaction guarantee


Heavy loads can cause the back of your Honda Odyssey to sag and add unnecessary stress to your suspension. This stress not only affects your brakes in a bad way, but your tires, headlight aim and handling suffer as well. To improve your Honda Odyssey's ability to endure heavy loads, you need to add support to your existing coil springs.


Air Lift's AirLift 1000 adjustable air springs have 1,000 pounds of load-leveling capacity and are made specifically to fit inside your rear coil spring suspension for additional load assistance. You can inflate and deflate these tough, molded polyurethane helper springs as needed, ensuring the perfect amount of support for every load, every time. Easily level your Honda Odyssey front to rear, and if you run dual air lines to the air springs at installation, then you can inflate the springs independently of one another for side-to-side leveling. AirLift 1000 is a breeze to install with standard tools and comes with an easy-to-follow instruction manual.


AirLift 1000 comes with manual inflation valves that are typically mounted on the bumper but can be installed anywhere on your Honda Odyssey for easy access. For even more convenience and control, you can add a compressor and gauge system (sold separately), which will let you monitor and automatically inflate your air springs.


Air Lift kits are designed to keep your Honda Odyssey at normal ride height. You can find the normal ride height of your Honda Odyssey by unloading it and measuring the distance between the bottom edge of your wheel well and the center of the hub. After you find and record this distance, you can regulate the amount of air that you put into your air springs to maintain normal ride height - even when you are hauling a heavy load. You will need to adjust the air pressure in your air bags according to the size of your load.


Air Lift is positive that you will benefit from their air spring suspension system - so much so that they offer a 60-day satisfaction guarantee. Install and use AirLift 1000 springs for 60 days, and if you are not satisfied at the end of this time, you can remove them from your Honda Odyssey and return them for a full product refund.



60815 Air Lift 1000 Air Bag Suspension Support System for Coil Springs - Back



AL60815 Installation InstructionsInstallation Details AL60815 Installation instructions


Related Products



2008 Odyssey by Honda Owners Who Purchased this Vehicle Suspension Also Bought...



Replacement parts available for this product







Video of Air Lift AirLift 1000 Air Helper Springs for Coil Springs - Rear


Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.




Video Transcript for Air Lift AirLift 1000 Air Helper Springs Installation - 2014 Honda Odyssey

Today on this 2014 Honda Odyssey, we're going to review and install the Airlift 1000 Air Helper Spring for coil springs. Part number AL60815. As you see here, these springs actually reside inside the coil springs. Now, it does come with all the hardware, fitting, and airline needed to install. Here's our key right here that goes out to both airbags, and we go to the back of the van. We see one single valve right here that will allow you to insulate up both at the same time. Now lift capacity is going to be one thousand pounds for these air springs. We'll go ahead and show our stock measurement on our van first.

We'll measure from the ground to the top of the fender well. Our measurement will be about thirty and a quarter inches. Now we have some weight added to the back of our vehicle, using a cargo carrier, we'll go ahead and get our second measure. All right, now it looks like we've brought it down to about twenty-nine inches. Looks like on our new measurement, it looks like the van went down about an inch. We'll go ahead and take a test drive and watch how suspension works when it's loaded without any help from the air springs.

With the weight in the back of the van the coil springs are blocked down but also our handling just a little bit where you can feel the factor. Now with airbags in place, weight back in our vehicle, we inflated the bags up to a maximum of thirty-five pounds and we brought our ride height up to about twenty-nine and three-quarters so just a little bit shy of our original height but it sill should work out just find. Let's go ahead and take it for a test drive and see how it handles. Of course the weight is still back there and of course it's still not quite the ride height but it handles so much better when you have that installed on your van. Next we'll go ahead and show you how we installed it on our Odyssey. First off, you're going to need to be able to lift this vehicle up in the air so you can let the suspension hang down. Next, you want to go ahead and remove the wheel. We're going to be working with the driver's side.

Using the twenty-two millimeter socket, we'll go ahead and remove the lug nuts. Then we can go ahead and take off the wheel. Next up we need to go ahead and remove this bolt right here. Then this will allow us to lower this arm which is connected to this spring. Now you want to be careful when you do this. We're going to place a jack underneath here and use that to support it to take the bolt out and then we can lower in a controlled manner. Next we'll remove this bolt here using a seventeen millimeter socket.

Before I lower it down, I'm going to make a mark on my spring and this cup that the spring sits in and this arm. I'm just going to make a simple line so I know I have everything back in the right place when we put it back together. We use the jack to go ahead and lower it slowly. There's still a considerable amount of pressure on the springs so you really want to be careful when you do this. Once the pressure is release, we'll go ahead and move the jack out of the way. We have our spring loose. I'm going to push the arm down to give us room to remove the spring. We'll take this little ring out of the way too and we'll clean up the top of our arm here. Now this john stopper right here, we have to remove this part and this part. There's a bolt on the inside that we remove using a fourteen millimeter socket. Shallow socket with about a six inch extension works good. This is a pretty long bolt so it will take quite a few turns to remove it. Let's go ahead and clean up the top of the arm here because we're going to be putting a template on top of this because we have to drill a hole through the top for our airline tubing. All right this is a template that comes with the kit. I just basically cut out one of the pages in the instructions and covered it with some clear tape just to make it a little bit more durable because we have to use it on both sides. You can see the where the hole is already drilled out where it says hole location. We want this hole going towards the center of the vehicle. I'll put it on top, center it up, I'll use some more tape to hold it in place. All right now with the template in place I'm going to use a quarter inch drill bit. It does help to have a right angle drill for this and I'll drill out my pilot hole. I went ahead and removed my pattern. I'm going to enlarge the hole to three-quarters of an inch using the hole saw. Next I'm going to work with my airline tubing. What I'm going to do is on this one, I'm going to put it over the top of the frame of the rear suspension, pull it through and then I'm going to route it inside this arm here which is all hollow so I'm going to run this to the inside of the arm here and then route it down towards the inside. Now there's a hole at the bottom here, I'm going to fish it out, take up our slack, then I'm going to run it back up through the top of the hole we just drilled. Let's get our airline ready to put onto our air spring and we'll put this small clamp that comes with the kit over the line. Then I'll take this and put it into our air spring. This will slip over the barb fitting on the air spring, push into place. Once we have in place, we're going to take our clamp, using some pliers really helps, screws it open and then put it onto the fitting. All of this will sit inside the spring and then we'll put the spring back into place. We want to feed as much line as we can inside here and put our spring back into place. Definitely helps to have an extra set of hands if you can to kind of help line everything up, make sure we take up all our line, kind of help pull it into place, put our spring back in, make sure all our marks line up like they did originally. We want to make sure the fitting here goes through the hole and doesn't get caught up. You may want to put everything together and do a quick dry fit to make sure it's just the way you want it. All right, let's go ahead and use our jack to put our arm back up into place. Be careful, this is a lot of tension underneath here. At this point we can still double check to make sure the air bag is fitting correctly inside and it's not in a bind with the line. Then we go ahead and take our jack away and we can put the tire back on. All right, we're going to leave our driver's side along for now. We'll go ahead and repeat the same process over on our passenger side. It's going to be identical except for one little detail when it comes to the heat shield that goes onto the exhaust to protect the air spring. This is our heat shield material. Pretty simple to install. First up, we're going to go ahead and bend these two tabs up and make an angle like this so it will seat up against the exhaust like this. We'll use the provided c clamps to hold it in place. We'll angle it where it sits between the exhaust and the air springs. Loosen up our clamps, go ahead and get them started. We need a flat blade screwdriver or a five-sixteenths nut drivers for this. Slip the one tab in and go ahead and tighten it down. Tighten up just to hold it and then we'll go ahead and repeat the same process for the other side. Okay, when you have it where you want it, we'll go ahead and tighten it down for good. We'll go ahead and work from our location for our airline fittings to air them up. There's not much really to work with here but I'm going to make my own bracket. I'll be using part number 18140. This is a universal short bracket. We're going to put it just like this and use the provided clamp. Same five-sixteenths bit. Just tight enough to hold it in place for now in case we have to make some adjustments. Let's go ahead and mount our air valve to our bracket. Now this bracket has four holes already drilled out. I took one and I drilled it out to a five-sixteenths. To get my valve ready, one nut goes on here and then the star washer. Run the valve through and then we'll add a rubber washer, a flat washer and another nut. We'll run that down using a half-inch socket. Just use a socket and my hand will work. Go ahead and rotate just a little bit so it's a little easier to install our line. Now let's go ahead and work with our airlines. Now there's plenty of length of airline that we could run them both up to the front however a light duty application like on our van here, it's more commonplace to go ahead and keep the two together and use just one airline going up towards the value. Go ahead and cut our airlines to the length we want. There we go. Just like on our airbags, we have to install the clamps so we'll put them on the tubing first. Then we'll install our teeth. These can be a tight fit. May help to warm them up like with some hot water to help make them a little bit more flexible and slide them on the barbs. Once we have our hoses in place, we'll go ahead and slide the clamps on. Now we'll take our remaining airline and we'll go ahead and route it up to our air value. What we'll do is we'll come around the trunk pan here by the hitch and run it through our air valves. We'll leave a little bit extra in there in case we have to make some adjustments at a later date. One more clamp and we'll put on our air valve. We'll go ahead and put our bracket back where we want it. Any excess we can actually cut it off but that will leave a sharp edge so you might be able to just twist it up and fold it back. That way you won't have a sharp edge. Then we'll take a few moments to zip tie our airline tubing to keep it secure. At this point, we have everything installed. We can go ahead and take it off the lift and let it sit down on the ground. Let's go ahead and air them up and do our first test run. Then we'll air up the airbags, they do have a limit of up to thirty-five pounds of pressure. That will finish up the Airlift 100 Air Helper Spring. Part number AL60815 on this 2014 Honda Odyssey.
