FITS 2005 GMC Sierra

Price: $214.67

Timbren Front Suspension Enhancement System

Item # TGMFK25S

lowest price pledge

Retail:$252.55

Our Price: $214.67

Vehicle Suspension
Confirmed to Fit
2005 GMC Sierra

1500 HD

1500 LD

2500 HD

3500 - Cab and Chassis

3500 - Pickup

Will this fit?

To see if this custom-fit item will work for you please tell us what vehicle you'll use it with.

This item qualifies for Free Shipping

Shipping Weight: 2 lbs

Quantity:

TGMFK25S - Heavy Duty Timbren Front Axle Suspension Enhancement
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

TGMFK25S - Heavy Duty Timbren Front Axle Suspension Enhancement
Timbren Vehicle Suspension - TGMFK25S
Vehicle Suspension TGMFK25S - Heavy Duty - Timbren
TGMFK25S - Jounce-Style Springs Timbren Vehicle Suspension
Timbren Front Axle Suspension Enhancement - TGMFK25S
TGMFK25S - Heavy Duty Timbren Front Axle Suspension Enhancement
Timbren Front Axle Suspension Enhancement - TGMFK25S
TGMFK25S - Jounce-Style Springs Timbren Front Axle Suspension Enhancement
TGMFK25S - Heavy Duty Timbren Vehicle Suspension
Timbren Front Axle Suspension Enhancement - TGMFK25S
Timbren Front Axle Suspension Enhancement - TGMFK25S
Timbren Vehicle Suspension - TGMFK25S

Videos


  • Timbren
  • Jounce-Style Springs
  • Heavy Duty
  • Front Axle Suspension Enhancement
The best technical support and full vehicle suspension installation instructions. Lowest price Sierra vehicle suspension guarantee and expert service. GMC Sierra, 2005 vehicle suspension by Timbren are available from etrailer.com. For expert service call 800-298-8924 to order your Timbren Front Suspension Enhancement System part number TGMFK25S, or order online at etrailer.com.


  • All Info
  • Reviews (1449)
  • Q & A (28)
  • Videos (1)
  • Photos
  • Why etrailer?

2005 GMC Sierra - Timbren Front Suspension Enhancement System

14,000-lb Capacity. Great for trucks with plows, these front hollow rubber springs help to stabilize and level your GMC Sierra. They also provide a more comfortable ride by absorbing road shock and improving roll stability. Easy to install and use.


Features:

  • Improves suspension and handling
    • Prevents body roll with improved weight distribution
    • Stabilizes the GMC Sierra for better handling of heavy loads
  • Adjusts progressively to the road and the load so you always have a smooth, comfortable ride
    • Provides additional support as needed
      • Allows the spring ample movement while at the same time providing cushioning for light loads
      • Increases stability and great performance while cornering, swerving or hauling large loads
  • Takes the brunt of bumps and rough roads
    • Extends the life of your GMC Sierra's suspension
      • Designed to work with a suspension system that is in good working order
  • Requires no air hoses, compressors or manual adjustments


Specs:

  • Includes 2 Aeon hollow rubber springs, GMC Sierra-specific brackets and hardware for simple installation
    • Replaces axle bump stops on frame
    • No drilling required
  • Capacity: 14,000 lbs
    • Do not exceed the GMC Sierra's weight-carrying capacity
  • Designed to work with a suspension system that is in good working order
  • Limited lifetime warranty - satisfaction guarantee


Reduced axle sag with Timbren suspension enhancement

Just like the rear of your GMC Sierra will sag under the weight of a fully loaded bed, the front of your vehicle will sag when under the burden of heavy equipment such as a snowplow. In this case, the front axle is handling not only the weight of the equipment, but also more of the vehicle's weight. Overall GMC Sierra handling - traction, steering, and braking - is negatively affected. But the resistance from Timbren's Suspension Enhancement System works with your factory suspension to keep your vehicle level and improve your driving experience.


Install diagrams of Timbren hollow rubber springs

The Timbren system comes with custom-fit brackets that are bolted onto each frame rail above your front axle. Hollow rubber springs are bolted to the bottom of the bracket and hang down so that the bottom of each spring touches the axle. Because each spring is making constant contact with the axle, it is always working to cushion and support your factory suspension.


Animation of a standard Timbren rubber spring

Timbren Suspension Enhancement Systems are designed to work progressively. When the hollow rubber springs are compressed, the convoluted design causes them to quickly collapse along the folds. Once the folds are compacted, the stacked barrel shape increases resistance, stiffening the suspension and keeping your GMC Sierra level.


Timbren suspension system works to prevent body roll

Each hollow rubber spring works independently to support the driver's-side or passenger's-side of your GMC Sierra. This is helpful when you swerve or make sharp turns. Each spring is activated when it is needed, so body roll is greatly reduced. The independent action also works well when you're carrying off-center loads.

A snowplow mounted to the front of the truck will require extra suspension support for the front axle.

Timbren's Suspension Enhancement System will help raise the front end of your GMC Sierra when you're using heavy equipment like a snowplow. This ensures that your headlight beams will be pointed in the right direction and tire wear will be reduced. If the plow is off-center or has an extension, the springs will automatically compensate for this as well.

An empty truck on a bumpy road without Timbren

Another great feature of the rubber construction is that the springs absorb most of the road shock, creating a smoother, more stable ride overall. Wear and tear on the factory suspension is also lessened because the rubber springs work to prevent bottoming out on rough roads.


Timbren Suspension Enhancement Compared to the Competition

Timbren's Suspension Enhancement Systems are much easier to install than air springs - there are no air hoses to run, no compressors or gauges to hook up, and no manual adjustments to make. The rubber construction makes Timbren's springs more elastic than similar products constructed of microcellular urethane. More elasticity allows for a more comfortable ride because the rubber has more travel.



GMFK25S - Front Suspension Enhancement System with Aeon Hollow Rubber Springs by Timbren



TGMFK25S Installation InstructionsInstallation Details TGMFK25S Installation instructions

Video of Timbren Front Suspension Enhancement System


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Timbren Vehicle Suspension TGMFK25S Review

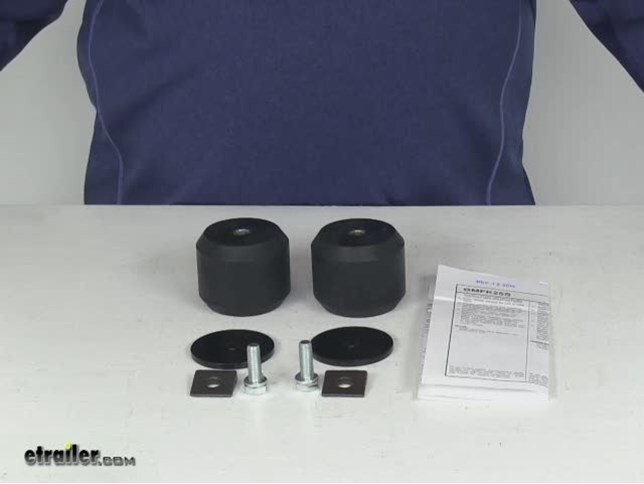

Today we're going to review part number TGMFK25S. This is the Timbren Front Suspension Enhancement System. This is a custom fit part number, this is designed to fit the Chevrolet and GMC vehicles starting in 1996. What I would recommend since there's many vehicles it will fit on, I would recommend to go to our website and on the Use Our Fit guide and put your year and model vehicle and that will show you if this part will work for your application. This kit will improve your suspension and handling, prevents body roll with improved weight distribution. It does stabilize the vehicle for better handling of heavy loads. It does adjust progressively to road and the load so you always have a smooth comfortable ride and it does provide additional support as needed.

It does allow the spring ample movement while at the same time providing cushioning for light loads. It does increase the stability and gives you great performance while cornering, swerving or hauling large loads. This does take the brunt of the bumps in the rough loads and it does extend the life of your vehicle's suspension. You do have to make sure, though, it is designed to work with a suspension system that is in good working order and this system does not require any air hoses, compressors or manual adjustments. This part includes everything shown here on the table. It includes these two Aeon hollow rubber springs. It includes these specific brackets and the hardware for simple installation.

When you do install these, it comes with a nice set of instructions that are pretty detailed. These will replace the axle bump stops on your frame, there's no drilling required. The capacity on these is 14,000 pounds but you do need to remember you do not exceed the vehicle's weight carrying capacity. Again, as I mentioned earlier, these are designed to work with a suspension system that is in good working order. This does come with a limited lifetime warranty. That should do it for the review of part number TGMFK25S.

These are the Timbren Front Suspension Enhancement System. .
