Suspension Enhancement > 2012 > Dodge > Ram Pickup

Air Lift Vehicle Suspension for the 2012 Ram Pickup by Dodge

Air Lift Vehicle Suspension

(16 reviews)

Code:   AL57295



Shipping Special

Shipping Weight: 24.91 pounds


Air Lift LoadLifter 5000 Air Helper Springs - Rear Axle - 2012 Ram Pickup by Dodge

Designed for the big boys - like 3/4-ton and 1-ton pickup trucks, motor homes, and commercial trucks - LoadLifter 5000 air springs provide high-quality, full-time load support. They level your Dodge Ram Pickup, improving braking and ride comfort.


  • Provides your Dodge Ram Pickup with up to 5,000 lbs of load-leveling support, reducing strain on your rear suspension and improving both safety and ride quality
    • Designed for heavy-duty applications such as 3/4-ton and 1-ton pickup trucks, motor homes, and commercial trucks
  • Keeps your Dodge Ram Pickup level when you are hauling a heavy load
    • Improves steering and braking performance
    • Helps to maintain safe headlight aim
    • Keeps your tires from wearing unevenly
  • Lets you manually adjust air pressure to get the even load distribution and support that you need
    • Level your Dodge Ram Pickup front to rear
    • Inflate each spring independently for side-to-side leveling of off-center loads
  • Reduces the strain on your OEM suspension caused by extremely heavy loads
  • Improves overall stability and ride quality
    • Diminishes sway and absorbs road shock for a smooth ride
  • Comes with Air Lift's exclusive upper and lower roll plates
    • Increases the load capacity of the air springs
    • Protects springs from damage, extending the life of your air spring suspension
  • Constructed of 2-ply, fabric-reinforced rubber
    • Endcaps are made of high-strength Zytel nylon, which is lighter, stronger, and more corrosion resistant than steel
  • Installs between your Dodge Ram Pickup's frame and its leaf springs
    • Manual inflation valves are typically mounted on bumper for easy access
  • Includes 2 air springs, mounting brackets, hardware, tubing and manual inflation valves
    • Add a compressor system with in-cab gauges (sold separately) to monitor and automatically adjust air pressure
  • Made in USA


  • Load-leveling capacity: up to 5,000 lbs
    • LoadLifter 5000 springs will not increase your Dodge Ram Pickup's weight-carrying capacity. Do not exceed the manufacturer's recommended weight limit.
  • Adjustable air pressure: 5 psi - 100 psi
  • Lifetime warranty
  • 60-Day satisfaction guarantee

Air Lift's LoadLifter 5000 was designed with an exact purpose: to provide full-time, first-class support to your 3/4- or 1-ton pickup, motor home, or commercial truck. With this kit, you get a safer ride and simultaneously protect your Dodge Ram Pickup from the strain that comes with hauling massive loads.

Carrying heavy cargo in your truck bed or trailer puts tremendous stress on your Dodge Ram Pickup. Your brakes erode faster, your tires wear unevenly, and handling suffers severely. When towing, you might also experience excessive sway, bottoming out, and even improper and unsafe headlight aim. Fortunately, there is a solution to these problems. By pairing your existing suspension with the LoadLifter 5000, you can seriously beef up your suspension, ensure equal load distribution, and give your Dodge Ram Pickup the support it desperately needs. Air Lift's LoadLifter 5000 provides up to 5,000 pounds of load-leveling capacity and distributes the weight of your payload to all four wheels. As a result, the stress on your OEM suspension is significantly reduced.

LoadLifter's air bags are adjustable from 5 to 100 psi for precise support, and they can be inflated independently of one another for front-to-rear and side-to-side leveling. They are made of high-quality, two-ply, fabric-reinforced rubber. Most air bags lose air at the ends, where the bag is enclosed with a steel cap, because the steel can rust and corrode over time, creating small holes. The endcaps on Air Lift air bags are fashioned from corrosion-proof Zytel nylon, a material that is both stronger and lighter than steel, ensuring that the air bags won't lose air. Also, LoadLifter 5000 comes with Air Lift's exclusive roll plates, which both protect your air springs and beef up the load capacity of the springs.

The system installs easily, with many kits requiring no drilling at all. Just install, inflate and ride. And using the system is easy too. To inflate the LoadLifter springs, you just have to pump air in through the inflation valves. A line kit is included with the springs so that you can install the valves (one for each spring) in an easily accessible area - typically they are installed on the bumper. If you want to make the springs even easier to use, you can get a compressor and gauge system (sold separately).

Air Lift kits are designed to keep your Dodge Ram Pickup at normal ride height. You can find the normal ride height of your Dodge Ram Pickup by unloading it and measuring the distance between the bottom edge of your wheel well and the center of the hub. After you find and record this distance, you can regulate the amount of air that you put into your air springs to maintain normal ride height - even when you are hauling a heavy load. You will need to adjust the air pressure in your air bags according to the size of your load.

Along with a lifetime warranty that has no mileage restrictions, Air Lift offers a 60-day satisfaction guarantee. Just install and use LoadLifter 5000 springs for 60 days, and if you are not satisfied at the end of this time, you can remove them from your Dodge Ram Pickup and return them for a full product refund. Now that's confidence.

57295 Airlift Load Lifter 5000 Air Bag Suspension Support System - Back Axle

Video of Air Lift LoadLifter 5000 Air Helper Springs - Rear Axle

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Video Transcript for Air Lift LoadLifter 5000 Air Helper Spings Installation - 2006 Dodge Ram Pickup

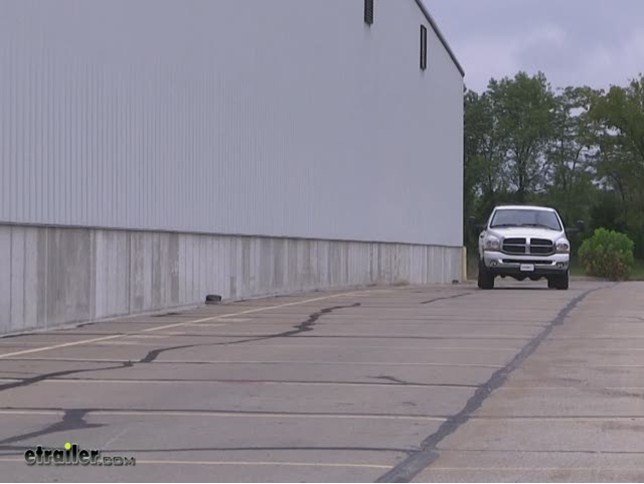

Today on our 2006 Dodge RAM pick-up 2500, we'll be installing the AIR LIFT, LoadLifter 5000 air helper spring, part#AL57295. To begin our install, we're first going to go ahead measure our suspension height with the vehicle unloaded and the manufacturer's current suspension system. From the wheel well edge down to the ground, we have 41-1/4 inches with no weight. We're going to go ahead and add approximately 2500 pounds to the bed of our pickup. With our weight in the bed, you can see it's caused the rear to sag and we've lowered the suspension about 3-1/4 inches, to 38 inches from the wheel well down to the ground. With this added weight, we're going to drive it through our test course. We'll go through the slalom course with the added weight. You'll notice the excessive body roll and there is also a lack of steering handling and feel with the added weight.

Next, we'll go over our uneven bumps to simulate potholes. You can see the excessive bounce and roll from the suspension. Then we'll go through our straight bumps to simulate a speed bump and again we have the excessive bounce. Let's go ahead, install the air helper springs. With air in our helper springs, we'll now go ahead and re-install our 2500 pounds. With the weight re-added and air in the air springs as necessary, it brings it back to our normal ride height.

We'll go ahead and run it through our test course again. Bringing the vehicle back up to ride height and helping control the weight, it brings back our steering stability and ride quality. Let's go ahead and show you how to install the air helper springs. First you need to remove the old manufacturer's jounce bumpers. The jounce bumpers are secured to a bracket welded to the bottom of the frame with two fasteners, one in the front, one in the back. To make it easier to remove the fasteners we're going to spray each one with a spray lubricant first.

Once we remove the bolts in the jounce bumper here on the driver's side, I'll move over to the passenger's side and repeat the same process. Now that we have the jounce bumpers off, we're going to move to our work station where we can go ahead and start assembling the air bag assembly. To assemble the air bag, we're going to take one of the roll plates, line-up the pre-drilled holes with the top of the air bag assembly. We'll then go ahead and install the 90 degree air fitting into the top of the air bag assembly. You'll notice that it has a pre-installed sealant on the thread. First we'll install it finger tight and then go an additional one and a half turns to tighten it down, being careful not to over-tighten it.

Next, we'll flip our air bag over, take a second role plate and set it into position. Now with the role plates and the air fitting installed, we'll go ahead and install one of our upper brackets directly to the air bag. As we install the upper bracket, we'll first need to identify it. Looking at the part number you'll notice it's #07256. That indicates one of the upper brackets and this particular one goes to the top of the air bag. There will be a second upper bracket part #07149 that will get attached to the jounce bumper plate on the frame. Similar but slightly different as the round holes are wider apart. Now we'll go ahead and line up the pre-drilled holes here and the upper air spring bracket and then secure them with the cap headed screws that will go through the bracket, through the role plate, and into the top of the air bag. First we'll install them finger tight then we'll go ahead and run them down. Next we're going to install the lower bracket onto the bottom of the air spring. As you look at the lower bracket, you'll notice the pre-drilled holes. We'll be using the holes that line up with the A side. Before we attach this to the bottom of the air spring, we'll want to put our carriage bolts into position, four of them, one for each corner of the bracket. Now we can go ahead and turn the air spring over and as we line up the holes we can attach the lower bracket. To secure the lower bracket we'll be using the bolt, split lock washer, and flat washer. Again we'll take our hardware and install it finger tight until we have them both in place and then we can run them down. We're now ready to install the upper bracket directly to the bump stop attacher points. We'll secure it with a 10 mm cap headed bolt. Using the round pre-drilled holes in the bracket that we pointed out earlier, we'll go ahead and thread the bolts directly into the weld nuts of the bracket. Once we have them installed finger tight, we'll go ahead and run them down to secure them. Now we'll go ahead and install the hardware that will secure the two upper brackets together. We'll use two 3/8 carriage bolts. It will fit in the rectangle slotted section of both brackets. Then we'll secure it with flat washers and lock nuts. We're now ready to go ahead and put the air spring assembly into position. As we set it into position we'll be careful that our carriage bolts coming out of the lower bracket don't pinch or interfere with the manufacturer's brake line. To make it easier to get it in place, I recommend to go ahead and raise the vehicle body up off the suspension or lower the axle to create more distance between the jounce bumper and the axle. As we put the air bag in position, we'll also make sure that the air valve faces towards the center of the vehicle and the lower bracket will face towards the spring pack. Line up the two upper brackets and let the carriage bolts go through the slotted holes. Once we have our hardware installed we'll go ahead and tighten it down. Before I completely secure it though we'll make sure that we adjust the air bag so it sits straight up and down as much as possible. You can see as it slid all the way forward, the air bag is extended here in the front and smashed in the back. As we rotate it over the axle more, it'll even out as much as possible. We want to sit as straight up and down, both forward and back and side to side. To adjust side to side, we'll move the lower bracket. It's already in a good place, we'll leave it there. We'll make sure that the upper bracket is pulled to the rear of the vehicle to get the lower portion of the air bag and the upper portion of the air bag lined up as much as possible. We'll then completely secure our fasteners. Now with our upper bracket secured, we're ready to secure the lower bracket. To secure the lower bracket we'll again use the flat washers and nylon lock nut provided with the install kit along with the axle strap. The axle strap will go through the front and back carriage bolts that we installed into the lower bracket earlier. Once we have our hardware installed finger tight, we'll go ahead and tighten down the carriage bolts which will secure the axle strap and our lower bracket to the axle. Note: As you tighten down the carriage bolt, we'll do it evenly front to back. With the air bag secure here on the driver's side, we'll move over to the passenger side and repeat the same process. Next we'll need to install our air line. The air line will have an inflation valve and two lines that will run to the air bag. For this application, we're only going to need one inflation valve, so the other one's just going to get cut off. Before I route the line, we'll need a place to mount the inflation valve. For this application we're going to make our own here that will secure to the side of the hitch tube. Using the Tow Ready no-drill mounting bracket part #18140. We'll use the worm gear clamp to secure the bracket to the hitch tube. Once we've secured the bracket, we're going to go ahead and use one of the pre-drilled holes and open it up to make our attachment point. We'll open it up to 5/16. Once we have the hole drilled out, we can go ahead and mount the inflation valve. To secure the inflation valve to our bracket, we'll use the provided nut that will thread on to the end of our inflation valve and this will set the length of the threads that will come through the bracket. Then a star washer, feed them through the valve where we'll add a flat rubber washer, a second flat washer, and then a second nut to secure it. Once I have it installed finger tight, I'll go ahead and run it down to secure it. Once we have it secured, we can go ahead and start routing our line. Keep in mind when routing your line, stay away from any moving component to steering suspension or excessive heat such as the exhaust. We're going to start by running the long line first which will go down the driver's side frame rail. Throughout the line, we'll use the zip ties provided with the install kit to secure it as necessary. We're going to follow the driver's side frame rail and manufacturer's wiring back to the vehicle cross member underneath the bed over to the passenger side and ultimately to the passenger side air bag. Be careful not to kink the line as you route it. I also need to save enough room to install a T in our line that will route to the driver's side air bag. As we route the line to the air bag inflation valve, we'll go ahead and mark the length of our line and then cut it. To cut it we're going to use the AIR LIFT air hose cutter part #AL10530. Using the cutter will allow us to get a clean square cut on the line without crimping it. To install the line into the inflation valve, we'll line it up, firmly pressing it into place then pulling back to lock it in position. I'll go ahead and finish securing the line. Here on the driver's side we'll go ahead and take the remaining piece of our air line, line it up with the inflation valve, again press it firmly into place and pull back to lock it in position. We'll then take the line and route it back towards the cross member where we routed the passenger side air line. Here we can go ahead and mark the length. We'll cut the line and remove the excess. Then using the AIR LIFT union T-piece with a 1/4 inch line part #AL21838. We'll cut the air line that we ran over to the passenger side and install the T. To install the T, one side again firmly pressing into place with the other leg putting the passenger side air line back together. The third portion of our T will get routed through the air line going to the driver's side bag. Once we have it in place, we're secure our line as necessary. Now with all the air lines routed, installed, and secured we can go ahead and cut off the excess from the zip ties to clean up our install look. This will help protect our air bag from the excessive heat of the exhaust. Once we bend the tabs, I'm going to go ahead and conform the heat shield a little bit to the tailpipe, hold it in position, then we can secure it. To secure it we'll use the worm gear clamps provided with the install kit. We'll go ahead and get the worm gear clamps onto the tailpipe, tighten them down a little bit to take up some of the slack, then we'll put our heat shield in place. Leave it loose enough that we can still move it as needed. With my clamps in place, we'll go ahead and hold the heat shield in position, install the clamps, and tighten them down. With our air bag system installed, we'll go ahead and apply air to the system and check for leaks. When checking for leaks we're going to use a soap and water solution and spray it on each one of the connection points and check for any air bubbles. Now we've checked for leaks, we're ready to hit the road. That does it for the install of our AIR LIFT LoadLifter 5000 air helper springs part #AL57295 on our 2006 Dodge Ram Pickup. .

2012 Ram Pickup by Dodge Owners Who Purchased this Vehicle Suspension Also Bought...

Replacement parts available for this product

Dodge Ram Pickup Accessories

Customer Reviews

Air Lift LoadLifter 5000 Air Helper Springs - Rear Axle - AL57295

Average Customer Rating:  4.6 out of 5 stars   (16 Customer Reviews)

Designed for the big boys - like 3/4-ton and 1-ton pickup trucks, motor homes, and commercial trucks - LoadLifter 5000 air springs provide high-quality, full-time load support. They level your vehicle, improving braking and ride comfort.

- AL57295

by: Roy03/08/2013

Great Price and easy to install. 69682


Air lift suspension is still working great after a year. Had a couple of minor air leaks at first but no problems after I fixed them. Good quality product.

Roy - 09/08/2014


- AL57295

by: Linwood07/10/2014

Easy to install in 2-3 hrs. Works well on initial static tests. Have not tried targeted application yet but I am certain there will be no problem. etrailer is the BEST source for ALL my towing and related needs. Thanks etrailer!! 140504

- AL57295

by: Michael B05/25/2015

This is my 3rd vehicle I have used this product on . We have a fleet of 1 ton duallies. This is an easy to install, reliable, and reasonably priced air bag kit 196714

- AL57295

by: Doug H04/02/2014

Item very easy to install and work greats. Shipping was quick and received product with no issues in content or package 123399

- AL57295

by: Robert S.06/11/2014

Extremely easy to install. Once I got the technique down on the first one, the second bag went in very quickly. 135113

- AL57295

by: Bernie04/18/2015

Excellent fit. Easy to follow direction s. 186137

- AL57275

by: Michael Sarin10/23/2013

Review from a similar Air Lift LoadLifter 5000 in Vehicle Suspension

Finished the install last weekend fairly smoothly. I jacked up one side of the truck at a time since I only had one jack. Had to put the jack on cinder blocks to get it high enough to engage the leaf spring front mount. One comment/suggestion for the installation guide. The only thing I struggled with was the parking brake cable. It was exactly in the way of engaging the bottom bracket to the axle. No matter how I moved the bracket it would not clear the cable. Then the light came on, release the brake dummy! Once the brake was released there was plenty of room to engage the assembly onto the axle. Of course, I did put some chalks on the front tires to keep the truck from rolling while I was underneath... No leaks, and it seems to ride much smoother than before. Thanks for a great product, 104826


I still like the product but it seems to have a slow leak somewhere and will not hold air pressure for a week at the original setting. Guess I need to do a bubble leak test, just have not gotten to it. Other than that the product is great.

Michael S - 10/23/2014


- AL57215

by: JP08/27/2012

Review from a similar Air Lift LoadLifter 5000 in Vehicle Suspension

This Loadlifter worked excellent. Put a Lance camper at 2600 lbs. on my Ford F350 crewcab pickup. Despite the camper package option on my truck with extra rear leaf springs, it still pushed the bed end down and the hood side up in the air. Annoying side to side roll as well. The AirLift LoadLifter had very good instructions and was not difficult to install. Drilled five holes in the frame on each side to attach. Plenty of part options to make it a very good fit. Aired up the springs until the camper was perfectly level. Truck now drives level and considerably less side to side roll. This was well worth the price for the performance. 53242

- AL57211

by: Tracy h02/26/2015

Review from a similar Air Lift LoadLifter 5000 in Vehicle Suspension

First thing is e-trailer the best to buy from , hands down! Air lift 5000 not a great kit in my opinion . This is not my first air bag install , over 12 so far. Brackets look good , bags fit them good and hardware is ok. The problem is the upper bracket is 3/4k inch short of sitting against frame . Jounce cup is in the way , I tried to mock it up in place but hardware is to short . Jounce cup had to be removed for bracket to fit up to frame , it's welded on . This kit is not what I would average to install . I'll try a different manufacturer next time. 2009 chevy 1500 4x4 crew cab . 176164

- AL57396

by: Tim03/23/2013

Review from a similar Air Lift LoadLifter 5000 in Vehicle Suspension

Fast shipping and excellent customer service. Will continue to purchase from etrailer. Took about 8 hrs to install the kit. I'm sure that would have been faster for someone who has done it before but I took my time. The air bags work just as I wanted and the kit appears to be high quality materials. If you purchase a kit take your time installing as it's best to fit and refit a couple times on parts of the kit to ensure everything is going as laid out by the instructions. 72041

- AL57396

by: Ryan09/11/2013

Review from a similar Air Lift LoadLifter 5000 in Vehicle Suspension

Previously installed Firestone air helper springs in my Ford F250. Wish I would have ordered them instead of the Air Lift helper springs. While quality of Air Lift appears to be good, installation compared to installing the Firestone system is a real bear. Firestone easily as good quality and much simpler/easier to install. 99455

- AL57268

by: Gilbert T.07/14/2015

Review from a similar Air Lift LoadLifter 5000 in Vehicle Suspension

The Airlift airbags I installed on my 2015 Ford F-150 were easy to install and everything fit as described. I have made several purchases from and am very satisfied with the products they sell and the speed in delivery. 211609

- AL57200

by: Bruce m04/17/2015

Review from a similar Air Lift LoadLifter 5000 in Vehicle Suspension

I installed the air lifts in my 2014 f150 in 4 hr. It's nice way to go. Can't wait to pull my new 5 th Wheel camper! 185886

- AL57347

by: Rusty03/30/2015

Review from a similar Air Lift LoadLifter 5000 in Vehicle Suspension

Ordered wrong one, called them they changed my order and still shipped it fast. Perfect service. 181384

- AL57215

by: Nolan05/23/2015

Review from a similar Air Lift LoadLifter 5000 in Vehicle Suspension

Product arrived in a short time and was easy to install in my driveway. Works GREAT!!! 195228

- AL57211

by: David R11/24/2014

Review from a similar Air Lift LoadLifter 5000 in Vehicle Suspension

Shipped quick everything good 162378


Ask the Experts about this Air Lift Vehicle Suspension
Do you have a question about this Vehicle Suspension?

  • High Capacity Suspension Enhancement for a 2012 Dodge Ram 1500
  • The frame and suspension is different between the 1500 and 2500 series 2012 Dodge Ram so the parts are not interchangeable. But if you want the most capacity for a 1500, take a look at the Timbren springs # TDRTT1500. These guys are rated for 7,000 pounds and would be ideal for beefing up your suspension. The Timbren springs will provide leveling support independently of each other, increase stability and ride quality, and reduce side to side body roll. I have included a link to an...
    view full answer...

  • Will AirLift Loadlifter Air Bag Kit # AL57295 Fit 2013 Ram 3500 Dually 4WD with Factory Gooseneck
  • The AirLift Loadlifter Air Bag Kit # AL57295 that you referenced will indeed work along with the factory gooseneck hitch in your 2013 Ram 3500 Dually 4WD. To be certain I confirmed compatibility with my technical contact at AirLift. The installation instructions for this kit are provided for reference. This AirLift kit will allow manual inflation, either evenly for an overall lift of the truck rear end, or independently to allow for side-to-side leveling. The kit includes the air bags,...
    view full answer...

  • 5th Wheel Trailer Hitch Install Kit Options for 2014 Ram 3500 with or without OEM Prep Package
  • First a quick note on the air suspension package from Dodge: There are no aftermarket 5th wheel installation kits that will fit with the air suspension. If you want the air suspension and you can get both it and the 5th wheel prep package from the factory then that is currently the only way you can have both. Flipping trailer axles is never a good idea. Axles have a bow in them so that the center of the axle points up. The weight of the trailer straightens out the axle. That is partially...
    view full answer...

  • Rear Helper Springs or Weight Distribution for a 2014 Ram 3500 with 4 Inch Suspension Lift
  • The best thing for sag caused by towing a trailer is weight distribution, not suspension enhancement. Helper springs are designed for heavy loads in the truck bed of your 2014 Ram 3500 but are not the best solution for your application. To choose a weight distribution system you will need to go by the total tongue weight of the set up. This is calculated by taking the tongue weight of the trailer, when loaded and ready to tow, and adding to that the weight of anything loaded behind the...
    view full answer...

  • Air Suspension Kit for 2013 Ram 3500 4x4 Dually
  • According to my Firestone representative, their # F2299 Ride-Rite kit is not compatible with your 2013 4x4 3500 Dually. Unfortunately, Firestone does not yet list an application for your 2013 Ram 3500, but AirLift offers their Load Lifter kit # AL57295 that is compatible with the 2013 3500 4x4 dually.
    view full answer...

  • Installation of a Turnoverball Underbed Gooseneck Trailer Hitch on a 2004 Dodge Ram 3500 Quad Cab
  • The side plates of the gooseneck trailer hitch # BWGNRK1313 will mount on the outside of each frame rail. See diagram to the right and video (start it at 7 minutes and 30 seconds). Since your airbags are mounted on the outside frame rail and will interfere with the B&W # BWGNRK1313, you could go with the Blue Ox # DH1102 (mount on top of frame) instead. See the picture to the right to see what it will look like installed. If you still prefer the B&W gooseneck trailer hitch # BWGNRK1313,...
    view full answer...

  • Compatibility of Air Lift LoadLifter Air Spring System with 5th Wheel Hitch on 2011 Dodge Ram 2500
  • According to my contact at Air Lift, the LoadLifter 5000 System you mentioned, part # AL57295 is indeed compatible with your 2011 Ram 2500 Big Horn with the Curt 5th wheel hitch. The system mounts to the bottom of the frame members, and therefore will not interfere with the fifth wheel install brackets. When cutting the air line tubing, it is crucial that the cuts are perfectly square to avoid air leakage. I would recommend using a tubing cutter like part # AL10530 to complete the...
    view full answer...

  • Recommended Rear Suspension for a 2011 Dodge Ram 3500 6.7 Liter Pickup
  • If you are having an issue bottoming out, I recommend the Air Lift LoadLifter 5000 part # AL57295. It's specifically designed for 3/4-ton and 1-ton pickup trucks, motor homes, and commercial trucks and will provide your Dodge Ram with up to 5,000 pounds of load-leveling support reducing strain on your rear suspension. Thus improving both safety and ride quality. On the other hand, if you are looking for a softer suspension, I recommend replacing your current suspension on your 2011 Dodge...
    view full answer...

  • Fifth Wheel And Gooseneck Hitch Recommendations for 2013 Dodge Ram 2500
  • According to my contact at Air Lift, their # AL57295 air spring system utilizes brackets that mount to the underside of the frame member that won't interfere with the fifth wheel hitch install brackets. As long as the toolbox doesn't extend above the bed side rails of the truck, you should have no fit worries. A B&W Companion set up, consisting of the # BWGNRK1313-5W under bed rail kit and the # BWRVK3400-5W sliding fifth wheel hitch would be a great choice that would allow you lots...
    view full answer...

  • Reese Elite Series Installation Kit and Suspension Enhancement for a 2012 Dodge Ram 3500 Mega Cab
  • The Reese Elite series complete installation kit # RP30158-52 is listed as a fit for your 2012 Dodge Ram 3500 Mega Cab. This install kit has brackets that fit around the bottoms of the frame rails and use u-bolts to essentially clamp the kit to the frame. Take a look at the instructions I have linked. The Air Lift system you referenced, # AL57295, installs with brackets on the bottom of the frames so it is not likely to fit with the hitch installation kit. I included a link to the instructions...
    view full answer...

  • Suspension Enhancement for a 2008 Dodge Ram 2500 Long Bed with 5th Wheel Trailer Hitch
  • Any suspension enhancement kit that bolts to the inside or outside of the frame or has brackets that touch the inside or outside of the frame could possibly cause interference with the 5th wheel brackets already installed on your truck. This includes # F2299 and most other similar products. But, Air Lift # AL57295, installs on the bottom of the frame rails as you can see in the instructions I have linked so is a potential candidate for you. What I recommend if the truck does not have...
    view full answer...
