Timbren Rear Suspension Enhancement System

Item # TDVR05096

lowest price pledge


Our Price: $214.67

This item qualifies for Free Shipping


In Stock
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

timbren vehicle suspension  rear enhancement system
timbren vehicle suspension rear axle enhancement system
timbren vehicle suspension jounce-style springs tdvr05096
timbren vehicle suspension rear axle enhancement system
timbren vehicle suspension jounce-style springs
timbren vehicle suspension rear axle enhancement tdvr05096
timbren vehicle suspension rear axle enhancement system
timbren vehicle suspension jounce-style springs tdvr05096
timbren vehicle suspension rear axle enhancement dimensions
timbren vehicle suspension jounce-style springs dimensions

In Use/Installed

2005 chrysler town and country vehicle suspension timbren jounce-style springs dimensions
2005 chrysler town and country vehicle suspension timbren rear axle enhancement dimensions
2005 chrysler town and country vehicle suspension timbren jounce-style springs tdvr05096
2005 chrysler town and country vehicle suspension timbren rear axle enhancement tdvr05096
2005 chrysler town and country vehicle suspension timbren rear axle enhancement system
2005 chrysler town and country vehicle suspension timbren jounce-style springs tdvr05096

Customer Photos

timbren vehicle suspension rear axle enhancement tdvr05096
timbren vehicle suspension rear axle enhancement tdvr05096

  • Timbren
  • Jounce-Style Springs
  • Rear Axle Suspension Enhancement
  • Standard Duty
The best technical support and full vehicle suspension installation instructions. Lowest price Town and Country vehicle suspension guarantee and expert service. Chrysler Town and Country, 2005 vehicle suspension by Timbren are available from For expert service call 800-298-8924 to order your Timbren Rear Suspension Enhancement System part number TDVR05096, or order online at

2005 Chrysler Town and Country - Timbren Rear Suspension Enhancement System

2,000-lb Capacity. These hollow rubber springs sit above the rear axle to help stabilize and level your Chrysler Town and Country. They also provide a more comfortable ride by absorbing road shock and improving roll stability. Easy to install and use.


  • Improves suspension, handling and safety
  • Provides additional support as needed so you always have a smooth, comfortable ride
    • Allows the leaf spring ample movement while cushioning light loads
      • Does not affect the empty ride of the Chrysler Town and Country
    • Becomes more rigid as more weight is added
      • Increases stability - providing great performance while hauling heavy loads
      • Reduces Chrysler Town and Country sag
  • Works independently - side-to-side
    • Helps compensate for off-center loads
    • Reduces body roll when swerving and turning corners
  • Acts as shock absorbers, taking the brunt of bumps and rough roads
    • Extends the life of your Chrysler Town and Country's suspension

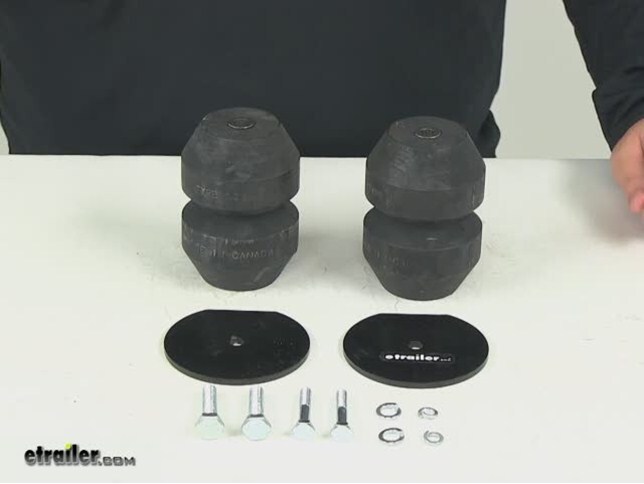

  • 2 Hollow rubber springs, Chrysler Town and Country-specific brackets and hardware are included for simple installation
    • Installs directly onto frame
    • Professional installation recommended
  • Capacity: 2,000 lbs
    • Do not exceed the Chrysler Town and Country's weight-carrying capacity
  • Designed to work with a suspension system that is in good working order
  • Limited lifetime warranty - satisfaction guarantee

An example of sag on a truck's rear axle under a heavy load. The Timbren Suspension Enhancement System levels the Chrysler Town and Country.

When hauling heavy loads in the cargo area or by pulling a trailer, you will often see the rear of the Chrysler Town and Country sag while the front end rises. In these cases, the rear axle is handling not only the weight of the cargo, but more of the vehicle's weight as well. Because less weight is on the front axle, the front tires are making less contact with the road. Overall vehicle handling - traction, steering, and braking - is negatively affected. The resistance from Timbren's Suspension Enhancement System works with the vehicle's factory suspension to keep the vehicle level and improve your driving performance.

Diagram of the Timbren spring installed

The Timbren system has a vehicle-specific bracket that will be bolted onto each frame rail above the rear axle. Hollow rubber springs are bolted to the bottom of the bracket and hang down to where the bottom of the spring sits one inch above the axle. The inch of clearance allows the existing factory suspension to operate normally under light loads and standard terrain, ensuring the smooth, comfortable ride you are used to.

Animation of a standard Timbren rubber spring

Timbren Suspension Enhancement Systems are designed to work progressively. When the hollow rubber springs are compressed, the convoluted design causes them to quickly collapse along the folds. Once the folds are compacted, the stacked barrel shape provides increased resistance, stiffening the suspension and keeping the vehicle level.

Timbren suspension system works to prevent body roll

Each hollow rubber spring works independently to support the driver's or passenger's side of the vehicle. This is helpful when you swerve or make sharp turns. Each spring is activated when it is needed, so body roll is greatly reduced. The independent action also works well when hauling off-center loads.

An example of a trailer swaying

Because the vehicle handles better with the springs, less turbulence will be passed along to the trailer helping to keep the trailer in line. Your driving comfort is further enhanced if the trailer does begin to sway (from a gust of wind or passing of a semi) because the movement from the trailer is not transferred to the vehicle. This also works to make the sway subside quicker.

An empty truck on a bumpy road without Timbren

Another great feature of the rubber construction is that the springs absorb most of the road shock, creating a smoother, more stable ride overall. Wear and tear on the factory suspension is also lessened as the rubber springs work to prevent bottoming out on rough roads.

Compared to the competition:

Timbren's suspension enhancement systems are much easier to install than air springs - no air hoses are needed to be run, no compressors or gauges to hook up, and no manual adjustments necessary. The rubber construction causes Timbren's springs to be more elastic than similar products constructed of micro-cellular urethane. More elasticity allows for a more comfortable ride because the rubber has more travel.

DVR05096 - Rear Suspension Enhancement System with Aeon Hollow Rubber Springs by Timbren

TDVR05096 Installation InstructionsInstallation Details TDVR05096 Installation instructions

Video of Timbren Rear Suspension Enhancement System

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

Video Transcript for Timbren Vehicle Suspension TDVR05096 Review

Today we're going to be reviewing part number TDVR05096. This is the Timbren Rear Suspension Enhancement System. To see if this is going to fit your particular year, make and model you can refer to the vehicle list at the bottom of the product page. This system is designed to improve suspension, handling and safety. It's going to provide additional support as needed so youll always have a nice smooth, comfortable ride. It's going to allow the least inaudible 00:00:24 plenty of movement while cushioning light loads and it will not affect the empty ride of the vehicle. The system is designed to become more rigid as more weight is added so it's going to increase stability, which is going to provide better performance while hauling heavy loads. It's also designed to help reduce vehicle sag.

It will work independently side-to-side so it's going to help compensate for off-center loads. It's also designed to reduce body roll when swerving and turning corners. The suspension enhancement system is going to act as a shock absorber which is going to take the impact of bumps and rough roads which overall and ultimately is going to extend the life of your vehicle's suspension system. It's going to come with the two hollow rubber springs, the vehicle specific brackets and the hardware that's needed for a nice, simple installation. It will install directly onto the frame. It's going to offer a capacity of 2000 pounds.

You need to be careful not to exceed the vehicle's weight carrying capacity and keep in mind that this is designed to work with a suspension system that's in good working order. You're going to see here that you're going to get four bolts as well as four lock washers. You'll only use two of those for a complete install so you'll need to refer to the manufacturer's instructions and determine based off of your year, make and model which set of bolts and lockers that you need to use. It's a really simple installation. One of the bolts is going to feed through the larger hole. There's actually a flat washer located on the inside there so you want to make sure the bolt goes through that flat washer. It's going to come up through this hole, this portion is going to go over top of that bolt.

Once you have that all the way through there, then you'll be able to mount it directly onto the frame of your vehicle. You want to be sure that you include one of the lock washers on each bolt before installation. Again, it's very important that it goes through the center of that washer located on the inside of the hollow rubber spring. This spring is going to give us an overall length or height of about 4 3/4 of an inch. That's going to do it for today's review of part number TDVR05096. This is the Timbren Rear Suspension Enhancement System. .
