Roadmaster Tow Dolly with Self-Steering Wheels and Electric Brakes - 4,380 lbs

Roadmaster Tow Dolly with Self-Steering Wheels and Electric Brakes - 4,380 lbs

Item # RM-2000-1

lowest price pledge

Retail:$4,005.88

Our Price: $3,660.60

You Save: $345.28
Trailers

This item qualifies for Free Truck Freight Shipping

Shipping Weight: 794 lbs

Quantity:
In Stock
Roadmaster Tow Dolly - RM-2000-1
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

In Use/Installed

Customer Photos


  • Tow Dolly
  • Roadmaster
  • 4380 lbs
  • 136L x 94W Inch
  • 2 Inch Ball Coupler
Tow your vehicle without installing a tow bar or base plates. This tow dolly has self-steering wheels for superior maneuverability and electric brakes for safe stopping. Adjustable axle positions and sliding ramps fit almost any vehicle. Lowest Prices for the best trailers from Roadmaster. Roadmaster Tow Dolly with Self-Steering Wheels and Electric Brakes - 4,380 lbs part number RM-2000-1 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (3)
  • Q & A (411)
  • Videos (3)
  • Photos
  • Why etrailer?

Roadmaster Trailers - RM-2000-1

Tow your vehicle without installing a tow bar or base plates. This tow dolly has self-steering wheels for superior maneuverability and electric brakes for safe stopping. Adjustable axle positions and sliding ramps fit almost any vehicle.


Features:

  • Tow dolly makes it easy to tow different vehicles without installing a tow bar and base plates
    • Ideal for cars with front-wheel-drive automatic transmissions
  • Towing deck keeps front wheels of towed vehicle up and off the ground
    • No need for a transmission lube pump system or driveshaft disconnect
  • Loading ramps slide from side-to-side to fit almost any vehicle
    • Adjustable axles have a narrow and a wide postition
    • Laser-cut grooves provide extra traction for safe loading
  • Electric brakes make it safe and easy to stop while towing
    • Helps prevent wear and tear on your RV's brakes
    • Requires an electric brake controller (sold separately)
  • Self-steering wheels with stabilizer improve maneuvering and allow for tight cornering
    • Keeps dolly in line so it can easily track your RV
  • Conveniently located bed tilt release makes it easy to tilt for simple loading
    • Dual-pin bed latch ensures that bed will not tilt even if 1 pin fails
  • Locking storage bins provide a safe and convenient place for tie-down straps and other equipment
  • Heavy-duty trailer tires let you tow heavy vehicles with ease
  • Accu-Lube hubs with grease fittings make it easy to grease the bearings
  • Adjustable wheel nets fit tires sizes that are up to 30" outer diameter x 11" wide
    • Includes ratchets
  • Brake lights with turn signals, side marker lights, warning lights, and a license plate bracket with license plate light included
  • Powder-coated steel resists corrosion
  • Polyethylene fenders are durable and won't rust
  • Safety chains and 4-way flat trailer connector included
    • 6-Way or 7-way connector (sold separately) required to activate dolly's brakes
  • Made in the USA


Specs:

  • Application:
    • Maximum vehicle weight: 4,380 lbs
    • Fits 12" to 16" wheels
  • Overall length: 136"
  • Overall width:
    • Narrow axle position: 93-1/2"
    • Wide axle position: 101-1/2"
  • Usable width:
    • Narrow ramp position: 40" from outer edge to outer edge
    • Wide ramp position: 76" from outer edge to outer edge
  • Distance from coupler center to axle center: 94"
  • Dolly weight: 620 lbs
  • Trailer ball size: 2"
  • Recommended ball height: 17" - 19"
  • Tires: ST215-75 R14 radial


When towing your vehicle with a tow bar, all 4 wheels are in contact with the ground. Certain vehicles - namely, those with front-wheel-drive automatic transmissions - require either a transmission lube pump system or a driveshaft disconnect when being flat towed. Using a tow dolly eliminates the need for those by lifting your vehicle's front wheels off the road. In addition, using a dolly eliminates the need for base plates that clutter the front of your towed car, difficult-to-install wiring, and a potentially expensive supplemental braking system. Also, if you want to tow multiple vehicles, this dolly is a great alternative to traditional flat towing because you don't have to purchase and install brackets and wiring for all of your cars.


Electric Brakes

The built-in electric brakes make it safe and easy to stop your vehicle while you're towing. This meets towing requirements, and also helps prevent the extra wear and tear on your RV's brakes that would otherwise occur because of the added towing weight. An electric brake controller (sold separately) must be purchased and mounted inside your RV to complete the installation. In addition, you will need to install a 6-way or 7-way trailer connector on the dolly so that it can receive the braking signal from your RV.


Universal Compatibility

Adjustable Ramps

The sliding ramps offer a 36" range of adjustment to ensure a precise fit for almost any vehicle you decide to tow. Also, the included wheel nets adjust to fit tires that are up to 30" outer diameter x 11" wide.


Storage

Laser-cut grooves give you extra traction while loading and unloading your vehicle.


Self-Steering Wheels

The self-steering wheels and stabilizer make the dolly more maneuverable around corners. This keeps your towed vehicle safe and on course by allowing the dolly to better track your motor home. Once your vehicle is loaded onto the dolly, simply pull the steering safety pin out to engage the self-steering wheels. Be sure to put the safety pin back in if you tow the dolly without a load.


Convenient Bed Tilt

Bed Tilt

You will never again have to crawl under your car to tilt the bed of a dolly. Roadmaster's tow dolly includes a conveniently located tilt release to make loading and unloading your vehicle even faster and easier.


Locking Storage System

Storage

Stow tie-downs, wheel nets, tow lights, or any other accessories you decide to take along with you in the dolly's handy storage trays. Both compartments lock securely using the same key and are located near the front of the dolly for quick and easy access, even while the car is being towed.



2000-1 Road Master Tow Dolly with Electric Brakes



RM-2000-1 Installation InstructionsInstallation Details RM-2000-1 Installation instructionsRM-2000-1 Installation InstructionsAlternate Instructions RM-2000-1 Installation instructions


Video of Roadmaster Tow Dolly with Self-Steering Wheels and Electric Brakes - 4,380 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for RoadMaster Tow Dolly with Electric Brakes Road Test

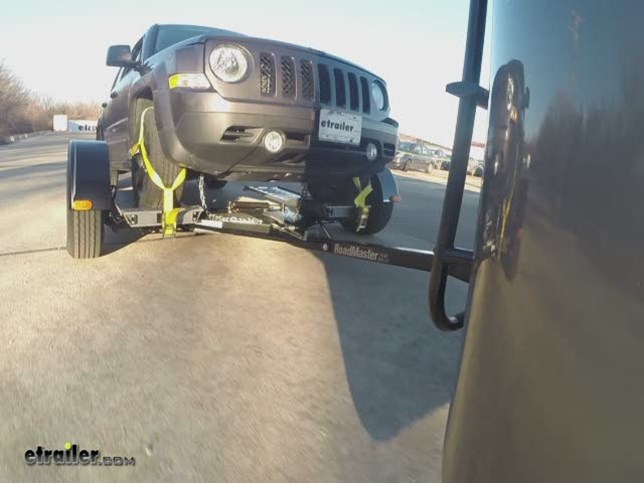

Here you see it being pulled behind an RV. The front tires are strapped down, securing the vehicle to the tow dolly, while the vehicles rear tires are free to spin. The tow dolly provides a smooth ride, even around corners. Note how the tires track with the RV as it turns.


Customer Reviews

Roadmaster Tow Dolly with Self-Steering Wheels and Electric Brakes - 4,380 lbs - RM-2000-1

Average Customer Rating:  4.3 out of 5 stars   (3 Customer Reviews)

Tow your vehicle without installing a tow bar or base plates. This tow dolly has self-steering wheels for superior maneuverability and electric brakes for safe stopping. Adjustable axle positions and sliding ramps fit almost any vehicle.

- RM-2000-1
by:

This is by far the best dolly I have ever towed. The adjustable width axle with self steering wheels tracks straight every time. The tires show virtually no wear after 7k miles of use. It took about 2 hours to put together by myself. Great product! 315561



- RM-2000-1
by:

I made several short pulls with no noticeable problems: However, on my first long pull (2000 mi) I noticed extreme tire wear that required two. It was surprising having followed the assembly instructions as closely as possible. I discovered that apparently the alignment procedure is no guarantee of proper alignment since it resulted in a large tow-out condition that wore the inside of both tires to the steel belts. I also discovered there are no alignment facilities that are willing or know how to align the dolly. Making adjustments based on physical measurement comparisons from the front-to-front and rear to rear treads were the answer to a proper alignment. 526149



- RM-2000-1
by:

This tow dolly is one of the best engineered and well made pieces of equipment I have ever seen or owned. Many of its features are well thought out and, of coarse, from trial and error. In this case, that means a well rounded piece of equipment that easy to use and user friendly. I don't have pictures yet but will send some along as I get them. 492508


4
4

Ask the Experts about this Roadmaster Trailers
Do you have a question about this Trailer?


  • How to Flat Tow 2019 Chevy Spark LT with Manual Transmission Behind Motorhome
  • I found the owners manual for your 2019 Chevy Chevy Spark and under the recreational towing section I found basically all you have to do is put the vehicle in neutral and disconnect the negative battery terminal since you have a manual transmission. Since the battery gets disconnected you would need an outlet kit part # RM-9332 to power the supplemental braking system. The automatic transmission Sparks have to be towed on a dolly like the Roadmaster Tow Dolly # RM-2000-1. For a base plate...
    view full answer...

  • Replacement Fender with Built-In Light for Tow Dolly
  • We do offer some replacement fenders for a Roadmaster Tow Dolly. If you have a Roadmaster Tow Dolly # RM-2000-1, you will use # RM-921003 for the passenger side and # RM-921002 for the driver's side. If you have the Roadmaster Tow Dolly # RM-2050-1 with electric brakes, then you will use # RM-922005 for the passenger side and # RM-922004 for the driver's side.
    view full answer...

  • Can 2016 Ram 1500 Automatic be Flat Towed Behind an RV and What Parts are Needed to Do So
  • The 2016 Ram 1500 can be flat towed with all 4 wheels on the ground only if it is a 4x4. If you have a 2-wheel drive Ram then it can be towed using a tow dolly with the REAR wheels off the ground. This is in the recreational towing section of the owner's manual, page 711. If you do have a 4x4 then for base plates I recommend # RM-52289-4. And for a compatible tow bar I recommend the 10,000 pound capacity Blackhawk All-Terrain tow bar # RM-422. And for 10,000 pound safety cables I recommend...
    view full answer...

  • Recommended Parts to Flat Tow a 2017 Ford Edge Titanium
  • Yes, disconnecting the battery with a Quick-Disconnect, like the Deka part # DW05312, will be the easy way to go when it comes to disconnecting the battery on your 2017 Ford Edge so it can be flat towed. Disconnecting the battery prevents it from draining while you are flat towing. Since the owner's manual states that the battery must be disconnected I strongly recommend following those instructions and not trying to get by it somehow. That is one of the down sides to flat towing with...
    view full answer...

  • What is the Best Way to Tow a 2012 Fiat 500 Behind a Motorhome
  • According to the owner's manual for a 2012 Fiat 500 with a manual transmission (excluding 500c and 500 Abarth), the vehicle can be flat towed with all four wheels down and dolly towed with either the front two or rear two wheels off of the ground. In regards to which is better between flat-tow and dolly tow, they both have their benefits. If you have a leased vehicle or don't want to make any modifications as you plan to exchange it, dolly tow would be your best option but if you plan to...
    view full answer...

  • Wiring Connection on 2017 Thor Compass RV to Roadmaster Tow Dolly RM-2000-1 & Magnetic Lights
  • For an easy electrical hookup between your 2017 Thor Compass RV and the Roadmaster Tow Dolly # RM-2000-1 my recommendation is to wire in a 7-way RV style socket/plug combination. Since the dolly comes only with 4-pole wiring you will need a 7-way trailer-side plug like 8-foot # H20046 or 6-foot # H20044 and a junction box like # 38656 to install the 7-way on the dolly. You can use ring terminals like # 44-5310A. This 7-way will carry all lighting signals plus the brake controller's output...
    view full answer...

  • Length of Replacement Stabilizer Bar for Roadmaster Tow Dolly
  • The stabilizer bar, part # RM-921006, is 42 inches end to end and 40 inches from the bolt holes center on center. It's specifically designed to work on the Roadmaster dolly, part # RM-2000-1.
    view full answer...

  • Can I Flat Tow A 2018 Equinox AWD?
  • According to my research if your 2018 Chevrolet Equinox AWD 2.0L 9-Speed Automatic 6T50 is a 2018 you can only tow your Equinox on a trailer. I recommend checking your owners manual to confirm. If your owners manual confirms that the Equinox is able to be flat towed, I have the following recommendations to get your towing started. You will need the Blue Ox Base Plate Kit # BX1689 along with the Blue Ox Alpha Tow Bar # BX7365. This comes with the safety chains needed. For your tow...
    view full answer...
