Dexstar Steel Mini Mod Trailer Wheel - 16" x 6" Rim - 8 on 6-1/2 - White Powder Coat

Dexstar Steel Mini Mod Trailer Wheel - 16" x 6" Rim - 8 on 6-1/2 - White Powder Coat

Item # AM20785
lowest price pledge
Our Price: $87.47
Trailer Tires and Wheels
Orders above $99 qualify for Free Shipping
Shipping Weight: 32 lbs
Quantity:
In Stock
Dexstar Steel Mini Mod Trailer Wheel - 16" x 6" Rim - 8 on 6-1/2 - White Powder Coat 8 on 6-1/2 Inch AM20785
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Videos

Need help with installation?
Locate installers near me
White powder coated, 16" steel wheel features an 8 on 6-1/2 bolt pattern and meets Department of Transportation standards. Lowest Prices for the best trailer tires and wheels from Dexstar. Dexstar Steel Mini Mod Trailer Wheel - 16" x 6" Rim - 8 on 6-1/2 - White Powder Coat part number AM20785 can be ordered online at etrailer.com or call 1-636-306-4830 for expert service.
  • All Info
  • Reviews (1557)
  • Q & A (0)
  • Videos (1)
  • Photos
  • Why etrailer?

Dexstar Trailer Tires and Wheels - AM20785

  • Wheel Only
  • 16 Inch
  • 8 on 6-1/2 Inch
  • Steel Wheels - Powder Coat
  • Dexstar

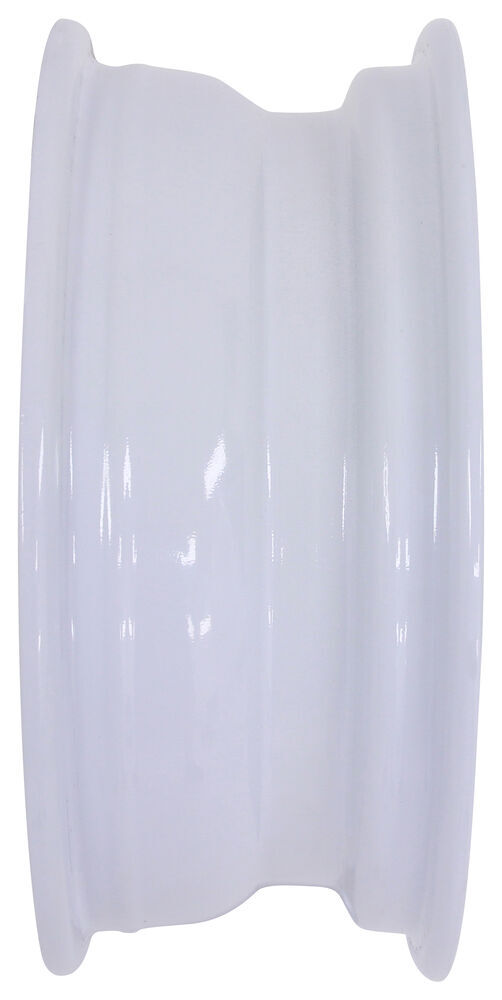

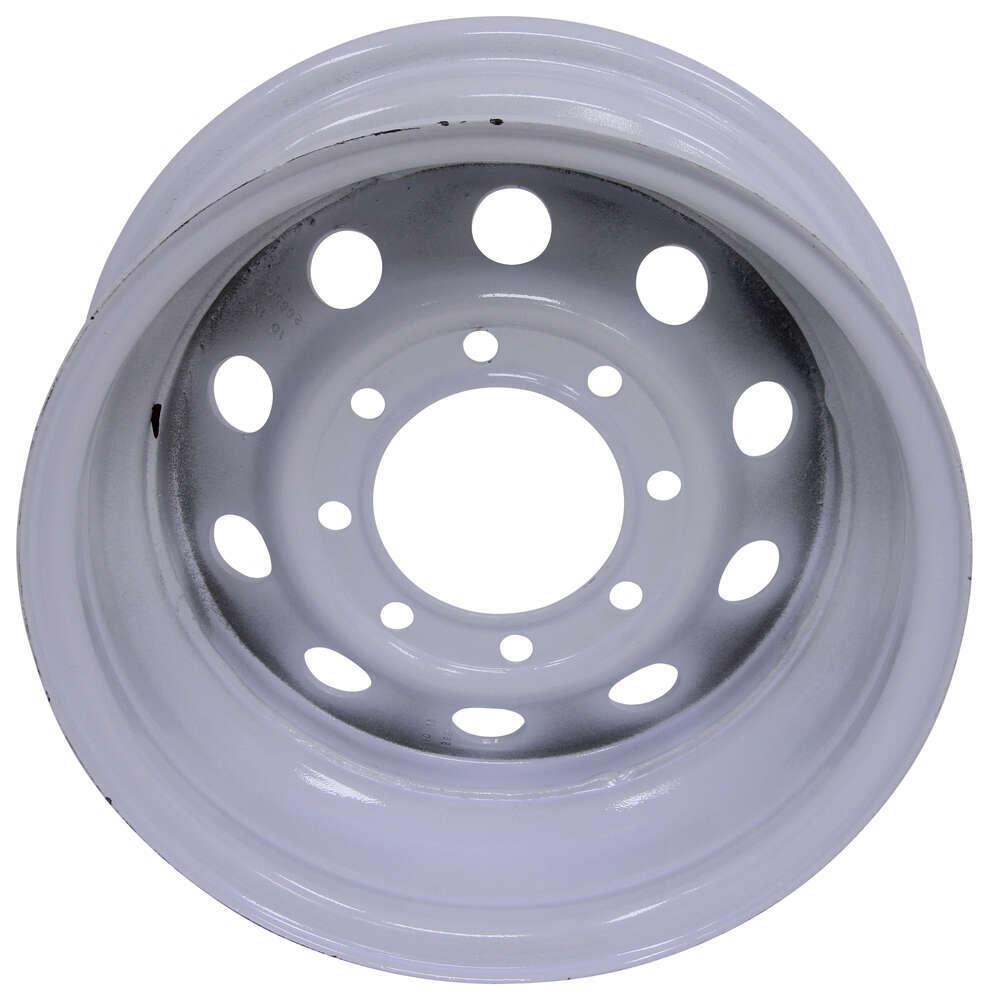

White powder coated, 16" steel wheel features an 8 on 6-1/2 bolt pattern and meets Department of Transportation standards.


Features:

  • Sturdy steel construction
  • Excellent corrosion resistance
    • White powder coat finish over e-coat primer
  • Modular design
  • High-quality wheel meets DOT specifications
  • Made in the USA


Specs:

  • Rim dimensions: 16" diameter x 6" wide
  • Bolt pattern: 8 on 6-1/2"
  • Fits stud size: 1/2"-20 and/or 9/16"-18
  • Pilot diameter: 4.9"
  • Offset: 0
  • Capacity: 3,960 lbs
  • Limited 2-year warranty


Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Side

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"




20785 Dexstar Modular Morton White Wheel with Stripe - 16"

017-310-1X

Replaces Americana 20785DX





Video of Dexstar Steel Mini Mod Trailer Wheel - 16" x 6" Rim - 8 on 6-1/2 - White Powder Coat

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Dexstar Tires and Wheels - Wheel Only - AM20785 Review

Toady we're going to be taking a look at the Dexstar Steel Mini Mod Trailer Wheel. This is made from a sturdy steel construction. It's going to offer excellent corrosion resistance. It has a white powder coat finish over the unit and that's going to sit over an e-coat primer. Now it's a mini mod or modular design the mini mod design simply means that it has these small circular or round holes that go around the wheel. The high-quality wheel meets department of transportation specifications. This is designed for trailer use only.

It's made right here in the U.S.A., a few measurements that we want to go over real quick. I'm going to go ahead and spin it around so you can see all the way around the wheel. This is the inboard side, then you have the outboard side, you do have the hole, right here, for the valve stem. Now, this wheel is going to have a capacity of 3960 lbs. We're going to take a look at the rim dimensions starting with the diameter so the diameter is measured from where the tire would sit on the wheel.

From bead seat to bead seat kind of inner edge to inner edge so if we place a ruler across there we can see that that measurement would be sixteen inches so that's going to be the diameter. If we take a look at the width again from where the tire would sit bead seat to bead seat that's going to give us a width of looks to be right on six inches, so a diameter of sixteen, a width of six. The bolt pattern is eight on six and a half. What that means is that we have eight bolt holes right here, or lug holes and then since we have an even number to determine the measurement we can just pick one, you can pick any one and you go straight across from it, measuring it center on center and that would be six and a half inches. The bolt pattern for this wheel is eight on six and a half inches. It's going to fit stud size half inch by twenty and/or nine sixteenths by eighteen.

The pilot hole diameter, that's the diameter of the large hole here at the center, is four point nine inches. That's going to do it for today's look at the Dexstar Steel Mini Mod Trailer Wheel.
