Price: $19.62

3-Leaf Double-Eye Spring for 2,500-lb Trailer Axles - 25-1/8" Long

Item # SP-219275

lowest price pledge

Retail:$23.98

Our Price: $19.62

Orders above $99 qualify for Free Shipping

Quantity:

In Stock
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

spin image icon
universal group trailer suspension leaf springs double eye sp-219275
universal group trailer suspension components leaf springs
universal group trailer suspension leaf springs double eye sp-219275
universal group trailer suspension components leaf springs
universal group trailer suspension components leaf springs sp-219275
universal group trailer suspension leaf spring components
universal group trailer suspension leaf spring springs 3-leaf double-eye for 2 500-lb axles - 25-1/8 inch long

Videos


  • Leaf Springs
  • Double Eye Springs
  • Leaf Spring Suspension
  • Suspension Components
  • 25-1/8 Inch Long
  • 2500 lbs
  • Universal Group
Double-eye leaf spring acts as part of a trailer's suspension system by providing an attachment point for a 2,500-lb axle. Spring flexes to resist shock and also ensures a smooth ride. Includes bushings with 9/16" inner diameter. Lowest Prices for the best trailer suspension from Universal Group. 3-Leaf Double-Eye Spring for 2,500-lb Trailer Axles - 25-1/8" Long part number SP-219275 can be ordered online at etrailer.com or call 800-298-8924 for expert service.



Universal Group Trailer Suspension - SP-219275

Double-eye leaf spring acts as part of a trailer's suspension system by providing an attachment point for a 2,500-lb axle. Spring flexes to resist shock and also ensures a smooth ride. Includes bushings with 9/16" inner diameter.


Features:

  • Leaf spring acts as part of your trailer's suspension system
    • Provides attachment point for your trailer's axle
  • Multiple leaves allow flexibility to absorb road shock
    • Allows for a smooth ride
    • Reduces wear and tear on trailer
    • Ensures level ride on bumpy and uneven surfaces
  • Sturdy steel construction
  • Nylon bushings included
  • Pre-mounted hangers or aftermarket hanger kit (sold separately) required for installation
    • Spring attaches to hanger mounted on trailer frame at one end
    • Other end connects to shackle straps suspended from hanger or equalizer


Specs:

  • Quantity: 1 leaf spring
  • Spring capacity: 1,250 lbs
  • Axle capacity: 2,500 lbs
  • Length from center of spring eye to center of spring eye: 25-1/8"
  • Spring width: 1-3/4"
  • Eye diameter with bushing: 9/16"
    • Eye diameter without bushing: 11/16"
  • Leaf thickness: 3/8"
  • Number of leaves: 3
  • Additional dimensions: see table


Double-Eye Spring

Part NumberABCD
SP-21927512-9/16"13-5/16"25-1/8"3-3/16"


Note: To ensure proper axle alignment and suspension performance, leaf springs should always be replaced in pairs.


Leaf springs are an integral part of your trailer suspension system. The leaf springs provide the attachment points for your trailer's axle, suspending it from the frame of your trailer. Each spring flexes to absorb road shock as you travel, allowing the axle to move somewhat independently of the rest of your trailer. This helps to reduce wear and tear on the trailer and also ensures a smooth ride.


Double-eye leaf springs attach to hangers that are welded onto your trailer. One end of this spring will attach directly to the hanger with a suspension bolt. The other end will attach to shackle straps that are suspended from a hanger. These straps allow the spring to move and pivot so that it can better compensate for uneven pavement. If you have a tandem- or triple-axle trailer, the shackle straps will be attached to the equalizer that connects multiple springs.


To mount this spring, you will need hangers, shackle straps, and suspension bolts. If you are simply replacing a spring, you may still have hangers welded onto your trailer. You should, however, replace your shackle straps because they are usually the first component to wear out. You may choose to replace old suspension bolts as well. It is recommended that you replace the other leaf spring in your setup at the same time. Because springs can sag and elongate as they wear, this new spring may not exactly match the old one, and the alignment of your trailer could be affected.


If you are fabricating a trailer, you will need to purchase a hanger kit for installation. To determine the type of hanger kit that you need, you must know the specific type of leaf spring that you have, as well as your axle capacity. Depending on the hanger kits used with them, springs can be configured to work for single-, tandem- or triple-axle applications. Hangers and other suspension components can also be purchased separately if there isn't a complete kit that works for your setup.



UNA-219 Universal Group Double Eye Trailer Leaf Spring - 3 Leaf - 1,250-lb Capacity

Replaces PR722







Economy - This item

3-Leaf Double-Eye Spring for 2,500-lb Trailer Axles - 25-1/8" Long


3-Leaf Double-Eye Spring for 2,500-lb Trailer Axles - 25-1/8" Long
Universal Group Trailer Suspension

37 reviews

Code: SP-219275


Retail:$23.98

Our Price: $19.62


  • Trailer Suspension
  • Leaf Spring Suspension
  • Suspension Components
  • 25-1/8 Inch Long
  • Leaf Springs
  • 2500 lbs
  • Double Eye Springs
  • Universal Group


Double-eye leaf spring acts as part of a trailer's suspension system by providing an attachment point for a 2,500-lb axle. Spring flexes to resist shock and also ensures a smooth ride. Includes bushings with 9/16" inner diameter.

more information →
Compare Similar Products
Economy
Price: $21.66
$2.04 More

4-Leaf Double-Eye Spring for 3,500-lb Trailer Axles - 25-1/8" Long


4-Leaf Double-Eye Spring for 3,500-lb Trailer Axles - 25-1/8" Long
Universal Group Trailer Suspension

281 reviews

Code: SP-212275


Our Price: $21.66


  • 3500 lbs


Double-eye leaf spring acts as part of a trailer's suspension system by providing an attachment point for a 3,500-lb axle. Spring flexes to resist shock and also ensures a smooth ride. Includes bushings with 9/16" inner diameter.

more information →
Value
Price: $25.83
$6.21 More

4-Leaf Double-Eye Spring for 3,500-lb Trailer Axles - 27" Long


4-Leaf Double-Eye Spring for 3,500-lb Trailer Axles - 27" Long
Universal Group Trailer Suspension

84 reviews

Code: SP-210275


Retail:$33.84

Our Price: $25.83


  • 27 Inch Long
  • 3500 lbs


Double-eye leaf spring acts as part of a trailer's suspension system by providing an attachment point for a 3,500-lb axle. Spring flexes to resist shock and also ensures a smooth ride. Includes bushings with 9/16" inner diameter.

more information →
Premium
Price: $80.08
$60.46 More

Never Fail Tandem Axle Suspension Upgrade Hardware Kit for Double Eye Springs


Never Fail Tandem Axle Suspension Upgrade Hardware Kit for Double Eye Springs
Lippert Components Trailer Suspension

93 reviews

Code: LC281285


Retail:$90.95

Our Price: $80.08


  • Suspension Enhancement
  • Suspension Kits
  • Tandem Axle
  • Lippert Components


Upgrade your tandem-axle trailer's suspension with this hardware kit. Outfits your trailer with 14 extra-durable, self-lubricating bushings; 16 corrosion-resistant shackle straps in different lengths; and 14 sturdy suspension bolts with nuts.

more information →

Related Products



Customers compare SP-219275 to these similar products





Customers Who Purchased This Trailer Suspension Also Bought...



Replacement parts available for this product

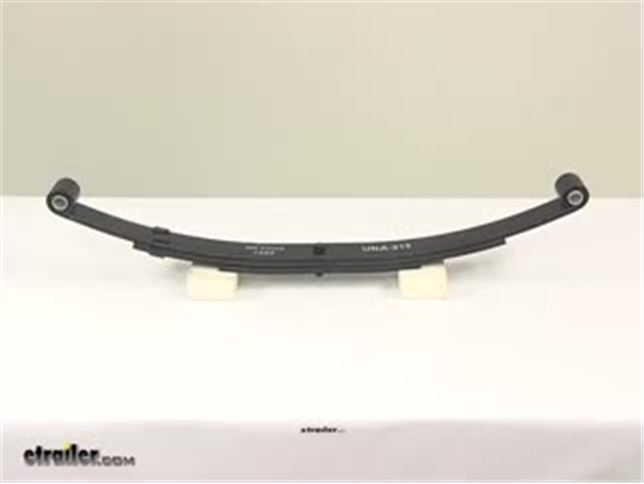

Video of 3-Leaf Double-Eye Spring for 2,500-lb Trailer Axles - 25-1/8" Long


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Universal Group Trailer Suspension SP-219275 Review

Today, we are going to be taking a look at the 3-leaf double-eye spring for 2,500 pound trailer axles. It's made from a nice, steel construction. Very strong, durable design. Now, these we're designed to flex. That way it absorbs road shock and it's going to provide an overall smoother ride. It's also designed to reduce wear and tear on the trailer.

Now, this is going to ensure a nice, level ride on bumpy and uneven surfaces. It mounts to the trailer frame with hangers or a hanger kit. Those items are sold separately. If you are in need of hangers or a hanger kit, you can find them right here at etrailer.com. The nylon bushings in the eyes are included. Pre-installed, already in there.

This is going to contain 3 leaves. It's going to offer a spring capacity of 1,250 pounds. It's designed for 2,500 trailer axles. Now, a few measurements to go over with you real quick. The most important one's going to be the spring length. Now, the spring length is taken from the center of one eye to the center of the other.

If we place a ruler on there and do that measurement, that's going to give us a measurement of 25 1/8 inches. The spring width, that's just measuring from edge to edge, that's going to measure 1 3/4 of an inch. Then, the eye diameter is 9/16 of an inch. Now, to ensure proper axle alignment and suspension performance, please keep in mind that leaf springs should always be replaced in pairs. That's going to do it for today's look at the 3-leaf double-eye spring for 2,500 pound trailer axles.
