Universal Group Trailer Suspension - SP-210275

Double-eye leaf spring acts as part of a trailer's suspension system by providing an attachment point for a 3,500-lb axle. Spring flexes to resist shock and also ensures a smooth ride. Includes bushings with 9/16" inner diameter.


Features:

  • Leaf spring acts as part of your trailer's suspension system
    • Provides attachment point for your trailer's axle
  • Multiple leaves allow flexibility to absorb road shock
    • Allows for a smooth ride
    • Reduces wear and tear on trailer
    • Ensures level ride on bumpy and uneven surfaces
  • Sturdy steel construction
  • Nylon bushings included
  • Pre-mounted hangers or aftermarket hanger kit (sold separately) required for installation
    • Spring attaches to hanger mounted on trailer frame at one end
    • Other end connects to shackle straps suspended from hanger or equalizer


Specs:

  • Quantity: 1 leaf spring
  • Spring capacity: 1,750 lbs
  • Axle capacity: 3,500 lbs
  • Length from center of spring eye to center of spring eye: 27"
  • Spring width: 1-3/4"
  • Eye diameter with bushing: 9/16"
    • Eye diameter without bushing: 11/16"
  • Leaf thickness: 3/8"
  • Number of leaves: 4
  • Additional dimensions: see table


Double-Eye Spring

Part NumberABCD
SP-21027513-1/2"14"27"2-3/4"


Note: To ensure proper axle alignment and suspension performance, leaf springs should always be replaced in pairs.


Leaf springs are an integral part of your trailer suspension system. The leaf springs provide the attachment points for your trailer's axle, suspending it from the frame of your trailer. Each spring flexes to absorb road shock as you travel, allowing the axle to move somewhat independently of the rest of your trailer. This helps to reduce wear and tear on the trailer and also ensures a smooth ride.


Double-eye leaf springs attach to hangers that are welded onto your trailer. One end of this spring will attach directly to the hanger with a suspension bolt. The other end will attach to shackle straps that are suspended from a hanger. These straps allow the spring to move and pivot so that it can better compensate for uneven pavement. If you have a tandem- or triple-axle trailer, the shackle straps will be attached to the equalizer that connects multiple springs.


To mount this spring, you will need hangers, shackle straps, and suspension bolts. If you are simply replacing a spring, you may still have hangers welded onto your trailer. You should, however, replace your shackle straps because they are usually the first component to wear out. You may choose to replace old suspension bolts as well. It is recommended that you replace the other leaf spring in your setup at the same time. Because springs can sag and elongate as they wear, this new spring may not exactly match the old one, and the alignment of your trailer could be affected.


If you are fabricating a trailer, you will need to purchase a hanger kit for installation. To determine the type of hanger kit that you need, you must know the specific type of leaf spring that you have, as well as your axle capacity. Depending on the hanger kits used with them, springs can be configured to work for single-, tandem- or triple-axle applications. Hangers and other suspension components can also be purchased separately if there isn't a complete kit that works for your setup.



UNA-210 Universal Group Double Eye Trailer Leaf Spring - 4 Leaf - 1,750-lb Capacity

Replaces PR427








Related Products



Customers compare SP-210275 to these similar products





Customers Who Purchased This Trailer Suspension Also Bought...



Replacement parts available for this product





Value - This item

4-Leaf Double-Eye Spring for 3,500-lb Trailer Axles - 27" Long


4-Leaf Double-Eye Spring for 3,500-lb Trailer Axles - 27" Long
Universal Group Trailer Suspension

77 reviews

Code: SP-210275


Retail:$33.84

Our Price: $23.98


  • Trailer Suspension
  • Leaf Spring Suspension
  • Suspension Components
  • 27 Inch Long
  • Leaf Springs
  • 3500 lbs
  • Double Eye Springs
  • Universal Group


Double-eye leaf spring acts as part of a trailer's suspension system by providing an attachment point for a 3,500-lb axle. Spring flexes to resist shock and also ensures a smooth ride. Includes bushings with 9/16" inner diameter.

more information →
Economy
Price: $15.59
$8.39 Less

U-Bolt Kit for Mounting 3,500-lb, Round Trailer Axles - 5-1/2" Long U-Bolts


U-Bolt Kit for Mounting 3,500-lb, Round Trailer Axles - 5-1/2" Long U-Bolts
Redline Trailer Suspension

269 reviews

Code: APUBR-1


Retail:$17.94

Our Price: $15.59


  • 1/2 Inch Diameter
  • 5-1/2 Inch Long
  • U-Bolt Kits
  • Round Axle - 2-3/8 Inch
  • Redline


Mount your round, 2-3/8" diameter axle to your trailer's leaf springs with this U-bolt kit. U-bolts, plates and nuts included.

more information →
Value
Price: $22.07
$1.91 Less

4-Leaf Double-Eye Spring for 3,500-lb Trailer Axles - 25-1/8" Long


4-Leaf Double-Eye Spring for 3,500-lb Trailer Axles - 25-1/8" Long
Universal Group Trailer Suspension

254 reviews

Code: SP-212275


Our Price: $22.07


  • 25-1/8 Inch Long


Double-eye leaf spring acts as part of a trailer's suspension system by providing an attachment point for a 3,500-lb axle. Spring flexes to resist shock and also ensures a smooth ride. Includes bushings with 9/16" inner diameter.

more information →
Premium
Price: $49.28
$25.30 More

Tandem-Axle Trailer Hanger Kit for Double-Eye Springs - 3-1/4" Front/Rear/Center


Tandem-Axle Trailer Hanger Kit for Double-Eye Springs - 3-1/4" Front/Rear/Center
Dexter Trailer Suspension

100 reviews

Code: APT5


Retail:$89.80

Our Price: $49.28


  • Suspension Kits
  • Tandem Axle
  • Dexter


Leaf-spring mounting kit includes 3-1/4" tall front, center and rear hangers and necessary hardware. Equalizers are 7-3/4" long. Components for mounting axle to springs sold separately.

more information →

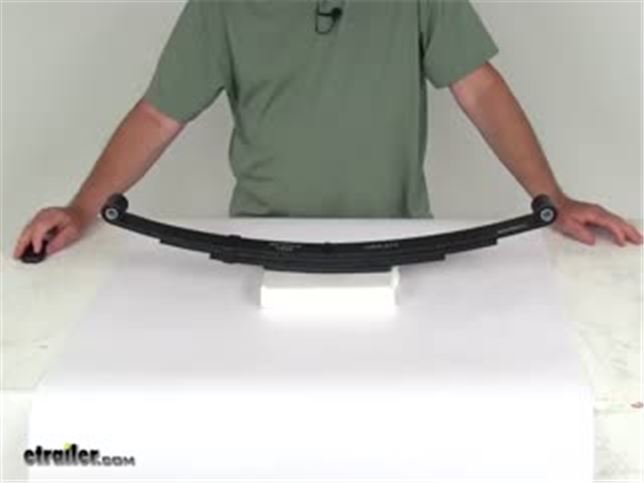

Video of 4-Leaf Double-Eye Spring for 3,500-lb Trailer Axles - 27" Long


Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.




Video Transcript for Universal Group Trailer Suspension SP-210275 Review

Today we're going to take a look at the 4-leaf double-eye spring for 3,500-pound trailer axles. This spring is designed to flex to absorb road shock and provide a nice smooth ride. It will help reduce wear and tear on your trailer. It helps you enjoy a level ride on bumpy and uneven surfaces and it mounts to your trailer frame with hangers or a hanger kit which we do sell separately on our website. Lots of times they are listed on this product page as a related product. It does include the nylon bushings in the eyes. A few specs on this.

The spring capacity is 1,750 pounds. It is designed to be used on axles with 3,500-pound rating. When you use this with one on the other side it will meet your 3,500-pound rating. This is for a quantity of one spring. It does have the four leafs as you can see, one, two, three, four.

I do want to give you a few measurements on this. We're going to do the spring length which is measured from the center of this busing to the center of this busing. You can see center-to-center is going to be right at 27 inches. We're going to do the width of it and the width is going to be right at 1-3/4 inches wide. The diameter of the eyes on each end is 9/16 of an inch. I just want to know we do want to recommend is that to ensure proper axle alignment and suspension performance, you do usually want to replace your leaf springs in pairs.

That should do it for the review on the 4-leaf double-eye spring for 3,500-pound trailer axles.
