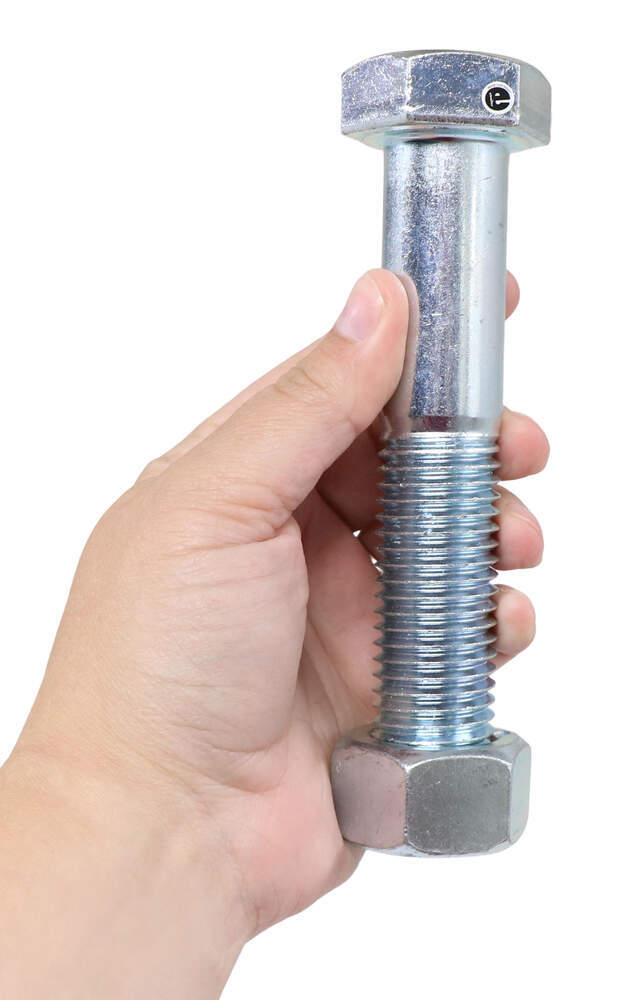

Equalizer Suspension Bolt with Locknut - 5" Long

Equalizer Suspension Bolt with Locknut - 5" Long

Item # 7-182-6-112
Our Price: $9.99
Trailer Suspension Parts
Add to cart
In Stock
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Need help with installation?
Locate installers near me
1" Diameter suspension bolt is used to suspend equalizer in tandem- or triple-axle applications. Locknut included. Great Prices for the best trailer suspension parts from Redline. Equalizer Suspension Bolt with Locknut - 5" Long part number 7-182-6-112 can be ordered online at etrailer.com or call 1-800-940-8924 for expert service.
  • All Info
  • Reviews (2)
  • Q & A (0)
  • Videos (1)
  • Photos

Redline Trailer Suspension Parts - 7-182-6-112

  • Suspension Bolts
  • Boat Trailer
  • Camper
  • Car Hauler
  • Snowmobile Trailer
  • Utility Trailer
  • 5 Inch Long
  • 1 Inch Diameter
  • Redline

1" Diameter suspension bolt is used to suspend equalizer in tandem- or triple-axle applications. Locknut included.


Features:

  • Suspension bolt attaches equalizer to center hanger
  • Included locknut secures in place on bolt


Specs:

  • Diameter: 1"
  • Threads per inch: 8
  • Length: 5"
  • Grade: 5


7-182 and 6-112 Equalizer Bolt and Locknut - 5" Long





Video of Equalizer Suspension Bolt with Locknut - 5" Long

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Review of Redline Trailer Leaf Spring Suspension - Equalizer Bolt and Locknut - 7-182-6-112

Jeff Hello everybody, this is Jeff at etrailer.com. Today, we're gonna take a look at this five inch long equalizer suspension bolt with the lock nut. Now, this suspension bolt will attach the equalizer to your center hanger on your trailer, and the lock nut is what will secure the bolt in place. You can see both pieces have a nice zinc finish to it. Now, this is for both pieces. If you just need the bolt, we do sell this separately on our website.

It's part number 7-182, and it's listed on this product page as a related product. And also, if you just need the lock nut separately, we do sell that separately. It's part number 6-112, and same way, it is listed on this product page as a related product. Now, I did wanna mention to install the slot nut correctly. Let me just zoom in, I wanna show you, if he look on the outside edge, you'll see those three indentations, right here.

Don't know if you can see it on there, up close. And, on this side, they don't have it. When you go to install this, those three indentations will face out, or face away from the bolt. So, you'll wanna make sure when you put it on, that you can see those indentations. And, the reason I say that is that will allow you to thread it on.

And then, when you get so far, it'll stop, and that's the locknut position. So, when you go to tighten it like that, it'll lock it into place. If you try to do it the other way, in other words, if you just took the lock nut and put it on the other way without the indentation showing, it won't even get started. So, it won't allow you to even start it. You can see it just stops, like that.

So, we do wanna make sure when you do install it, that those three indentations are facing out, that you can see them when you're installing it. A few specs on this, the diameter on the bolt, it's going to be right at one inch. Threads per inch is eight threads per inch. The hex head size on the bolt is one and a half inches. Length of the bolt, which was measured from under the hex head to the end of the bolt, it's right at five inches. And, it is a grade five bolt. And, the way you can tell that is, if you look at the head on the bolt, you'll see the three lines. Those three lines will let you know that it is a grade five rating. That should do it for the review on the five inch long equalizer suspension bolt with the lock nut..


Customer Reviews

Equalizer Suspension Bolt with Locknut - 5" Long - 7-182-6-112

Average Customer Rating:  5.0 out of 5 stars   (2 Customer Reviews)

1" Diameter suspension bolt is used to suspend equalizer in tandem- or triple-axle applications. Locknut included.

by:



by:


2
2

See what our Experts say about this Redline Trailer Suspension Parts

  • Replacement Triangular Equalizer, 3-1/8" Shackle Straps and Bolts For Tandem Axle Trailer
    We do have all the components you will need just not as a single kit. The nearest shackle strap to your 3" will be our 3-1/8" Strap # TRSL313. I have listed the parts you will need below with the correct quantity for all the suspension on your tandem axle trailer. Triangular Equalizer # TREQ310 Qty 2 Shackle Strap # TRSL313 QTY 8 Shackle Bolt # TRFA73Z916DLNZ QTY 12 Equalizer Bolt # 7-182-6-112 QTY 2 If your Nylon Bushings # TRBU11566 in your springs are worn or damaged those can be...
