See what our Experts say about this Dexter Trailer Suspension Parts

• What is Difference Between Dexter Cushioned Equalizers K71-653-00 and K71-653-06
  Hey Mark, the part # K71-653-00 is just the cushioned equalizers whereas the part K71-653-06 is a kit that includes the cushioned equalizers as well as heavy duty shackles and bushings.
  view full answer...
• What Measurements are Needed to Find the Correct Dexter E-Z Flex Equalizers for a Trailer
  According to the fit specifications, the E-Z Flex # K71-652-00 are to fit tandem axles with 33 inches of axle spacing. You can also measure your current equalizers to make sure # K71-652-00 will be the correct replacement for your trailer's suspension. The attached picture shows the what dimensions of your current equalizer would have to be to be replaced by either # K71-652-00 or # K71-653-00 E-Z Flex equalizer.
  view full answer...

• Cushioned Equalizer Recommendation to Replace Dexter 13-122
  Hey Gene, for the Dexter equalizer you have now 13-122 the correct cushioned equalizer upgrade you'd want is the EZ Flex part # K71-653-00. This kit also comes with upgraded shackles and wet bolts that have built in grease fittings so basically it comes with everything you'd need. Which camper do you have? Does it ride rough currently?
  view full answer...
• Could Dexter Heavy-Duty Suspension Kit # K71-359-00 Fit 2014 DooLittle Enclosed Trailer
  If your 2014 7x16 doolittle enclosed trailer has tandem axles that are spaced 33 inches apart and the equalizers are 2 inches tall and 5-3/4 inches apart on center then yes, the Dexter Heavy-Duty Suspension Kit for Tandem-Axle Trailers # K71-359-00 that you referenced would fit and work well.
  view full answer...
• How to Choose Correct Road Armor Equalizer Kit for 2021 Grand Design Travel Trailer
  To chose the correct Road Armor kit you'll need to measure the distance between the centers of the lower bolt holes that attach to the shackles as well as the drop from the center of the top bolt hole to the centerline of the two lower bolt holes. For example, the Road Armor Shock Absorbing Equalizer Kit # LC696740 measures 6" across on center and 3-1/2" down from the top bolt position. This kit is also designed to work with 3,500 lbs - 8,000 lbs axles. As long as these specs match what...
  view full answer...

• Dexter EZ Flex Equalizers for 6,000 Pound Axles on a 2006 Heartland Bighorn 5th Wheel
  The length is good on the EZ Flex system # K71-653-00 but the height may be different depending on where you are measuring that 4-3/4 inches. On the EZ Flex the distance from the center of the mounting hole to the center line between the 2 bottom holes, straight up and down, is 2-7/8 inches. If your 4-3/4 inch measurement is diagonal then you will be good to go with this kit. For a u-bolt kit you can use # APUBR-9. The shocks might actually feel more effective with the EZ Flex kit installed....
  view full answer...

• What is the Length of Shackles Included with Dexter E-Z Flex Suspension Kit
  Hey Frank, thanks for reaching out! The shackle straps that come with the Dexter E-Z Flex Suspension Kit # K71-653-00 measure 2-1/4" center to center for the bolt holes - this is the same for the regular kit as well as the kit we currently have listed at a lower price (which we do from time to time). A 1/4" difference between the shackles will be just fine so you can definitely use this kit. When it comes to the trimming with the installation of the MORryde Shock Absorbing Suspension...
  view full answer...
• Can Dexter EZ Flex Kit Replace Equalizers with Longer Shackles
  You can use the Dexter E-Z Flex Suspension Kit # K71-653-00 in place of what you have now but the shorter shackles will change the height of your trailer as it currently sits. Your trailer will sit higher by about 1 inches.
  view full answer...
• Replacement Equa-Flex Cushioned Equalizers for Dexter Equalizer Part 13-122
  The Equa-Flex Cushioned Equalizers part # LC279688 would indeed be the best fit replacement for the Dexter Equalizers part 13-122 you have now. However, as you mentioned the vertical bolt spacing will be about 2" taller which does indeed mean that the trailer will be raised but not necessarily the full 2". If you are looking for a cushioned equalizer upgrade that would not raise the trailer I recommend taking a look at the E-Z Flex Heavy Duty Rubber Suspension System by Dexter Axle part...
  view full answer...

• Recommended Dexter E-Z Flex Equalizer for 2004 NUWA Hitchhiker II LS to Widen Axle Hanger Spacing
  I recommend using the E-Z Flex Heavy Duty Rubber Suspension System by Dexter Axle - 5-5/8" Equalizers # K71-652-00 which is compatible with axle spacing of 33 inches on center. It is okay to move your outside hangers to give you more space but there are standard spaces that work well for tandem axle trailers that you will want to stick to. If you want 35 inch axle spacing, then you will move the hangers and use kit # K71-653-00 which has wider equalizers to make up for the larger spacing....
  view full answer...

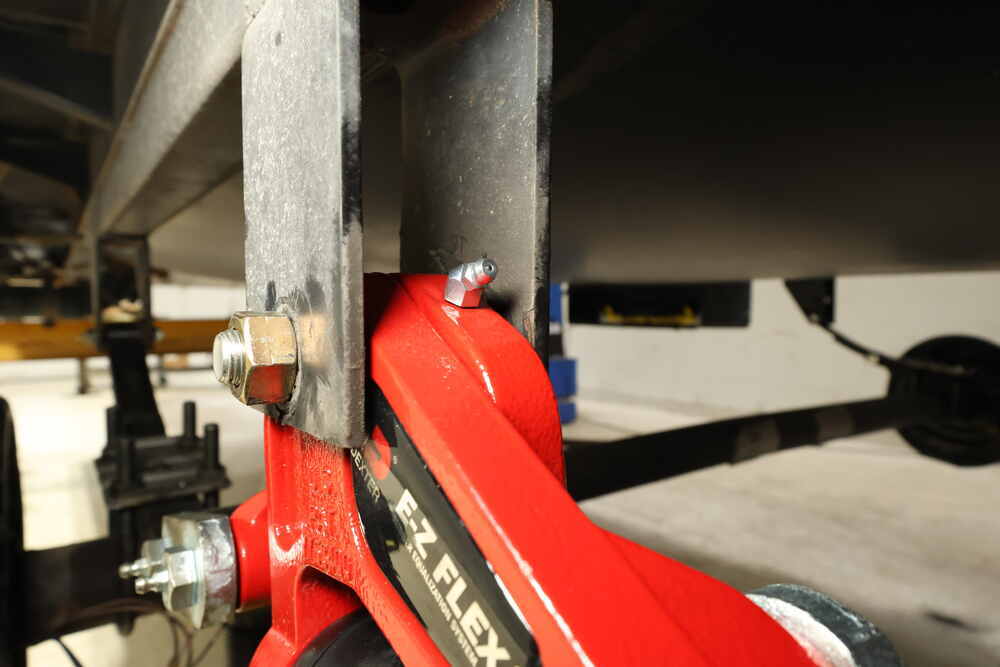

• Correct Orientation of Wet Bolts for Dexter E-Z Flex Suspension Kit
  Hey Frank, thanks for reaching out! What Dexter Axle means by this is that you want the grease zerk fitting from the wet bolts in the Dexter E-Z Flex Suspension Kit # K71-653-00 to face the outside of the trailer, rather than under the trailer. I see why it's a bit confusing, but if you check out the clipped photo I grabbed from the instructions you'll see what I mean. Were you planning on doing this installation on your own, or have a shop do it?
  view full answer...
• Cushioned Equalizer Kit that Fits 2013 Keystone Fuzion
  We can definitely help but can you get me the distance between the holes that lower holes of the equalizer you currently have? I will need that info to determine what replacement would work.
  view full answer...
• SumoSpring For A 2022 Grand Design 22RBE With Dual 3.5K Overslung Axles
  For your 2022 Grand Design 22RBE with dual 3,500 lb overslung dexter axles the correct SumoSpring kit is part # TSS-107-40. Since your trailer is a tandem axle you will need two of these kits. These are made specifically for overslung axles rated between 3,000 and 5,0000 lbs, so it will work perfectly for your camper. You can expect to see a much smoother ride with less jarring or chucking. SumoSprings will help to reduce sway and body roll. They may also raise the trailers ride height...
  view full answer...
• What is Advantage of Never Fail Tandem Axle Suspension Upgrade Hardware Kit Over Other Options
  The Never Fail upgrade kits like the # LC281285 have two really distinct advantages. One of them is what you mentioned and is that they don't require greasing or any maintenance. The other is that they last about twice as long as any other heavy duty style of bushing kit. You'll get easily twice the mileage from this kit over anything else.
  view full answer...

• New Leaf Springs & Equalizer Upgrade on Grand Design Reflection 312BHTS Travel Trailer
  So starting with the question about weight, since you have 5,200 lb axles, go with the 5,300 lb leaf springs, or even 6,000 lb leaf springs would be okay, but I do not recommend going with springs rated less than the axle capacity. The number of springs doesn't come into play, the capacity is what really matters. As for fit, we don't have a way of knowing what leaf springs are on any trailer - the same goes for the equalizer - so you'll need to do some measuring. Leaf springs do flatten...
  view full answer...
• Locating Replacement Leaf Springs for Dexter D44 Tandem Axles and Recommended Upgrades
  In order to find the right replacement leaf springs, you will need to raise the trailer up and take some measurements on one of the existing springs. This type of information isn't typically provided by trailer manufacturers and it's not something that can be determined by the axle capacity (many different leaf spring lengths could be used with 4,400 pound tandem axles). With all the weight lifted off the leaf springs, you will just need to measure their length (from the center of one...
  view full answer...
• Cushioned Equalizer that Can Fit 2024 Alliance Delta 281BH
  Hey Thomas, I have a great solution for you but the Road Armor you referenced would be too small to fit your 2024 Alliance Delta 281BH. Instead we have the Dexter EZ Flex part # K71-653-00 which basically matches your dimensions exactly. Is your ride quality pretty rough currently?
  view full answer...
• Upgraded Equalizer For Replacing Dexter 13-122 Equalizer
  Hello Phil, thanks for reaching out. Our records show the Dexter 13-122 equalizer as 7-3/4" long and 2-7/8" tall. We do have an upgraded equalizer to replace this, but it is not the Morryde CRE 3000. The correct replacement is the Dexter E-Z Flex Suspension Kit # K71-653-00. This equalizer has a rubber core for absorbing shock. It measures 7-3/4" wide and 3" tall so it will be an acceptable replacement.
  view full answer...
• Hello Sir I have a 2004 Continental A2150-5000 wi
  Hey Keith thanks for all the information! The best suspension kit for your 2004 Continental A2150-5000 trailer is going to be the Dexter E-Z Flex Suspension Kit item # K71-653-00. This kit has upgraded equalizers with rubber cores that absorb road shock, which give you a smoother ride. The shackle straps are slightly shorter at 3/8" which will not affect your suspension. They have wet bolts with built-in grease zerks that makes maintenance extremely easy. I have linked an installation...
  view full answer...
• Replacement Suspension Parts & Lift For 2012 Skyline Koala 27CDS With 3,500 lb Axles
  Okay let's get started here with the suspension for your 2012 Skyline Koala 27CDS with 3,500 lb Axles; for the first part regarding your equalizers and suspension upgrade kit, so long as your current equalizer is spaced 6 inches (or close to it - I am unable to tell from your parts list if the drawing of the equalizers are your measurements or referencing something else) apart from bolt hole to bolt hole you can use the Road Armor Shock Absorbing Equalizer Kit # LC696740 with the MORryde...
  view full answer...

• Replacement Upgraded Cushioned Equalizer for Equa Flex
  Thanks for the picture of the Equaflex equalizers you have on your 2022 Genesis Supreme. Based on that it looks like you have the part # LC279688. Based on that the best recommendation I can make to replace them would be the EZ Flex part # K71-653-00 which has same capacity and dimensions but is known to be more reliable than other options. We don't have air bag kits that fit your trailer but we do have suspension enhancement kits that would fit like the SumoSprings part # SS26MV which...
  view full answer...

• Best Equalizer Upgrade Options for 7-3/4" Wide Equalizers on a 2023 Grand Design 21BHE
  I do have some direct equalizer upgrade options for you, but the Road Armor Shock Absorbing Equalizer Kit # LC696740 won't work unless you get longer shackle straps, but even then if you already have 3-1/8" long shackles you won't be able to get longer ones. For direct replacements we have the Dexter E-Z Flex # K71-653-00 and Lippert Equa-Flex # LC279688 kits. Both options are great for upgrading but the E-Z Flex system is more of a premium style so I recommend going that route for the...
  view full answer...
• Recommended Upgraded Equalizer for 2021 Grand Design Imagine 22RBE XLS
  For your 2021 Grand Design Imagine 22RBE XLS I recommend the Dexter E-Z Flex Equalizers # K71-653-00. The best upgrade option is typically the one that matches your current equalizers. You have standard Dexter 7-3/4" equalizers right now so these will be perfect with the same dimensions. I installed the E-Z Flex on my trailer and they do a great job smoothing out the ride. The part linked above is the full kit. It also comes with wet bolts, bronze bushings, and heavy duty shackles. These...
  view full answer...
• Upgraded Equalizer for Enclosed Trailer With 8" long Equalizer
  The best upgraded equalizer is the one that is the closest match to your current measurements. Since you have an 8" long equalizer you want the Dexter # K71-655-00. This measures 7-3/4" center to center between the outer shackle bolt holes. If you don't already have them, I recommend upgrading to heavy duty shackles, wet bolts, and bronze bushings as well. Assuming you have 2-1/4" shackle straps you can use the # K71-653-00 which comes with these parts and includes the same upgraded equalizer.
  view full answer...
