Spindle 2.25" RD x 6" STUB

Spindle 2.25" RD x 6" STUB

Item # R50642
lowest price pledge
Our Price: $52.29
Trailer Spindles
Orders above $99 qualify for Free Shipping
Shipping Weight: 10 lbs
Quantity:
Redline 2-1/4 Inch Diameter Trailer Spindles - R50642
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Videos

Lowest Prices for the best trailer spindles from Redline. Spindle 2.25" RD x 6" STUB part number R50642 can be ordered online at etrailer.com or call 800-298-8924 for expert service.
  • All Info
  • Reviews (14)
  • Q & A (39)
  • Videos (1)
  • Photos
  • Why etrailer?

Redline Trailer Spindles - R50642

  • For 5000 lb Axle
  • Standard Spindle
  • 2-1/4 Inch Diameter
  • Round
  • Redline
  • 6 Inch Long


  • Includes washer, castle nut and pin

Part No. Capacity A B C D E F Round/Square
R50642 2500 lb 2.25 2.24 1.74 1.25 1.00 6.00 Round

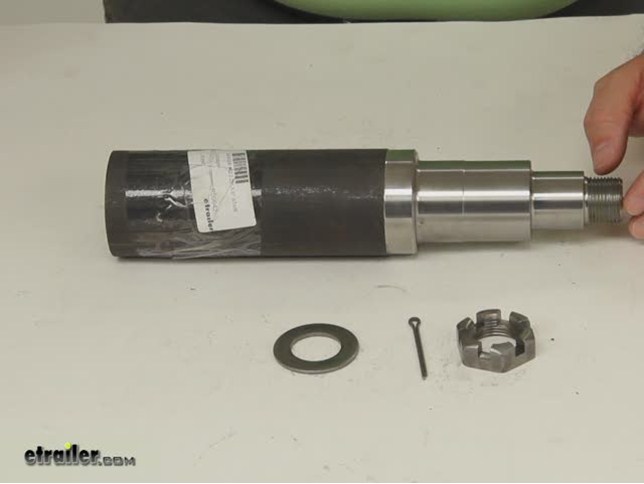

Video of Spindle 2.25" RD x 6" STUB

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Redline Trailer Spindles - Standard Spindle - R50642 Review


Customer Reviews

Spindle 2.25" RD x 6" STUB - R50642

Average Customer Rating:  5.0 out of 5 stars   (14 Customer Reviews)


- R50642
by:

Bought two of these spindles to go on my log arch. Welded easily. Works flawlessly, no issues. The videos on Etrailer.com of how to correctly assemble and pack the bearings were awesome. 679705



- R50642
by:

Everything we’ve ordered from you has met our expectations. We’ve ordered many times and will again. You have great products and excellent service and the prices are great. 606554



- R50642
by:

Karen went above and beyond finding a matching spindle and hub for my application. Always a great experience dealing with e trailer fast shipping and friendly service over the phone. One stop shop for anything trailers 581389



- R50642
by:

better than average, will buy from this company again 505979



- R50642
by:

Heavy made was very easy to install 451935



- R50642
by:

The spindles were exactly as what was needed and worked perfectly. 361327



- R50642
by:

Great product great price. 344809



- R50642
by:

Shipped fast, was just what I needed 305850



- R50642
by:

good material....Thanks 269276



- R50642
by:

Heavy duty spindle 253597



- R50642
by:

HUBS &SPINDALS 212795



- R50642
by:

have ordered many parts for multiple trailers recently.i have been very satisfied with price, timely shipping, and excellent customer service!! have recommended to friends. 168874



- R50642
by:

Every thing looks good packaged well no problems Thanks. 59857



- R50642
by:

Great Service 26188


14
14

Ask the Experts about this Redline Trailer Spindles

  • Number 42 Spindle Recommendation
    We do have a Dexter number 42 spindle. For a standard spindle you would want the part # R50642. For the EZ lube version you would want the part # R50342EZ. This comes with a brake mounting flange. The seal inner diameter needed for this would be 2.24. The bearing dimensions you referenced are correct.
    view full answer...
  • Compatible Spindles for Dexter Hub 8-213
    For a Dexter 8-213 hub like # 8-213-5UC1 you can use Redline spindle # R50642 or for an EZ-Lube kit like # 8-213-5UC1-EZ you can use spindle # R50342EZ. Both spindles work with bearings 25580 and LM67048.
    view full answer...
  • Why Does Spindle with Smaller Diameter Have Higher Weight Rating
    In all honesty it really just boils down to how they were manufactured and what bearings and grease seal are typically found on those axles/spindles. It also may have to do with the part # R50642 being a standard application while the part # AS3000F is geared more towards agricultural applications. Either way, Redline has tested and approved these spindles for the capacities that you references.
    view full answer...
  • Welding Redline Spindles # R40484 and # R50642 for Utility Trailer with 2-3/8 inch O.D. Pipe
    You have a 2-3/8 inch O.D. pipe so you might want to look at Redline Spindle 2 inch x 4 inch Round Stub, # R40484, which has a 2 inch O.D. at the weld point and has a 1750 lb. capacity, so two spindles will give that axle 3500 lb capacity or Redline Spindle 2-1/4 inch RD x 6 inch STUB, # R50642, which has a 2.25 inch O.D. at the weld point and has a 2500 lb. capacity for a total capacity of 5000 lbs. The total capacities of the spindles are only valid if installed correctly and the axles...
    view full answer...
  • Complete Spindle Length Dimensions by Section for the # R50642 2500 Pound Spindle
    For the Spindle 2.25 inch RD x 6 inch STUB, item # R50642, the width of the B or seal surface area of the spindle is .550 inches, and the width of the C or inner bearing surface of the spindle is 1.00 inches. The width of D or the outer bearing surface is 1.075 inches and the distance between the inner and outer bearing surfaces is 1.350 inches. The width of the threaded portion is .780 inches and the overall length of the spindle is 10-7/8 inches. These dimensions are usually not needed....
    view full answer...
  • Will Redline Spindle R50642 Fit Dexter Trailer Hub Assembly 42865-KIT
    The Redline Spindle # R50642 is compatible with the Dexter Trailer Hub Assembly # 42865-KIT. Since the hub uses bearings 25580 and 14125A, whose inner diameters match up to the spindle dimensions, the hub will work on the spindle. Spindles need to be professionally welded on perfectly straight and concentric to ensure you do not have issues with trailer tracking or uneven tire wear.
    view full answer...
  • Which Hub Do I Need for the R50642 Spindle.
    The hub you will need for the Spindle 2.25 inch RD x 6 inch STUB, item # R50642, is the Trailer Hub Assembly - 5,200 & 6,000 lbs Axles - 6 on 5-1/2, item # 42655UC1.
    view full answer...
  • Trailer Spindle, Hub and Drum, and Electric Brakes for a Fabricated Utility Reel Trailer
    Spindle # R50342EZ is the highest capacity spindle we have at 2600 pounds. It is a 2-1/4 inch round stub. The part of the stub before the brake mounting flange is 3 inches but the length including the part on the other side of the flange before it tapers down to a smaller diameter would be 6 inches. Then you could use hub and drum assembly # 8-219-4UC3-EZ which does fit the spindle and it has an 8 on 6-1/2 bolt pattern. For electric brakes you can use # 23-105 for the left and # 23-106...
    view full answer...
  • Recommended Spindle Without Brake Flange to Fit 7K Idler Hub AKIHUB-865-7-2-K
    For a number 42 spindle without a brake flange, the size that works with 7K Idler Hub Assembly # AKIHUB-865-7-2-K, you can use part # R50642. The same size spindle WITH brake flange and an EZ Lube grease zerk fitting is part # R50342EZ.
    view full answer...
  • What is the Overall Length of Trailer Spindle # R50642
    Trailer spindle # R50642 has the following measurements: Width of the F or stub is 6 inches Width of the B or seal surface area of the spindle is 0.550 inches Width of the C or inner bearing surface of the spindle is 1.00 inches Width of D or the outer bearing surface is 1.075 inches Distance between the inner and outer bearing surfaces is 1.350 inches Width of the threaded portion is 0.780 inches Overall length of the spindle is approximately 10-3/4 inches I included a...
    view full answer...
  • Large Spindle and 8 Lug Hub Assembly For Crane Build
    Our strongest regular spindle is the Spindle 2.25" RD x 6" STUB, # R50642. This spindle is for a 7000 lb axle and the idler hub assembly is # AKIHUB-865-7-1-K. If you wanted a drum assembly with brakes, you would want the # AKHD-865-7-2-K hub and drum assembly with the # AKEBRK-7L-SA brake assembly. We carry heavier drum and brake assemblies, but this is the largest spindle we carry.
    view full answer...
  • Spindle Recommendation for Use with the Trailer Hub and Drum Assembly # 8-219-13UC3
    The Trailer Hub and Drum Assembly # 8-219-13UC3 that you referenced is designed to fit a number 42 spindle like the part # R50642.
    view full answer...
  • Recommended Hubs and Spindles for 2500 lb Homemade Trailer
    The first thing to determine is if you want an idler hub or a hub/drum. The weight threshold at which brakes are mandated varies by state, so you might want to check that with your state police or highway patrol. If you decide on an idler hub (no brakes), I'd recommend the # 42655UC1 hub from Dexter Axle. The bearings, races, grease seal, lug bolts and grease cap are included. The hub will have more than enough capacity for your application. This hub would use the # R50642 spindle. For...
    view full answer...
  • 6k Rated Agricultural Hub and Spindle with 6 Lug Bolt Pattern
    For an agriculture hub designed for a 6k axle with a 6 on 6 inch bolt pattern you would want the part # 42660UC1. For the matching spindle for this hub you would want the number 42 spindle part # R50642.
    view full answer...
  • Replacement Trailer Hubs for Spindle # R50642 or Spindle # R50342EZ
    If those measurements are spindle measurements, we do not have an exact match, but the best way to find the correct replacement hubs is to find the inner and outer bearings numbers stamped onto the bearings. With those numbers, finding the correct hubs will be easy. Most of the time, mobile home axles are good for one time use only. The closest spindle we have to the measurements you have provided would either be # R50642 or # R50342EZ. For the R50642 spindle with a 6 on 5-1/2 bolt...
    view full answer...
  • Will Trailer Hub Assembly part # 42655UC1-EZ Fit a Spindle R50642
    Yes, the Hub part # AKIHUB-655-6-K that you referenced is a fit for the spindle part # R50642 that you also referenced.
    view full answer...
  • What Material are Trailer Spindles Made of
    The trailer spindle # R50642 is made of good old fashioned steel. All of the spindles we carry are made of steel. I have included a link to a video review of this spindle for you.
    view full answer...
  • Replacing 10x1-1/2 Inch Brake Assemblies with 10x2-1/4 Inch Brake Assemblies
    As long as your spindles are 4.75 inches from seal to threading like # R40484 or # R50642 they are compatible. I've attached a photo to assist. You will be able to use the Electric Trailer Brake Kit - Self-Adjusting - 10" - Left and Right Hand Assemblies - 3,500 lbs # AKEBRK-35-SA. We do not carry a hub that will fit the bearings you referenced. My recommendation is to change your axle or at least your spindle to allow you to use standard hubs like # AKHD-545-35-K. This will require...
    view full answer...
  • Which Spindle is Used with Trailer Hub Assembly, Part # 42865UC1
    There are two spindle options for the Trailer Hub Assembly, part # 42865-KIT. The spindle used would depend on the capacity of your axle. For a 5000 pound axle, use part # R50642. For a 5200 pound axle, you would use part # R50342EZ. The R50342EZ is an EZ lube spindle with the zerk fitting for adding grease to the bearing assemblies.
    view full answer...
  • Availability of 6-1/2-Inch Spindles for Use on Tandem Axle Off-Road UTV Trailer
    You can view all spindles by clicking on the link provided. We offer two spindles with the 6- to 6-1/2-inch stub length you're looking for, parts # R2061-284 and # R50642. Part # R2061-284 has a 6-1/2-inch stub, 1-3/4-inch diameter and is rated for a 3500-lb axle. Part # R50642 has a 6-inch stub of 2-1/4-inch diameter and it is rated for a 5000-lb axle. In order for your existing hubs to fit either of these spindles they will have the use the matching bearing set. Spindle # R2061-284...
    view full answer...
  • 5-on-4-1/2-Bolt Pattern Hub for Use on Redline 2-1/4-Inch Spindle # R56042
    Selection of a compatible hub for use on the Redline Spindles # R50642 requires matching up the bearing set that fits this spindle (25580 inner bearing and LM67048 outer bearing) to the bearings in the hub. We do offer a number of hub kits that use this same bearing set and all can be seen on the link at right. However, none of these has a 3500-lb capacity and none has the required 5-on-4-1/2-inch bolt pattern. All of these hubs use at least 6 lugs. You may find it easier to select...
    view full answer...
  • What Bearing Kit Fits the Trailer Spindle part R50642
    For a bearing kit that fits the spindle part # R50642 that you referenced you would want the part # BK3-300.
    view full answer...
  • Additional Measurements Needed for the Redline Trailer Spindle # R50642
    The Redline Spindle, part # R50642, has the closest dimensions to your spindle, but they are not exactly the same as the dimensions you have provided. I have included a chart showing the dimensions you provided and the dimensions of this spindle. I used a digital caliper to take these measurements. The length of the Redline spindle from the inner bearing recess to the end of the threads is 4.370 inches, or approximately 4-3/8 inches. The distance from the inside wall of the outer bearing...
    view full answer...
  • What Alloy of Steel is the Redline Spindle # R50642
    I reached out the manufacturer and they said it is just a standard carbon steel and there are not any alloys he is aware of. The 6 inch stub is just more of a raw finish versus the finer machined areas for the seal and bearings on the spindle itself. He said it is not dipped or plated...so it is just regular steel.
    view full answer...
  • Recommended Spindle For # 8-174-5UC3 Trailer Hub And Drum Assembly
    The spindle that would work with the hub # 8-174-5UC3 you mentioned is the Redline Spindle, part # R50642. This spindle includes the washer, castle nut, and pin. This has a 2,500 lb capacity. I have attached a product review video for this spindle you can check out. If you are interested in a spindle that has the EZ lube zerk fitting, I recommend part # R50342EZ. This has the brake mounting flange attached to the spindle. You can take a look at the attached product review video.
    view full answer...
  • Spindle With Same Dimensions as R50342EZ That Does not Have EZ Lube or Flange
    There is the same spindle as # R50342EZ but is not EZ Lube and does not have a brake flange. What you are seeking is spindle # R50642 which is otherwise the same; I've added a link to a video review of this spindle for you to take a look at.
    view full answer...
  • What is Trailer Spindle # R50642 Made Of
    The trailer spindle # R50642 is made of good old fashioned steel. All of the spindles we carry are made of steel. I have included a link to a video review of this spindle for you.
    view full answer...
  • Compatibility of Redline Replacement Axle Spindles with Dexter Hubs
    Redline Spindles are indeed compatible with Dexter hubs, if the spindle is matched properly with the bearings your hub uses. To find the correct spindle, match the inside diameter of your inner bearing, outer bearing and grease seal to the dimensions of the bearing surface of the spindle, as shown in the photo I provided. You'll also need to match the weight capacity of the spindle with that of the axle.
    view full answer...
  • Capacity of Trailer Axle Spindles # R50642 and # AS3000F
    The only capacities we have for the two spindles you mentioned is the capacity of them if they are used as they are intended on a trailer axle. The part # AS3000F is for a 6,000 lb axle so it has a 3,000 lb capacity and the # R50642 is intended for a 5,000 lb axle so it has a 2,500 lb capacity.
    view full answer...
  • What Size Spindle is Needed for a M/H trailer
    The axle spindle you need to order will depend on the weight capacity of your trailer and on the type of spindle (see link) already being used, if you only need to replace one spindle. To figure out which spindle is correct you can use the bearing part numbers, both inner and outer, and the shape and length of the spindle stub on your trailer. The bearing numbers will let you cross reference the correct spindle measurements for your hub. The axle stub shape and length will allow you...
    view full answer...
