1. Trailer Spindles
  2. Redline
  3. For 2000 lb Axle
  4. EZ Lube Spindle
  5. 1-1/4 Inch Diameter
  6. Round
EZ Lube Spindle 1.25 RD STUB - 1.06" Bearing ID

EZ Lube Spindle 1.25 RD STUB - 1.06" Bearing ID

Item # R104BTREZ
lowest price pledge
Retail:$48.63
Our Price: $41.77
You Save: 14%
Trailer Spindles
Orders above $99 qualify for Free Shipping
Shipping Weight: 3 lbs
Quantity:
In Stock, Ships Today
Redline 4 Inch Long Trailer Spindles - R104BTREZ
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Videos

Lowest Prices for the best trailer spindles from Redline. EZ Lube Spindle 1.25 RD STUB - 1.06" Bearing ID part number R104BTREZ can be ordered online at etrailer.com or call 800-298-8924 for expert service.
  • All Info
  • Reviews (12)
  • Q & A (64)
  • Videos (1)
  • Photos
  • Why etrailer?

Redline Trailer Spindles - R104BTREZ

  • For 2000 lb Axle
  • EZ Lube Spindle
  • 1-1/4 Inch Diameter
  • Round
  • Redline
  • 4 Inch Long


Trailer Axle Spindle - EZ Lube


Part No. Capacity A B C D E F Round/Square
R104BTREZ 1000 lb 1.25 1.50 1.06 1.06 1.00 4.00 Round - E-Z Lube




Video of EZ Lube Spindle 1.25 RD STUB - 1.06" Bearing ID

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Redline Trailer Spindles - EZ Lube Spindle - R104BTREZ Review

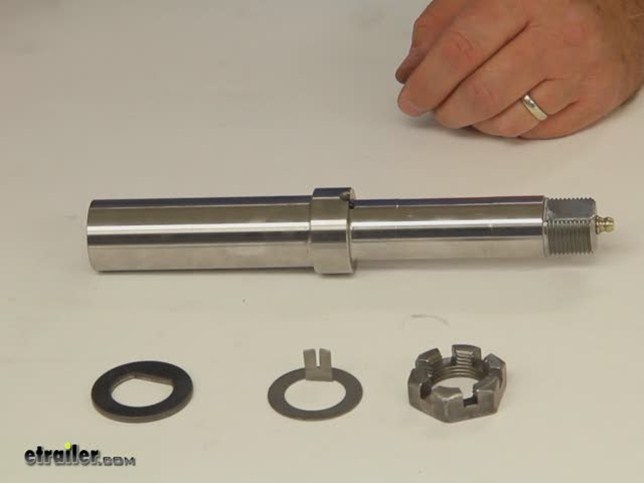

Today were going to review part number R104BTREZ. This is the Redline EZ Round Spindle. This spindle is an EZ design spindle and basically what that means is it will have a grease zerk fitting on the end of the axle and that will allow you to put a grease gun on there and pump grease in through the internal cavity of the spindle and it will come out this hole right here which is located on the inner bearing surface. Well actually grease your bearings just by pumping grease from the outside as compared to a normal traditional spindle which would not have the zerk fitting and you would have to remove the bearings and have to grease them manually and put them back on. This way you can just grease them while theyre on the trailer. Now this spindle does use a bearing kit which is part number BK1-150, which is sold separately.

That bearing kit will include the inner/outer bearings and their races, the grease seal and everything needed to install onto your spindle. On this spindle there are a few critical measurements that need to be taken and I do a have digital caliper here since the measurements will in /100s of an inch to get a correct measurement. The first measurement is the length of the mounting. This will be mounted onto your axle so the length of the mounting dimension would be 4 inches. Then were going to do the diameter of that mounting dimension and that would be 1.250.

Next measurement would be this part right here and this is the grease seal dimension. On this spindle will be 1.50. The next dimension is this part right here which is the inner seal bearing surface and on that would be 1.06. Next dimension would be out here which is the outer bearing surface and that would be also 1.06. The last measurement would be the diameter of the threaded portion of the spindle which is this part right here and that would be 1 inch even.

Again, this spindle does come with the castle nut, the tang washer, which is a type used for EZ Lube spindles and the D-design washer. That should do it for part number R104BTREZ. .


Customer Reviews

EZ Lube Spindle 1.25 RD STUB - 1.06" Bearing ID - R104BTREZ

Average Customer Rating:  5.0 out of 5 stars   (12 Customer Reviews)


- R104BTREZ
by:

Great service, good product, best price 308001


Comments
They are going great, thank you. Would like to buy more soon.
Don - 10/17/2017

29351

- R104BTREZ
by:

Super service, good products 308000


Comments
They are going great, thank you. Would like to buy more soon.
Don - 10/17/2017

29350

- R104BTREZ
by:

Product was delivered on time as described. Cut out old stub spindles welded in new and trailer is like new now. Customer service was excellent in finding proper replacement parts. 666904



- R104BTREZ
by:

The ez-lube spindles arrived on time and as advertised. A quick fitment check indicate they will be a simple weld in repair. Its nice to have a single source for trailer repair and the part number/mating part references on your site are very helpful. The video reviews are also very helpful. We will be doing more business in the future. 265479


Comments
UPDATE: One year into service the axle spindles continue to perform well. WIth no problems.
Mike F - 06/27/2017

25494

- R104BTREZ
by:

Good easy to install 201287


Comments
Good no problem.
Al - 06/18/2016

18809

- R104BTREZ
by:

Received my order promptly and it was great quality. Very easy online ordering, good product description, will use this vendor in the future. 170897



- R104BTREZ
by:

Very happy with the items I order. Will shop again at etrailer! 128696



- R104BTREZ
by:

Excellent quality, service and delivery ... 116925



- R104BTREZ
by:

Actually using this spindle and hub for a wind turbine. I have bought from etrailer over the years. Always satisfied. Good service and support. Good quality products like this Dexter spindle and hub. Quick delivery. Will come back!!! 116141



- R104BTREZ
by:

very pleased. the help I got and the service are above and beyond my expectations. this has been and will be my first and only stop to shop. will be telling all friends and family. 109449



- R104BTREZ
by:

best way to build a axle great company great service 59305



- R104BTREZ
by:

I have purchased ifems from eTrailer.com in the past and have always had good cutover support. It's been several years since my last purchase from them until this most recent purchase. eTrailer.com has stepped up their customer service even more!! Great communication letting me know they had received my order-when it shipped and when to expect it-and even follow-up to make sure I was satisfied. On top of that they shipped quickly and I received my items faster than predicted. Awesome company 40630


Comments
This is a wonderful purchase.E Trailer.com is very much boat trailer parts miami appreciated to up their customer service more.
-- comment by: hafizul - 12/29/2013

2482
12
12

Ask the Experts about this Redline Trailer Spindles

  • Replacement 1-1/16 Inch Straight Spindle Recommendation
    It sounds like you are just needing BTR EZ Lube Spindle # R104BTREZ for your trailer axle. This straight spindle features 1.06 (1-1/16) inch diameters where the inner and outer bearings sit. It also has a 1.500 inch diameter for the grease seal. If you need a complete bearing kit, you can use # BK1-150. I have attached a short video demonstration on this spindle that you can also check out. I do recommend having a qualified welder both remove your current spindle and install the new one.
    view full answer...
  • Hubs, Drums, Brakes and Spindle for a 2,000 lb Trailer Axle
    Yes, the Electric Trailer Brake Kit, # AKEBRK-2, the Trailer Hub and Drum Assembly, # AKHD-545-2-EZ-2K, and the EZ Lube Spindle, # R104BTREZ, will work together. The brake mounting flange that you will want for this setup is part # 4-34 which should be welded to the end of the axle tube just behind the spindle. The flange must be welded perfectly square to the axle tube to ensure that the correct angle is kept with the camber of the axle tube, so be sure to have an experienced and qualified...
    view full answer...
  • Parts Needed to Add Electric Drum Brakes to a 2004 Viking Epic Model M2007
    First and foremost, thank you for your service to our country. It is greatly appreciated. Ultimately you are correct that the most accurate way to determine the correct hub and drum assembly is to pull the hub and find the bearing and grease seal numbers or at least use a digital caliper # 301-17068 to measure the spindle where they sit. However, there are a few pieces of info that we can possibly piece together to make an educated guess as to what you have. We do have the Dexter...
    view full answer...
  • Choosing The Correct Hub And Spindle For Your 2,000 Lb Axle
    Yes, the Trailer Idler Hub Assembly for 2,000-lb E-Z Lube Axles part # AKIHUB-545-2-G-EZ-2K is a direct fit for the EZ Lube Spindle 1.25 RD STUB part # R104BTREZ. For future references, in order to ensure an exact fit, you will need to find the part number on the inside edge of the bearing and make sure it is a compatible fit with your spindle, using our chart. Part # AKIHUB-545-2-G-EZ-2K requires a inner and outer bearing inner diameter of 1.06" which again is included in the hub kit...
    view full answer...
  • Boat Trailer with L44649 Bearings and 1.24 Inch I.D. Grease Seals
    The spindles you have on your boat trailer are not standard which means we do not have a trailer hub with the correct bearings and seals you need. The best option for you would be to just replace the bearings with part # L44649 and seals with part # 34823 as I am sure it would be difficult to find such an odd hub. However, if you absolutely want to replace the integrated wheel/hub with an idler hub then you would need to replace the spindle with something like part # R104BTREZ which...
    view full answer...
  • Spindle Dimensions of the Dexter Trailer Idler Axle w/ Idler Hubs # 20440I-EZ-60
    The spindle that is on the Dexter Trailer Idler Axle w/ Idler Hubs # 20440I-EZ-60 is a BTR spindle like part # R104BTREZ. The dimensions of the spindle are: A 1.25 B 1.5 C1.06 D1.06 E1.00 F 4.00
    view full answer...
  • Availability of Trailer Spindle Washers with Tabs
    If you are talking about a washer like # 5-101, we have them. I cannot speak for any auto parts store but etrailer is here for you. We also have some other tang washers: # 5-59 or # 5-71.
    view full answer...
  • How Do Trailer Spindles Typically Install on Trailer Axle
    Removing a damaged spindle is the easy part - it can be cut off with a torch or saw. But welding on a new one is another matter and requires the new spindle be welded exactly straight. It is actually easier to replace the entire axle with a new one that has good spindles on both ends. This may even be less costly than having a new spindle welded on by a qualified welder. It will also ensure that both spindles will have the same working lifespan, which would not be the case if only one is...
    view full answer...
  • Are the Redline Spindle # R104BT8 and etrailer Idler Hub Assembly # AKIHUB-545-2-2K Compatible
    The Redline Spindle # R104BT8 and our Trailer Idler Hub Assembly # AKIHUB-545-2-2K are not compatible, but you could use the Redline EZ Lube Spindle # R104BTREZ instead as it has the correct spindle measurements. For a hub that will work with the Redline Spindle # R104BT8 you can use part # AKIHUB-545-2-1K. To determine if a hub is compatible with a specific spindle you will need to make sure that the inner diameters of the Inner Bearing, Outer Bearing, and Grease Seal of the hub...
    view full answer...
  • Recommended Spindle that has 1.50 Inch Seal Race
    The closest spindle match we currently offer is the Redline EZ lube # R104BTREZ. The diameter where the seal sits is 1-1/2 inches and shaft is 1-1/16 inches. I went to our warehouse to get this part and provide a couple measurements. From the bearing stop to the end of the spindle is 4-1/4 inches (not including the zerk fitting) and the bearing stop is 11/16 of an inch. Take a look at the diagram I included along with the short video review.
    view full answer...
  • Can a 1-1/16 Inch Trailer Axle Spindle Handle Speeds of 75 Miles Per Hour
    Spindles typically do not have a speed rating. Traditionally, the component that limits the trailer speed is the tire. My contact at our spindle manufacturer confirmed that the spindle will perform well when the tire speed is complied with. I also recommend servicing your trailer often if you are driving at speeds upward of 75 mph. You will want to ensure the bearings are properly lubricated and red grease, like # L11390, will work well. I've attached a help article on trailer maintenance...
    view full answer...
  • How to Determine the Correct Grease Seals to Order for a 2002 EZ Loader 21 Foot Boat Trailer
    To determine the correct grease seal for your trailer spindle and hub, we need to know the inner bearing number installed on the trailer or the dimensions of the seal surface on the spindle and the seal surface in the back of the hub. This will require removing one of the hubs and the grease seal in that hub. If you cannot find the inner bearing part number, you will need a precise measuring tool like a dial caliper to get measurements accurate enough to select the correct grease seals. Boat...
    view full answer...
  • How to Determine The Correct Replacement Trailer Hubs by Bearing Numbers or Spindle Size
    The best way to determine which replacement hubs you need for your trailer would be to remove one of the hubs and retrieve the bearings. Find the numbers stamped into the bearings and with those we will be able to get you the correct hubs. If you are unable to retrieve the bearing numbers, you can take measurements of the spindle. I have included a link to our spindle main page. At the top of the page is a diagram showing all of the measurements we would need to find the correct hubs...
    view full answer...
  • Replacement Hub and Bearings for 1989 Tracker Boat Trailer
    Based on the pictures you attached and the outer bearing measurement you provided, it appears that you have 1-1/16 inch spindle like the Redline EZ Lube Spindle # R104BTREZ. This particular spindle is designed for 2,000 pound axles and will use the same inner and outer bearing. I have attached the spindle's dimensions so you can compare them to what you have in order to verify the replacement bearing sizes. I recommend using a digital caliper like # PTW80157, as the measurements will need...
    view full answer...
  • Spindle Recommendation for Hub that Uses Inner and Outer Bearing L44649
    Based on your hub having two of the L44649 bearings that would mean you need a BTR spindle like the part # R104BTREZ. To replace a spindle, the old one would need to be cut off, and the new one welded into place. This is NOT a job for the do-it-yourselfer. The new spindle must be absolutely square with the axle in order to prevent premature tire wear and wheel tracking problems. I would recommend finding a welder who is experienced with trailer axles. Your local RV dealer or repair facility...
    view full answer...
  • Is Bearing Buddy Needed On EZ-Lube Hub and Spindle
    When using an EZ-Lube hub, such as hub/drum assembly # AKHD-545-2-EZ-2K, on an EZ-Lube spindle it is not necessary to also use Bearing Buddy bearing protectors. An EZ-Lube spindle, such as part # R104BTREZ, has a grease zerk fitting to allow you to pump grease into the hub bore and bearings. A Bearing Buddy will not fit with an EZ-Lube spindle.
    view full answer...
  • How to Determine Replacement Hubs for a Trailer Based on Spindle Dimensions
    If you cannot find the bearing number, we can still recommend the correct hub if you supply us with some precise measurements of the bearing and seal surface of your spindle. Check out the picture I attached that shows what portion of the spindle needs to be measured. The other dimensions on the picture I attached would also be helpful to know to determine what bearings and seals you have.
    view full answer...
  • Availability of Trailer Spindle With Bearing Surfaces that Measure 1-1/16 inch Diameter
    The BTR Spindle part # R104BTREZ has bearing surface diameters that are both 1-1/16 inch in diameter. Where the grease seal would ride would measure 1.50 inches as well.
    view full answer...
  • Hubs and Spindles to Go with 5.70-8 Trailer Tire and Wheel Combo with 4 on 4 Bolt Pattern
    Since you need tires and wheels, hubs, and spindles the best solution is to go with a complete axle with 4 on 4 hubs to match tire and wheel combo # AM30080. Spindles are difficult to install because they require a special jig and someone with experience to weld them on. With a complete axle, its all ready to go. I have included a link to the axles we have with 4 on 4 hubs for you. Otherwise you could use hub # 8-91-05UC1-EZ with spindle # R104BTREZ and everything will be compatible...
    view full answer...
  • EZ-Lube Spindle for L44649 Bearing and 10-60 Grease Seal
    On the spindle # R104BTREZ, the 1.25 inch refers to the diameter of the stub, not to any of the bearing surfaces, which might be what is confusing you. (See photo). If you currently have the # 8-271-7UC3-EZ hubs that use the L44649 inner and outer bearing, the # R104BTREZ would be the compatible EZ Lube spindle. Part # BK1-150 would be the correct bearing/ seal kit that uses the double-lip seal which we recommend for the EZ-Lube spindles. For your hub bore, you would use the grease cap...
    view full answer...
  • Hub, Mounting Flange and Brake Assembly Recommendation for the EZ Lube Spindle part # R104BTREZ
    All of the parts you listed are compatible with each other and would be the correct ones for you to use. The EZ Lube Spindle part # R104BTREZ is the correct spindle to use with the Trailer Hub & Drum Assembly # 8-173-16UC3. The brake assemblies # 23-48 and # 23-47 are also compatible with this hub and the correct mounting flange that will work with all parts mentioned is the # 4-34.
    view full answer...
  • Recommendation for Failing EZ Lube Spindle and Vortex Hub
    We do not carry the Vortex hubs made by Tie Down Engineering. Unfortunately because of this, I don't really know how to assist with troubleshooting the hubs themselves as they are designed to seal out moisture and debris, yet are obviously failing. The threaded cab should have an o-ring to prevent moisture entry and the seal should prevent it on the other side. The zerk fitting on your EZ lub spindles is a part of the spindle so to replace that would require changing the entire spindle....
    view full answer...
  • BTR Spindle to Fit Trailer Idler Hub for 2,000 Pound Axles
    The Trailer Idler Hub # AKIHUB-440-2-G-2K fits a BTR spindle like # R104BTREZ. I've attached a picture that shows the spindle measurements.
    view full answer...
  • What Spindle Fits Hubs that Have Inner and Outer Bearings of L44649
    If your current hub has bearing numbers of L44649 for the inner and the outer that means you have a BTR spindle. The replacement would be the # R104BTREZ.
    view full answer...
  • What is the Spindle Length Where the Hub Fits on the Timbren Axle-Less Trailer Suspension System
    The spindle that is used on the Timbren Axle-Less suspension system, # ASR1200S02, is spindle # R104BTREZ. I took some measurements of the spindle. From the inner bearing stop to the threaded portion is 3-5/16 inches. To the end of the threads it is 4-3/16 inches. And to the end of the zerk fitting it is 4-1/2 inches. I made a video that explains where exactly I measured.
    view full answer...
  • Trailer Hubs for a 2500 Pound Axle
    It sounds like you might have a BTR spindle such as # R104BTREZ as an example. It takes bearing L44649 for the inner and outer bearing. We have a couple of hubs that you could use. As a bonus they are pre-greased and ready to go! We have # CE13109 with a 4 on 4 bolt pattern. And we have # CE13311 for a 5 on 4-1/2 bolt pattern. These are the only option rated high enough for a 2500 pound axle. There are no galvanized options at that weight capacity. There are some in the 2200 pound...
    view full answer...
  • Correct 4 Lug Hub for EZ Lube Spindle 1.25 RD STUB
    Yes, the Trailer Idler Hub Assembly part # AKIHUB-440-2-G-EZ-2K is a match for the EZ Lube Spindle 1.25 RD STUB part # R104BTREZ. The bearings and seal are all a match so you will be good to go. There is also a rubber plug in the grease cap for the zerk fitting on the spindle so again, all is good.
    view full answer...
  • Which Grease Seal for Trailstar Boat Trailer
    I don't have reference that lists which grease seal the hub on your trailer uses. In order to recommend the correct grease seal, I'll need some information from you. I'll need the inner bearing reference number and the diameter of the spindle where the grease seal rides. When you measure the spindle diameter, you'll need to use a highly accurate measuring tool like a digital caliper. Once I have that information, I'd be happy to recommend a grease seal for you.
    view full answer...

Do you have a question about this Trailer Spindle?
