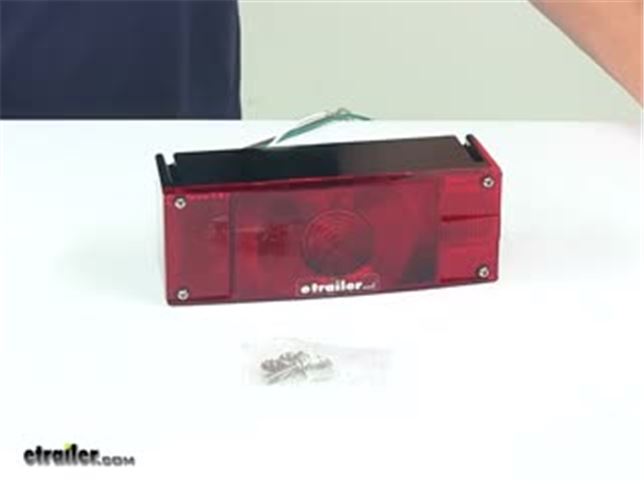

Wesbar Low Profile Trailer Tail Light - Submersible - 7 Function - Incandescent - Passenger Side

Wesbar Low Profile Trailer Tail Light - Submersible - 7 Function - Incandescent - Passenger Side

Item # 403076
lowest price pledge
Retail:$24.10
Our Price: $20.78
You Save: 14%
Trailer Lights
Orders above $99 qualify for Free Shipping
Shipping Weight: 0.95 lbs
Quantity:
Wesbar Trailer Lights - 403076
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

In Use/Installed

Customer Photos

Need help with installation?
Locate installers near me
8" x 2-13/16" Rectangle. Waterproof, incandescent trailer tail light serves 7 functions for trailers over 80" wide: stop, turn, tail, side marker, clearance, side reflector, and rear reflector. Stud mount with included studs. Lowest Prices for the best trailer lights from Wesbar. Wesbar Low Profile Trailer Tail Light - Submersible - 7 Function - Incandescent - Passenger Side part number 403076 can be ordered online at etrailer.com or call 800-298-1624 for expert service.
  • All Info
  • Reviews (273)
  • Q & A (97)
  • Photos
  • Why etrailer?

Wesbar Trailer Lights - 403076

  • Tail Lights
  • Rectangle
  • Incandescent Light
  • Red
  • 8L x 3W Inch
  • Surface Mount
  • Stop/Turn/Tail
  • Side Marker
  • Rear Clearance
  • Side Reflector
  • Rear Reflector
  • Submersible Lights
  • Wesbar

8" x 2-13/16" Rectangle. Waterproof, incandescent trailer tail light serves 7 functions for trailers over 80" wide: stop, turn, tail, side marker, clearance, side reflector, and rear reflector. Stud mount with included studs.


Features:

  • Incandescent trailer tail light serves 7 functions on trailers over 80" wide
    • Stop, turn, tail, clearance, side marker, rear and side reflectors
    • Built-in reflex reflector removes the need for a separate reflector
  • Sealed, waterproof housing and lens unit is submersible
  • Replaceable capsule protects bulbs against corrosion and thermal shock
    • Incandescent bulbs can be easily replaced
  • Durable ABS housing and acrylic lens
  • Screw-on lens over incandescent bulb
  • Compatible with 12V DC systems
  • Stud mount with included hardware
  • 3-Wire design
  • DOT compliant


Specs:

  • Configuration: passenger side
    • Driver side: 403026 (sold separately)
  • Dimensions: 8" long x 2-13/16" tall x 2-13/16" deep
  • Distance between mounting studs (center on center): 2"
    • Screw size: #8-32 x 1/2"
  • Bulb type: 1157 and 193
  • Wire gauge: 18
  • Limited 1-year warranty


Wesbar Combination Tail Light Dimensions

Note: Light is sealed but does not have a replaceable capsule (like older generations). Only need to change light bulbs (# 1157; # 193). Replacement light bulb # 1157 (A1157B) sold separately.


Sealed, Waterproof Trailer Light

The waterproof construction of this light makes it ideal for use on trailers that may be submerged, like a boat trailer. The circuit board is sealed, which means that water will not damage the diodes or circuit board.


Combination Lights for Trailers Over 80" Wide

Flatbed trailer over 80" wide with combination tail lights

If a trailer is 80" or wider at its widest point, then it requires rear clearance lights in addition to basic trailer lights. These clearance lights indicate the width of the trailer when it is viewed from the back.


To meet these requirements on a flatbed utility trailer where the bed extends past the wheels, you can install combination trailer lights that include the rear clearance function. For proper mounting, the lights must be installed at the widest points on the rear of the trailer - one on each corner.



403076 Wesbar Low Profile Trailer Combination Tail Light - Submersible - 7 Function - Incandescent - Rectangle - Passenger Side - Right Hand




California residents: click here



Customer Reviews

Wesbar Low Profile Trailer Tail Light - Submersible - 7 Function - Incandescent - Passenger Side - 403076

Average Customer Rating:  4.9 out of 5 stars   (273 Customer Reviews)

8" x 2-13/16" Rectangle. Waterproof, incandescent trailer tail light serves 7 functions for trailers over 80" wide: stop, turn, tail, side marker, clearance, side reflector, and rear reflector. Stud mount with included studs.

- 403076
by:

After a year, still works great


Comments
Still work fine. No issue
Joe B - 08/21/2021


- 403076
by:

The Wesbar low profile lights were a direct replacement on my 1998 Nitro trailer. They were fairly easy to install, rewiring takes most of the for the installation since old wiring must be cut and spliced to new wires on lights. One thing to note; most of the wiring diagrams I found depict the trailer to have green, brown and white wires, my Nitro has red, brown and white. Not a big issue but something that made do a little more checking before I did the permanent wire splicing. Trailer lights look just like they did from the factory and work fine.



- 403076
by:

This is not my first order from etrailer...and will not be my last. This time it was replacement trailer lights for a friend's boat trailer. I purchased a pair of the submersible type. The lights were an exact match of the OEM and came with the correct bulbs installed. It took less than an hour to remove and replace the old set.These guys are my go-to trailer parts team!



- 403076
by:

The design is good, actually an improvement on the older model taillight I'm replacing. Some written directions for the installation would have saved me time.



- 403076
by:

My trailer lights have been in and out of water for a year with no problems



- 403076
by:

Changing a lightbulb turned into a larger job than anticipated. The bulb was rusted until it was one with the socket. Replacing the entire fixture was easier and cheaper using etrailer.com. The new tail light fit in perfectly. Etrailer.com is a reliable and trustworthy site for my trailer parts.



- 403076
by:

An exact fit, easy to install and is working well a year later.



- 403076
by:

Direct replacement on my boat trailer.



- 403076
by:

Lights continue to work well.



- 403076
by:

You have great products, service, website, information, follow-up and most of all your people. Haven't installed the lights yet but I'm sure they will work fine. I'm replacing the older generation Wesbar lights on my 16 year old boat trailer with these new ones. Something I've learned the hard way over the years: YOU CAN'T TRUST THE TRAILER FRAME TO BE A GOOD GROUND. Run a separate ground wire directly to each light from the vehicle connector, then the lights will just work. It will save you a lot of heartburn when you plug in the lights and never know what your gonna get. Keep up the good work. I'll be back when I need more stuff.



- 403076
by:

My two taillights for my boat trailer arrived quickly and well packaged. They are good quality and easily installed. I was disappointed that the left (port) light did not include a tag bracket. I thought it was supposed to; it would not cost even a dollar to include a bracket. The left taillight did include a white light for tag viewing.



- 403076
by:

Etrailer provided the fastest and cheapest shipping I have ever obtained. The tail light I purchased for my boat trailer was installed in 10 minutes with all wires and fastening bolts matching perfectly. Response and monitoring of shipping and receipt by etrailer was provided in my email almost immediately after the actions of order receipt, pick, pack, ship and receipt at destination. Great product great service.


Comments
My 38 year old son asked me to other day how the mud got on the tail light and tail light bracket of my boat. I had been Crappie fishing. Hes one of those guy who cleans and shines everything. I told him I must have backed it into the bank near the boat house. He said I dont understand how you kept from breaking the tail light out. I told him I buy good equipment that lasts. Thats the worst thats happened to your Wesbar light and again passes the tough test. My sons share the boat with me so it gets plenty of use. Lights are submerged hundreds of times in a year from 100 degree to freezing temperature in Indiana. No problems to report with connectors, bulbs or lens even when I hit the bank I will always contact Wesbar first for your products when the need arises. I do Thank You again for your Great Customer Service and outstanding products.
Billy C - 06/12/2014


- 403076
by:

Bought these to replace old ones that got water damage. They were easy to install and work great, would recommend!!!



- 403076
by:

Great product, fast shipping, Carol even followed up the day after the tail lights were delivered to make sure they were the right part. Recommend these guys !00%!



- 403076
by:

Great service and fast shipping



- 403076
by:

Great product



- 403076
by:

I have a pair of these that have lasted 15 years on my boat trailer. Finally, the lights went out. You can't just replace the bulb on the older models. Everything is sealed water tight. So, I had to buy another pair. These are one of the best lights you can buy.



- 403076
by:

I have ordered products from etrailer.com several times. Service is wonderful, staff is knowledgeable , quality products and competitive prices . Product description on web site are accurate and complete . Usually receive items ordered in three days, with low shipping and handling cost . Last order was processed by Hally, service was excellent as usual .



- 403076
by:

These folks sell a well made product at a reasonable price, plus fast delivery. Great lights for boat trailers that are in and out of water.



- 403076
by:

Awesome item. No problems!



- 403076
by:

Tail light arrived and I installed it on the trailer, it was exactly what I needed. Thank you



- 403076
by:

Excellent. My trailer is 20 years old and your unit was a direct plug and play with no modifications. Thanks



- 403076
by:

The product is just like the original part. However, the wiring instructions did not account for the color coding on the trailer wiring, black, red and white. The new lights had different color wring on each light, brown, yellow and white for the driver side and brown, green and white on the passenger side.



- 403076
by:

Just replacing a broke light on a boat trailer. These were a factory item on my trailer and this one fro etrailer is a perfect match . As always good stuff



- 403076
by:

This is a really good light for the price. Trailer lights are like mechanic's fingers, easily damaged. I use the submersible even though it's not a boat trailer because having the bulbs enclosed provides less likelihood of corrosion and poor contact that seems to be a problem otherwise.


Comments
Still working well.
Steve - 09/18/2015


25
273
Show More Reviews

Ask the Experts about this Wesbar Trailer Lights

  • Replacement For Wesbar Trailer Tail Light 102640
    We have exactly what you need, because you are right, the entire assembly does need to be replaced. The current version of the Wesbar 102640 is the following: - Driver Side: Wesbar Low Profile Trailer Tail Light # 403026 - Passenger Side: Wesbar Low Profile Trailer Tail Light # 403076 I have added links to video installs of both lights for you to check out as well.
    view full answer...
  • Replacement 194 Bulbs for Wesbar Capsule Light 107963 on Boat Trailer
    The Wesbar capsule taillight 107963 was discontinued in 2011 but it used a 194 bulb such as # A194B (clear), # P211194R (red) and # P211194Y (amber). You can also switch to efficient LED elements like those shown on the linked page.
    view full answer...
  • Can Trailer Taillights that are Incandescent be Replaced Easily with LED
    If the bulbs of your trailer lights are replaceable and there's an LED replacement for that style available it would be just a matter of swapping the bulbs out like you mentioned. Since typically trailer lights have bulbs that aren't as easily replaceable you may have to swap out the entire assembly with a similar LED setup. You are absolutely right though when you mentioned that the LED lights will draw considerable less. Typically they only draw a fraction of an amp which is quite a bit...
    view full answer...
  • Replacement Right Tail Light for 2002 Four Winns Trailer with Horizon Boat
    The dimensions will be the determiner of the correct replacement fixture for your 2002 Four Winns Boat Trailer. I can tell from a little research it is a rectangular light, obviously submersible, so here are some options. The Wesbar Submersible Low Profile Trailer Tail Light - Passenger Side # 403076 is 8" long x 2-13/16" tall x 2-13/16" deep with mounting slots 2 inches on center. The Wesbar Waterproof Over 80" Low Profile Tail Light - RH # 106411 is 8 inches long x 3 inches tall...
    view full answer...
  • Driver Side Taillight that Matches Wesbar # 403076
    The driver side light that matches the Wesbar part # 403076 is the part # 403026. I attached an install video for this light for you to check out as well.
    view full answer...
  • Wiring the Wesbar # 403076 and # 403026 Light on a Aliner Pop Up Camper
    The wiring colors for Wesbar Submersible Low Profile Light # 403076: white wire is the ground, brown for running light and the green wire is for the right turn signal and brake. The wiring colors for the Wesbar Submersible Low Profile Light # 403026: white wire is the ground, the brown wire is the running light, and the yellow wire is the left turn signal and brake. I attached review videos for both lights which also go into detail for what each color wire hooks up to. The best...
    view full answer...
  • Wesbar Left Side Trailer Tail Light Not Working
    You may have a dirty or corroded trailer connector, on the trailer side or vehicle side, so I recommend checking them to make sure they are clean and free of corrosion inside and out. Corrosion can interrupt the proper flow of electricity which would then not allow lights on the affected circuits to light up. I also recommend inspecting the wiring on the trailer starting at the connector and working your way back. Fix and pinched or damaged wires you find as needed. You may want...
    view full answer...
  • Changing the Bulb in the Wesbar Tail Light Capsule
    The older generations of the Wesbar submersible low-profile lights came with sealed light bulb capsules that are not replaceable. If your capsule is sealed, then your best option is to replace the lights with new lights like part # 403026 and # 403076. The new lights come with capsules that allow you to replace the bulbs. The bulbs used in these lights are # A1157B and # 193.
    view full answer...
  • Replacement Wesbar Right Tail Light
    The Wesbar Submersible Low Profile Trailer Tail Light # 403076 is the right tail light as Wesbar Tail Light # 403026 is a left tail light. You will want the Wesbar Submersible Low Profile Trailer Tail Light # 403076 to replace your current right side trailer tail light. This is an exact replacement. If you are looking to replace both taillights, you will want to use the Wesbar Submersible Low Profile Tail Light # 403026 for the left side. I attached a review video of the Wesbar Tail...
    view full answer...
  • Availability of Replacement Capsules for Wesbar Trailer Lights
    Some Wesbar lights have a the sealed type of capsule, and they are not meant to be opened. Instead, you would need to replace the whole capsule. The good news is that Wesbar offers replacements, depending on the model number, that can be easily opened to change worn parts, in addition to the sealed type. If you have a Wesbar Submersible Low Profile Light # 403026 and/or # 403076, the bulbs can be replaced by removing the clear capsule inside the light. If you want to swap it out for...
    view full answer...
  • How To Remove Older Wesbar Submersible Low Profile Trailer Tail Light
    It sounds like you are trying to remove your older Wesbar Submersible Low Profile Trailer Tail Light from your Ranger Trail boat trailer. These lights are held on to the trailer with 2 studs on the back of the light housing. To remove the lights, you will want to remove the nut on the back of the stud that is holding the light to the trailer. With the nut off of each stud, you will be able to pull the light off of the trailer. You will also need to detach the wiring to completely uninstall...
    view full answer...
  • Replacement Tail Light Options for 2002 Pro Craft Boat Trailer
    My technical contact at Wesbar informed me that the submersible light that you have was discontinued a while back so replacement lenses are unavailable. Replacing your tail lights is going to be your best option. The Wesbar Submersible Right Hand Tail Light # 403076 that you referenced is the closest they currently have to the one that you have on your 2002 Pro Craft boat trailer. If you need the left hand light as well, it is # 403026. Another option is the Optronics Aero Pro Submersible...
    view full answer...
    Image 1 for
  • Replacement Trailer Light Lens for Tow Smart Light 1433
    I looked up your Tow Smart 1433 and 1400 lights and the correct replacement lens is the part # 403076.
    view full answer...
  • LED Replacements for 1157 Type Light Bulbs for Tail Lights
    Yes, you can replace your standard incandescent 1157 bulbs with brighter and more-efficient LEDs. These LED replacements will fit directly in place of the originals and give you more light, less waste heat and lower power consumption. The linked page displays all 1157 replacement LEDs. You always want to choose an LED's light color to match the color of the lens it will shine through. This is because light lenses are filters that block all colors except the color of the lens. For...
    view full answer...
  • Can a Trailer have a Mix of LED and Incandescent Lights
    It is not recommended to mix LEDs with incandescent lights on a trailer. The problem is the amount of power required by each type. LEDs require much less power than incandescents. If one of each where on the same circuit, the draw from the incandescents could damage the LEDs. Although I have seen and heard of it being done successfully so it does not seem to be a hard and fast rule. But we still recommend either going all LED or all incandescent to lessen the likelihood of any potential...
    view full answer...
  • Are Bulbs Replaceable In Wesbar Low Profile Trailer Tail Light 403076?
    The bulbs in the Wesbar Low Profile Trailer Tail Light - Submersible - 7 Function - Incandescent - Passenger Side # 403076 you were looking at are replaceable by the 4 screws holding the lens on, and then removing the capsule inside as shown at the 2:55 minute mark of the included video. For a replacement bulb you will need the # A1157B.
    view full answer...
  • Do the Wires of Wesbar Submersible Trailer Light Need to Be Stripped Back to Install
    If you are referring to the little piece of wire insulation that is on the very end of the wire you will just need to grab that piece and slide it off. Check out the picture I attached to make sure we are talking about the same thing. You will want to have the insulation of the wires stripped back so that the connections you make are metal to metal. Otherwise the light will not function. I attached a review video for this product for you to check out also.
    view full answer...
    Image 1 for
  • Recommended Replacement Light for Wesbar Trailer Light
    The Wesbar Submersible Low Profile Trailer Tail Light # 403076, which you referenced, uses the replacement Light Bulb number 1157. That part number is # A1157B. If you have a different taillight and you can provide the part/model number I will be glad to find a replacement bulb for you.
    view full answer...
  • Replacement Bulb for Wesbar Submersible Low Profile Trailer Tail Light # 403076
    Wesbar Submersible Low Profile Trailer Tail Light # 403076 uses an 1157 bulb, # A1157B.
    view full answer...
  • Trailer Lights Cut Off When Running Lights Are Activated
    I would have to agree with you that you have a ground problem as that is the most likely cause of issues arising once the running light circuit is active and other lights are affected. In order to fix the issue you are having the best option would be to run a separate ground wire from each light up to the main ground for the trailer connector. If this does not fix your issue then please just let me know and we can further troubleshoot this issue for you.
    view full answer...
  • 2000 Four Winns Trailer Taillight Replacement
    The capsules and the capsule style trailer lights are no longer available so you'd need to replace what you have with new lights that are similar like the part # 403076 for the passenger side and the part # 403026 for driver side.
    view full answer...
  • Can Wesbar Trailer Tail Light 403076 Replace Wesbar 102641 On Jet Ski Trailer?
    The Replacement Red Lens for Wesbar Submersible Trailer Tail Lights for Trailers Over 80" Wide # 102641 you mentioned is actually the replacement lens for the Wesbar Low Profile Trailer Tail Light - Submersible - 7 Function - Incandescent - Passenger Side # 403076. Since you have the same light the # 403076 will be an exact replacement for your jet ski trailer. If you are also needing the driver side like you will need the # 403026. I included a few videos of the lights mentioned...
    view full answer...
  • Wiring the Wesbar Submersible Low Profile Trailer Tail Light Right Side # 403076 To A Trailer
    The Wesbar Submersible Low Profile Trailer Tail Light Right Side, part # 403076 has 3 wires coming out of the back of the light. The white wire would be for ground. The brown wire would be for the running lights and the green wire is for the right turn signal and brake. The light is sealed in the # 403076 tail light, but it does NOT have a replaceable capsule like on the older generation of Wesbar submersible low profile lights. The capsule in this # 403076 tail light has four screws...
    view full answer...
  • Replacement Bulb for Wesbar Submersible Low Profile Trailer Tail Light Part # 403076
    Yes, you can replace just the bulb in your tail light without having to replace the entire assembly. If you have the Wesbar Submersible Low Profile Trailer Tail Light part # 403076 then you would want to use part # A1157B. If you have a different tail light then please remove the lens and send me a photo of the bulb or look for a bulb number on the base. I could then use this to offer the correct replacement bulb for you if the above is not it.
    view full answer...
  • Replacement Boat Trailer Tail Light Lens For Wesbar Low Profile Tail Lights
    From your image that you sent in it appears to be the Wesbar Low Profile Trailer Tail Light # 403076 on your boat trailer. For just a lens we have the Replacement Red Lens # 102641 which will be just the lens that you see in the image. There is also the Wesbar Replacement Lens Set # 053522033360 which includes both driver and passenger tail light lenses as well as the side reflectors if you need that as well. If you would like to you can upgrade to the Optronics LED Combination...
    view full answer...
    Image 1 for
  • Difference Between the Wesbar Ligths part numbers # 106410 and # ST16RB
    The only real difference between the part # 106410 and the # ST16RB is that the # ST16RB comes with blunt cut wires and the # 106410 comes with quick connector that allows for easier wiring to a trailer as long as it has the same style of connector. The replacement lens kit part # 053522033360 will also fit either light.
    view full answer...
  • Checking Ground Wire onTrailer Light Blinking Left and Right Side
    The cause of the lights blinking incorrectly is most likely a bad ground. We need to check the main ground on the trailer. You need to check the wiring harness on the vehicle as well. Start with checking how secure the ground and if the ground is good, you might have to clean up the surface under the ground wire to ensure a strong connection. You might need to add a new ring terminal to the ground wire as well.
    view full answer...
  • Replacement 193 Bulb That Can be Used in 403076
    We do have an LED light bulb part # 277-000102 that can be used as a replacement for a 193 bulb like you are wanting for the # 4030476. LEDs are much brighter than incandescent bulbs and last longer, but if you were wanting an incandescent we do not have that style currently.
    view full answer...
  • Gauge of Butt Connector to Use with Wesbar Submersible Trailer Light
    The Wesbar Submersible Trailer Light # 403076 uses 18 gauge wires so you'll need # DW05743-10 for heat shrink butt connectors. If you'd rather not use the heat shrinking type we have # 05730-5 as well. Heat shrink butt connectors are much better at keeping out moisture.
    view full answer...
  • Availability of Wesbar Submersible Low Profile Trailer Tail Light Right Side, # 403076
    We do have the complete Wesbar Submersible Low Profile Trailer Tail Light (Right Side), # 403076, available. The mate for the right side light is Wesbar Submersible Low Profile Trailer Tail Light with License Plate Light (Left Side), # 403026. The housing by itself (without the lens and capsule) is not available. The newer style lights have replaceable bulbs. The capsule inside the light is sealed by an O-ring and can be removed to replace the bulbs. The older generation light housings...
    view full answer...

Do you have a question about this Trailer Light?




  • Why etrailer.com?

    At etrailer.com we guarantee:
  • Highest quality trailer lights for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate trailer light information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Employee Robert G
Expert Research:
Robert G
Employee Michael H
Expert Research:
Michael H
Employee Jameson C
Expert Research:
Jameson C
Employee Adam R
Expert Research:
Adam R
Employee Lori W
Expert Research:
Lori W
Employee Sarah H
Expert Research:
Sarah H
Employee Jacob T
Video Edited:
Jacob T
Employee Adele M
Updated by:
Adele M
Employee Laura H
Updated by:
Laura H
Employee Wilson B
Updated by:
Wilson B
Employee Brian T
Updated by:
Brian T
Employee Hannah L
Updated by:
Hannah L
Employee Cole B
Installed by:
Cole B
Employee Brent H
Installed by:
Brent H
Employee Jonathan Y
Video by:
Jonathan Y

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.
