Peterson Trailer Tail Light - Stop, Turn, Tail - Incandescent - Round - Red Lens - Passenger Side

Peterson Trailer Tail Light - Stop, Turn, Tail - Incandescent - Round - Red Lens - Passenger Side

Item # 431800
lowest price pledge
Retail:$12.92
Our Price: $6.11
You Save: 53%
Trailer Lights
Orders above $99 qualify for Free Shipping
Shipping Weight: 0.3 lbs
Quantity:
In Stock, Ships Today
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

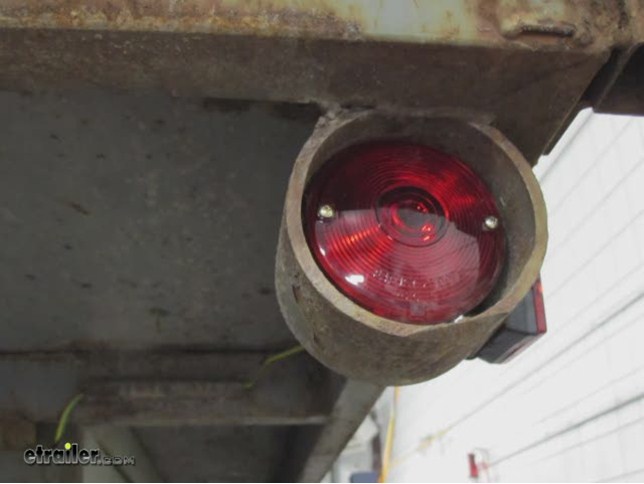

In Use/Installed

Customer Photos

3-3/4" Round. Incandescent trailer light serves as a stop, tail, and turn signal light. Durable polycarbonate housing with screw-on lens. Stud mount with included studs. 2-Wire design grounds through mounting hardware. (1) 1157 Bulb. Lowest Prices for the best trailer lights from Peterson. Peterson Trailer Tail Light - Stop, Turn, Tail - Incandescent - Round - Red Lens - Passenger Side part number 431800 can be ordered online at etrailer.com or call 800-298-8924 for expert service.
  • All Info
  • Reviews (126)
  • Q & A (30)
  • Videos (2)
  • Photos
  • Why etrailer?

Peterson Trailer Lights - 431800

  • Tail Lights
  • Round
  • Incandescent Light
  • Red
  • Surface Mount
  • 4 Inch Diameter
  • Peterson
  • Non-Submersible Lights
  • Stop/Turn/Tail

3-3/4" Round. Incandescent trailer light serves as a stop, tail, and turn signal light. Durable polycarbonate housing with screw-on lens. Stud mount with included studs. 2-Wire design grounds through mounting hardware. (1) 1157 Bulb.


Features:

  • Combination trailer tail light serves 4 functions when properly mounted
    • Stop light, tail light, turn signal light
  • Incandescent bulb can be easily replaced
  • Durable polycarbonate housing with screw-on lens
  • Red wrap-over lens covers incandescent bulb
  • Compatible with 12V DC systems
  • Stud mount with included 1/4" studs
  • 2-Wire design with power leads - ground through mounting hardware
  • DOT compliant
  • Made in the USA


Specs:

  • Configuration: passenger side
    • Driver side 432000 (sold separately)
  • Dimensions: 3-3/4" diameter x 2-5/8" thick
  • Distance between mounting studs (center on center): 2"
  • Bulb type: 1157
  • Power draw at 12.8V: 2.2 amps
  • Wire length: 10"
  • 1-Year limited warranty


Peterson 428S Universal Stud Mount Combination Tail Light Dimensions



M428S Peterson Trailer Combination Tail Light - Stop, Turn, Tail - Incandescent - Round - Stud Mount - Red Lens - Passenger Side




California residents: click here


Video of Peterson Trailer Tail Light - Stop, Turn, Tail - Incandescent - Round - Red Lens - Passenger Side

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Review of Peterson Trailer Lights - Tail Lights - 431800

Today, we're going to take a look at the Peterson Trailer Round Stop, Turn, And Tail Light with the red lens for the passenger side. Now, this is a combination trailer tail light that'll serve three functions when it's properly mounted. Tail light, stop light, and turn signal light. Does use an incandescent bulb that can be easy to replace. It's a bulb type 1157. It's all in a durable polycarbonate housing with a screw on lens and the red wrap over lens will cover the incandescent bulb.

It is a stud mount design with the included quarter inch stubs here. It is compatible with 12 volt DC systems. You can see on the back, it's a two wire design, has a brown wire for the tail lights and a red wire for the stop and turn lights and when you install this, it will ground through the mounting hardware. This slide is DOT, Department of Transportation, compliant and it is made in the USA.Again, this is for passenger side. The driver's side light, we do sell separately.

That will have the added on license plate light on the bottom and that's sold separately on our website. It's part number 432000. dimensions on this, the diameter, one side to the other's right at three and three quarter inches. The depth on it, it's going to be right at two and five eighths inches and the distance between the mounting studs on the back here, center to center, is right at two inches. We again mentioned the ball type is an 1157.

The power draw on the slide at 12.8 volts is 2.2 amps. Wire length on this is going to be right at about four inches. Now the last thing I want to do is we're going to go ahead and hook this up to some 12 volt power just to show you the lights. So we'll go ahead and take our turn signal light, stop and turn signal light, and then we'll go ahead and take our taillights.And then what I'm going to do is go ahead and ground it to the stud. So if we go ahead and hook this to the stud, should give us our light.

Go ahead and turn our power on. There we go. Now you've got your tail light function. We'll go ahead and turn off the overhead light and there's your tail light. And then for the brake function, you can see it'll give you your brighter dual filament there for the brake. And then for the turn signal. Let's see the turn signal function then turn back on our overhead light. Disconnect our wires. But that should do it for the review on the Peterson Trailer Round Stop, Turn, And Tail Light with the red lens for our passenger side.


Customer Reviews

Peterson Trailer Tail Light - Stop, Turn, Tail - Incandescent - Round - Red Lens - Passenger Side - 431800

Average Customer Rating:  4.7 out of 5 stars   (126 Customer Reviews)

3-3/4" Round. Incandescent trailer light serves as a stop, tail, and turn signal light. Durable polycarbonate housing with screw-on lens. Stud mount with included studs. 2-Wire design grounds through mounting hardware. (1) 1157 Bulb.

- 431800
by:

We ordered these taillights from you little while back for this 1947 Mack truck project and are great, thank you 505314



- 431800
by:

Did the job Thanks 749035



- 431800
by:

I needed a 3 1/2 inch light and they are difficult to find. Mostly there are 4" lights. This was what I needed at a good price. It's lightweight and strong. Nothing fancy, but good product. Shipping was VERY fast. Other online retailers got nothing on these guys. 739889



- 431800
by:

I had looked all over in my area for these trailer lights, but all trailer and automotive part outlets did not carry them anymore. A quick google and I found them right here at etrailer.com. I ended up buying four just to make sure that I had replacements for the future. A big plus was that they were delivered two days early. Picture me with a happy face. 724683



- 431800
by:

Fast service and accurate order filling! Great resource for working on projects. 724627



- 431800
by:

These are getting hard to find, great p rice. 716119



- 431800
by:

The lights will work perfectly as they are just like my old ones I put on in the late 1980's. They are a great product. Thank you so much. 704757



- 431800
by:

Placed my order. Order arrived when it was supposed to. Got the parts that I had ordered. Couldn't have gone smoother. Lori was most knowledgeable, helpful, and pleasant. Thanx all. 704026



- 431800
by:

The body of the light is plastic. It will not rust. 696153



- 431800
by:

The lights fit in a trailer that was 49 years old and the lights were hard to find . Thanks for the quick turn around on the order 695952



- 431800
by:

etrailer helped in every way, fast shipping too! 695564



- 431800
by:

I also installed a ttrailer tow bar I had purchased from you. Good job use guys. 691169



- 431800
by:

well built ,works great 678214



- 431800
by:

Thank you Julie for your help . Order great 676988



- 431800
by:

Quality product, would have gotten 5 stars but there were no directions included to assist with wiring. I did locate wiring directions on line though. 676661



- 431800
by:

Great lights, as described. Super fast shipping. Easy to install. 675036



- 431800
by:

Seems to be a good light for the price! 669545



- 431800
by:

basic tail light, worked like i wanted 652654



- 431800
by:

Excellent product fit perfectly exactly what I ordered and it was delivered extremely fast. Will definitely order from trailer again 641093



- 431800
by:

Excellent tail lights at a good price. I use two on each side of my 50 Chev pickup. A 6v #1154 bulb fits. Be sure to run a grounding wire to one of the mounting stud bolts. 615772



- 431800
by:

Very product, shipped fast. Good supple r. 614415



- 431800
by:

lights look good nice quality good price ... fast shipping ..very friendly service ..thanks so much Stacy 612400



- 431800
by:

The lights were exactly what was advertised. Arrived in good time, I was able to track the product with ease. The assortment of lights were great online and I found the exact size of light I needed, and I needed a specific size. Thank you e trailer. Sorry I have no pictures. 603032



- 431800
by:

I am very pleased with the product and the service. Based on this good experience any futures business will be with etrailer. 601903



- 431800
by:

First I want to say that this order was of great importance to me because my Dad needed it for a trailer he purchased. He and I searched high and low and could not find tail lights that had a small enough diameter to fit in the pockets designed on the trailer. So I widened my search and happened across Etrailer.com. They had exactly what I was looking for and the price was what I thought to be very low and even though I ordered them on a national holiday they shipped the same day and were delivered before I expected. I decided to look around their website since I am a cattle farmer and more than often need parts, to my delight, they have about everything I might need so I will be shopping here again... 601345


Comments
Still working great, haven’t even had to replace a light bulb.
Jerry M - 01/31/2020

65075
26
128
Show More Reviews

Ask the Experts about this Peterson Trailer Lights

  • How To Wire the Peterson Round Trailer Tail Light # 431800 to a 4-Way Trailer Connector
    A 4-Way flat connector has the white wire for ground, brown wire for running lights, yellow wire for left turn and brake, and green wire for right turn and brake. The Peterson Round Trailer Tail Light, part # 431800, is a three function light and has two wires coming out of the rear. The brown wire is for running lights and the red wire is for turn signal and brake. The light is grounded to the trailer by the mounting studs on the light. The lights have to be mounted to the metal trailer...
    view full answer...
  • Can Peterson Round Trailer Tail Light Be Mounted Turned 90 Degrees
    The Peterson trailer tail light # 431800 does have a top and bottom, indicated on the back of the light. Normally a light does have to be mounted a certain way because otherwise the light being emitted may not be visible the way it is supposed to be as it exits the lens. But on this light I do not see that as an issue. Ideally though using an additional bracket as shown in the linked video would be the way to go. The left hand side matching light, # 432000, is a different story. It has...
    view full answer...
  • Upgrading Vintage Trailer from 6 Volt to 12 Volt Lighting System
    In this case I recommend upgrading the lighting on your vintage trailer to lights designed for a 12 volt system. I have included a link to our trailer lighting for you. One of my favorites that has a vintage kind of look is the Peterson Round Trailer Tail Light, # 432000 for left hand side and # 431800 for right hand side. Unfortunately we do not offer a product that will convert the 12 volt system on your truck to a 6 volt system for your trailer.
    view full answer...
  • How to Wire the Peterson Round Trailer Tail Light, # 431800 Using a 7-Way Connector
    The Peterson Round Trailer Tail Light, part # 431800, is a three function light and has two wires coming out of the back of the assembly. The brown wire is for running lights and the red wire is for turn signal and brake lights. The light grounds to the trailer by the mounting studs which must be attached to a clean metal surface on the trailer frame. A 7-Way also has combined brake and turn signal circuits and a single running light circuit. On the trailer side connector, on the back...
    view full answer...
  • Troubleshooting Dim Peterson Round Trailer Tail Light # 431800
    Determining the cause of your dim lamps will be a process of elimination. I would recommend using a multimeter like part # BTMT15 on the circuits feeding the lamps on your trailer. You should be reading close to 12-volts at each lamp. If you are not, you will need to do some troubleshooting. Test the pins on the trailer connector on your vehicle, you should be getting close to 12-volts at each pin as its function is activated. If you see a dramatic difference in voltage between the...
    view full answer...
  • What is the Difference Between the Right and Left Hand Versions of Peterson Round Trailer Lights
    The difference between the Peterson Round Trailer Tail Light Right Hand # 431800 and the Peterson Round Trailer Tail Light Left Hand # 432000 is that the left side # 432000 comes with a license plate bracket and has a light to illuminate the plate. You could mount part # 432000 and 431800 on either side of the trailer, but then the license plate of your trailer may not be illuminated. You will want to check your local laws to make sure that you can mount the license plate of your trailer...
    view full answer...
  • Replacement Blinker Bulb for Peterson Round Trailer Light Part Number 431800
    According to my information the replacement bulb you will need for the # 431800 is bulb number 1157. We offer this replacement on our site under # A1157B.
    view full answer...
  • Can Additional Ground Wire Be Used On Peterson Round Trailer Tail Light
    You can do just exactly what you said you want to do for a ground on your Mule. The Peterson Light, part # 431800 is grounded through the mounting posts. You can run your ground wire and attach it to one of the mounting posts to make sure you get a good ground. The brown wire on the light is used for running lights and the red wire is used for brake and turn signal. You could just tape off the red wire if you just want the running light function, or wire the red wire to the brake...
    view full answer...
  • Replacement 4 Inch Round Tail Lights With Stop/Turn/Tail Functions
    We have many 4 inch round tail light options like the Peterson Round Trailer Tail Light, 2 Stud Mounting, Right Hand # 431800. We also have LED options like Optronics Sealed, 4" Round, LED Stop/Turn/Tail light, 21 Diode - Red # STL55RB. I've linked the page to our 4 inch round tail light options for you that have the stop/turn/tail functions.
    view full answer...
  • Peterson Model 428S Tail Lights Without License Plate Illumination
    For your Tail lamp assemblies, you will want the Peterson Round Trailer Tail Light, 2 Stud Mounting, Right Hand # 431800. Since you do not want to utilize a license plate feature, you can simply order two of these and use one on each side as you mentioned. The only difference between the Right and the left hand is the license plate illumination feature of the left hand assembly. Other than that, the two parts are identical. The light grounds through the mounting studs. The brown wire...
    view full answer...
  • Is Amber Replacement lens Available For Peterson Round Trailer Tail Light
    I have attached a helpful article about trailer lights you can check out. The article includes a chart that describes what the function and color lights are for a trailer. For turn and brake lights like part # 431800, the lens is red and we do not have an amber lens replacement cover for this light.
    view full answer...
  • Availability of a Simple Trailer Lighting Kit for a Wood Chipper Towed Behind a 2004 Ford F-150
    Yes, we have simple trailer lighting install kits that simply plug into your 4-Pole connector. For your wood chipper I would recommend the Standard Trailer Light Kit with 25 foot Wire Harness, item # TL29BK. You will not need the side marker lights included with this kit so you can just eliminate them. We also have a kit designed for cargo carriers that would work well on your wood chipper, the Draw-Tite Cargo Carrier Light Kit, item # 6504, does not include the extra side marker lights.
    view full answer...
  • Availability of Stud Mounted Round LED Trailer Taillight
    Unfortunately, Peterson doesn't offer an LED version of the stud mounted # 431800 lamp you mentioned. For an LED stud mount lamp, I'd recommend the Optronics # STL9RB and # STL8RB. These lamps are a bit larger, and square, but they are a stud mounted LED taillight.
    view full answer...
  • Smallest Trailer Light Recommendation
    The smallest trailer taillight we offer is 3-3/4 inches in diameter and is part # 431800. I attached a review and install video for this product to the right.
    view full answer...
  • Where is the Peterson Round Trailer Tail Light Made?
    Yes, the Peterson Round Trailer Tail Light, 2 Stud Mounting, Right Hand, item # 431800, is made in the USA.
    view full answer...
  • Troubleshooting Dim Trailer Lamps
    Determining the cause of your dim lamps will be a process of elimination. I would recommend using a multimeter like part # BTMT15 on the circuits feeding the lamps on your trailer. You should be reading close to 12-volts at each lamp. If you are not, you will need to do some troubleshooting. Test the pins on the trailer connector on your vehicle, you should be getting close to 12-volts at each pin as its function is activated. If you see a dramatic difference in voltage between the...
    view full answer...
  • Is Peterson Trailer Tail Light # 431800 Available as LED Submersible Assembly
    While we do have a nice selection of round red LED trailer lights that are submersible, the Peterson Trailer Tail Light # 431800 that you referenced is not available with this design/construction. The closest option we have available to this would be the Optronics LED Clearance or Side Marker Light # MCL002RXB, which doesn't have the same overall profile but does have a similar 3-3/8" diameter along with LED bulbs and a completely submersible construction. I have attached a link below...
    view full answer...
  • Is the Running Lamp or Brake/Turn Signal Filament in 1157 Bulb Supposed to Be Brighter
    As far as what position they occupy in the bulb, I couldn't say. Dual filament bulbs like the # 30-90-157 have two different filaments. One filament is of a different resistance value, and thus makes a brighter light. but the brake and turn signal filament would be the brighter of the two. From what you describe, it certainly sounds as if you have the brake/turn signal and running lamp wire reversed.
    view full answer...
  • Will the Peterson Round Red Trailer Tail Light Bracket 510-9 Work with Jeep Style Tail Lights
    The Replacement Bracket for Peterson Round Red Trailer Tail Light part # 510-9 is designed to be used with the Peterson Round Trailer Tail Light part # 432000 for left hand or part # 431800 for right hand. In order to determine whether or not it will work with your Jeep style tail lights you would need to measure the distance between your mounting studs and then compare them to the dimensional drawing I have attached for you on the above bracket. I have attached a list of our other trailer...
    view full answer...
  • Passenger Side Tail Light to Match Peterson Round Trailer Tail Light # 432000
    The passenger side of the Peterson Round Trailer Tail Light # 432000 that you referenced is part # 431800 on our site. The only difference between them is that the driver's side has the license plate light on it. If you are going to be mounting the license plate below the light you can use either the steel bracket # 428-09 or the plastic bracket # 440-09.
    view full answer...
  • Replacement Trailer Tail Lights for River Drift Boat Trailer
    The Peterson Round Trailer Tail Light, 2 Stud Mounting, Right Hand # 431800 and # 432000 or the 4-3/8" Round Trailer Tail Light, Stud Mount, 3-Function, Right Hand # ST24RB and # ST25RB are both the style you are seeking but are not submersible. They are good for weather, but not for launching a boat as you referenced. I have linked the page to your options for a round light that is submersible but they won't have the 2 stud mount your referenced.
    view full answer...
  • Replacement Round LED Trailer Tail Light for a Peterson Round Tail Light
    The Peterson part number # 420-15 that you referenced is a replacement lens for the Peterson Round Trailer Tail Light # 431800 which has a 3-3/4" diameter. Although we don't have an exact match to this in LED we do have slightly larger sizes of round tail lights that come as LED. If you are wanting to go with one from Peterson then we have the LED Trailer Light # M826R-7 which has an overall diameter of 5-1/2" but the light diameter is only 4-1/4". The grommet # 426-18 and 3-prong plug...
    view full answer...
  • LED Replacement for Peterson 420-15 Trailer Light
    I do have an option for you but the GloLight LED Trailer Tail Light part # STL101RB most likely won't fit into the mount you have welded to your trailer. The actual outside diameter of the light is 4.25". The recessed portion behind the lens on the base is around 3.80" which I think is what you are asking for so I went out to our warehouse to confirm this for you. That said, I think a better option for you would be to just replace the incandescent bulbs with LED bulbs, part # 11572-D24SMD-R....
    view full answer...
  • Installation of Replacement Trailer Lights on Boat Trailer with Multiple Ground Wires
    If a trailer is made of aluminum rather than steel it will sometimes need ground jumper wires on each light since the aluminum frame does not always provide enough conductivity. Steel frame trailers can usually do with just one main ground wire that connects between a clean bare metal spot on the frame and a wiring junction box like # 38656 where all the individual lights' grounds will join it. Junction boxes can still be used on steel frame trailers, especially when it comes time to...
    view full answer...
  • Can Peterson Round Left Side Trailer Light Part 43200 Be Used On Right Side of Trailer
    The item you selected, Peterson Round Trailer Tail Light with License Plate Light, 2 Stud Mounting, Left Hand, part # 432000, is designed for use on the left hand side of the trailer because it has an integrated light for the license plate on your trailer. The matching right side light is Peterson Round Trailer Tail Light, 2 Stud Mounting, Right Hand, part # 431800, which does not have the integrated license plate light. You could mount part # 432000 and 431800 on either side of the...
    view full answer...
  • Trailer Light Kit with Tail Lights and Wiring Harness
    We have several different tail light kits which I have linked for you but none of them use Peterson Round Trailer Tail Light # 432000. You could get one of light # 432000, one of # 431800, and a 4-Way flat wiring harness, # A35W42B. You would just need some wiring components such as # HM51020 to make the connections and secure the wiring to the frame.
    view full answer...
  • Could Sealed, Uni-Lite Mini LED Side Marker and Clearance Light, # MCL11RKB Be Used as a Turn Signal
    You could use the Sealed, Uni-Lite Mini LED Side Marker and Clearance Light, # MCL11RKB, as a turn signal light. However, on most trailers, the brake and turn signal lights are usually on the same circuit. If you have this type of trailer, the light will light up with the brakes on. When turn signals are separate, you might want to consider an amber light, # MCL11AKB, as a turn signal. These lights would probably work well on a motorcycle trailer (a trailer towed behind a motorcycle)...
    view full answer...
  • Is there a Trailer Tail Light that Matches Peterson Back Up Light # 411SC
    We do not have an exact match for a red round tail light like the Peterson Back Up Light, # 411SC, that you have referenced that is a flange mount. The closest flange mounted lights are going to be the Peterson round tail lights # 431800 and # 432000. For a flush mounted light, you could use # 429800 which may be more what you are looking for. We also have the Optronics brand flange mounts # STL42RB or # ST47RB. They use wiring harness # A45PB.
    view full answer...
  • What is the Peterson Round Trailer Tail Light Part # 431800 and # 432000 Constructed Of
    The housing of the Peterson Round Trailer Tail Light with License Plate Light, 2 Stud Mounting, Left Hand, item # 432000, and right side, item # 431800, is plastic. At this time we do not have a round surface mount light that has a metal housing.
    view full answer...
  • Mounting Hole Spacing of Peterson Red Round Replacement Lens
    The replacement lens # 420-15 is a direct fit for a Peterson tail light, part # 431800. The mounting holes for the lens are 3 inches apart on center.
    view full answer...
