Bargman LED Trailer Tail Light - Stop,Turn,Tail - 18 Diodes - Black Base - Red Lens

Bargman LED Trailer Tail Light - Stop,Turn,Tail - 18 Diodes - Black Base - Red Lens

Item # 47-86-101
lowest price pledge
Retail:$39.78
Our Price: $27.88
You Save: 30%
Trailer Lights
Orders above $99 qualify for Free Shipping
Shipping Weight: 0.73 lbs
Quantity:
In Stock
Bargman Trailer Lights - 47-86-101
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Customer Photos

Videos

5-13/16" Long x 4-3/8" tall. Trailer light serves 3 functions: brake, tail, and turn signal. Durable ABS plastic housing. Mounts on surface of trailer - hardware not included. 3-Wire pigtail. Lowest Prices for the best trailer lights from Bargman. Bargman LED Trailer Tail Light - Stop,Turn,Tail - 18 Diodes - Black Base - Red Lens part number 47-86-101 can be ordered online at etrailer.com or call 800-298-8924 for expert service.
  • All Info
  • Reviews (36)
  • Q & A (4)
  • Videos (1)
  • Photos
  • Why etrailer?

Bargman Trailer Lights - 47-86-101

  • Tail Lights
  • Rectangle
  • LED Light
  • Red
  • Surface Mount
  • 6L x 4-1/2W Inch
  • Non-Submersible Lights
  • Bargman
  • Stop/Turn/Tail

5-13/16" Long x 4-3/8" tall. Trailer light serves 3 functions: brake, tail, and turn signal. Durable ABS plastic housing. Mounts on surface of trailer - hardware not included. 3-Wire pigtail.


Features:

  • Trailer tail light serves 3 functions:
    • Stop light
    • Tail light
    • Turn signal light
  • LEDs make great replacements for incandescent lights
    • Last 50 times longer
    • More efficient - provide brighter light with less power output
    • No bulbs to replace - no brittle filaments
  • Durable ABS plastic base
  • Red lens over white LEDs
  • Compatible with 12V DC systems
  • Mounts on surface of trailer - hardware not included
  • 3-Wire pigtail
    • Green wire for tail
    • Black wire for stop/turn
    • White wire for ground
  • DOT compliant
    • Meets FMVSS 108 and CMVSS requirements for automotive lighting


Specs:

  • Dimensions: 5-13/16" long x 4-3/8" tall x 2-1/2" thick
  • Diodes: 18
  • Power draw at 12V:
    • Stop/turn: 0.3 amps
    • Tail: 0.06 amps
  • Wattage: 4.05 watts
  • Wire length: 6"
  • Wire gauge: 16
  • 1-Year limited warranty


Bargman Series 47-86-101 Trailer Combination Tail Light Diagram

Surface-Mount Light

Surface mount light

Surface-mount lights install flat against the surface of the trailer, so a hole does not need to be cut into the trailer for the light. This type of light is installed using a flange or bracket that has mounting holes. And mounting hardware is used to secure the light to the trailer.



47-86-101 Bargman Series 86 Combination LED Single Trailer Taillight - Stop,Turn,Tail - 18 Diodes - Red Lens - Black Base - Surface Mount

Replaces 42-86-101




California residents: click here

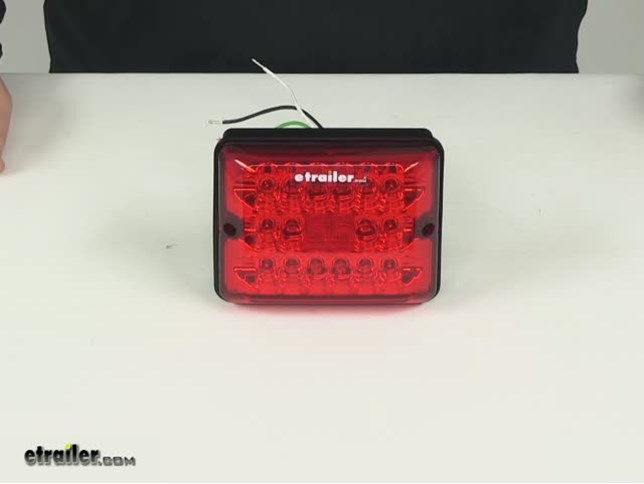

Video of Bargman LED Trailer Tail Light - Stop,Turn,Tail - 18 Diodes - Black Base - Red Lens

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Bargman Trailer Lights - Tail Lights - 47-86-101 Review

Today we're going to be reviewing part number 47-96-101. This is the Bargeman LED single red tail light, 86 series. The red light is going to function as a combination brake light, tail light and turn signal lights for your trailer or RV. It's going to contain 18 LED's, they're going to last longer, burn brighter when compared to incandescent lights. They have a low power consumption so they're more energy efficient. They have a really quick activation, the LED's are going to respond faster than your regular incandescent bulbs. It's going to feature a black base, 16 gauge power and ground wires are included.

White wire is going to be your ground, the black wire is going to be for the stop and turn signals and then your green wires going to be for your tail lights. This unit is Department of Transportation compliant. It meets FMVSS and CMVSS 108 requirements. We'll take a look at the overall dimensions. It's going to give us an overall length of 5 13/16th of an inch and overall width about 4 3/8ths of an inch, and then an overall thickness about 2 1/2 inches. Here on the back side it's going to expose four mounting holes.

If you take a measurement center on center the distance between the two here, its going to be four inches going this way and then going this way center on center, it's going to measure 3 1/4 of an inch. This is a surface mount installation. It's going to come with a limited lifetime warranty. It's also really nice right here on the back of the housing, it's going to have the indicators that show the functions of each wire. We're going to go and connect this to our external power source that way we can show you what it looks like with power running to it. We'll also be able to turn off our overhead lights. Go ahead and get our wires connected.

You can see here this is the tail light function, it sends out a nice consistent LED signal and then when we apply our brakes, it illuminates for an even brighter signal. It's going to do that same thing when we apply our turn signal as well. That's going to do it for today's review of part number 47-86-101. This is the Bargeman LED single red tail light, 86 series. .


Customer Reviews

Bargman LED Trailer Tail Light - Stop,Turn,Tail - 18 Diodes - Black Base - Red Lens - 47-86-101

Average Customer Rating:  4.9 out of 5 stars   (36 Customer Reviews)

5-13/16" Long x 4-3/8" tall. Trailer light serves 3 functions: brake, tail, and turn signal. Durable ABS plastic housing. Mounts on surface of trailer - hardware not included. 3-Wire pigtail.

- 47-86-101
by: 08/25/2020

Always get great service. 868134



- 47-86-101
by:

I am extremely happy with the lights! Excellent company to deal with, super fast shipping on a top quality product! Thank you etrailer! 826376



- 47-86-101
by:

super fast shipping cant wait to install them on my car trailer 825551



- 47-86-101
by:

This unit replaced an identical one that had some failing LED modules. Works great! Once again my right tail light is all shiny, bright and reel purdy. [Thumbs up] 720197



- 47-86-101
by:

Nice And Bright. Does need the led flasher so it flashes properly 681479



- 47-86-101
by:

These are perfect replacements for my 2008 airstream classic , no modifications just make sure you wire them right ,it is specific. They are super bright and look great . This small investment in your safety is reward in itself. 672823



- 47-86-101
by:

Replaced tail lights on my Dutch Star motorhome with these led replacements. They fit perfect and are awesome. So much brighter than the old ones. As a bonus the price was excellent. 579895



- 47-86-101
by:

Ordered an entire set of Bargman LED's (red, amber, and white) as well as red LED wraparounds. Order was shipped quickly and replacement lenses for ones damaged in shipment were also quickly dispatched. This is customer service at its best. 563866



- 47-86-101
by:

Exactly what I was looking for I rate ten out of 10 very pleased 475760



- 47-86-101
by:

Quality product, I replaced the original Bargman lights with LED lights on my Motorhome and was quite impressed with results. etrailer made this transaction very easy at a very competitive price. 451744



- 47-86-101
by:

I replaced all the rear tail lights with led units Very happy with the results, brighter & uses less Power 429772



- 47-86-101
by:

Hi Ricky, The products that I ordered from you are Great. No problems. Thanks for checking and for all your help in the past. David E. Graham 372032



- 47-86-101
by:

I have bought several of these tail lights for adding to my Canam trailer ane upgrading my camper to LED. Good value and work great. 344325



- 47-86-101
by:

Light is brighter and uses way less pow er! 336196



- 47-86-101
by:

Excellent. Very bright and turn signal is very noticeable. 323388



- 47-86-101
by:

I installed these lights as well as the same product in Stop/Turn/Brake format, as an upgrade to my vintage motor home. The lights have performed flawlessly and provide excellent illumination. Very satisfied. 314647



- 47-86-101
by:

Easy to install, look good and bright. Just installed them so no idea of their longevity. 216864


Comments
Still work great
Shawn - 08/04/2016

19902

- 47-86-101
by:

Lights arrived quickly and after installation. They worked great, very happy with the outcome. 196876



- 47-86-101
by:

I called about the LED lights from etrailer for my RV and Susanne T. got the call. She was great in helping me with my purchase. I received my order in the time frame that I was told. I opened the package there was no damage everything went as good as it could have. Again thank you etrailer and Susanne T. 158773



- 47-86-101
by:

I love the lights, nice and bite. The only thing for the price I thought they should have come with the screws to mount the light to the base. 33574



- 47-86-101
by:

Great visibilty improvement. These lights are so bright they shine across the parking lot 100 yards away. It completely changed the visibility of the rear of my RV. These were very simple to install and matted up with the wiring and body modeling perfectly. I feel much better now if I'm stopped along side the Highway for a repair at night knowing the traffic can clearly see my flashing lights. Thanks etrailer for the great product. 3138



- 30-86-101
by:

Review from a similar 86 Series in Trailer Lights


I ordered 3 of these so I would have a spare. My coach is 30 years old and I was pleased to find an exact match for my lights and lenses. The fit is perfect. One of my backup lights was not working and I was able use the base of one of these to fix it. 850368



- 30-86-101
by:

Review from a similar 86 Series in Trailer Lights


Product was delivered quickly. It was a perfect fit. Good quality. Camper is complete and ready to go! 804434



- 30-86-101
by:

Review from a similar 86 Series in Trailer Lights


Having an older motor home (1988) makes it rather difficult to find parts. Your company has the necessary lamps and lenses for replacement. 709530



- 30-86-101
by:

Review from a similar 86 Series in Trailer Lights


Exactly the part I was looking for at an extremely reasonable price. Shipping was as scheduled. Customer service during and after the sale great. Thanks will definitely shop here again. 703881


25
36
Show More Reviews

Ask the Experts about this Bargman Trailer Lights

  • Is There a Replacement for the Glo-Brite Tail Light 1237-88AC
    I do have an option for you but there is not a direct replacement for the Glo-Brite Tail Light 1237-88AC as Glo-Brite is no longer in business. Therefore, your only option would be to switch to a different style like the Bargman LED Trailer Tail Light part # 47-86-101 which has a similar design and installs in a similar manner. That said, you would likely need to drill a few new holes to mount the light but you don't have any other options sadly. I have attached a list of all our other...
    view full answer...
  • Troubleshooting Camper Lights When Running Lights Work But Turn/Brake Lights Do Not
    You can troubleshoot your truck and trailer by disconnecting the harness and test each one separately. On the truck side I recommend using a circuit tester like part # 40376. Since you said the vehicle side of the wiring is working properly you will want to test the camper wiring. You should look for signs of dirt, discoloration or corrosion. You can try cleaning the connectors with a spray-on contact cleaner if they show any such signs of corrosion and then use dielectric grease...
    view full answer...
  • Difference Between Replacement Three Panel Bargman LED Panels 47-84-410 and 47-86-101
    So the difference between the two part numbers is that the # 47-84-410 is designed to upgrade a three panel taillight like you have from an incandescent light to an LED whereas the part # 47-86-101 is designed as just a replacement for an LED three panel light. Since you have an LED light currently what you need is the # 47-86-101.
    view full answer...
  • Information on Bargman 86 Series Trailer Tail Lights
    Bargamn light # 30-86-101 has a wire for ground, a wire for running lights, and a wire for combined brake and turn lights. If your trailer has combined brake and turn signals then you would first need to separate out the brake and turn signals using converter # 118158. But if the trailer does have separate brake and turn signals then yes, you can just connect brake or running lights or turn signal as long as it is grounded. The light can be mounted vertically or horizontally. And it...
    view full answer...
