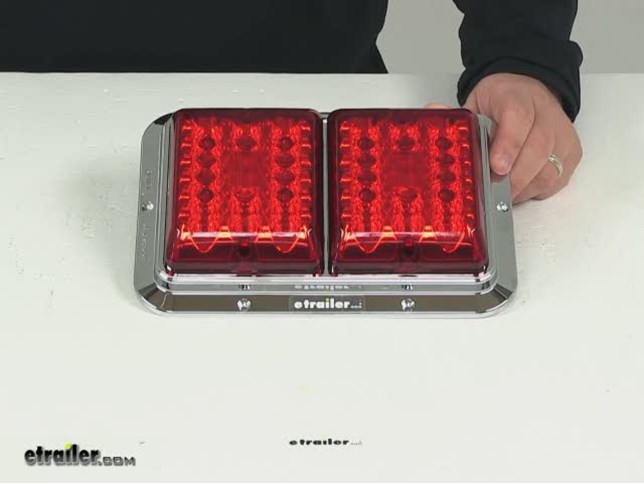

Bargman LED Double Tail Light - 4 Function - 36 Diodes - Rectangle - Chrome Base - Red Lens

Bargman LED Double Tail Light - 4 Function - 36 Diodes - Rectangle - Chrome Base - Red Lens

Item # 47-85-611
lowest price pledge
Retail:$86.45
Our Price: $72.87
You Save: 16%
Trailer Lights
Orders above $99 qualify for Free Shipping
Shipping Weight: 1.53 lbs
Quantity:
In Stock
Bargman Tail Lights - 47-85-611
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

In Use/Installed

Customer Photos

10-1/4" x 7-1/4" Rectangle. Double LED trailer tail light serves 4 functions: brake, tail, rear reflector, and turn signal. Durable chrome ABS housing. Surface mount - hardware not included. 6-Wire design with power and ground wires. Lowest Prices for the best trailer lights from Bargman. Bargman LED Double Tail Light - 4 Function - 36 Diodes - Rectangle - Chrome Base - Red Lens part number 47-85-611 can be ordered online at etrailer.com or call 800-298-8924 for expert service.
  • All Info
  • Reviews (250)
  • Q & A (6)
  • Photos
  • Why etrailer?

Bargman Trailer Lights - 47-85-611

  • Tail Lights
  • Rectangle
  • LED Light
  • Red
  • Surface Mount
  • 10L x 7W Inch
  • Bargman
  • Non-Submersible Lights
  • Stop/Turn/Tail
  • Rear Reflector

10-1/4" x 7-1/4" Rectangle. Double LED trailer tail light serves 4 functions: brake, tail, rear reflector, and turn signal. Durable chrome ABS housing. Surface mount - hardware not included. 6-Wire design with power and ground wires.


Features:

  • Double LED trailer tail light serves 4 functions
    • Stop, turn, tail, and rear reflector
    • Built-in reflex reflector removes the need for a separate reflector
  • Radius styling has rounded edges for a smooth look
  • LEDs make great replacements for incandescent lights
    • Last 50 times longer
    • More efficient - provide brighter light with less power output
    • No bulbs to replace - no brittle filaments
  • Durable chrome ABS housing
  • Red lens over white LEDs
  • Compatible with 12V DC systems
  • Surface mount to trailer - hardware not included
    • Tail light can be mounted either horizontally or vertically
  • 6-Wire design with power leads and ground wires
  • DOT compliant
    • Meets FMVSS/CMVSS 108 requirements


Specs:

  • Dimensions: 10-1/4" wide x 7-1/4" tall x 1-7/8" thick
  • Distance between mounting holes center to center:
    • Horizontally: 9-5/8"
    • Vertically: 6-3/4"
  • Diodes: 36
    • 18 Diodes on each side of light
  • Power draw at 12V:
    • Stop/turn: 0.3 amps
    • Tail: 0.06 amps
  • Wire length: 6"
  • Wire gauge: 16
  • 1-Year limited warranty


Bargman 47-85-611 LED Double Tail Light Diagram

Surface-Mount Light

Surface-mount trailer lights install using a flange or bracket with mounting holes. These lights lay flat against the trailer surface and only require a small, often pre-existing hole, for wiring. Mounting hardware is used to secure the light to the trailer.



47-85-611 Bargman LED Double Trailer Tail Light - Brake, Tail, Turn, Reflex - 36 Diodes - Chrome Base - Surface Mount - Red Lens




California residents: click here



Customer Reviews

Bargman LED Double Tail Light - 4 Function - 36 Diodes - Rectangle - Chrome Base - Red Lens - 47-85-611

Average Customer Rating:  4.8 out of 5 stars   (250 Customer Reviews)

10-1/4" x 7-1/4" Rectangle. Double LED trailer tail light serves 4 functions: brake, tail, rear reflector, and turn signal. Durable chrome ABS housing. Surface mount - hardware not included. 6-Wire design with power and ground wires.

- 47-85-611
by:

Nice product, easy to install due to there flush mount design and very bright, Fit over existing lights perfectly. 784178



- 47-85-611
by:

Great item, fast shipping. Installed them the day they arrived, work great. 766483



- 47-85-611
by:

Great tail lights, I replaced my bulb light assy with these. Much brighter and more visible on the road. Plus they look great. 738953



- 47-85-611
by:

I will Be installing the item today Looking forward when its done 629415



- 47-85-611
by:

Product worked as promised. Very easy to use. My truck looks great after using, great shine 566530



- 47-85-611
by:

These lights were a great replacement on my old Mallard fifth wheel. I did not need the resistors for this application. 449962



- 47-85-611
by:

So far these led flush mount lights are working great. They're bright and a refreshing update over old incondesant lights. I got these to put on an older camper I purshased. From the photos you can see what was on the camper and I what I upgraded to. The old lights were dull and could barely tell they were lit. These lights bring a modern day update to an 1989 camper. Besides the product being good the shipping was fast and free. And I also like that on ETrailers site when your package is in transit they have a map of the US showing where your package is. 425485



- 47-85-611
by:

Yes indeed, they are exactly what I wanted and came in handy while we had a tire blowout on a busy highway. Nice follow-up by the way! 351670



- 47-85-611
by:

Bought these lights for my last trailer and worked great.... So I bought them again for my new trailer......they were shipped correctly and timely. Thanx etrailer.. 207023



- 47-85-611
by:

A great product sold by a great e-tailer. Perfect combination. The chrome bezel looks great, the lights are bright enough to see with your eyes closed. Well packaged, quickly shipped. Couldn't be happier with the entire transaction. Thanks, George. 200790



- 47-85-611
by:

This is a great tail light assembly. The LED lights are much brighter than my old lights. The only thing I didn't care for was that I had to drill 12 more holes in the exterior skin of my trailer. This light is bigger than the old ones and the hole pattern did not match. Because this light assembly is larger, I was able to cover the old holes with this assembly. The wiring connection was very simple and straight forward. On the back of this assembly was the color pattern for each wire. Overall, I'm very satisfied. 157978


Comments
Still 100 satisfied
Roy - 10/26/2015

15682

- 47-85-611
by:

very nice, good looking led lights. excellent communication fast shipping would defiantly buy from them again 81621



- 47-84-009
by:

Review from a similar 84/85 Series in Trailer Lights


Great product, it came a couple of days ago. It was packaged perfectly, no damage, but the box looked like it had been used in a Samsonite Commercial on television! 394932


Comments
They work perfectly. If you remember the Samsonite Commercials on the Television in the 60s and 70s thats how the box looked like the gorrial in the commercial had used it to reverse the commercial. The lights work perfectly
PatrickA51 - 06/16/2018

39839

- 47-84-104
by:

Review from a similar 84/85 Series in Trailer Lights


Great looking lights, can’t wait to install them. Was nice to find a product close in size to my existing lights, they’re slightly smaller but big enough to cover the existing holes. I’ve changed out all the clearance and side marker lights to LED’s, these will complete this project on my RV. Thank you so much, Bill Nikon 726370



- 47-84-009
by:

Review from a similar 84/85 Series in Trailer Lights


I got them put on my 2014 forest River and it a wow how much better it light up at night !!! LOVE THEM !!! Paul 273880



- 30-85-002
by:

Review from a similar 84/85 Series in Trailer Lights


Works very good very happy with it. 458244



- 47-84-009
by:

Review from a similar 84/85 Series in Trailer Lights


Great Product. Easy replacement for older RVs to upgrade to LED. You will need load resisters to prevent hyperflash turn signals. No biggie. Very bright and really quick shippers here. 129802


Comments
Where are the load resisters purchased from and what is the load of the resister?
-- comment by: Steven R - 10/27/2014

7463

The load resistors that we currently have are the Aluminum version 2 pack # P230004A-2
Putco LED Light Bulb Load-Resistors - Aluminum - Qty 2
$49.16
and the Ceramic 2 pack version # P230004C-2
Putco LED Light Bulb Load-Resistors - Ceramic - Qty 2
$35.02
both of which have a provide a resistance of 6 ohms.

-- Rachael H - 10/29/2014

Comments
How many load resistors do you need for each unit?
-- comment by: Glen - 08/02/2015

13815

- 47-85-004
by:

Review from a similar 84/85 Series in Trailer Lights


This is one of the best upgrades I've made. They are much brighter and come on much faster than the former incandescent bulb fixtures. 246501



- 30-85-002
by:

Review from a similar 84/85 Series in Trailer Lights


Bought two rear lights for my camper .Came in on thursday and installed in 40 minutes .This is my second order and , great service and prompt shipment . thank you.TOO YOU ALL AT ETRAILER ..... 405829



- 47-84-009
by:

Review from a similar 84/85 Series in Trailer Lights


The backup light on my RV went out. The problem was a rusted bulb socket. I would have to replace the whole tail/backup/brake assembly. SO......I decided to "go LED" and order the Bargman Triple Tail Light 84 series from etrailer. The order was processed and delivered quickly. There was a bit of work to modify the existing cutout to accept the new Bargman Triple Tail Light. But I think it was worth it. I also installed the LED Backup Light Upgrade Kit to the Triple Tail Light. These really look good on the MotorHome and I should not have to work on them again. The picture shows the old and the new installed for comparison. 479787



- 47-84-009
by:

Review from a similar 84/85 Series in Trailer Lights


I first ordered and didn't realize they were sold individually. So I did order another one. They are a replacement for the original style lights that were not LED. They fit perfectly and are really bright. I soldered and heat shrinked all the wiring and installed butyl tape when I installed them. I did order the metal resistors so that I didn't have the hyper flash. They renew the look of an older RV. The shipping was two days and I loved that. 463336


Comments
Still working as advertised and would still recommend them. Excellent product.
Hoppers - 12/29/2018

48077

- 47-85-004
by:

Review from a similar 84/85 Series in Trailer Lights


lights are to replace my old lights in my horse trailer, because I had to mount them vertical, the problem is the way that the frame is may ,will not allow water to drain out , the backup light is not seal from the back so this lets to collect dust/water inside of the light lens my fenders are where the lights are mounted and only has a plate to defect rocks and mud from the lights, I did have to widening the frame where my old lights mounting , notice that there is not much room for the bolts holes has to be kept close 577881



- 47-84-009
by:

Review from a similar 84/85 Series in Trailer Lights


Just got around to installing the new Bargman tail lights on my 1995 Dolphin motor home. The turn signals flash very rapid and I believe I would need to install a resistor to cure this. Can you point me in the right direction ??? 597895


Comments
Yes you will need load resistors, one for each turn signal circuit. I recommend part P230004A-2.
-- Heather A - 01/16/2019

48622

- 47-85-004
by:

Review from a similar 84/85 Series in Trailer Lights


The product was exactly what I expected but the service exceeded my wildest expectation. The confirmation email as well as the shipping status emails were very timely and personalized to make me feel like I am a customer, a valued customer. etailer has definitely earned me as a customer for the foreseeable future. 141807



- 47-84-009
by:

Review from a similar 84/85 Series in Trailer Lights


Fantastic lights! Very bright! 384733
