Bargman LED Double Tail Light - 4 Function - 36 Diodes - Rectangle - Black Base - Red Lens

Bargman LED Double Tail Light - 4 Function - 36 Diodes - Rectangle - Black Base - Red Lens

Item # 47-84-527

lowest price pledge

Retail:$79.57

Our Price: $48.73

You Save: 39%
Trailer Lights

Orders above $99 qualify for Free Shipping

Shipping Weight: 1.44 lbs

Quantity:
In Stock, Ships Today
Bargman Trailer Lights - 47-84-527
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images


  • Tail Lights
  • Rectangle
  • LED Light
  • Red
  • Recessed Mount
  • 10L x 7W Inch
  • Non-Submersible Lights
  • Bargman
  • Stop/Turn/Tail
  • Rear Reflector
9-7/8" x 7" Rectangle. Double LED trailer tail light serves 4 functions: brake, tail, rear reflector, and turn signal. Durable ABS housing. Recessed mount to trailer. 6-Wire design. Lowest Prices for the best trailer lights from Bargman. Bargman LED Double Tail Light - 4 Function - 36 Diodes - Rectangle - Black Base - Red Lens part number 47-84-527 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (207)
  • Q & A (8)
  • Videos (2)
  • Photos
  • Why etrailer?

Bargman Trailer Lights - 47-84-527

9-7/8" x 7" Rectangle. Double LED trailer tail light serves 4 functions: brake, tail, rear reflector, and turn signal. Durable ABS housing. Recessed mount to trailer. 6-Wire design.


Features:

  • Double LED trailer tail light serves 3 functions
    • Stop, turn, tail, and rear reflex
    • Built-in reflex reflector removes the need for a separate reflector
  • Stylish black base has rounded corners for a smooth look
  • LEDs make great replacements for incandescent lights
    • Last 50 times longer
    • More efficient - provide brighter light with less power output
    • No bulbs to replace - no brittle filaments
  • Durable ABS housing
  • Red lens over white LEDs
  • Compatible with 12V DC systems
  • Recessed mount to trailer in vertical or horizontal position
    • Requires a 8-7/16" x 5-1/2" cutout
  • 6-Wire design includes power leads and ground wires
  • DOT compliant
    • Meets FMVSS/CMVSS 108 requirements


Specs:

  • Dimensions: 9-7/8" wide x 7" tall x 2-3/8" thick
  • Distance between mounting holes center to center:
    • Horizontally: 9"
    • Vertically: 6-1/8"
  • Diodes: 36
    • 18 Diodes on each side of light
  • Power draw at 12V:
    • Stop/turn: 0.3 amps
    • Tail: 0.06 amps
  • Wire length: 6"
  • Wire gauge: 16
  • 1-Year limited warranty


Bargman 47-84-527 LED Recessed Double Tail Light Series 84/85 Diagram

Recessed-Mount Light

Recessed-mount trailer lights install with a grommet, which is often sold separately. These lights extend past the trailer surface and require a hole for installation. If replacing a light, you can utilize the pre-existing hole. If installing a new light, you will need to cut a hole or use a mounting bracket (sold separately) to complete the installation.



47-84-527 Bargman LED Recessed Double Tail Light - Brake, Tail, Turn - Black Base - 36 Diodes - Recessed Mount - Red Lens






California residents: click here

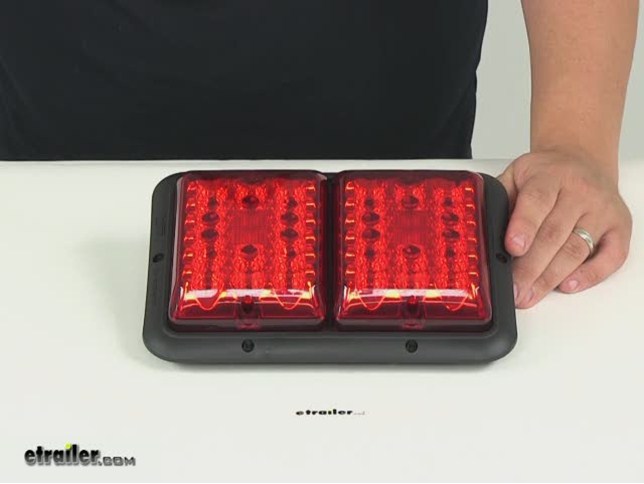

Video of Bargman LED Double Tail Light - 4 Function - 36 Diodes - Rectangle - Black Base - Red Lens


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Bargman Trailer Lights - Tail Lights - 47-84-527 Review

Today we're reviewing part number 47-84-527 from Bargman. This is a recess double tail light with red LED light and a black plastic base. It measures about 10 inches long this way, about 7 inches tall and 1 inches thick. The recess mount, very easy to do, you have a pre-wired design with the power and the ground wires. This meets all the safety requirements for the department of transportation and the light can be mounted both horizontally like this or vertically like that. We're going to turn off our overhead lights and I'll show you how these LEDs work.

LEDs as you know are long lasting, in fact ten times longer than incandescent bulbs and they also are more cool to the touch. Here's your tail light. That is your green wire. Here's your break light, the black wire, and your turn signal, also the black wire. We can turn our lights back on.

You also have the white ground wire which as you know goes into a clean unpainted surface. The code for the wiring, it stands into the back of the light so you shouldn't have any problem with that. This does come with a limited lifetime warranty and there you have it for part number 47-84-527 from Bargman, the recess double LED tail light.


Customer Reviews

Bargman LED Double Tail Light - 4 Function - 36 Diodes - Rectangle - Black Base - Red Lens - 47-84-527

Average Customer Rating:  4.8 out of 5 stars   (207 Customer Reviews)

9-7/8" x 7" Rectangle. Double LED trailer tail light serves 4 functions: brake, tail, rear reflector, and turn signal. Durable ABS housing. Recessed mount to trailer. 6-Wire design.

- 47-84-527
by:

Very nice and BRIGHT lights , Thats what I wanted . 167516


Comments

lights are still great !

Frank . - 12/25/2015

16231

- 47-84-527
by:

I bought these to replace the old style tail lights on my motorcycle trailer. We gotta ride safe and be seen, especially when you have a trailer attached to the back of your bike. These fit the existing opening perfectly and are brighter than the old lights. My one & only regret is both sides of the light are red, I wish one side was amber for the turn signal. My old lights are that way and I think red/amber LEDs would be even better than these. I'll keep watching etrailer and hope the manufacturer will act on my suggestion. 696864



- 47-84-527
by:

These tail lights are very bright which is good. However, I have had to replace the one side of the lights left and right sides of the vehicle two times after 2-3 years use due to the LED's not all working. 695727



- 47-84-527
by:

nice upgrade for an old trailer with holes already in rear doors easy swap all existing holes lined up. Very bright 695466



- 47-84-527
by:

I've had these lights on my trailer for a year and they still work great. Very bright and low current draw. Definitely worth the upgrade. 674696



- 47-84-527
by:

Just what I was looking for. Thanks 603439



- 47-84-527
by:

GREAT ITEM LIGHTS UP THE REAR WELL....SHIPPING SUCKS SORRY BUT SHOULD NOT TAKE A WEEK OR MORE FOR THE ITEM, ID LOOK AT THE SYSTEM YOU USE. MY ITEM WAS IN TOWN THRU. NIGHT AND I DIDNT GET IT TILL SAT AFTERNOON, UPS TO USPS NOT THE WAY TO DO IT, TAKES LONGER THAT WAY. 598897



- 47-84-527
by:

Excellent customer service and always on time shipments. 592418



- 47-84-527
by:

great fit for replacement light assebmly 577841



- 47-84-527
by:

Outstanding Item......Great transaction, will do business again....... 574317



- 47-84-527
by:

Looks great! 553282



- 47-84-527
by:

No problems with these taillights their brite and are great just a little pricey 550279



- 47-84-527
by:

Very easy install, fast shipping as wel l. 473479



- 47-84-527
by:

Great replacement lights for my older trailer. Perfect match and much brighter! 471480



- 47-84-527
by:

They look great. 445830



- 47-84-527
by:

High quality 443422



- 47-84-527
by:

Easy replacement on my 1996 Bigfoot and huge improvement in night visibility. I was going to try to retrofit led trailer lights when I saw these, and am so glad I got them - look great and much safer! 430706



- 47-84-527
by:

building new camper trailer, and ordered tailights and misc, safety lites. great looking lights and excellent quality. shipping was also very fast and prompt. thanks e-trailer. Jim 350409



- 47-84-527
by:

My order came boxed very nice. All contents were there as promised. Chris was excellent to order from. She understood what I needed and had my order out that afternoon. I'd buy again from this company. All my lights are of premium quality, no junk. My converted ( incandescent to LED ) snowmobile trailer will be seen now. 335275



- 47-84-527
by:

The lights fit perfect, and the service was great! 331804



- 47-84-527
by:

Went in with no problems and looks grea t! 325064



- 47-84-527
by:

The lights fit properly and installation was easy. The visibility is exactly what I was looking for. The sales representative, Cathy T, provided accurate product and shipping information I needed to get the right product at the right time. Thank you 309866



- 47-84-527
by:

Excellent product. Better visibility 248212



- 47-84-527
by:

lights were very nice,easily installed,and very bright. would recommend. 223696



- 47-84-527
by:

Best service ever thanks 217614



- 47-84-527
by:

In stalled product and it works great. Fast no hassle ordering and shipping. 187682



- 47-84-527
by:

lights were what I was looking for and the description was very good. Arrived when they were scheduled. 184639



- 47-84-527
by:

Exactly what we wanted and ordered. Thank you for the fast delivery. 178794



- 47-84-527
by:

These lights were the exact replacement for the taillights I had in my wells cargo enclosed trailer. Only the lights that were in the trailer were incandescent and we're giving me problems. I knew that the LED would solve the problems that I was having ,so I found them on E trailer and installed them ,and they are working perfectly I'm very happy with the product. 153746



- 47-84-527
by:

Great replacement for old lights. 142209



- 47-84-527
by:

Lights fit like a glove in hole in my doors. Lights are very bright, awesome!! Very pleased. 141078



- 47-84-527
by:

AWESOME customer service, AWESOME product. I should have changed them out years ago-it would have saved so many headaches. Thanks again Mike R. 126178



- 47-84-527
by:

These lights replaced the old ones on my Haulmark trailer perfectly. They are much brighter and no more messing with bulbs. 100489



- 47-84-527
by:

lights as advertised. Look like a perfect fit. 67596



- 47-84-527
by:

Received parts very quickly. Great quailty. I was looking for something to improve upon the original sealed beam lights. These are perfect, and were a perfect fit. 63729



- 47-84-527
by:

Awesome lights. Big upgrade from the standard lights. Plus no worries for the next 20 yrs. LEDs are the only way to go. Etrailer shipped them right away!!!! They are always great to purchase from. 38628



- 47-85-004
by:

Review from a similar Bargman 84/85 Series in Trailer Lights


Tail lights worked great. Going to be ordering springs for another trailer soon. 657644



- 47-84-009
by:

Review from a similar Bargman 84/85 Series in Trailer Lights


lights up / brake lights light up turn signals flash. Noah was the service rep he did very well with info. Shipment was quick and accurate. 639665



- 47-84-009
by:

Review from a similar Bargman 84/85 Series in Trailer Lights


I got them put on my 2014 forest River and it a wow how much better it light up at night !!! LOVE THEM !!! Paul 273880



- 47-84-009
by:

Review from a similar Bargman 84/85 Series in Trailer Lights


Just got around to installing the new Bargman tail lights on my 1995 Dolphin motor home. The turn signals flash very rapid and I believe I would need to install a resistor to cure this. Can you point me in the right direction ??? 597895


Comments

Yes you will need load resistors, one for each turn signal circuit. I recommend part P230004A-2.

-- Heather A - 01/16/2019

48622

- 47-84-009
by:

Review from a similar Bargman 84/85 Series in Trailer Lights


This is a high quality light, and even brighter than I expected. There was a problem with some rough handling during shipping, and the folks at etrailer took very good care of me and corrected the situation about as quickly and professionally as I could imagine. Very impressive. I will be back to shop here again. 198086



- 47-84-009
by:

Review from a similar Bargman 84/85 Series in Trailer Lights


No gasket to keep water out of back- up light assembly. I have had to remove the lens and dry the inside several times. Also, I had to install resistors to correct the rapid flash error as these are LEDs and previous assembly was incandescent. Overall they are nice and bright. 607534



- 47-84-009
by:

Review from a similar Bargman 84/85 Series in Trailer Lights


Great Product. Easy replacement for older RVs to upgrade to LED. You will need load resisters to prevent hyperflash turn signals. No biggie. Very bright and really quick shippers here. 129802


Comments

Where are the load resisters purchased from and what is the load of the resister?

-- comment by: Steven R - 10/27/2014

7463

The load resistors that we currently have are the Aluminum version 2 pack # P230004A-2
Putco LED Light Bulb Load-Resistors - Aluminum - Qty 2
$32.42
and the Ceramic 2 pack version # P230004C-2
Putco LED Light Bulb Load-Resistors - Ceramic - Qty 2
$20.72
both of which have a provide a resistance of 6 ohms.

-- Rachael H - 10/29/2014

Comments

How many load resistors do you need for each unit?

-- comment by: Glen - 08/02/2015

13815

- 47-84-008
by:

Review from a similar Bargman 84/85 Series in Trailer Lights


Haven't installed the tail lights yet but they look to be exact replacements to the original equipment on our 1993 motorhome. I did remove one of the lights from the motorhome to check fitment and the wiring is very straight forward so should be an easy upgrade. The only issue is the gasket material behind the original lights is shot and there were not new gaskets that came with the lights. A quick check on the etrailer.com website did not find any replacement gaskets - didn't see any on the Bargman website either. No luck finding gasket material at a hardware store or several auto parts stores so will have to jury-rig something. 268669


Comments

Thanks for the followup. Truth be told I just installed the tail lights over the past holiday weekend. Last year was a rush to get things packed up for a move from Minnesota to Colorado and Im just now getting the RV ready for a trip. Installation was easy and the tail lightbrake light/turn signal are definitely brighter than the original ones. The only issue is I think I need to get a different blinker unit as the turn signals act like there is a bulb burned out they blink really fast. Probably because of the lower power usage of the LED lights. As I mentioned in my review there wasnt any gasket material for the lights so I used an old truck tire inner tube to make gaskets to better seal the units to the body of the RV.

PJ - 07/17/2017

26247

This a common issue when installing LED lights, and is known as hyper flashing. It occurs since your LED lights do not have enough draw to activate the circuit. To solve this problem load resistors like part # P230004A-2
Putco LED Light Bulb Load-Resistors - Aluminum - Qty 2
$32.42
can be installed, they increase the amperage draw on a circuit. You would need one per affected circuit (likely just the blinker circuit in your case), and I have linked a kit 2 for your reference. Additionally, there are a couple of types of load resistors, and the aluminum versions are recommended because they dissipate the heat that builds up from the added resistance.

-- Rachael H - 7/18/2017


- 47-84-009
by:

Review from a similar Bargman 84/85 Series in Trailer Lights


Fantastic lights! Very bright! 384733



- 47-84-009
by:

Review from a similar Bargman 84/85 Series in Trailer Lights


The backup light on my RV went out. The problem was a rusted bulb socket. I would have to replace the whole tail/backup/brake assembly. SO......I decided to "go LED" and order the Bargman Triple Tail Light 84 series from etrailer. The order was processed and delivered quickly. There was a bit of work to modify the existing cutout to accept the new Bargman Triple Tail Light. But I think it was worth it. I also installed the LED Backup Light Upgrade Kit to the Triple Tail Light. These really look good on the MotorHome and I should not have to work on them again. The picture shows the old and the new installed for comparison. 479787



- 47-85-611
by:

Review from a similar Bargman 84/85 Series in Trailer Lights


This is a great tail light assembly. The LED lights are much brighter than my old lights. The only thing I didn't care for was that I had to drill 12 more holes in the exterior skin of my trailer. This light is bigger than the old ones and the hole pattern did not match. Because this light assembly is larger, I was able to cover the old holes with this assembly. The wiring connection was very simple and straight forward. On the back of this assembly was the color pattern for each wire. Overall, I'm very satisfied. 157978


Comments

Still 100 satisfied

Roy - 10/26/2015

15682

- 47-84-009
by:

Review from a similar Bargman 84/85 Series in Trailer Lights


We have an older camper that we wanted to update the taillights on. We bought the resistor's in case of hyperflash, but didn't need them. We LOVE the difference in the lights! We had no issues with replacing the lights, the dimensions were a perfect fit! 541579



- 47-84-009
by:

Review from a similar Bargman 84/85 Series in Trailer Lights


Great product, it came a couple of days ago. It was packaged perfectly, no damage, but the box looked like it had been used in a Samsonite Commercial on television! 394932


Comments

They work perfectly. If you remember the Samsonite Commercials on the Television in the 60s and 70s thats how the box looked like the gorrial in the commercial had used it to reverse the commercial. The lights work perfectly

PatrickA51 - 06/16/2018

39839

- 47-84-009
by:

Review from a similar Bargman 84/85 Series in Trailer Lights


I first ordered and didn't realize they were sold individually. So I did order another one. They are a replacement for the original style lights that were not LED. They fit perfectly and are really bright. I soldered and heat shrinked all the wiring and installed butyl tape when I installed them. I did order the metal resistors so that I didn't have the hyper flash. They renew the look of an older RV. The shipping was two days and I loved that. 463336


Comments

Still working as advertised and would still recommend them. Excellent product.

Hoppers - 12/29/2018

48077
51
211
Show More Reviews

Ask the Experts about this Bargman Trailer Lights

Do you have a question about this Trailer Light?


  • Replacement for Bargman 30-84-013 Double Taillights
  • We do have a number of double taillight options, but you are correct that the Bargman 30-84-013 taillights are not longer in production. The best way to find a replacement is measure the length, width and depth of those taillights and find one as close in size as you can. Some options that may work for you are: - Bargman Recessed, Double Tail Light - 84 Series # 30-84-527 which is a recessed-mount light that measures 9-13/16" long x 6-15/16" wide x 1-1/4" thick - Bargman LED...
    view full answer...

  • How to Wire Up a Bargman 84 Series Light Assembly to a Trailer
  • Sounds like you are trying to install a Bargman LED 84 series light like the part # 47-84-527. The wire colors won't necessarily match up so you will want to use a circuit tester like the part # PTW2993 to test the trailer's wiring so that you know which wires are what first. On the light assembly the white wires are the ground circuits, the black wires are the stop/turn circuits, and the green wires are the running light circuits. These would get wired by function to the wiring of your...
    view full answer...

  • LED Lights for 2018 Ranger Boat Trailer
  • While there are certainly LED lights that will work for your 2018 Ranger VS1882 WT boat trailer, there are no specific replacements for any trailer the way there are for a passenger vehicle, for example, and there unfortunately isn't a way for us to know the exact lights that are on a trailer outside of something like previous confirmation from a customer, which I was unable to find for your '18 Ranger. It is fairly simple to figure out replacements that will work for you, however;...
    view full answer...

  • Single Tail Light Containing 2 LED Fixtures for One Side of Trailer
  • The Bargman LED, Recessed, Double Tail Light # 47-84-527 is for one single unit. You will need a second for the opposite side of your trailer. Each of these single units has two lights within it. Those replacement lights are the # 47-84-420.
    view full answer...

  • Light Similar to Bargman 85 Series that is Less than 10 inches Long
  • The Bargman LED light part # 47-84-527 looks to be your best option as it is very similar to the light you mentioned but measures instead 9-13/16" Long x 6-15/16" wide x 1-1/4" thick.
    view full answer...

  • Lighted License Plate Holder for Use on a Trailer
  • I do have a taillight with integrated license plate holder but the Bargman LED Recessed Double Tail Light part # 47-84-527 would not allow for this. Instead, you would want to use the ONE LED RV Tail Light part # RVSTLB0061 which does have an integrated license plate holder. If you would like to use the Bargman LED Recessed Double Tail Light then you would want to also use the LED Trailer License-Plate Light w/ Mounting Bracket part # LPL55CB as this could be mounted in any visible...
    view full answer...

  • Available Base Colors for Bargman LED Surface-Mount Double Tail Light 84/85 Series Lights
  • We do not offer a version of the Bargman LED Surface-Mount Double Tail Light 84/85 Series # 47-85-611, which has a chrome base, in a white base version. We DO have one with a black base, part # 47-84-527.
    view full answer...

  • Wiring Directions For Bargman LED Recessed Double Tail Light
  • The Bargman LED, Recessed, Double Tail Light # 47-84-527 is designed to go on either the left or the right side of your trailer. You would wire it up to the trailer wiring by function. So if you were installing this on the driver side of your trailer you would wire it up as: Black wire of the light to the yellow wire of the wiring Green wire of the light to the brown wire of the wiring White wire of the light to the white wire of the wiring For the passenger side light you would...
    view full answer...


Do you have a question about this Trailer Light?




  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality trailer lights for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate trailer light information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Video by:
Zack K
Video by:
Zach D
Written by:
Lindsey S
Expert Research:
Jameson C
Updated by:
Laura H
Updated by:
Sarah W
Updated by:
Brian T
Installed by:
Cole B
Installed by:
Randy B
Video Edited:
Chris R

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.
