Bargman LED Double Tail Light - 5 Function - 18 Diodes - Black Base - Red and Clear Lens

Bargman LED Double Tail Light - 5 Function - 18 Diodes - Black Base - Red and Clear Lens

Item # 47-84-008

lowest price pledge

Retail:$50.46

Our Price: $34.95

You Save: 31%
Trailer Lights

Orders above $99 qualify for Free Shipping

Shipping Weight: 1.27 lbs

Quantity:
In Stock
Bargman Trailer Lights - 47-84-008
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Videos


  • Tail Lights
  • Rectangle
  • LED Light
  • Red and White
  • Recessed Mount
  • 10L x 7W Inch
  • Non-Submersible Lights
  • Bargman
  • Stop/Turn/Tail/Backup
  • Rear Reflector
9-13/16" x 6-15/16" Rectangle. Double LED trailer tail light serves 5 functions: brake, tail, turn, rear reflex, and incandescent backup. Durable plastic housing and acrylic lens. Recessed mount in horizontal position. 5-Wire design. Lowest Prices for the best trailer lights from Bargman. Bargman LED Double Tail Light - 5 Function - 18 Diodes - Black Base - Red and Clear Lens part number 47-84-008 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (200)
  • Q & A (16)
  • Videos (1)
  • Photos
  • Why etrailer?

Bargman Trailer Lights - 47-84-008

9-13/16" x 6-15/16" Rectangle. Double LED trailer tail light serves 5 functions: brake, tail, turn, rear reflex, and incandescent backup. Durable plastic housing and acrylic lens. Recessed mount in horizontal position. 5-Wire design.


Features:

  • Double LED trailer tail light serves 5 functions
    • Stop, tail, turn signal, rear reflex, and incandescent backup
    • Built-in reflex reflector removes the need for a separate reflector
  • Radius styling provides a smooth look with rounded edges
  • LEDs make great replacements for incandescent lights
    • Last 50 times longer
    • More efficient - provide brighter light with less power output
    • No bulbs to replace - no brittle filaments
  • Incandescent bulb for reverse light can be easily replaced
  • Durable plastic housing and acrylic lens
  • Red lens over white LEDs
    • Clear lens over incandescent bulb
  • Compatible with 12V DC systems
  • Recessed mount to trailer in horizontal position
    • Requires a 8-7/16" x 5-1/2" cutout
  • 5-Wire design includes power leads and ground wire
  • DOT compliant
    • Meets FMVSS/CMVSS 108 requirements


Specs:

  • Dimensions: 9-13/16" wide x 6-15/16" tall x 2-1/4" thick
  • Diodes: 18
  • Power draw at 12V:
    • Stop/turn: 0.3 amps
    • Tail: 0.06 amps
    • Backup: 2.1 amps
  • Wire length: 8"
  • Wire gauge: 16
  • 1-Year limited warranty


Bargman 47-84-008 Double Tail Light Diagram

Recessed-Mount Light

Recessed-mount trailer lights install with a grommet, which is often sold separately. These lights extend past the trailer surface and require a hole for installation. If replacing a light, you can utilize the pre-existing hole. If installing a new light, you will need to cut a hole or use a mounting bracket (sold separately) to complete the installation.



47-84-008 Bargman LED Recessed Double Tail Light - 84, 85 Series - Stop, Tail, Turn - Incandescent Backup - 18 Diodes - Horizontal - Black Base - Red/Clear Lens






California residents: click here

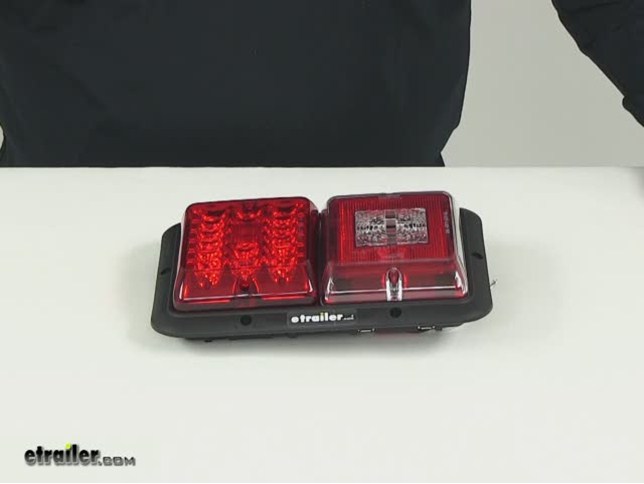

Video of Bargman LED Double Tail Light - 5 Function - 18 Diodes - Black Base - Red and Clear Lens


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Bargman Trailer Lights - Tail Lights - 47-84-008 Review

Today we'll be reviewing part number 47-84-008. This is the Bargman LED Recessed Double Tail Light, 84 and 85 Series. The two-light fixture has one red LED tail light and one incandescent reverse light for your trailer or RV. The red LED light is going to function as a combination of brake, tail and turn signal lights. That's going to be this one right here. Then, again, you're going to have the incandescent reverse light. LEDs are a great system to have in place.

They're going to last longer and burn brighter than your incandescent lights. They use less power and they have a quicker activation. The incandescent reverse light is surrounded by Class A Red Reflex reflective lens. That's going to be this portion right here. I already have it hooked up to our external power source. I want to go ahead and show you what it looks like with the overhead lights off and the power on.

You can see here that the tail light is going to send out a nice clear, consistent signal. Then when we hit our brake switch, all the other lights are going to come on, everything is going to illuminate a little bit brighter. It's also going to function as our turn signal. You can see that that reflective material here around the incandescent light allows a lot of light to come through. The tail light is designed to be mounted horizontally. Here at the rear, it's got the pre-wired design, so we'll go over the wire functions real quick.

The white wire is going to be our ground, the black wires are going to be for our stop and turn signals, and then the green one is going to be for our tail lights. It's also going to feature that stylish black housing that goes around the lenses. That's going to create a nice stylish look, especially with those curved corners. This does meet Department of Transportation requirements. It meets FMVSS- and CMVSS-108 requirements for automotive lighting. The dimensions are going to measure 9 and 13/16ths of an inch in length, 6 and 15/16ths of an inch in width and it's going to measure an inch and a quarter in thickness.

The recessed portion is going to give us a measurement of 8 and 7/16ths of an inch in length and 5 1/2 inches in width and the overall depth of that is going to be 1 inch, so that's the size of Hold It you're going to need to get this mounted correctly. That's going to do it for today's review of part number 47-84-008. This is the Bargman LED Recessed Double Tail Light. .


Customer Reviews

Bargman LED Double Tail Light - 5 Function - 18 Diodes - Black Base - Red and Clear Lens - 47-84-008

Average Customer Rating:  4.8 out of 5 stars   (200 Customer Reviews)

9-13/16" x 6-15/16" Rectangle. Double LED trailer tail light serves 5 functions: brake, tail, turn, rear reflex, and incandescent backup. Durable plastic housing and acrylic lens. Recessed mount in horizontal position. 5-Wire design.

- 47-84-008
by:

Haven't installed the tail lights yet but they look to be exact replacements to the original equipment on our 1993 motorhome. I did remove one of the lights from the motorhome to check fitment and the wiring is very straight forward so should be an easy upgrade. The only issue is the gasket material behind the original lights is shot and there were not new gaskets that came with the lights. A quick check on the etrailer.com website did not find any replacement gaskets - didn't see any on the Bargman website either. No luck finding gasket material at a hardware store or several auto parts stores so will have to jury-rig something. 268669


Comments

Thanks for the followup. Truth be told I just installed the tail lights over the past holiday weekend. Last year was a rush to get things packed up for a move from Minnesota to Colorado and Im just now getting the RV ready for a trip. Installation was easy and the tail lightbrake light/turn signal are definitely brighter than the original ones. The only issue is I think I need to get a different blinker unit as the turn signals act like there is a bulb burned out they blink really fast. Probably because of the lower power usage of the LED lights. As I mentioned in my review there wasnt any gasket material for the lights so I used an old truck tire inner tube to make gaskets to better seal the units to the body of the RV.

PJ - 07/17/2017

26247

This a common issue when installing LED lights, and is known as hyper flashing. It occurs since your LED lights do not have enough draw to activate the circuit. To solve this problem load resistors like part # P230004A-2
Putco LED Light Bulb Load-Resistors - Aluminum - Qty 2
$27.79
can be installed, they increase the amperage draw on a circuit. You would need one per affected circuit (likely just the blinker circuit in your case), and I have linked a kit 2 for your reference. Additionally, there are a couple of types of load resistors, and the aluminum versions are recommended because they dissipate the heat that builds up from the added resistance.

-- Rachael H - 7/18/2017


- 47-84-008
by:

Upgrade Trailex incandescent fixtures with these LEDs. Much much brighter and takes vibration and moisture in the elements without "burnt out bulbs". A great upgrade. Depending on tow vehicle, switching to LCDs may require additional "load" in the wiring to prevent "burnet out" bulb warning in tow vehicle. 396913


Comments

Thanks for your business and review. You are correct about upgrading from incandescent to LED lights. You can install load resistors, P230004A-2, on the trailer wiring. As recommended by the manufacturer, the load resistors will need to be installed inline with each circuit. These will provide more draw on the system and the vehicle will not activate the bulb out sensor.For your convenience, I have included a link to the product page and a trailer wiring help article.

-- Laura E - 06/26/2017

25472

- 47-84-008
by:

These were replacement taillights for my Bigfoot camper. They were exact replacements and are at least twice as bright as the old bulb style. I highly recommend these if you want to be seen. 141127


Comments

A year later and all the diodes are still firing even after a long trip down the Alaska-Canada Hwy.

Rod S - 07/13/2015

13334

- 47-84-008
by:

Great product, arrived on time. Fit perfectly on my trailer. 683948



- 47-84-008
by:

Received the lights in good time and installed without any problems. Very happy. 683065



- 47-84-008
by:

I had an excellent experience with Etrailer, I received what I needed in a timely fashion and it is what I require. I had expert help in finding what I required and good follow-up. Thanks! 682708



- 47-84-008
by:

Ordered the LED lights for my 1989 Avion travel trailer. It has a housing that it must fit perfectly which it did. I wanted brighter lights which these new lights provided. [other on-line retailer] lights were more money and etrailer was very fast on the delivery. You need lights for your trailer...this is the place. 679954



- 47-84-008
by:

exact replacement for my 1995 Southwind Storm motorhome. Replaced old corroded bulb sockets, with new state of the art LEDs. Very easy replacement. 675099



- 47-84-008
by:

The product came very quickly,and packed very well. Very happy with the service and products they offer. Looking forward to getting the new lights installed. 654965



- 47-84-008
by:

Was delivered in a reasonable amount of time , and the best price. 653359



- 47-84-008
by:

Great service 636803



- 47-84-008
by:

So much brighter than the older incandescent model. Really happy I decided to swap this newer LED unit out when replacing the older model. 634719



- 47-84-008
by:

Easily changed out. Very bright. 633126



- 47-84-008
by:

Quick shipment Easy to install if you know what your doing. As advertised lights very bright. 628135



- 47-84-008
by:

Fast delivery, product in perfect condition, easy installation. No instructions included but wires were exactly color coded with original tailight wiring, no problems. Would buy from etrailer again. 612470



- 47-84-008
by:

Easy to install and still works one year later 588565



- 47-84-008
by:

user friendly; fast order processing; fast delivery; best price on the market. Thank you !!! 494658


Comments

Lights are doing a great job. Would recommend these lights to anyone wanting to improve there safety.

Joe - 04/12/2019

52841

- 47-84-008
by:

These Bargman LED taillights are exactly what I needed for my '98 Class C Winnebago. They were the same size as the originals, fit perfectly, and improved the visibility of my RV lighting by leaps and bounds. As I tow a little car behind my Class C, better lighting is a real plus for safety. It took less than 30 minutes to swap in these new LED units for my old incandescent ones. Unscrew the units, clip and reconnect the wiring, screw new fixtures in place. That simple! No regrets at all with purchasing these as an upgrade for my RV. 492069



- 47-84-008
by:

Building a Dog hauler that will replace the bed on a Dakota These lights will be ideal ! 491080



- 47-84-008
by:

My twenty year old enclosed trailer had dim tail lights, but these fixed that problem. They hooked up easily, fit the same holes, and even the mounting screw holes where the same. Couldn't have been easier. 459788



- 47-84-008
by:

no issues 452099



- 47-84-008
by:

Tail light itself seems fine . Can not believe that it is sold without a gasket and one is not available to purchase. I suppose one could goop it up with silicone but I wouldn't want to be the one to try to remove later because of a loose wire and such. It's a recessed light, I'm cutting into my motorhome ! Guess I'll spend money and time and make a pair of gaskets. 424611



- 47-84-008
by:

Perfect replacement; on-time arrival; in great condition. Thanks! 423388



- 47-84-008
by:

LED tail lights Great looking, easy installation, great fit. 419480



- 47-84-008
by:

They are easy o install and work great. They have held up well over the past year. 409028



- 47-84-008
by:

Just as advertised. Got it in a timely manner. 394650



- 47-84-008
by:

Received my package on a timely basis thanks for being so prompted 372445



- 47-84-008
by:

Love them 351742



- 47-84-008
by:

Easy to install & looks great & Britter. 350983



- 47-84-008
by:

Excellent Service and Delivery 348793



- 47-84-008
by:

I received what I ordered and the quality of the product was excellent. 348715



- 47-84-008
by:

Looks like they are good quality lights, haven't installed yet and again great packaging fast shipping. I'm using these to replace tail lights on an older travel trailer. I've had really good luck with this company so far. 345274



- 47-84-008
by:

Haven't put them on my camper yet, but love the look and looking forward to a better signals for other drivers. 341037



- 47-84-008
by:

Led replacement product, easy swap. 306638



- 47-84-008
by:

Perfect replacement lights. Cathy was the greatest help in sending the order promptly and follow up. Personal service means so much these days. Very professional. A pleasure to deal with. Thanks to all. Bob. 302510


Comments

So far..no problems. Thanks again. .

Bob L - 10/02/2017

28612

- 47-84-008
by:

We received the light quickly, it was easy to install and we have had no problems with it even after driving for 3 months on Alaska's gravel roads. 290845



- 47-84-008
by:

I'm upgrading my 1993 Fleetwood Flair motorhome and these are the LED version of the fixtures that came stock in 1993. They are high quality and fit that existing mounting configuration. I am happy with the product and especially happy with the fast service from etrailer. 273018



- 47-84-008
by:

Just what I expected, fit and works perfect. Thanks 231341



- 47-84-008
by:

Quick and easy. The LED's went on our 2 6X 215647



- 47-84-008
by:

These were replacements for my enclosed. The led's are twice as bright as my old ones. I received them in two days. Thanks 201488



- 47-84-008
by:

Great value and a snap to install. All the wires matched up to the existing ones and the result was a much brighter rear and brake/turn signal light, especially in bright sunlight. Overall, I feel this makes for much safer trailering! Dave M 188219



- 47-84-008
by:

very happy with the product, easy to install thank you 174740



- 47-84-008
by:

These lights are a world of difference from the standard single bulb very glad I made the upgrade just remember to order a heavy duty flasher or they will blink very fast. 149264



- 47-84-008
by:

Product was delivered sooner than expected. Great company to do business with. 148812



- 47-84-008
by:

This was my first purchase from e - trailer and it will not be the last. The Bargeman light kit was the exact replacement part. Even the wiring matched perfectly. I shopped around locally and on the web and there was no match to the price. The service and follow-up have been great too! I opted for the slow boat delivery and it was on my door step in 5 days. Thank you! 143616


Comments

One year and a few miles down the road and the LED tail lights are performing as expected. Thank you e-Trailer for making the shopping easy!

John H - 07/31/2015

13779

- 47-84-008
by:

I have been extremely satisfied with E-Trailers service from the ease of the interface on line to procurement and immediate follow-up confirming order, status, shipping information and delivery right on promised schedule. The part was an original and well packaged. I highly recommend this operation (even if they are from Missouri) 132198



- 47-84-008
by:

Great product and great customer servic e! 125931



- 47-84-008
by:

Very nice and bright lights and fast sh ipping 91627



- 47-84-008
by:

Good product I wish I had known there was no plugs included thank you I am assuming they are to be bought separate. 73852



- 47-84-008
by:

These lights were a snap to install. They are very visible in the daytime as opposed to incandescent(bulb) lights and you can't miss them at night! An excellent value. 43254


50
204
Show More Reviews

Ask the Experts about this Bargman Trailer Lights

Do you have a question about this Trailer Light?


  • Replacement 84 Series Taillights for a Haulmark Car Hauler
  • Sounds like you have Bargman 84 series double lights like the part # 47-84-008 which is what you referenced. If what you have looks like that style of light it would be the correct replacement. This is a very common style of light seen on trailers and I am very confident it's what you have. The part # 30-84-508 is the light to use if the two section of light are stacked on to of each other. This light differs with the way the wires are ran on the assembly. With this light it's more accessible...
    view full answer...

  • Availability of Reverse LED Trailer Lights
  • We do offer a wide selection of LED reverse lights, though they are available individually as opposed to being included in a kit. You can select whichever size and shape best fits your needs; for example there is the Optronics # STL68RB, which is oval and measures 10-1/8" x 3-1/16". There is also the option of a circular light such as Optronics # STL201RFMB or rectangular Bargman # 47-84-008. I've added links to video reviews of these lights, as well as a link to our page with the entire...
    view full answer...

  • Replacement LED Trailer Tail Lights and Recommended Utility Work Light
  • LED lights do draw much less power than incandescent lights but they can work together. However, the higher draw from the incandescent lights could cause the LEDs to not be as bright as they normally would be. From the picture of your tail light it looks like the # 47-84-008 will work for you. It measures 9-13/16 by 6-15/16 inches. If you can tell me what kind and size of interior lights you're looking to replace I can help you find some of those as well. For the work light...
    view full answer...

  • Replacement Reverse Light Panel for Bargman 84 Series Lights
  • The replacement LED panel for the reverse light circuit of Bargman 84 series lights is the part # 47-84-026.
    view full answer...

  • Will Replacement Bargman 84 Series LED Lights Cause Problems on a 1999 Ford E-350 Jamboree
  • The 84 Series # 34-84-008 and # 30-84-008 are actually incandescent and not LED so you won't have any problems. For a similar light that does use LED you would want the Bargman # 47-84-008. This uses an LED light for the brake/tail/turn signals but an incandescent for the reverse lights. Sometimes the problem is for the turning signals or flashers. This is basically impossible to know in advance if it will be an issue, but if you find that it is an issue you just need to install load...
    view full answer...

  • Bargman LED 84 Taillight Recommendation to Replace Incandescent Lights
  • Thanks for the picture, that makes picking out the correct replacement taillight for your trailer very easy. The Bargman LED, Recessed, Double Tail Light # 47-84-008 that you referenced would be exactly what you need. This light is basically just the LED version of the light you currently have on your trailer. I attached a review video for you to check out as well.
    view full answer...

  • Replacement LED Tail Lights and Clearance Lights for Truck Bed Camper
  • We do have LED replacement double tail lights for your camper. I have linked you to those available. The best way to find replacement lights is by finding the manufacturer's name and the part number of the current lights. Most manufacturers stamp part numbers on the base of the light assemblies. Look at the base of both lights and look for a part number. If you cannot determine the part number, you can send me a photo of the lights and the dimensions of the lights (height x width x depth)...
    view full answer...

  • Size of Screws Used for Lens on Bargman LED Double Tail Light # 47-84-008
  • The Bargman LED Double Tail Light # 47-84-008 referenced in your question uses 7/16"-14 x 3/4 inch pan head Phillips screws for the lens. I have attached a short video demonstration on this light assembly that you can also check out.
    view full answer...

  • Replacement Tail Light for 1998 Jayco Travel Trailer
  • Trailer manufacturers do not often maintain original parts information (or availability) for items such as lights, but we can certainly help you find a suitable replacement. You may want to just install a whole new light kit like # TL29BK or a high-efficiency LED kit # TLL9RK. This will avoid the same problem of no replacement part if the other light on your trailer should be damaged. Both kits include lights, a license plate bracket and all hardware. If you prefer to replace just...
    view full answer...

  • How to Install the Bargman Taillight Assemblies part # 47-84-008
  • I don't have a set of installation instructions for the # 47-84-008 that I can show you, but I can walk you through the installation. What you will need to do is first remove the current taillights you have on your trailer. Remove any screws from the assembly and pull it out. Next you will need to cut the wires that ran from the old assembly. Try to note if you can what the functions of the wire are. This may not be possible but if so it will help to wire up the new assembly. Next...
    view full answer...

  • How to Wire Bargman LED Recessed Double Tail Light 47-84-008 To Trailer
  • When installing the Bargman LED, Recessed, Double Tail Light # 47-84-008 on your trailer, the wires from the unit will be for the following functions: The green wire is for running lights. The black wire from the side of the unit with the red only lens is for the stop/turn signal circuit. The other black wire is for the reverse lights. The white wires will then be for your grounds. You will want to determine the functions of the wires from your trailer wiring. If you are able...
    view full answer...

  • Availability of Gasket for Bargman LED Double Tail Light # 47-84-008
  • Thank you for your purchase! I may have a solution for you but there is not a gasket available for the Bargman LED Double Tail Light # 47-84-008. We have spoken with Bargman in the past about this and they said that because of the design of the light gaskets are not used because they can actually trap condensation inside the lens that wouldn't have a chance to dry out. If you are concerned about moisture getting inside the assembly I recommend using a gasket maker like the Loctite...
    view full answer...

  • Condensation Troubleshooting for the Bargman Trailer Lights # 47-84-008
  • I spoke to my contact at Bargman about the condensation problem you had with your Bargman Trailer Lights # 47-84-008. He said that most likely you had a rather intense downpour. He said you could try sealing the lens to the assembly with butile rope and that should help prevent future condensation.
    view full answer...

  • Troubleshooting Trailer Wiring of 2012 Arctic Fox 5th Wheel
  • It's possible the lights need to be replaced but I'd first check the wiring as that's more than likely the issue. You can use a circuit tester like part # PTW2993 to verify that the correct voltage is making it to the light assemblies when the taillight functions are applied and if that check out it's most likely the ground which can be easily fixed by running a jumper wire from it to the main ground of the trailer wiring. I also attached a couple help articles on trailer wiring troubleshooting...
    view full answer...

  • Replacement Bargman Trailer Light Recommendation for a Bargman 84-013 Light
  • The numbers you have on your light indicate that you have an 84 series Bargman light. The part # 47-84-008 that you referenced is also an 84 series Bargman light and if what you have looks like it and has the two panels like it, then it would be an exact replacement.
    view full answer...

  • Availability of Mounting Bracket for Bargman # 47-84-008 Trailer Lamp
  • There isn't a mounting bracket available for the Bargman # 47-84-008 lamp. It's meant to surface mount on the rear of a camper/travel trailer. There will need to be a hole or recess in the outer wall of the camper for the lamp housing to sit nearly flush on the camper. I suppose it might be possible to fabricate a bracket of some kind, but that would leave the back of the lamp exposed to the elements and it wasn't designed for that. If you'd care to reply with some photos of the rear...
    view full answer...


Do you have a question about this Trailer Light?




  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality trailer lights for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate trailer light information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Photos by:
Theodore B
Photos by:
Jackie C
Written by:
Lindsey S
Expert Research:
Jameson C
Updated by:
Laura H
Installed by:
Cole B
Updated by:
Sarah W
Photos by:
Stacy F
Updated by:
Brian T

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.


Product Experts Available Now!

Call 800-298-8924
