Bargman Trailer Tail Light - 4 Function - Incandescent - Rectangle - Black Base - Red Lens

Bargman Trailer Tail Light - 4 Function - Incandescent - Rectangle - Black Base - Red Lens

Item # 30-92-106

lowest price pledge

Retail:$22.23

Our Price: $15.58

You Save: 30%
Trailer Lights

Orders above $99 qualify for Free Shipping

Shipping Weight: 0.71 lbs

Quantity:
In Stock, Ships Today
Trailer Lights 30-92-106 - Incandescent Light - Bargman
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Customer Photos

Videos

8-9/16" x 4-9/16" Rectangle. Incandescent trailer tail light provides stop, tail, rear reflex, and turn signal. Corrosion resistant bulb sockets. Durable ABS housing. Surface mount - hardware not included. 3-Wire design. (1) 1157 bulb. Lowest Prices for the best trailer lights from Bargman. Bargman Trailer Tail Light - 4 Function - Incandescent - Rectangle - Black Base - Red Lens part number 30-92-106 can be ordered online at etrailer.com or call 800-298-8924 for expert service.
  • All Info
  • Reviews (528)
  • Q & A (18)
  • Videos (1)
  • Photos
  • Why etrailer?

Bargman Trailer Lights - 30-92-106

  • Tail Lights
  • Rectangle
  • Incandescent Light
  • Red
  • Surface Mount
  • 8-1/2L x 4-1/2W Inch
  • Non-Submersible Lights
  • Bargman
  • Stop/Turn/Tail
  • Rear Reflector

8-9/16" x 4-9/16" Rectangle. Incandescent trailer tail light provides stop, tail, rear reflex, and turn signal. Corrosion resistant bulb sockets. Durable ABS housing. Surface mount - hardware not included. 3-Wire design. (1) 1157 bulb.


Features:

  • Incandescent trailer tail light serves 4 functions:
    • Stop, tail, rear reflex, and turn signal
    • Built-in reflex reflector removes the need for a separate reflector
  • Radius styling provides a smooth look with rounded edges
  • Corrosion-resistant bulb sockets protects bulb
  • Incandescent bulb can be easily replaced
  • Durable black ABS plastic housing
  • Red lens covers bulb
  • Compatible with 12V DC systems
  • Surface mount to trailer - hardware not included
  • 3-Wire design includes power leads and ground wire
  • DOT compliant
    • Meets FMVSS/CMVSS 108 requirements


Specs:

  • Dimensions: 8-9/16" wide x 4-9/16" tall x 2-1/8" thick
  • Number of bulbs: 1
  • Bulb type: 1157
  • Power draw at 12V:
    • Stop/turn: 2.1 amps
    • Tail: 0.59 amps
  • Wire length: 7"
  • Wire gauge: 16
  • 1-Year limited warranty


Bargman 30-92-106 Single Tail Light Dimensions

Surface-Mount Light

Surface-mount trailer lights install using a flange or bracket with mounting holes. These lights lay flat against the trailer surface and only require a small, often pre-existing hole, for wiring. Mounting hardware is used to secure the light to the trailer.



30-92-106 Bargman 92 Series Incandescent Trailer Tail Light - Stop, Turn, Tail - Rectangle - Black Base - Red Lens - Surface Mount






California residents: click here

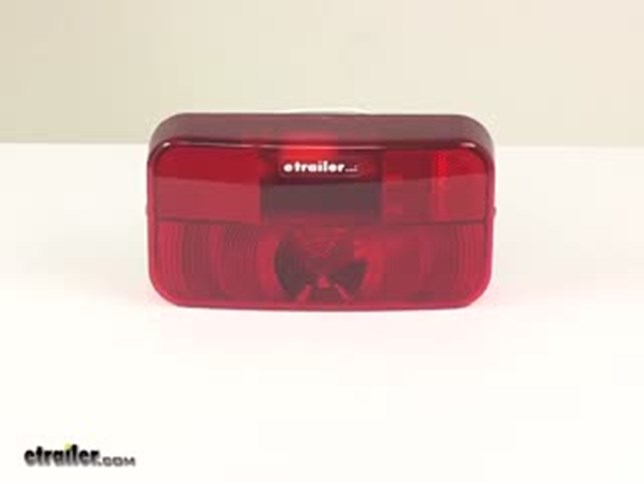

Video of Bargman Trailer Tail Light - 4 Function - Incandescent - Rectangle - Black Base - Red Lens


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Bargman Trailer Lights - Tail Lights - 30-92-106 Review

Today were looking at the Bargman Surface Mounted Tail Light, part number 30-92-106. This light comes as a combination brake, tail, and turn light signals. It has 16 gage power and ground wires. The tail light bulb is a 1157 double filament. It has a limited one year warranty.

Lets go ahead and connect the power supply so we can see how the tail light lights up. The white wire will be our ground, the green wire will be our tail light signal, and the black wire is our turn and brake light. Theres our tail light, and our turn or brake signal. Now lets go ahead and turn off the overhead lights so we can see how it looks when its dark. Theres our tail light, and our turn or brake signal. And there you have it for the Bargman Surface Mounted Tail Light, part number 30-92-106.


Customer Reviews

Bargman Trailer Tail Light - 4 Function - Incandescent - Rectangle - Black Base - Red Lens - 30-92-106

Average Customer Rating:  4.9 out of 5 stars   (528 Customer Reviews)

8-9/16" x 4-9/16" Rectangle. Incandescent trailer tail light provides stop, tail, rear reflex, and turn signal. Corrosion resistant bulb sockets. Durable ABS housing. Surface mount - hardware not included. 3-Wire design. (1) 1157 bulb.

- 30-92-106
by:

Perfect, well packaged, great replacement for faded/broken tail lights. 705544



- 30-92-106
by:

Great replacement taillights for my 2009 Dutchmen 185 Cub. Thank you, Gary 703854



- 30-92-106
by:

Barry did his job! In the old days, this was expected- in the past few years- unusual! E-trailer is a solid company- dedicated to their company culture of service, advice, and product delivery. 703016



- 30-92-106
by:

Item should up before expected date. Worked great, happy with everything. 698419



- 30-92-106
by:

Fast delivery. Perfect fit. Just what I requested. Many Hi Lo owners use etrailer for replacement parts. Hats off to etrailer. 697767



- 30-92-106
by:

Exact item as oem. 695533



- 30-92-106
by:

Unable to give fair review at this time due to wrong product was sent. The low rating is due to the fact I have to wait until July 5 at best to get the correct product. Was told "there is nothing I can do" to get it here quicker. I personally feel priority shipping would not have been out of line at this point for "customer satisfaction"? 664308



- 30-92-106
by:

Easy to install. Works great. 663624



- 30-92-106
by:

Replacement tail light for 2001 Coleman Mesa pop up trailer. Easy to find one trailer and just as easy to order. I wish I found etrailer years ago. 655507



- 30-92-106
by:

Fast Shipping! Item as Described! 638574



- 30-92-106
by:

Taillights came in earlier than expected with free shipping They fit good and was what I thought they would be 617861



- 30-92-106
by:

Fast shipping all in excellent condition. Looks like a very good replacement. 617693



- 30-92-106
by:

Great product for a great price! 544975



- 30-92-106
by:

They had the trailer lights I needed for a 1968 Trailblazer at a great price with fast delivery! 528840



- 30-92-106
by:

product was good. screw holes didnt quite match our old light but we made it work. fast shipping 517367



- 30-92-106
by:

Exact replacement and even included the bulb. 498436



- 30-92-106
by:

Still working today 485287



- 30-92-106
by:

Fast and excellent service 483154



- 30-92-106
by:

Perfect replacement and great to find theses with the black base witch is hard to find. And put led bulbs for a really nice look. Vary happy 449982



- 30-92-106
by:

Fast service 446894



- 30-92-106
by:

Good solid product. Easy to install. 438201



- 30-92-106
by:

One of my tail light lenses fell off my trailer, and for a while, I duct taped red plastic on it. The plastic started to rip and get holes in it, so I looked around for another lense. I found this one on etrailer. The dimensions sounded like it would fit. I had to buy the entire fixture, not just the lense, but it wasn't too expensive. The lense fit perfectly, and I have an extra fixture if I need one. 410372



- 30-92-106
by:

Great service and FAST shipping. 408202



- 30-92-106
by:

Good price, easy install, still working. 392092



- 30-92-106
by:

A decent low budget light to get me by. 356547



- 30-92-106
by:

Both units arrived in good order and will be direct replacements for the lights on our motorhome that have reached their service life. George did great providing status and offering assistance. 318338



- 30-92-106
by:

Better waterproof caulking groove than original equipment. 320204



- 30-92-106
by:

This turned out to be EXACTLY what I needed to replace the non-functioning corroded taillights on my 2010 Coleman Pop Up Camper!!!! My husband, my Master Electrician, installed them for me in about 20 minutes (including the time to remove the old rivets). Shipping time was amazingly fast! Now, everyone behind me will know, when I know, where I am going!!!! I am Considering replacing the current light bulbs with LED ones. 297530



- 30-92-106
by:

The tail lights were delivered within a reasonable amount of time and were in perfect condition. 279112



- 30-92-106
by:

Very nice. When I ordered I was expecting only the lens but received the complete light assembly. Thank you all we will be ordering more in the future. 275373


Comments

Perfect, Thank you

Dave G - 07/24/2017

26523

- 30-92-106
by:

Delivered ASAP. Awesome service and great prices! 268767



- 30-92-106
by:

Product was the exact replacement for the light on my camper. Product was as described, arrived promptly and the price was right. 258813



- 30-92-106
by:

This fit our 1999 Coleman Mesa popup. Very happy with this reasonably priced product and the company's efficient service! 258180



- 30-92-106
by:

exactly the one I needed to fix the broken one. 248354


Comments

still working well

Donald - 01/30/2018

34070

- 30-92-106
by:

We received our trailer light very quickly. The light we ordered was perfect. Going through your company was very easy and we would definitely order from you again. Thanks for the great service! 243074



- 30-92-106
by:

Excellent product as described, easy to replace and installed.high quality material. Very fast shipping. 217697



- 30-92-106
by:

Just what I needed, at a great price and speedy delivery. 212522



- 30-92-106
by:

Additional info: These Bargman lenses are perfectly matched replacements for my 2003 Airstream Land Yacht motor home (gas). 205733



- 30-92-106
by:

Great product 178553



- 30-92-106
by:

AAAA+ SELLERS 178189



- 30-92-106
by:

Work's great. Was described very well on the web site and replaced the old ones. 151491



- 30-92-106
by:

Great product, great shipping, great co mmunication. 142645



- 30-92-106
by:

Exact match for the stock tail light assembly on my 2003 Roadrunner, easy to install without being a certified electrician, need two butt splices,putty tape and they look great! I replaced both because they are inexpensive and look clean and easy to install. 140256



- 30-92-106
by:

Excellent product. Quick Shipping. Great packaging. A++ 133447



- 30-92-106
by:

Perfect fit on my 1999 Coleman Seapine 133361



- 30-92-106
by:

I first ordered a set of tail lights for my camper from a different supplier and I really wish I ordered from you right from the start. The first ones were not even close to what I wanted. The ones I got from you were exactly what I needed and only half the price of the other ones. Thank you very much. You are now my new and only supplier!!!! Jim 133190



- 30-92-106
by:

Etrailer did a great job. The shopping experience on the website was easy to navigate. My package arrived quickly and in very good condition. The trailer tail lights were easy to install and worked well as designed. I will be placing an order soon for some replacement running lights. Thanks again for the great service. 130948


Comments

I was pleased with everything about the transaction. the replacement went pretty smooth.

Rich M - 05/19/2015

11852

- 30-92-106
by:

An exact replacement light. Thank you for your help. 128998



- 30-92-106
by:

just as I ordered.very happy with product and service. 127717



- 30-92-106
by:

You delivered EXACTLY what I needed when I had to have it! Thank you for the excellent service! We were offered donated hardware for a local school but had to make the pickup quickly. I had given up on using our trailer without a taillight. Your quick work made our urgent pickup happen. 120121


50
530
Show More Reviews

Ask the Experts about this Bargman Trailer Lights

Do you have a question about this Trailer Light?


  • LED Version of Bargman Series 94 Taillights on Trailer
  • What you'd need is the part # 30-92-106 and # 30-92-108 which is the matching assembly as what you have and then for converting them to LED you'd need the part # P241156R-360.
    view full answer...

  • Availability of Replacement LED Type Tail Light to Fit in Place of Bargman 92-Series Incandescent
  • My technical contact at Bargman confirmed that there are no direct drop-in LED equivalents to their 92 Series that would allow you to use the same mounting points. He suggested their 84 Series and the 07 Series which you reviewed. I have included a link to our main page for LED-type trailer lighting; you can use the filters at the left-hand margin to narrow the results to those lights that best meet your requirements.
    view full answer...

  • Replacement Tail Light For 1993 Popup Camper
  • We have several tail lights for a camper that have the dimension you mentioned. The number you furnished is the Department Of Transportation number for the lens and is not the number of the light assembly itself. I have attached a link to our product page for the tail lights we offer that might work well on your camper. One light that may work well for you is the Bargman Surface Mount Tail Light, part # 30-92-106. This light measures 8-9/16 inches long x 4-9/16 inches wide x 2-1/8 inches...
    view full answer...

  • Need Replacement Rectangular Tail Light for 1976 Prowler Pull Camper
  • I was able to find photos online that show a 1976 Prowler trailer and its tail lights, which are rectangular in shape and which appear to be roughly 8 x 4 inches in size. We do offer a number of Bargman replacement trailer lights but nothing that exactly matches the reference numbers you provided (thank you for those). This is not too surprising given the age of the trailer; manufacturers like Bargman may no longer offer the exact lights they did back in the 70s. However, if you review...
    view full answer...

  • Will Bargman Replacement Lens # 30-92-012 Work for 2007 Fleetwood Taos Pop-Up Trailer Light
  • The Bargman Replacement Lens # 30-92-012 is the replacement lens for Bargman 92 Series surface -mount tail lights, like the Bargman # 30-92-001 and # 30-92-106 and should fit the light on your 2007 Fleetwood Taos Pop-Up trailer. The replacement lens is 8-1/2 inches by 4-9/16 inches and I have included a video with more in-depth information on this product. If you need further replacement parts for your Bargman 92 Series light, I recommend the Wesbar Bulb # 30-90-157. It is a double-filament...
    view full answer...

  • Troubleshooting Tail Lights Not Working with Running Lights On
  • It sounds like all the lights on your RV/camper work fine on their own but when you turn the running lights on the turn or brake lights don't work. If this is correct then you most likely have a weak or bad ground connection. Typically a weak ground shows itself when more power demand is necessary such as multiple functions being powered at the same time. Check to make sure the main trailer ground is connected to a clean, bare metal surface that's free of any debris or corrosion. Also...
    view full answer...

  • Dimensions of Bargman Series 92 Lamp Part # 30-92-106
  • The Bargman 92 Series lamp, part # 30-92-106 measures 8-9/16 long by 4-9/16 tall by 2-1/8 inches thick, as you can see in the photo I've edited for you.
    view full answer...

  • Will Bargman Lens 30-92-012 Fit a Cargo Craft Explorer Utility Trailer
  • The lens you have referenced, # 30-92-012, is a replacement for a Bargman 92 series light like # 30-92-106. The number you have provided is not a the model number of the light. In order to determine if this lens will fit, you will need to measure the light. The 30-92-106 light is 8-9/16 inches long by 4-9/16 inches tall by 2-1/8 inches deep.
    view full answer...

  • Mounting Hole Spacing for Bargman Surface Mount Tail Light # 30-92-106
  • The distance between the mounting holes on the Bargman Surface Mount Tail Light, # 30-92-106, from left to right measure 7-1/8 inches and 3 inches top to bottom. I have attached a picture to illustrate these measurements.
    view full answer...

  • Replacement Lens for 1996 Jayco Tent Trailer Tail Lights
  • I looked up your 1996 Jayco Tent Trailer and think I may have found the correct tail lights for you but the number you furnished is the Department Of Transportation number for the lens and is not the number of the light assembly itself. One lens that may work well for you is the # 30-92-012 for Bargman Surface Mount Tail Light, part # 30-92-106. This light measures 8-9/16 inches long x 4-9/16 inches wide x 2-1/8 inches thick. This light would be used on the passenger side of the trailer....
    view full answer...

  • Replacement Tail Light Lens for a 2003 Coleman Niagra Pop-up Camper Trailer
  • It sounds like replacement lens # 30-92-012 is a close match for your 2003 Coleman Niagra trailer. The lens measures 8-9/16 inches by 4-9/16 inches by 2-1/8 inches. The length and height are only 1/16 inches off and the depth only 1/8 from your measurements. The lens fits Bargman 92 series tail light # 30-92-001 and # 30-92-106.
    view full answer...

  • Replacement Taillight Recommendation for 2003 Forest River Flagstaff 208
  • We have just what you need. For the version of the Bargman 94 Series light that has the license plate bracket and light you'd want the part # 30-92-108. For the version that does not have either of those you'd want # 30-92-106.
    view full answer...

  • What bulb is needed for the Bargman 30-92-106 tail lights?
  • The Tail light bulb type needed for the Bargman Surface Mount Tail Light - 92 Series, # 30-92-106, is a 1157 double filament bulb. We have the Replacement Light Bulb # 1157, they are part # A1157B. For an LED replacement, the 1157 LED Bulb # DG52624VP, is a great option that has 13 LEDs and a brightness of 215 lumens. If you want a red bulb so it doesn't wash out your lens, you can use the Putco PURE Premium 1157 LED Bulbs - 360 Degree - Red - 2 Pack # P231157R360.
    view full answer...

  • Replacement Trailer Tail Light Lens for Bargman 92 Series Tail Lights
  • Replacement lens # 30-92-012 is designed to fit Bargman 92 series lights # 30-92-001 and # 30-92-106. These lights are 8-9/16" long x 4-9/16" wide x 2-1/8" thick. The length and width mesh with the dimensions you have provided. The depth is the overall depth of the light itself, not just the lens. It possible that this is the correct lens for your light if your lights are the same as either of the two listed above.
    view full answer...

  • Will Bargman 92 Series Lens 30-92-012 Fit a 2001 StarCraft Pop-Up Camper
  • I did some research on your camper model and I was not able to confirm which specific light the manufacturer uses. I found some pictures of 2001 StarCraft pop-up models that did appear to have a similar lens style to the # 30-92-001 lens you referenced, but I also came across some 2001 models with entirely differently shaped lights. The owners manual for that year lists a 1157 bulb as the replacement for the tail and turn lights, which would be consistent with the bulb used in the lights...
    view full answer...

  • Installing New 3-Wire Lights to Fire Truck
  • Most likely on your new round light assembly the red wire will go to the brake/turn light circuit on the fire truck and the black wire will be for the running lights circuit. The white wire is for ground. It looks like the old light assembly grounded through its mounting hardware, which is why it didn't have a separate white wire. On the new light the white wire just needs to be secured to a clean, bare metal surface to complete the ground.
    view full answer...

  • Bargman Trailer Tail Light White Ground Wire Attaches to Metal Surface
  • Yes, you are exactly right. The white ground wire on tail light # 30-92-106 will have to connect to a metal surface. If you need to extend the wire to the frame of the trailer that is permissible. Make sure it is attached to a clean and corrosion free bare metal surface.
    view full answer...

  • Installing New LED Lights with Unknown Wire Functions to Trailer
  • Without knowing the specific brand/model of your LED lights it's hard for me to verify the function of the 3 wires you mentioned as different manufacturers will use different colors, however most likely the red is for brake/turn and the black is for running lights. To ensure you make the correct connections on the trailer I recommend testing the wires for function by applying 12V power to them to see what they each activate. With typical trailer wiring the green wire is for right turn/stop...
    view full answer...


Do you have a question about this Trailer Light?




  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality trailer lights for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate trailer light information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Written by:
Lindsey S
Expert Research:
Michael H
Expert Research:
Adam R
Expert Research:
Jeffrey L
Updated by:
Laura H
Updated by:
Brian T
Installed by:
Cole B

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.


Product Experts Available Now!

Call 800-298-8924
