Bargman Trailer Tail Light - 4 Function - Incandescent - Rectangle - White Base - Red Lens

Bargman Trailer Tail Light - 4 Function - Incandescent - Rectangle - White Base - Red Lens

Item # 30-92-001
lowest price pledge
Retail:$27.10
Our Price: $11.58
You Save: 57%
Trailer Lights
Orders above $99 qualify for Free Shipping
Shipping Weight: 0.7 lbs
Quantity:
In Stock, Ships Today
Bargman Trailer Lights - 30-92-001
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Customer Photos

Videos

8-9/16" x 4-9/16" Rectangle. Incandescent trailer tail light provides stop, tail, rear reflector, and turn signal. Corrosion resistant bulb socket. Durable ABS housing. Surface mount - hardware not included. 3-Wire design. (1) 1157 Bulb. Lowest Prices for the best trailer lights from Bargman. Bargman Trailer Tail Light - 4 Function - Incandescent - Rectangle - White Base - Red Lens part number 30-92-001 can be ordered online at etrailer.com or call 800-298-8924 for expert service.
  • All Info
  • Reviews (551)
  • Q & A (96)
  • Videos (1)
  • Photos
  • Why etrailer?

Bargman Trailer Lights - 30-92-001

  • Tail Lights
  • Rectangle
  • Incandescent Light
  • Red
  • Surface Mount
  • 8-1/2L x 4-1/2W Inch
  • Bargman
  • Non-Submersible Lights
  • Stop/Turn/Tail
  • Rear Reflector

8-9/16" x 4-9/16" Rectangle. Incandescent trailer tail light provides stop, tail, rear reflector, and turn signal. Corrosion resistant bulb socket. Durable ABS housing. Surface mount - hardware not included. 3-Wire design. (1) 1157 Bulb.


Features:

  • Incandescent trailer tail light serves 4 functions
    • Stop, tail, rear reflector, and turn signal
    • Built-in rear reflector removes the need for a separate reflector
  • Radius styling provides a smooth look with rounded edges
  • Corrosion-resistant bulb socket protects bulb
  • Incandescent bulb are easy to replace
  • Durable white ABS plastic housing
  • Red lens covers bulb
  • Compatible with 12V DC systems
  • Surface mount to trailer - hardware not included
  • 3-Wire design includes power and ground wires
  • DOT compliant
    • Meets FMVSS/CMVSS 108 requirements


Specs:

  • Dimensions: 8-9/16" wide x 4-9/16" tall x 2-1/8" thick
  • Number of bulbs: 1
  • Bulb type: 1157
  • Power draw at 12V:
    • Stop/turn: 2.1 amps
    • Tail: 0.59 amps
  • Wire lenght: 7"
  • Wire gauge: 16
  • 1-Year limited warranty


Bargman 30-92-001 Tail Light Dimensions

Surface-Mount Light

Surface-mount trailer lights install using a flange or bracket with mounting holes. These lights lay flat against the trailer surface and only require a small, often pre-existing hole, for wiring. Mounting hardware is used to secure the light to the trailer.



30-92-001 Bargman 92 Series Incandescent Combination Trailer Tail Light - Stop, Turn, Tail, Reflector - White Base - Red Lens - Surface Mount




California residents: click here

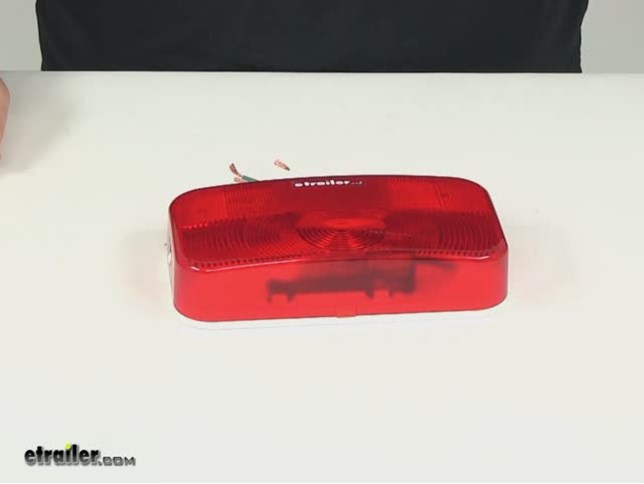

Video of Bargman Trailer Tail Light - 4 Function - Incandescent - Rectangle - White Base - Red Lens

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Bargman Trailer Lights - Tail Lights - 30-92-001 Review

Today we're going to be taking a look at part number 30-92-001. This is the Bargman Surface Mount Red Tail Light. 92 Series with the nice white base. The red light is going to function as a combination of brake light, tail light and turn signal light for your trailer or RV. It's going to feature a nice, sleek, round edges. Again, featuring that nice white base.

This is designed for horizontal mounting only. It's going to feature a corrosion resistant bulb sockets. Here on the back, it's going to expose the wiring. It's going to contain 16 gauge power and ground wiring. This is Department of Transportation compliant.

It meets FMDSS and CMVSS 108 requirements. Let's go over the dimensions real quick. I'm going to measure here at the back of the house. It's a little bit more squared off. It's going to give us an overall length of 8 9/16 of an inch. Overall width of 4 9/16 of an inch.

Then the thickness is going to measure about 2 1/8 of an inch. The tail light bulb type is going to be 1157 double filament. This is a surface mount installation. You can see here at the back, it's going to expose your four mounting locations. If we take a measurement center-on-center, the distance between the mounting locations going this direction is going to measure about 7 1/8 of an inch.

Center-on-center going this direction is going to measure about 3 1/8 of an inch. we're going to go and hook this up to our external power source to show you what it looks like with power running to it. We'll also go ahead and turn off the overhead lights. The white wire is going to be our ground wire. The black wire is going to be the wire for our breaks and turn signal. Then the green wire is going to be for our tail lights. We'll go ahead and make those connections real quick. You can see that this is going to be the tail light function and then when we apply our breaks, it sends out a nice consistent signal. Then our turn signals. That's going to do it for today's review of part number 30-92-001. This is the Bargman Surface Mount Red Tail Light. .


Customer Reviews

Bargman Trailer Tail Light - 4 Function - Incandescent - Rectangle - White Base - Red Lens - 30-92-001

Average Customer Rating:  4.9 out of 5 stars   (551 Customer Reviews)

8-9/16" x 4-9/16" Rectangle. Incandescent trailer tail light provides stop, tail, rear reflector, and turn signal. Corrosion resistant bulb socket. Durable ABS housing. Surface mount - hardware not included. 3-Wire design. (1) 1157 Bulb.

- 30-92-001
by:

Seems to be good quality parts. Wont get to mount them until im done with paint tho. Wish they were led but they will do. Look just like the originals. 735181



- 30-92-001
by:

A breeze to order from and very good co mmunication. 721680



- 30-92-001
by:

Great fast service excellent company to order rv parts will order again highly recommend 698794



- 30-92-001
by:

Ordered replacement tail lights (30-92-001(driver side) and 30-92-108 (passenger side)) for my Denali 5th Wheel. Called etrailer to answer a question I had regarding the passenger side light that has the license plate mounting bracket. Angela was very helpful answering my questions. Received the shipment on the estimated delivery date. Installation was a snap. Great price on the tail lights...…..I will use etrailer for future replacement parts and would recommend you check them out...great website with huge selection of RV parts. 569316



- 30-92-001
by:

Fit perfect match for my 83 Palamino Tent trailer. Very easy to install. A caveman could do it!!! 750270



- 30-92-001
by:

Perfect it’s what it says it is 749146



- 30-92-001
by:

Ordered this product and it shipped quickly. I have not had the chance to put it on my trailer yet but it looks like it will work just great. 748800



- 30-92-001
by:

Perfect replacement, holes and everything lined up. Good quality plastic, the last ones lasted 16 years in the desert sun and really did not need replacing but starting to get brittle so I replaced them. 739049



- 30-92-001
by:

Exactly what I expected. Fair price and decent delivery time considering that holidays. 735111



- 30-92-001
by:

Perfect replacement for my old camper lights! Easy to install,and look great! 719539



- 30-92-001
by:

Perfect 716635



- 30-92-001
by:

Exactly what I needed and expected to have a hard time finding. Reasonable price and fast shipping. Thanks! 713553



- 30-92-001
by:

Excellent seller,low price tail lights fast shipping, just as described. Just what I needed. I bought two of them one for each side. 708310



- 30-92-001
by:

light was easy to install and quality of light was above what i expected 706629



- 30-92-001
by:

Exact replacement, same screw holes. Plastic seems better, the old just broke as I removed them. 696282



- 30-92-001
by:

Products came Fast and on time and I will be using you company in the future for what ever my pop-up needs. 695830



- 30-92-001
by:

I am very satisfied with the service, and ease at finding the part. 695426



- 30-92-001
by:

Product that I used was fine.However, I was disappointed that I had to purchase the complete light to get the lens. I searched several times to purchase the lens separately with no success. 683939


Comments
If you are looking for just the replacement lens for this Bargman Trailer Light, you will want part # 30-92-012
Replacement Lens for Bargman 92 Series Surface Mount Tail Lights
$8.05
.
-- Victoria B - 08/16/2019

60089

- 30-92-001
by:

Perfect fit. Site was easy to use so much product. 672640



- 30-92-001
by:

Product was perfect. 671030



- 30-92-001
by:

My order got to me promptly but one item was broken. I emailed about it and without any hesitation they send me a replace. Great service! If I need new parts for my travel trailer I will certainly order through this site. Thank you! 663048



- 30-92-001
by:

product was the same as the original one i had to replace on my 2003 Keystone Mountaineer due to sun damage . easy to install and fit perfect. As always when i order from etrailer quick & easy and fast shipping 660261



- 30-92-001
by:

I ordered 2 replacement trailer lights for a work truck and received the lights on the exact day they said it would show up and they were able to be installed with no issues. I recommend etrailer to anyone looking for affordable parts for work vehicles/equipment. 659008



- 30-92-001
by:

Great service and easy shopping with you guys. Your prices are really nice also. I always come back to you for my trailer repairs. 651585



- 30-92-001
by:

it is a big step up from the faded and cracked old ones. very easy installation and looks great 641680


25
557
Show More Reviews

Ask the Experts about this Bargman Trailer Lights

  • Recommended Replacements for Bargman 30-91-010 and 30-91-011 Trailer Lights
    To replace the Bargman 30-91-010 and 30-91-011 taillights on your trailer, you will use the Bargman # 30-92-001 for the side without the license plate and # 30-92-003 for the side that carries the license plate. These assemblies measure 8-9/16 inches long, 4-9/16 inches wide and 2-1/8 inches thick. I recommend measuring your existing lights to ensure a compatible match. I have also attached short video demonstrations on both of these lights so you can see exactly how they look. For...
    view full answer...
  • Replacement Taillight Recommendations for Sunnybrook 310FWMS 5th wheel
    Thanks for the picture of your taillight lens! Based on that the part # 30-92-001 does fit it and will work well. For the version of this that comes with the tabs for mounting a license plate and a clear light to illuminate the plate we have the part # 30-92-003 as well.
    view full answer...
  • Replacements for Bargman 30-91-010 and 30-91-011 Tail Lights
    We do carry the replacements you need for your 30-91-010 and 30-91-011 lights. What you need are the Bargman 92 Series # 30-92-001 and # 30-92-003 tail lights. These have dimensions of 8-9/16" long x 4-9/16" wide x 2-1/8" thick and have a 2-wire design. I've added links to video reviews of both lights for you to check out as well.
    view full answer...
  • LED Taillight Options to Replace Bargman 92 Series Taillights
    Based on the 30-92-XXX partial part number you provided, it sounds like you have Bargman 92 Series taillights. These taillights measure 8-9/16 inches long x 4-9/16 inches wide x 2-1/8 inch thick. I have some options for LED taillights for you, however there is not a direct LED replacement for the 92/94 Series lights. If you want to stay with Bargman lights for you trailer, you can use the Bargman LED Surface Mount, Double Tail Light, 84/85 Series # 47-84-610. This double taillight offers...
    view full answer...
  • Replacement Trailer Taillights for Bargman 30-91-010 and 30-91-011 Taillights
    Based on the number you listed you would need the part # 30-92-001 and then for the side that carries the license plate you would want the part # 30-92-003 that has the license plate bracket and light to illuminate the plate. The difference in part numbers is due to the one side holding the license plate and the other not carrying it. Both of the lights have the needed wires to install.
    view full answer...
  • How to Seal Rear of RV Tail Light 30-92-001 When Installing on Uneven Trailer Surface
    If the light mounting surface on your older Prowler trailer is not flat enough to allow for use of caulk for sealing the rear of the RV Tail Light # 30-92-001 then you might want to use a weather strip tape like # WS1412 which is 1/4-inch thick x 1/2-inch wide in a 45-foot roll. We also offer Gray Putty Tape # CAM25003 that is intended for vent installation but which can also be used to provide a seal at the rear of the light's base.
    view full answer...
  • How to Wire A Replacement RV Tail Light on a Coleman Pop Up Camper with Red Tail Light Wire
    It is likely that the red wire is a jumper wire from one side of the trailer to the other for the running lights. You can verify this by testing the wires using a circuit tester such as # 40376. Connect the trailer to the tow vehicle and have someone operate the light functions while you test the wires. For example, if you are replacing the lights with the RV Tail Light # 30-92-001, the white wire is for ground, the green wire is for turn and stop, and the remaining wire is for running lights.
    view full answer...
  • Wire Colors Explained for Installing the RV Tail Light - Stop, Tail, Turn 30-92-001
    On the trailer light part # 30-92-001 the white wire is for the ground, the green for the running light circuit and then the black is for the stop/turn signal circuit which is brighter. I also attached an install video for this light for you to check out as well.
    view full answer...
  • 1996 Palomino Trailer Wiring Troubleshooting
    Make sure that the trailer side connector are clean and free of corrosion inside and out. The main connector grounds should be attached to clean and corrosion free bare metal surfaces. The light grounds should also be attached to clean and corrosion free bare metal surfaces. If there is anything between a light ground and the metal trailer frame or if the trailer has an aluminum frame, tilt bed, or folding tongue, any of these things can interrupt the ground. Running jumper wires from the...
    view full answer...
  • Replacement Trailer Taillights to Replace Peterson M457 on a 2005 Clamshell Trailer
    We have the Peterson M457 style taillights. You will want # V457L and # V457.
    view full answer...
  • Replacement Bargman Tail Lights for Mid-80s Coleman Santa Fe Camper
    Thank you for the photo of your Coleman trailer's Bargman 92-series tail light. We do offer a replacement Bargman 92-series light assembly, part # 30-92-001, which uses the same 1157 bulb as your original. For a bulb only use part # 30-90-157. I suggest an application of dielectric grease # 11755 on the bulb bases to help keep them free of corrosion.
    view full answer...
  • Recommended Replacement Tail Lights For 1999 Jayco Qwest Pop-Up Trailer
    I pulled one of the tail lights from our warehouse that might work well for you. I recommend the Bargman Trailer Stop, Turn and Tail Light, part # 30-92-001. This light measures 4-1/2 x 8-1/2 inches. The mounting holes are 7-1/8 inches apart horizontally and 3-1/8 inches apart vertically. Although the mounting holes are not exact, this will work for you. This is a 3-wire incandescent light, and is designed for the passenger side of the trailer. For the driver side you would want...
    view full answer...
  • How to Properly Ground Trailer Marker and Taillights
    Each lamp needs to be grounded either through its mounting studs being in direct contact with the trailer frame or by having a jumper wire ran from the lamp to the trailer frame. Ground the trailer connector at the front of the trailer, which will use the trailer frame as a ground wire. This method is the most simple and effective. You could run a ground loop, but if everything's properly grounded, it won't be necessary. I'll link you to our FAQ article on trailer wiring.
    view full answer...
  • Running Lights Not Working on an H & H Trailer with 5 Wire Trailer Connector
    First, use a circuit tester like # 40376 if needed to test the brown wire to make sure it is functioning properly at the vehicle side connector. If not then you will need to troubleshoot the vehicle. On light # 30-92-001 the green wire is the running light circuit and the black wire is brake light/turn signal. Make sure the main trailer connector is grounded to a clean and corrosion free bare metal surface. Do the same for the lights. If the trailer has an aluminum frame, grounding...
    view full answer...
  • How to Wire the Stop, Turn and Tail Light, # 30-92-001
    The Stop, Turn and Tail Light, # 30-92-001, has a total of 3 wires. The white wire is the ground and needs to be connected to a clean and corrosion free metal surface. It sounds as if the clearance lights are using the turn signal function instead of the running light function. Usually, the running light function on a trailer is a brown wire. You can use a circuit tester to find the correct wire. This wire will split off at some point near the rear of the trailer with one end going to...
    view full answer...
  • The Main Reason for Nearly All Trailer Wiring Problems
    Rewiring a travel trailer like yours would be pretty challenging as you will need to most likely remove interior walls to access the wiring. Since it would be much easier to check the grounds first (as that is most likely the actual problem) I recommend you start there. Nearly all trailer wiring issues are ground related. Try finding a better ground for the light assemblies on your trailer to see if the issues you are having go away. Some assemblies ground through their mounting hardware....
    view full answer...
  • Can Trailer Taillight part # RVST50 Be Converted to LED
    What you can do is replace the bulb in the light with an LED to replace bulb type 2057 and you would have converted the RVST50 and RVST51 to be LED. We do not currently carry that bulb # 30-84-057 in an LED option. If you have the similar Bargman light # 30-92-001 and # 30-92-003 then you would need bulb style 1157 like # CM93236.
    view full answer...
  • Trailer Lights Work Intermittently or All Blink with Turn Signals on 2008 Little Guy Tear Trailer
    It does still sound like a ground issue and/or a possible short somewhere. Ground problems normally show up when there is more draw on a system such as when you have the running lights on and then use another function like a turn signal or brake light but can show up any time. Make sure that the vehicle side and trailer side connectors are clean and free of corrosion inside and out. The main connector grounds should be attached to clean and corrosion free bare metal surfaces. The...
    view full answer...
  • How Do Trailer Lights Ground and Wire Up
    If the second wire is white it most likely is a ground wire and would just need to be run to a clean, metal surface. However, in some situations the light will ground through the mounting bolts of the light assembly. So if the light assembly is a stop/turn and tail assembly and there are only two wires the assembly grounds through the mounting hardware and the two wires are for the stop/turn and tail light circuits. If the light assembly only has a single intensity bulb and there...
    view full answer...
  • Replacement Taillight Recommendation for a 2008 Thor Jazz 2960RL 5th Wheel
    I pulled up some pictures of the rear of your 2008 Thor Jazz 2960RL 5th Wheel and it looks like you have part numbers # 30-92-003 for a light when a license plate bracket and part # 30-92-001 for without.
    view full answer...
  • Replacement Trailer Taillights for 2007 Jayco Jay Series Baja
    If you can send me a picture of the rear of your trailer I can see if I am able to recognize the taillights you have on your trailer to pick out the correct replacement lens.
    view full answer...
  • Can RVST50 Trailer Lights be Converted to LED
    What you can do is replace the bulb in the light with an LED that matches the bulb style 2057. We don't currently carry that LED replacement. However, if you have the similar Bargman lights # 30-92-001 they require bulb style 1157 and we do have that LED bulb. I recommend # CM93236 as a replacement for the incandescent. You can always change out the entire light and use the LED bulb listed to accomplish your goal.
    view full answer...
  • Replacement Taillight/License Plate Holder to Replace Bargman 30-91-010 on 1989 StarCraft Pop-Up
    My contact at Bargman confirmed that their 91-Series lighting that was an OEM part on your 1989 StarCraft pop-up has been out of production for a long while. Bargman does not offer an exact drop-in replacement but we do offer plenty of comparable items from their current product line. For example, part # 30-92-001 that you referenced is a surface mount stop/turn/taillight and part # 30-92-108 is a similar product that also incorporates a clear lens for license plate illumination. You...
    view full answer...
  • Compatibility of Bargman Lamp 30-92-001 with 1995 Viking 235G Pop Up Camper
    I do not have any information about which OEM lights came on that camper. We do, however provide a full drawing of the lamp itself on the product description that shows the dimensions of the lamp and the center to center distance between the plate mounting holes. I have also provided a photo of the lamp showing these dimensions. Simply measure the existing lamp to see if the Bargman Travel Trailer Lamp shares the same dimensions.
    view full answer...
  • Replacement Tail Lights For 1996 Keystone Cabana RV
    The RV Tail Lights, part # 30-92-001 and part # 30-92-003 may work great on your 1996 Keystone. The only way to know for sure is to take some measurements of the lights you have mounted currently. These are a surface-mount 3-wire light that measures 8-1/2 inches long, 4-1/2 inches tall and 2-1/8 inches deep. The mounting holes have a center-to-center distance of 7-1/8 inches. These lights use replaceable bulb type 1157.
    view full answer...
  • All Trailer Lights Stopped Working After Installing Tail Light # 30-92-001
    It is entirely possible that the wire colors on your trailer have different functions that the corresponding wire colors on tail light # 30-92-001. On the light the white wire is the ground, green is for running lights, and black is for brake light/turn signal. You can verify the functions of the wires you have on the trailer using a circuit tester such as # 40376 or a meter if you have one. Connect the trailer to a tow vehicle and have someone operate the light functions while you...
    view full answer...
  • Size of Screws for Bargman Trailer Lights # 30-92-001
    I went out to the warehouse and, using our digital calipers, took the dimensions of the holes that you will need screws for. The diameter of the hole measured 5.25mm. So you will need screws small enough for that hole with a length of 25mm or longer. I recommend crossheads screws and a Phillips head screwdriver.
    view full answer...
  • How to Determine What Wires Run to a Trailer Battery
    There isn't a wiring color standard that all trailer manufacturers would have used to wire up your battery. I wish there was, as that would make it very easy for me to tell you where each of the wires would need to run. But instead you are going to have to determine the function of each of the wires and then run them to the battery accordingly. You will have to trace the wires back to where they terminate to know their function. As a starting point I should mention that black is USUALLY...
    view full answer...
  • Both Turn Signals Function as One After Rewiring Trailer
    If I understand you correctly, the turn signal lights both operate at the same time when either the left hand turn signal or the right hand turn signal is applied. If that is the case then the only thing that could cause this is a short between the left and right hand turn signal wires. I understand the trailer was just rewired so if that is the case then the most likely culprit is in the trailer connectors. There could be strands of wire touching each other in the terminal or there could...
    view full answer...
  • Left Turn Signal and Brake Light Do Not Work and Running Lights Blink When Right Turn Signal Is On
    You took the exact first step I would take when trying to solve this issue by testing the trailer connector on your vehicle. That tells us that the issue is definitely on the trailer somewhere and it sounds to me like it is a bad ground. The next step that I would take is to make sure all of my ground connections are good and clean. There will be a ground connection coming from the trailer connector to somewhere on the trailer tongue and each of your trailer lights should have a ground...
    view full answer...

Do you have a question about this Trailer Light?




  • Why etrailer.com?

    At etrailer.com we guarantee:
  • Highest quality trailer lights for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate trailer light information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Written by:
Lindsey S
Expert Research:
Jameson C
Updated by:
Laura H
Updated by:
Brian T

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.


Product Experts Available Now!
Call 800-298-8924
