Round, Pipe Mount Swivel Jack w/ Footplate - Weld On - Sidewind - 15-1/2" Travel - 7K

Round, Pipe Mount Swivel Jack w/ Footplate - Weld On - Sidewind - 15-1/2" Travel - 7K

Item # TJP-7002S-B
lowest price pledge
Our Price: $57.55
Trailer Jack
Orders above $99 qualify for Free Shipping
Shipping Weight: 18 lbs
Quantity:
In Stock
Trailer Jack TJP-7002S-B - No Drop Leg - etrailer
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

This swivel jack pivots up for travel and down for use. Built-in grease zerk allows for simple greasing. Retracted height is 15-5/8". Extended height is 31-1/8". Weld-on pipe mount included. Lowest Prices for the best trailer jack from etrailer. Round, Pipe Mount Swivel Jack w/ Footplate - Weld On - Sidewind - 15-1/2" Travel - 7K part number TJP-7002S-B can be ordered online at etrailer.com or call 800-298-8924 for expert service.
  • All Info
  • Reviews (2)
  • Q & A (1)
  • Videos (1)
  • Photos
  • Why etrailer?

etrailer Trailer Jack - TJP-7002S-B

  • Side Frame Mount Jack
  • 7000 lbs
  • Sidewind Jack
  • No Drop Leg
  • Swivel Jack - Pipe Mount
  • Weld-On
  • etrailer
  • 16 Inch Lift
  • With Foot

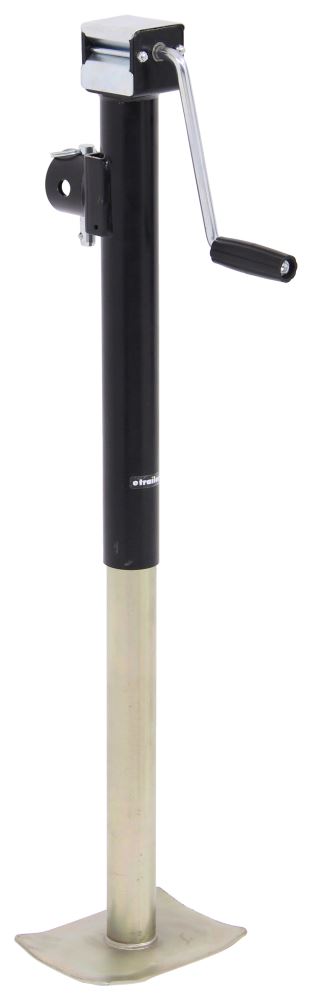

This swivel jack pivots up for travel and down for use. Built-in grease zerk allows for simple greasing. Retracted height is 15-5/8". Extended height is 31-1/8". Weld-on pipe mount included.


Features:

  • Utility jack lets you raise and lower your trailer
    • Ideal for agricultural and commercial applications
  • Tubular swivel design lets you twist jack up for storage, down for use
    • Pull pin with clip holds jack in place
    • Lanyard connects pin to jack so it won't get lost
  • Sidewind handle has zinc finish for attractive look and rust resistance
  • Corrosion-resistant finishes
    • Outer tube has durable black powder coat
    • Inner tube and footplate have rust-resistant clear zinc finish
  • Welded-on footplate minimizes sinking in soft ground
  • Effortless greasing with built-in grease zerk
  • Weld-on installation with included male pipe mount


Specs:

  • Bracket height (from bottom of foot to center of pipe mount):
    • 15-5/8" Retracted
    • 31-1/8" Extended
  • Travel: 15-1/2"
  • Outer tube diameter: 2-1/4"
  • Inner tube diameter: 2"
  • Footplate dimensions: 7-7/8" long x 5-7/8" wide
  • Pipe mount diameter:
    • Inner: 2"
    • Outer: 2-1/2"
  • Handle radius: 8-1/8"
  • Lift capacity: 7,000 lbs
  • Support capacity: 8,000 lbs
  • 1-Year warranty


Ram dimensions

TJP-7002S-B Ram Round, Pipe Mount Swivel Jack w/ Footplate - Weld On - Side Wind - 15-1/2" Travel - 7,000 lbs





Video of Round, Pipe Mount Swivel Jack w/ Footplate - Weld On - Sidewind - 15-1/2" Travel - 7K

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for etrailer Trailer Jack - Side Frame Mount Jack - TJP-7002S-B Review

Today we're going to be taking a look at the Round Pipe Mount Swivel Jack with the included foot plate. This utility jack is going to let you raise and lower your trailer. It's going to feature a lift capacity of 7,000 pounds and a support capacity of 8,000 pounds. It's going to feature the tubular swivel design. This is going to let you swing the jack up along the trailer frame for storage and them you can easily bring it back down into an upright position when you're ready to use it. It's going to come with the pull 00:00:25 pin and the clip. It's going to hold the jack in place so you just pull that and then you can swing the jack up for storage or bring it back down for use.

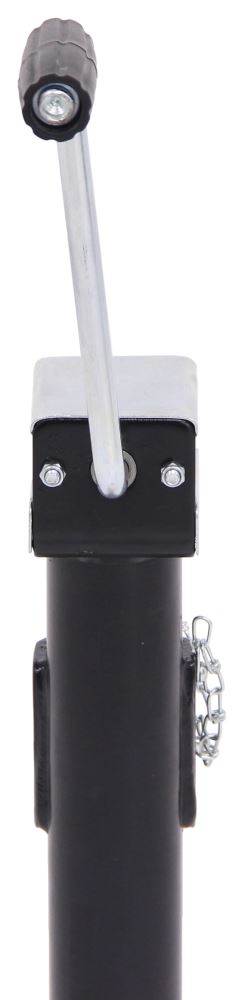

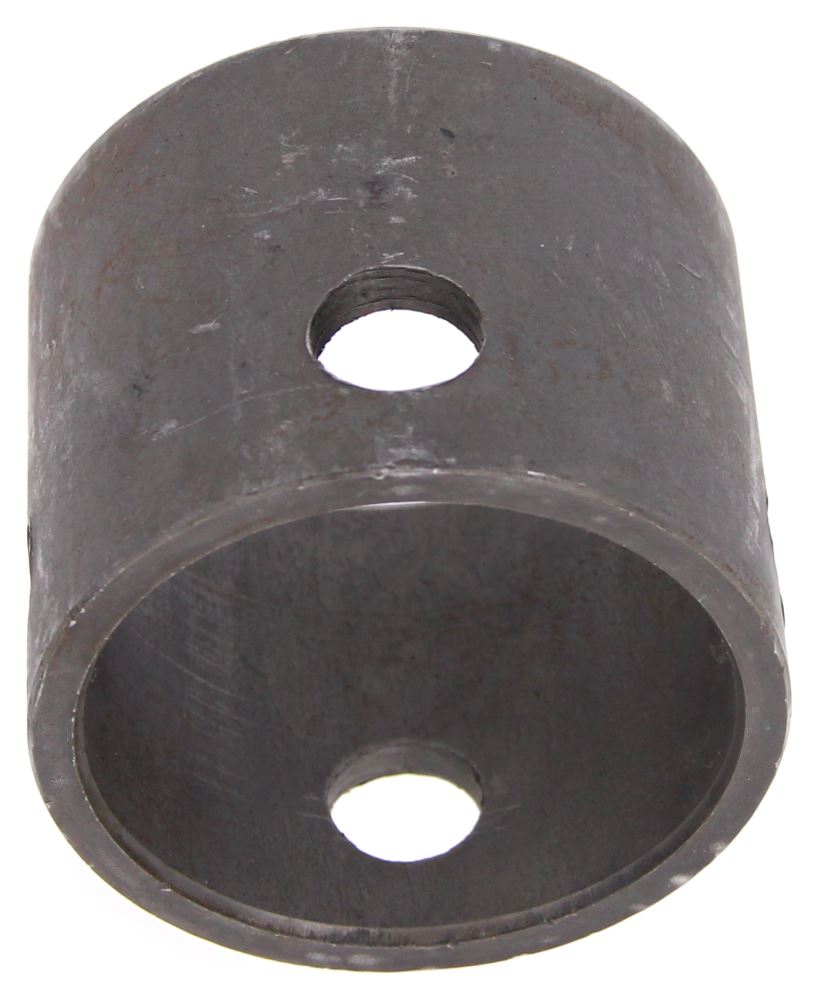

It's got the nice chain lanyard that's going to connect the pin to the jack so it won't get lost and it's also going to come with the weld-on pipe mount. This is included. Outer edge to outer edge is going to give us a diameter of 3-inches. Inner edge to inner edge is going to give us a diameter of 2 1/2-inches. Raw steel so it's ready to be welded onto your trailer so that piece gets welded on and then you can see how it moves independently from the jack so the jack will be able to rotate inside of the weld-on pipe mount. This jack's also going to feature a side wind handle.

It's going to make raising and lowering the jack very easy. It's got a nice fluid design, very consistent, smooth operation. I don't feel any kinking or binding. Now the handle radius, taking a measurement from the outer edge of the hand grip to the center of where it mounts, that's going to give us a measurement pretty close to 8 1/8 of an inch, right around that area. The jack is made from a steel construction.

The outer tube's going to feature a really nice black powder coat finish so it's going to be highly resistant towards rust and corrosion and then the inner tube and the foot plate are going to have a clear zinc finish which is also resistant towards rust and corrosion. The foot plate's going to be welded to the bottom of the inner tube. Take a measurement of the foot plate real quick. It's a nice large size. It's going to measure about 8 inches by 6 inches so that's really going to help spread out the applied weight so even on softer ground, it's going to help prevent sinking and it's also going to increase overall stability. Maintenance is pretty simple with this jack.

Located right here, we're going to have a zert 00:02:16 fitting that way you can just attach your grease gun and pump in the grease to lubricate the internal components. A few other measurements I want to mention real quick, we're going to take a bracket height measurement, measuring from the base to the center of the weld-on mount so right now the jack is at its lowest setting. It's fully retracted and that measurements going to be about 15 and 5/8's of an inch. Now this jack's going to have a travel of about 15 and 1/2 inches so fully extended, that measurement's going to increase to about 31 and 1/8 inches. The outer tube's going to give us a diameter of 2 and 1/4 inches and then the inner tube's going to give us a diameter of right at 2 inches. That's going to do it for today's look at the Round Pipe Mount Swivel Jack with the included foot plate.


Customer Reviews

Round, Pipe Mount Swivel Jack w/ Footplate - Weld On - Sidewind - 15-1/2" Travel - 7K - TJP-7002S-B

Average Customer Rating:  5.0 out of 5 stars   (2 Customer Reviews)

This swivel jack pivots up for travel and down for use. Built-in grease zerk allows for simple greasing. Retracted height is 15-5/8". Extended height is 31-1/8". Weld-on pipe mount included.

- TJP-7002S-B
by:

One year later... Jack is outside 24 x 7 x 365 and working well. The grease zerk and price make this one a no brainer. 420626


Comments
Still working great with no issues.
Tim - 08/16/2018

42411

- TJP-7002S-B
by:

Easy ordering and fast delivery. 337870


2
2

Ask the Experts about this etrailer Trailer Jack

  • Pipe Mount Weld On Swivel Jack With Built in Grease Fitting
    I do have an option for you but the Pro Series Round, Pipe-Mount Swivel Jack w/ Footplate part # PS1401420303 does not include a grease fitting for easy greasing. I recommend Round, Pipe Mount Swivel Jack w/ Footplate - Weld On part # TJP-7002S-B which is a weld on pipe mount side wind jack with 7,000 lbs of capacity. It offers 15-1/2" of travel and has a built grease zerk to allow for effortless greasing.
    view full answer...
