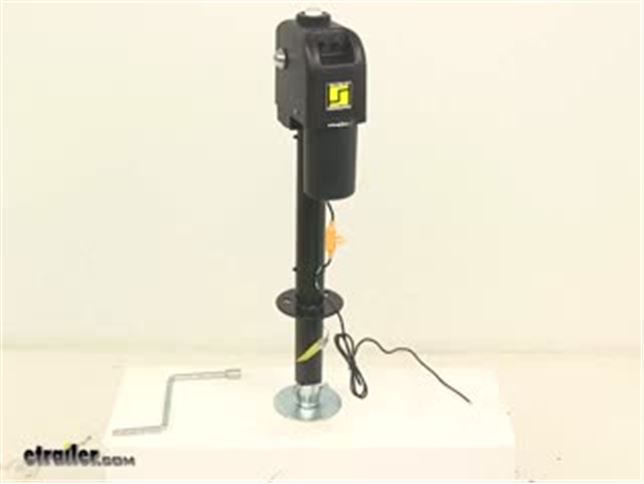

Stromberg Carlson Electric Trailer Jack - Drop Leg - A-Frame - 23" Lift - 5,000 lbs - Black

Stromberg Carlson Electric Trailer Jack - Drop Leg - A-Frame - 23" Lift - 5,000 lbs - Black

Retail:$470.21
Our Price: $280.16
You Save: $190.05
Camper Jacks
This item qualifies for Free Shipping
Shipping Weight: 30 lbs
Quantity:
In Stock
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

In Use/Installed

Customer Photos

Need help with installation?
Locate installers near me
Use this electric tongue jack to lift your trailer with the flip of a switch. The sturdy steel jack can handle up to 5,000 lbs. It has 18" of travel and a 5" drop leg for extra lift. LED lights on both sides boost visibility at night. 1-636-306-4830 to order Stromberg Carlson camper jacks part number JET-5000 or order online at etrailer.com. Free expert support on all Stromberg Carlson products. Great prices and Fastest Shipping for Stromberg Carlson Electric Trailer Jack - Drop Leg - A-Frame - 23" Lift - 5,000 lbs - Black. Camper Jacks reviews from real customers.
  • All Info
  • Reviews (532)
  • Q & A (0)
  • Photos
  • Why etrailer?

Stromberg Carlson Camper Jacks

  • A-Frame Jack
  • 4001 - 5000 lbs
  • Electric Jack
  • 23 Inch Lift
  • Bolt-On
  • 1 Jack
  • Stromberg Carlson
  • 2-3/16 Inch

Use this electric tongue jack to lift your trailer with the flip of a switch. The sturdy steel jack can handle up to 5,000 lbs. It has 18" of travel and a 5" drop leg for extra lift. LED lights on both sides boost visibility at night.


Features:

  • Electric jack with 12V motor lets you lift and lower your A-frame trailer quickly and easily
  • Top-mounted toggle switches are easily accessible
  • Large LED side lights make it simple to set up your camper at night
    • Also ease weight distribution hookup and disconnect
  • Bubble level on top of housing helps you level your trailer
    • Bull's-eye design shows front to back and side to side
  • Built-in clutch protects gears and motor
  • Drop leg allows for greater adjustability
  • Rust-resistant powder coated steel parts are strong and durable
  • Housing is made of vacuum-formed plastic for protection from the elements
    • Black cover is painted to resist fading
  • Round, zinc-plated steel footplate provides stability
  • Emergency crank (included) allows you to manually operate jack if needed
  • Easy bolt-on installation for A-frame trailers
    • 3 Star washers included for making a good ground from jack to trailer
    • Mounting hardware sold separately


Specs:

  • Bracket height:
    • 9-1/2" Retracted
    • 27-1/2" Extended
  • Total lift: 23"
    • Travel: 18"
    • Drop leg: 5"
  • Lift capacity: 5,000 lbs
  • Outer tube diameter: 2-3/16"
  • Inner tube diameter: 1-15/16"
  • Footplate diameter: 5-1/2"
  • Power wire: 10 gauge
  • Motor draws 30 amps under load
  • 2-Year warranty


How to Determine the Lift Capacity You Need in a Jack

A trailer jack is designed to lift the tongue of your trailer so you can connect the trailer coupler to your hitch ball. To do this, you'll need a jack with a lift capacity high enough to handle your trailer's tongue weight.


Tongue weight is the amount of weight that your trailer applies to the back of your tow vehicle. Typically, your tongue weight should be 10-15% of your total trailer weight (trailer + cargo). In other words, a 10,000-lb trailer would have a tongue weight between 1,000 lbs and 1,500 lbs. For a trailer this size, you would need a jack with a lift capacity of at least 1,500 lbs.


It's okay to have a jack with a weight rating that is higher than your trailer's tongue weight. In fact, a jack with a higher lift capacity should operate more efficiently, allowing you to spend less time cranking and more time camping.


Trailer and Camper Jack Lift

Every jack offers a certain amount of lift or travel. Screw travel is the distance the jack extends when you crank it (or toggle it to "extend" on an electric model). Some jacks include a drop leg for extra adjustability. On these jacks, you'll see the maximum extension of the drop leg listed in the specs as well. Adding the screw travel and drop leg travel together will give you the total lift. The total lift listed above can help you determine how high this jack will be able to raise your trailer.



JET-5000 Stromberg Carlson Electric A-Frame Trailer Jack - Black - 23" Lift - 5,000 Pounds

Item # JET-5000




California residents: click here


Customer Satisfaction Score:


Customer Reviews

Stromberg Carlson Electric Trailer Jack - Drop Leg - A-Frame - 23" Lift - 5,000 lbs - Black - JET-5000

Average Customer Rating:  4.8 out of 5 stars   (532 Customer Reviews)

Use this electric tongue jack to lift your trailer with the flip of a switch. The sturdy steel jack can handle up to 5,000 lbs. It has 18" of travel and a 5" drop leg for extra lift. LED lights on both sides boost visibility at night.

by:

Had been contemplating this purchase/install for a couple of years. Finally bit the bullet. Purchase was simple. Shipping was a day late in arriving, not a real issue, because I live in a rural area. Shipping delays are expected.
Installation was very straight forward, remove three bolts, replace three bolts. That was all there was as far as the mechanical installation. For the electrical portion I elected to splice into the battery power wire that is part of the 7-wire electric cable on the trailer, in lieu of running a dedicated #10 wire direct from the trailer battery.
The jack seems to operate just fine, as anticipated. I have run the jack a number of times over the last few days without issue.
Why not a 5 star review, just haven't owned it long enough nor operated the jack enough. Ask me in 5 years.




by:

Works flawlessly. Maybe the only thing I could complain about is it is slower than I think it could be. Along with the side lights could always be brighter. Works great, install kit is awesome, and it works without a stutter.




by:

This is a great electric jack. I highly recommend this American made jack and Etrailer as your supplier. It’s easier to order from Etrailer than deal with my local trailer shop. I have purchased from these folks several times without any issues.




by:

Does exactly what I brought it for. I really like the ease of lifting the tongue off my vehicle hitch ball especially when the trailer is stubborn to release from the ball. It sure beats hand cranking up and down.




by:

Easy to install. Took about 45 minutes to remove the old jack and replace with this one. Have used it now for about 4 months and, although the motor is a little noisier, it works well and seems to not be straining with my approx. 1000 lb. tongue weight.




by:

Works perfectly. Super easy installati on.




by:

A really great product... makes hook up of my concession trailer much easier.


Comments
still going strong after one year!
Ken S - 04/17/2021


by:

Seems rugged enough. I bought it based on a review that said it was still running strong a few years later. I was disappointed in the length of the drop leg and the speed of the jack. It’s really slow.




by:

Absolutely wonderful. I would never have another horse trailer without a Stromberg Carlson Trailer Jack 5000.




by:

I just installed the Trailer Jack. It was an easy install and seems to be working fine. I turned the lights on and they seem kind of dim but it was still daylight and I was in the shade. The hitch was delivered three days after the estimated delivery date, the box was beaten up but the hitch and Styrofoam where in good shape. Would have given 5 stars but for the late shipping.




by:

Easy search for the product, arrived promptly. Easy install, awesome upgrade. Good to go for years to come!!




by:

this isn t the first item ive bought from e trailer ....even had a small issue that was outside their control and they kept on it till it was resolved .....great story AAA+++++




by:

great, easy to install, works easily, e trailer does follow on purchases, good products and good vendor




by:

Works great! Kids love helping with hooking up and disconnecting now.




by:

Since installing I have no issues with the trailer jack and works like it should




by:

Great jack. Easily lifts 32'camper and rear of F250 for hitch set up. Plenty fast and like the extendable foot.




by:

Exceptional customer service - placing my order online through etrailer.com was easy and efficient.

I was contacted when the order was logged and throughout the shipping process.

Will definitely use this business again




by:

So nice! Awesome buy!




by:

This is the second one of these we have purchased. It is used on a food trailer that is driven to a different spot each day. It never lets us down and handles enormous pressure in all weather.




by:

We really like our electric jack. It is everything we excepted.




by:

Installation was very simple and the unit works great so far. Etrailers pricing is excellent especially during tbese times and shipping was fast. Will definitely order from them again




by:

Great product, arrived on time.




by:

So far my experience with etrailer has been great. Easy on line ordering, shipping was very quick. I have not installed my trailer jack but my experience to date has been great.....w




by:

Nice product, well built and very easy to install. Just watching the video made it very simple to install. All parts arrived as specified. Operated right after installation, was very pleased with this purchase.




by:

Seems like a very good jack very good service havein it shipped very easy to install good instructions I will definitely buy from them again


Comments
great
William A - 03/10/2019

25
532
Show More Reviews

See what our Experts say about this Stromberg Carlson Camper Jacks

  • Comparing the Stromberg Carlson Trailer Jacks # JET-5000NG VS JET-5000
    All-around the Stromberg Carlson Electric Trailer Jack # JET-5000NG is nicer than the # JET-5000. The bearings in the part # JET-5000NG allow it to raise and lower much smoother and quicker, the size of the head is a bit smaller and the lighting is nicer too. For how similar the price is between the two the # JET-5000NG really is the winner.
    view full answer...
  • Can the Head of the the Stromberg Carlson JET-5000 Be Rotated When Installed
    The Stromberg Carlson Electric Trailer Jack # JET-5000 uses a 3 bolt mounting flange to attach to an A-frame trailer. If you wanted to rotate the jack on this flange you certainly could, but it would not be at a 90 degree angle since the mounting flange is basically triangle shaped. It would be more like a 120 degree rotate.
    view full answer...
    Image 1 for
  • Would a 3,500 lb Powered Trailer Jack be Adequate for 2007 Forest River Travel Trailer
    A 3,500 lb A-frame powered jack is going to be more than plenty for your Forest River travel trailer. The rating for the jack is based on it's lifting strength and your trailer would not have more than 3,500 lbs of tongue weight. That being said, a higher rated 5,000 lb jack like part # JET-5000 is going to allow the trailer to raise and lower quicker as the increased capacity gives it more strength and speed. Choosing a higher capacity like this will also extend the life of the jack...
    view full answer...
  • Trailer Jack Recommendation for a 2015 Forrest River Wildwood X Lite 195BH
    I really like the Stromberg Carlson Electric Trailer Jack - Drop Leg - A-Frame - 23" Lift # JET-5000 that you referenced. It has a 5,000 pound capacity which is more than you need. Having extra capacity will help the jack work quickly and last longer. I attached an install video for you to check out as well.
    view full answer...
  • Powered Jack Recommendation for a 5,000 lb Travel Trailer
    Going with a powered a-frame jack that has more than enough capacity like the Stromberg Carlson Electric Trailer Item # JET-5000 will benefit you in that the jack will raise and lower quickly without any strain. The capacity of your your jack is based off of your tongue weight which is 10-15% of your trailer weight. This # JET-5000 has a capacity of 5000 pounds which would be more than enough for your trailer. Going with a higher capacity than you need makes the jack work easily and...
    view full answer...
  • Electric Trailer Jack Recommendation for 7,400 lb Trailer
    The weight rating for trailer jacks is the vertical lifting strength they have. The Stromberg Carlson Electric Trailer Jack # JET-5000 is an excellent jack that has a vertical lifting strength of 5,000 lbs. Your trailer would most likely have a tongue weight of 740 to 1,000 lbs so this jack would make easy work of it. I always recommend going much larger on electric jacks to make the lift quick and easier. I attached a review video for this for you to check out as well.
    view full answer...
  • Why Would Powered A-Frame Jack Make Buzzing Noise and Stop Operate
    The buzzing noise you described is typically the sound a jack will make when it can't draw enough amperage to operate. Are you sure the power source you are using for the jack has adequate amperage to power the jack and isn't a battery nearly dead? Also check to make sure the jack is grounding properly as well. Some ground through mounting bracket and others through a separate wire.
    view full answer...
  • Recommended Bolt-On Jack for Straight-Tongue Trailer
    We do not offer an adapter to allow an electric a-frame jack like the Stromberg Carlson # JET-5000 to be installed on a straight pole tongue trailer. It is potentially possible to direct-weld one but this comes at the risk of the heat from welding damaging the jack inner tube. It is just easier and safer to install a new jack that is suited to a straight tongue trailer. The linked page will show you all bolt-on side-mount jacks which are rated from 400- to 2000-lbs. You can choose your...
    view full answer...
  • Will the Stromberg Carlson Trailer Jack Fit Standard 3 Bolt Mounting Flanges on Trailer Frames
    Yes, the mounting flange of the Stromberg Carlson Electric Trailer Jack - Drop Leg - A-Frame - 23" Lift - 5,000 lbs - Black, Item # JET-5000 you referenced is designed to fit the standard 3 bolt mounting flange that you trailer has. This will measure right at 3 inches between each adjacent hole with a bit of wiggle room since the holes are typically slotted. I attached an install video for this jack for you to check out as well.
    view full answer...
  • Powered A-Frame Jack Recommendation for a 2011 Keystone Passport 290
    We do carry powered A-frame jacks that would work well on your 2011 Keystone Passport trailer model 290 BH. I really like the Stromberg Carlson Electric Trailer Jack # JET-5000. This jack has a lifting capacity of 5,000 lbs which would be more than adequate for a 5,600 lb trailer that would have a tongue weight of around 500-700 lbs most likely. The extra capacity is great because it allows the jack to work without strain. It works quicker and last longer this way.
    view full answer...
  • Would Stromberg Carlson Electric Trailer Jack Brute Trailer Jack Replace Lippert Jack
    The Stromberg Carlson Electric Trailer Jack part # JET-5000 is a great option for you that would work well and would replace your current jack easily. This jack has more capacity AT 5000 pounds. This allows the jack to work less and consequently last longer. I attached an install video for you to check out as well. The 2-3/16 inch tubing diameter is the outer tube.
    view full answer...
  • Will Stromberg Carlson # JET-5000 Fit a Forest River Rockwood Windjammer 3025W
    I pulled up pictures of your Forest River Rockwood Windjammer 3025W and the Stromberg Carlson Electric Trailer Jack - Drop Leg - A-Frame - 23" Lift - 5,000 lbs # JET-5000 that you referenced would fit it well. This is my favorite jack to recommend as it has a 5000 pound capacity which allow it to operate quicker and without strain, this should make it last longer. I attached an install video for you to check out as well.
    view full answer...
  • Recommended Electric Jack for 2007 R-Vision A-Frame Trailer
    I did some research and it looks like you have an A-frame jack currently on your trailer. For an electric A-frame jack I really like the Stromberg Carlson Electric Trailer Jack - Drop Leg - A-Frame # JET-5000. The # JET-5000 has an 23 inch lift with drop leg and 5,000lb weight capacity which will be great for your 2007 R-Vision. This powered jack features front and side LED lights for nighttime visibility. I have linked the jack to this page for you.
    view full answer...
  • Powered A-Frame Jack Recommendation for Aluminum Trailer
    Powered A-frame jacks are rated by the amount they can lift vertically. Your trailer that weighs 10k would have a tongue weight of around 1,000 lbs. A trailer jack like the Stromberg Carlson part # JET-5000 with it's 5,000 lb lifting strength would have no problem lifting a 1,000 lb tongue weight. The dissimilar metals shouldn't be a problem either since this is powder coated, but you could paint your trailer where the jack attaches to seal the aluminum if needed.
    view full answer...
  • Fit and Compatibility of Stromberg Carlson Electric Trailer Jack on a 10K Car Hauler
    You are correct, a trailer jack is only going to be lifting the tongue weight of the trailer. This means that it does not have to have the same or higher capacity as the gross trailer weight. On a trailer weighing in at 10K the tongue weight at 10 to 15 percent would be 1,000 to 1,500lbs. A jack rated for 5,000 pounds, such as Stromberg Carlson # JET-5000, that you have referenced, would have more than enough capacity for the 10K trailer. The higher the capacity of the jack will make...
    view full answer...
  • How is 5,000 lb Stromberg Carlson Trailer Jack Rated
    Our powered A-frame trailer jacks are rated by lifting strength. So a jack like the Stromberg Carlson Electric Trailer Jack - Drop Leg - A-Frame - 23" Lift # JET-50007 which has a 5,000 lb capacity could lift tongue weight of up to 5,000 lbs. Your trailer that weighs 10k would have a tongue weight of around 1,000 lbs so this jack would easily work well for it. Getting a jack with a capacity higher than needed makes the jack work quicker and easier and it tends to last longer.
    view full answer...
  • Circuit Breaker Rating for the Stromberg Carlson Powered A-Frame jack part # JET-5000
    The motor of the 5,000 lb rated Stromberg Carlson Electric Trailer Jack - Drop Leg - A-Frame - 23" Lift - 5,000 lbs - Black Item # JET-5000 is rated for 30 amps so that is where it's circuit breaker would be rated at.
    view full answer...
  • Does Strom. Carlson 5K A-Frame Trailer Jack have the Capacity to Lift 2016 Grey Wolf 22R Toy Hauler
    An A-frame trailer jack such as # JET-5000 is only lifting a portion of the weight of the trailer. So provided that the tongue weight of the trailer is under 5,000 pounds the jack will have no problem lifting it. Based on the specs I found on your 2016 Grey Wolf 22R the tongue weight maximum with the trailer loaded to capacity is 1,076 pounds so that is well within the capacity of the jack. I have linked a couple of videos on this jack for you.
    view full answer...
  • Electric Jack Recommendation for Car Hauler Hauling 3,400 lb Car
    Cranking jacks is one of the lead causes of crankiness so I can sympathize with you there! The Stromberg Carlson Electric Trailer Jack # JET-5000 that you referenced has a 5,000 lb lifting strength and would make easy work of your trailer. The bigger the better is the right mindset as having an overkill jack allows it to work faster and last longer since it won't be straining.
    view full answer...
  • Will the Stromberg Carlson Electric Trailer Jack # Jet-5000 Still Function in Cold Weather
    The Stromberg Carlson Electric Trailer Jack # JET-5000 that you referenced has never been tested to see what would be the coldest temperature that it would still function. If other standard electrical components are still functioning on your trailer I would imagine this jack would work just fine as well. If you are in a climate that requires specially rated electrical components for extreme cold weather I would imagine this jack would not function at it's potential.
    view full answer...
  • Can an Electric Trailer Tongue Jack Be Wired to Trailer Lighting Circuits
    It is not possible to wire any other electrical components, apart from lights and low-power items such as the on-off circuit for a backup camera, to the lighting circuits on a trailer. Connecting any power-hungry device to lighting circuits would result in excessive current draw and could potentially damage the trailer wiring harness and/or the wiring in the vehicle itself. A tongue jack like the Stromberg Carlson Electric Trailer Jack # JET-5000 that you referenced will pull 25-amps...
    view full answer...
  • Will Stromberg Carlson Electric Trailer Jack Work With 2014 Prowler Camper That Weighs 9000 Lbs
    The Stromberg Carlson Electric Trailer Jack - Drop Leg - A-Frame - 23" Lift - 5,000 lbs - Black, Item # JET-5000, is a great choice for your 2014 Prowler 30XL. You can check your tongue weight to make sure this jack will work for you. It has a lift capacity of 5,000 lbs. If you would experience loss of power, a manual override crank is included. The jack features a drop leg distance of 5 inches and lift distance of 18 inches for a total of 23 inches of travel. I have attached a link...
    view full answer...
  • Trailer Jack Will Not Run After Installation
    You have the right idea with the ground problem. The Stromberg Carlson Electric Trailer Jack # JET-5000 does ground through its mounted location. If it is not attached to bare metal or if the metal is aluminum and not steel then that could interrupt the ground connection. You can try running a jumper wire from a mounting stud to the negative battery terminal and see if it runs. Make sure also that you are using the inline circuit breaker. it is a manual reset circuit breaker so if it...
    view full answer...
  • Can Stromberg Carlson Electric Trailer Jack JET-5000 Be Powered by Trailer Breakaway Battery
    Breakaway batteries typically carry a modest Ah (amp-hour) rating of around 5 to 9 amps. This is enough to engage your trailer's electric brakes for the required 15-minutes in the event of a disconnect. A powered trailer jack like the Stromberg Carlson Electric Trailer Jack # JET-5000 will draw 30 amps at its rated load capacity, which is far in excess of what a breakaway battery can provide. Even if it had the capacity for the jack, using it in this way could mean that it would not have...
    view full answer...
