Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.
/
Stromberg Carlson/
A-Frame Jack/
3500 lbs/
Electric Jack/
24 Inch LiftItem # JET-3555
Retail:$249.95
Our Price: $163.59
This item qualifies for free shipping
Use this electric tongue jack to lift your trailer with the flip of a switch. The sturdy steel jack can handle up to 3,500 lbs. It has 19" of travel and a 5" drop leg for extra lift. LED lights on both sides boost visibility at night.
Features:
Specs:
Customers compare JET-3555 to these similar products
Customers Who Purchased This Camper Jack Also Bought...
Replacement parts available for this product

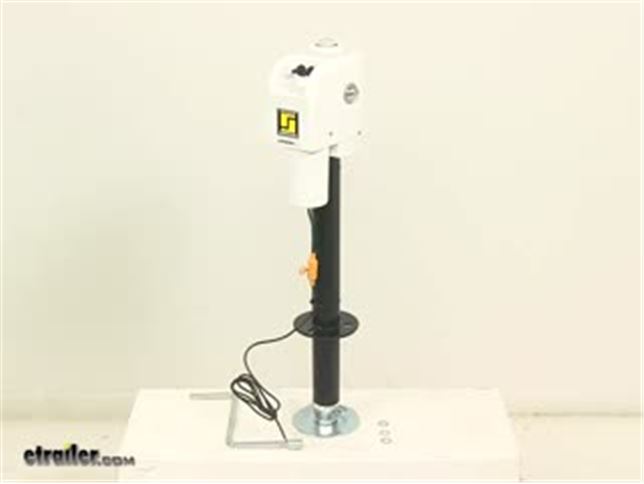

Video of Stromberg Carlson Electric Trailer Jack - Drop Leg - A-Frame - 24" Lift - 3,500 lbs - White
Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.
Today we're going to be taking a look at the Stromberg Carlson Electric Trailer Jack. It's going to feature a 12-volt motor. It's going to let you lift and lower your A-frame trailer quickly and easily, so no matter having to hand crank like with those manually operated jacks. This jack features a lift capacity of 3500 pounds. It's going to work great for most trailers out there. It's going to feature these top-mounted toggle switches.
Accessibility is super easy on this jack. Toggle switches are right here, they are protected, they've got a nice coating on them for an easy grip design. They're going to be protected from the elements. One of those toggles simply controls the LED lights located on each side of the trailer jack. The other one controls the up and down movement of the trailer jack. Again, it does feature these large LED lights here on the sides.
These are designed to simply broadcast light at a downward angle which is going to illuminate your coupler area. It's going to make connecting and disconnecting much easier in low light or even at night. That's a great feature of this unit. Located here on top, it does feature a bubble level. That's going to help level your trailer. That bullseye design helps level front to back and side to side.
This jack features a built in clutch that's designed to simply protect the gearing and the motor. It's going to feature a single wire design. This is your power wire. It measures about six feet long. It's going to be a 10-gauge wire.
That's how it receives it's power. The unit is going to ground through mounting hardware. Now mounting hardware is not included, but it does come with three star washers to help ensure a good solid ground connection. Now those are 3/8 inch diameter washers, that's the inner diameter, so they'll accept mounting hardware that has a diameter of 3/8 of an inch as well. Again, the mounting hardware is not included but it does come with those three star washers to make for a good ground connection. This motor's going to draw 30 amps under load. The jack is fuse protected, so right here in the fuse holder there's going to be a 30-amp fuse. One of them is already installed. It also comes with a spare. The jack features a drop leg, which allows for greater and quicker adjustability. Drop leg is held in place with this pin and clip. If we pull that out, that piece right there is our drop leg. Multi-hole design. Again, allows for easy and quick adjustability when needed. Also reduces the amount of retracting so when you're ready to set your trailer, or park it, you can extend the drop leg first by pulling the pin and clip movement to the hole that gives you the most distance or added length and then you can retract the jack and you just don't have to do as much retracting. Once you find the hole you need you simply just place in that pin and it secures that clip on the other side. The drop leg is included. The jack is also going to feature rust resistant finishes. We're going to have a powder coated, steel here on the outer tube and on the mounting plate. Then the inner tube, drop leg, and footplate is going to be a zinc-plated steel. Right here at the housing, this is made of vacuum formed plastic for protection from the elements. That's a very strong durable design. The cover is white in color and it's designed to resist fading and corrosion. At the bottom of that drop leg is the round footplate. That does a great job at spreading out the applied weight, especially on softer surfaces to help prevent sinking. That footplate diameter is about 5-1/2 inches. The unit also comes with an emergency crank handle that allows you to manually operate the jack if needed. For example, if you lose power or you have power failure, you can use this to still control the up and down movement of the jack. This jack can be bolted onto your trailer frame, so it's a bolt on installation. It can also be welded on to your trailer frame. Again, it is designed for an A-frame trailer. Mounting hardware is not included but it does come with those three star washers. These mount holes are going to be separated on center by about 3 inches. That's kind of industry standard so it is going to fit most of the A-frame trailers out there on the market. A few measurements to go over with you real quick and then we're actually going to hook it up to power. That way you can see what the lights look like and you can kind of get an idea of how quiet and how quick it is. With it fully retracted, which is the position it's in now, the unit gives us a bracket height from the ground to the bottom of the bracket of about 8-1/2 inches. With it fully extended, that increased to 27-1/2 inches which gives us a travel of 19 inches. That drop leg provides an additional 5 inches of travel, which gives us a total lift with this jack of 24 inches. Now I mentioned that crank handle earlier. The location to insert that is right here where that level is located. What you do is you simply remove that cap, and then in there is going to be the connection point for that crank handle. This cap creates a really nice tight seal. That way you don't have to worry about dirt and moisture getting in there. That's a nice design as well. The amount of clearance that we have from the bottom of the mounting plate to the very top of the jack, it's going to measure about 23 inches all the way up to the top of that level. Outer tube diameter is 2-1/4 inches. Inner tube diameter is 2 inches. We're going to go and hook it up to power. That way you can see what it looks like, and how those lights work. I'm trying to hook up my power wire and then I need to make a good ground connection. That should do it. Right here we have those LED lights, nice soft light, again it's going to take that light, put it at a downward angle. There's going to be another located right there on the other side. When you're ready to lift the jack up, all you have to do is lift up on this toggle. Pretty quiet operation. Nice smooth, consistent movement as well. Internal components do come lubricated, so that's going to allow for smooth operation. As soon as you let go it stops and then you can just push down to retract it. There is a sticker there that gives you a visual indicator. It simply just states that you don't want to retract it beyond that point. Once we hit the top of that sticker we simply just want to let off of the toggle switch to keep from over-retracting our jack. That's going to do it for today's look at the Stromberg Carlson Electric Trailer Jack.
Average Customer Rating: 4.8 out of 5 stars (16 Customer Reviews)
Use this electric tongue jack to lift your trailer with the flip of a switch. The sturdy steel jack can handle up to 3,500 lbs. It has 19" of travel and a 5" drop leg for extra lift. LED lights on both sides boost visibility at night. by: Otto S.09/28/2016
Mounted quick and easy. Plenty of wire for electrical hook up. Lots of power even with a full load of water in the front tank. The only change I made to installation was longer bolts to accept washers and nuts to the bottom side of hitch. I didn't trust the taped holes in the thin hitch frame. This was no fault of the new jack. Still working strong. A back saver that's worth the money. I should have bought one years ago! 300979
by: Mike M.03/17/2017
After a year of use, I am still very pleased with my electric Jack. It moves up and down at a good speed. It handles the 700 lbs of tongue weight of our travel trailer with no struggle. It is relatively attractive compared to some others. The white cover matches the propane bottle cover behind it. My only complaint is I wish the lights were a little brighter. They are better than fumbling with a flashlight in the pitch dark, but just not as bright as I had expected. All in all, I am very pleased and would buy another without any reservation. 353846
by: Cole05/27/2015
Item is well packaged from factory for shipping. Received item quickly from warehouse. Time to install from opening package to lifting the camper was 8 minutes 30 seconds. It took 3 minutes to look at the fuzzy diagram on where the star nuts go when putting the three bolts back into the frame. Be sure to have a 10-12 gauge butt connector or something equal to your application, as no electrical connections are supplies. All in all, I would buy this again and will recommend this to others who might need to have an electrical jack replaced. 198314
by: Frank P01/05/2017
Amazing service, ordered the jack on Monday, didn't expect it till the following Wednesday. It arrived Friday of the week I ordered it, now that is great customer service. The Jack was exactly as described, took me about 20 minutes to install and wire. Very nice product, and not slow like some people said. It moves faster than I did when I jacked up the trailer tongue manually. Thank you etrailer for a good product and even better customer service. 330173
by: Steve02/08/2017
I can't review the electric trailer jack since it is winter and I won't be installing it for several months. But I can rate etrailer and the order speed. I ordered the jack on Sunday evening and it was delivered Wednesday morning. No problem there! 339812
by: Bob L04/02/2015
Quick delivery. Took 15 minutes to exchange this electrically powered unit for my old crank model. Mine is the 3500 capacity and seems to lift a fully loaded heavy duty landscape trailer with ease. What a relief!! Tired of hand cranking! Nice unit! 182521
by: ben d04/06/2017
As usual, etrailer shipped my order quickly and it arrived in perfect condition. This site handles quality merchandise and provides excellent service. I will continue to be a repeat customer and recommend etrailer to friends 363865
by: Adriaan04/19/2017
Easy to install. Lights work well during The twilight hours when I generally pull into the camp site. Lifts trailer easily and the extendable foot is flexible for all terrain. 369467
by: Kurt11/05/2016
Bought it to replace a manual jack that stripped the gears. Easy installation, bolt holes lined up perfectly. Installed including wiring in under 30 minutes. 314108
by: Eric V.05/12/2017
Great quality for a great price! Easy straight foward installation. The same item sells for $279 at a local RV parts store. 379390
by: bob06/09/2016
AWESOME PRODUCT WORKS WELL LIFTS MY TRAILER FOR HOOK UP AND DISCONNECT WITH EASE 259294
AWESOME
bob - 06/09/2017by: Vince02/24/2017
Good price, fast shipping, excellent packaging. So far I'm happy with purchase. 345273
by: Greg N07/15/2016
The jack has worked exceptionally for me and would recommend it to others. 272171
by: Doug05/30/2016
Very nice choice I made... the jack was easy to install and performs great 253971
by: BROOKS02/16/2017
GREAT SERVICE, FAST SHIPPING, EASY TO I NSTALL... 342413
by: Marty Botham03/11/2017
You guys rock!!!! I'll be back 351270
