Pro Series Round, A-Frame Jack w/ External Gearbox - Sidewind - 14" Lift - 2,000 lbs

Pro Series Round, A-Frame Jack w/ External Gearbox - Sidewind - 14" Lift - 2,000 lbs

Item # PSRV20000103

lowest price pledge

Retail:$50.38

Our Price: $29.95

You Save: 41%
Trailer Jack

Orders above $50 qualify for Free Shipping

Shipping Weight: 11 lbs

Arrives before Christmas with Ground or Free Shipping.
Quantity:
In Stock
Pro Series Trailer Jack - PSRV20000103
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

In Use/Installed

Customer Photos

Videos

Ideal for multiple agricultural and commercial applications, this standard A-frame jack features a 9" retracted height and measures 13" from the mounting bracket to the top, excluding the handle. Base sold separately. Lowest Prices for the best trailer jack from Pro Series. Pro Series Round, A-Frame Jack w/ External Gearbox - Sidewind - 14" Lift - 2,000 lbs part number PSRV20000103 can be ordered online at etrailer.com or call 800-298-8924 for expert service.
  • All Info
  • Reviews (132)
  • Q & A (41)
  • Videos (1)
  • Photos
  • Why etrailer?

Pro Series Trailer Jack - PSRV20000103

  • A-Frame Jack
  • 2000 lbs
  • Sidewind Jack
  • No Drop Leg
  • Pro Series
  • Standard A-Frame Jack
  • Bolt-On
  • Weld-On
  • 14 Inch Lift
  • No Wheel or Foot

Ideal for multiple agricultural and commercial applications, this standard A-frame jack features a 9" retracted height and measures 13" from the mounting bracket to the top, excluding the handle. Base sold separately.


Features:

  • Utility jack is perfect for agricultural and commercial applications
  • Precision-fit parts provide exceptional stability and reliability
  • Weld-on/bolt-on bracket mounts to any standard A-frame coupler
  • Front-facing, sidewind handle has smooth, ergonomic design for easy cranking
  • External gearbox is easily accessible
  • Outer and inner tubes have black paint finish
  • Footplate or caster assembly sold separately


Specs:

  • Winding box: 3" wide x 2-1/2" tall x 2-1/2" deep
  • Bracket height:
    • 9" Retracted
    • 23" Extended
  • Total height (retracted): 21"
  • Lift: 14"
  • Clearance: 13" from mounting bracket to top of jack
  • Inner tube diameter: 2"
  • Outer tube diameter: 2-1/4"
  • Tube wall thickness: 2-3 mm
  • Lift capacity: 2,000 lbs
  • Limited 1-year warranty


RV20000103 Pro Series Round A-Frame Jack - Sidewind - 14" Travel - 2,000 lbs

RV2000 Fulton A-Frame Utility Trailer Jack - Round, Sidewind, 2,000 lbs






California residents: click here

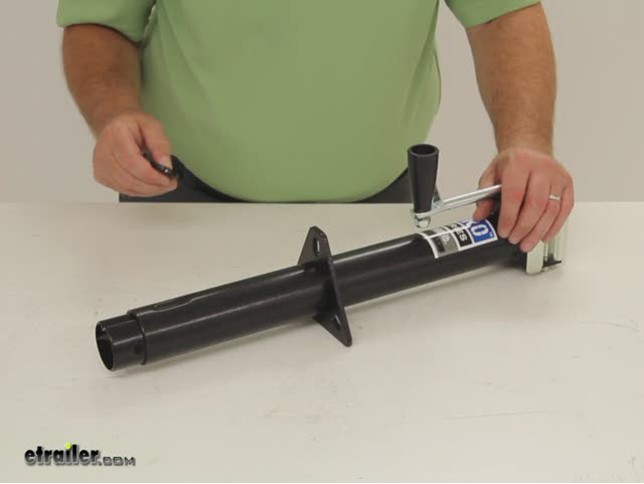

Video of Pro Series Round, A-Frame Jack w/ External Gearbox - Sidewind - 14" Lift - 2,000 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Pro Series Round Sidewind A-Frame Jack Review

Today we're going to be reviewing and installing the Pro Series Round A Frame Jack with the external gear box. It's going to have a 2,000 pound capacity. Part number PSRV20000103. We're also going to be using the Pro Series Detachable Foot Plate. This is going to be sold separately with part number PS1400700340. We went ahead and removed the previously installed jack. As you can see it's going to expose the new area where the new jack is going to fit.

Basically we're going to slide this down into position. You can see here that we're going to line up our holes with the thread holes in the A frame coupler. This is going to fit your standard A frame coupler. The distance that we have center on center between the mount holes is going to be right on 3". We're also going to use the previously installed hardware to install our new jack. It's going to have a star shaped washer, a lock washer and then the bolt itself.

We're going to get these started by hand. Then we can tighten them the rest of the way down using our socket wrench. The next step would be to go ahead and torque these down to the specifications in the manufacturer's instructions. For our demonstration today we're just going to go ahead and loosely install it, that way we can go over the rest of the features. Now we can take our foot plate, again this is sold separately. We're going to place it onto the bottom of the jack, line up the holes, and then insert the pin and secure it with that safety clip on the other side. We're going to go ahead and lower our jack all the way down so the foot plate is resting on the floor.

It's got a really nice, easy-to-use handle, it allows you to get a nice, secure grip on it. With the jack supporting the weight of our trailer we can remove the jack stands, we can get those out of the way. Now our jack is in it's fully extended position which is going to be 23". Fully retracted it's going to be a 9" extension, which is going to give us a lift of 14". The Pro Series jack is going to feature the external gear box mounted right here on top of the jack. The inner tube is going to give us a diameter of right at 2".

The outer tube is going to give us a diameter of 2-1/4". This jack is made from a steel construction. The outer and inner tubes have a black paint finish. This utility jack is going to be perfect for agricultural and commercial applications. It's going to feature precision-fit parts that are going to provide exceptional stability and reliability. We bolted this onto our trailer today but you can definitely weld this on as well. Again it's going to fit any standard A frame coupler. The side wind handle is front facing and it's going to feature a smooth ergonomic design for easy cranking. The winding box here at the top of the jack is going to measure 3" wide by 2-1/2" tall, by 2-1/2" deep. The clearance that we have from the mounting bracket to the top of the jack is going to measure 12". That's going to complete today's review and install of the Pro Series Round A Frame Jack with the External Gear Box, rated at 2,000 pounds. Part number PSRV20000103. .


Customer Reviews

Pro Series Round, A-Frame Jack w/ External Gearbox - Sidewind - 14" Lift - 2,000 lbs - PSRV20000103

Average Customer Rating:  4.8 out of 5 stars   (132 Customer Reviews)

Ideal for multiple agricultural and commercial applications, this standard A-frame jack features a 9" retracted height and measures 13" from the mounting bracket to the top, excluding the handle. Base sold separately.

- PSRV20000103
by:

Replaced a 1 1/2" 1000lb. Capacity top wind jack on a small Jayco pop up camper. Had to grind away a small portion on A frame opening to facilitate the larger Pro series jack. Holes for bolts had to be slightly enlarged to match existing threaded mounting holes. Then simply bolted on and attached the handle. The Pro series jack works so much better than the old top wind jack and requires less effort to use. Really pleased with this product and at a good price. Delivery is always fast ! 255932



- PSRV20000103
by:

I wrecked my A-frame jack on a horrendous dip in a highway. I naturally turned to my old stand-by and ordered a replacement for the factory jack. This one went right in, no problems. It took just a few minutes, but the real surprise was how well it worked. The old one was almost impossible for my wife to work, and this one can be operated with one finger. If I had known how much better this one would be, I would have replaced the factory jack years ago. 528115



- PSRV20000103
by:

Works just like the original (which got bent) on my RV, no issues a year later. Good product. 493620



- PSRV20000103
by:

with removable handle this should take care of tailgate clearance issues, received item within 5 days of order, great customer service. 345248



- PSRV20000103
by:

Worked great. Easy installation. Big improvement over top winder on Scamp. Unfortunately, can’t comment on long term use as we sold our Scamp and bought bigger Escape at the end of the 2017 camping season. 484171



- PSRV20000103
by:

This is 100x better than the jack I had on my horse trailer before. My wife can even crank it up now without and problems and I can do it with one hand vs the two and back strain I had with my old top crank. It's very smooth and there is very little motion in the trailer while raising and lowering. Bolted right on to my 94' Valley 2 horse without any problems. Added the foot plate and now I don't need to use a 4x6 to keep the trailer from sinking into the ground. Shipping was very quick (a lot faster than Amazon) and it was packed very well. Next month when it's time to do the brakes I'll be contacting these guys again! 44848



- PSRV20000103
by:

I purchased this product as a replacement for my top wind A frame jack. It was a toss up between this model and the Bulldog unit that Etrailer sells. I decided to go with this one because of the price and as cheesy as it may sound my trailer is black and this jack is black so they work well together. All in all the install was very simple and I'm very impressed at how smooth and easy this jack is to operate. It's a huge improvement over the top wind jack that came with the trailer and I'm very satisfied with the purchase especially for the price point! I also purchased the 6" caster wheel to complete the package and I have to say it's perfect! my trailer rolls around when off the ball with ease making storage a breeze. Kudos to Etrailer.com as well for expediting my shipping after I placed the order. Great customer service, I'll purchase from Etrailer.com again in the future when it comes to my trailer's needs. 162461



- PSRV20000103
by:

I purchased a Parkliner camping trailer which used the horizontally cranked version of this winch. I logged on to etrailer.com and asked if there was an adapter kit to convert my winch from a horizontal handle to a vertical handle. I received a prompt response explaining there was no such kit available. The response enclosed a link to the vertical handle model and said it was inexpensive enough to justify a replacement. I ordered the replacement and it arrived in two days. It was easy to install (same hole configuration). Service doesn't get any better than this. Thank you etrailer! 129305


Comments

The jack has been flawless. A good product at a reasonable price.

Bill - 05/08/2015

11500

- PSRV20000103
by:

Purchased A-frame trailer jack. Had an issue since the bottom hole on my trailer where the jack fits in is only 2 1/8 size and standard size for most A frame jacks is 2 1/4. I noticed in the video for this jack the person indicated the size was 2 1/8 however the actual spec for the product indicated 2 1/4 size. I called e-trailer and received very good custemor serivce. This person immediately wanted to understand the reason for the difference from the video and the actual specs. He went to the warehouse measured and confirmed the actual measurement was 2 1/8. I ordered the jack, it fit perfectly and works very well on my 32 ft camper. Good Customer Service ! 157367



- PSRV20000103
by:

After bending my old jack I purchased this jack . I did move the handle to the opposite side so I could drop my tailgate when needed. 314801


Comments

Trailer gets used twice a month

Lance M - 11/08/2017

30630

- PSRV20000103
by:

I installed two of them this morning and was very pleased with the weight of the product. They feel like they will last me a long time. Installations were a snap. One happy camper. 721845



- PSRV20000103
by:

Product was exactly what was described and works perfect for our trailer. 713788



- PSRV20000103
by:

The PRO Series 2000-pound capacity jack was delivered quickly and was found to be of excellent quality, especially for the price. It makes a great replacement for the a-frame screw type tongue jack on our horse trailer. The wife can easily hook-up or unhook the trailer single-handed now instead of needing someone to help her out. 711612



- PSRV20000103
by:

I needed a front handle jack since I was adding a bike rack that fits around the jack. Easy to install, works smoothly. Arrived on time. 710693



- PSRV20000103
by:

very fast delivery, arrived in good condition, highly recommend doing business with this company. 696029



- PSRV20000103
by:

Fits perfect. Smooth Opperation 694569



- PSRV20000103
by:

Took about 15. Min. Bolt holes were perfect very very easy to install.. Thanks for great product 672220



- PSRV20000103
by:

It has work very good so far no complaints s 671884



- PSRV20000103
by:

Fast, quality product and delivery 663180



- PSRV20000103
by:

Great jack! This is the second one I have bought from here. 643936



- PSRV20000103
by:

Product works great. Box was damaged upon delivery, but product was all right. 619618



- PSRV20000103
by:

Received tongue jack and had it installed in five minutes. Works great. Thanks. 610220



- PSRV20000103
by:

Affordable Jack that appears to be well made. Good Value for the money. 608122



- PSRV20000103
by:

great customer service 584003



- PSRV20000103
by:

great products, great prices. 583309



- PSRV20000103
by:

This will be use to replace the original unit with the crank handle mounted on top. I like the side crank better as it feels more natural to use. Mounting will be simply remove the old worn out unit and replace. Shipping was great. It was shipped the day it was ordered and arrived within a few days. I need one for a smaller trailer and will be ordering from E Trailer again. Thanks 580761



- PSRV20000103
by:

Great product, just as advertised. Speedy delivery. Couldn’t have been a better experience! 552899



- PSRV20000103
by:

Great jack great price and fast shipping 525892



- PSRV20000103
by:

Great product, great service and fast shipping. Thanks folks! 523921


Comments

Works perfectly and Im very pleased. Thank you.

Doug - 06/19/2019

56812

- PSRV20000103
by:

Received very quickly. 467263



- PSRV20000103
by:

Excellent quality and function. 449775



- PSRV20000103
by:

Nice jack. Had to modify my trailer to install but that's the trailers fault. Vintage Trailer jack holes are slightly smaller than the replacement 2" jacks. Jack did it's job on countless camping trips. Ordered the wheel and plate foot separately and it worked great with both of those. Having used it for about 20 months now I've noticed a skip/jump as the jack is lowered. Didn't do it when it was new. Doesn't do it when lifting. Other than thar it a been a solid jack. 433011



- PSRV20000103
by:

Used to replace a top wind jack on my car trailer, fit fine and works much easier. 430564



- PSRV20000103
by:

Great product and super easy install. Company upgraded shipping to a faster method at no cost. Jack is half the size of the one it's replacing, but twice as powerful. Great experience overall. 422638



- PSRV20000103
by:

Operates with less resistance. Easy to service 396320



- PSRV20000103
by:

great pricing, delivered on time, product is perfect for what i need 394843



- PSRV20000103
by:

Great products and super service. Arrived on time and in good condition. Products are always first rate and I can find stuff at etrailer I can't find anywhere else. My first stop for trailer parts. 389540



- PSRV20000103
by:

Good quality good price. Does not come with mounting hardware 378694



- PSRV20000103
by:

Haven't had a lot of use yet, but the stuff arrived on time, in good condition, and appears to last well. 366366



- PSRV20000103
by:

excellent product, fast delivery and excellent communication, couldn't be more satisfied! 361916



- PSRV20000103
by:

Friendly and helpful. Great service. Good product 351762



- PSRV20000103
by:

Easy to install,works as descibed 340413



- PSRV20000103
by:

Just what I expected 332088



- PSRV20000103
by:

My travel trailer is @ 1500# it does real good not hard at all to wind up. 328510



- PSRV20000103
by:

for the price this jack is the bomb 325963



- PSRV20000103
by:

Works great with storage box mounted behind the jack. 322086



- PSRV20000103
by:

Item was just what I expected and arrived right on time. 314256



- PSRV20000103
by:

Works and performs as advertised. 313689



- PSRV20000103
by:

This product has held up well. I thank e-trailer for their fast friendly service and quality products. 311200



- PSRV20000103
by:

Fit perfectly. I have never been disappointed with a purchase from etrailer. 309770


50
132
Show More Reviews

Ask the Experts about this Pro Series Trailer Jack

Do you have a question about this Trailer Jack?


  • Recommended A-Frame Jack Caster Wheel for 1-5/8 Inch Outer Tube Jack
  • The Removable Wheel for Dutton-Lainson A-Frame Trailer Jack Model 6418 # DL22414 is a fit for a 1-3/4 inch outer diameter tube. This is going to be the closest wheel to the 1-5/8 inch outer diameter tubing on your inner diameter jack leg. I don't recommend mounting a caster to the bottom of a foot plate as that could cause more issues and would still not fit properly without customization. Your other option would be to customize a sleeve to allow the Ram Removable, 6" Poly Caster Assembly...
    view full answer...

  • Selecting Replacement A-Frame Tongue Jack for 1984 Wilderness Trailer
  • Your photo shows that your A-frame tongue jack is a bolt-on side-wind type like # BD1700100317 and the others shown on the linked page. This example Bulldog jack has an inner tube with an inside diameter of 1-3/4-inches and an outside diameter of 2-inches which is very common. The etrailer jack # TJA-5000S-B and the Pro Series jack # PSRV20000103 that you referenced have the same size inner tubes. It is not really possible to tell the jack brand from the photo. It appears the jack may...
    view full answer...

  • Recommended Replacement Jack & Wheel For 1962 Aristocrat Travel Trailer
  • For your replacement trailer jack, I recommend the Pro Series Round, A-Frame Jack w/ External Gearbox - Sidewind - 14" Lift - 2,000 lbs # PSRV20000103. I recommend using the Ram Removable, 6" Poly Caster Assembly for 2" Jack Tube # JC-101 with this to give you the wheel you are currently missing as well, but that won't give you much clearance for travel when it is installed, so I recommend removing it for towing. This is easy with the included pin and clip. Another option is to change...
    view full answer...

  • Short Trailer Jack Recommendation for a 7000 lb A-frame Horse Trailer for Tailgate Clearance
  • I went out to my warehouse a pulled a few different jacks that I think will work for you. The Bulldog Round, A-Frame Jack, # BD1550101344, measures 14-1/2 inches from the bracket to the top of the jack, but you will lose an inch of lift with a 13 inch lift. You do, however, gain an increase in weight capacity at 3,000 lbs with this jack. Our best option may be the Pro Series Round, A-Frame Jack, # PSRV20000103. This jack measures only 13 inches from the mounting bracket to the top of...
    view full answer...

  • Jack Replacement Recommendation for a 2002 TrailManor 3023 Trailer
  • The part 80265 that you referenced is very similar to the part 80274 that actually became part 273400 except it has a lower capacity at 1,000 lbs instead of 2,000 lbs. The 273400 has also been discontinued. If you are looking for a sidewind a-frame jack I recommend you go with part # PSRV20000103 as this is our most popular option with a ton of positive reviews.
    view full answer...

  • 2000-lb A-Frame Jack to Replace Atwood 80274
  • Based on my research the Atwood jack 80274 was an A-frame type side-wind tongue jack with a 2K weight rating. The Pro Series jack # PSRV20000103 that you referenced is a suitable replacement for this discontinued product. The Pro Series offers a 2K weight rating, 14-inches of lift and measures 13-inches from the mounting bracket to the top, excluding the handle. This jack does not come with a wheel or foot plate but you can use either wheel part # PS1400750340 which will reduce...
    view full answer...

  • Is Weight Capacity of A-Frame Jack Determined by Trailer Tongue Weight
  • The weight capacity of an A-Frame Trailer Jack such as the Pro Series Round, A-Frame Jack # PSRV20000103 is in reference to the trailer tongue weight. This jack has a 2,000 lb capacity but you do need to go by the lowest-rated component so if you were to add the Pro Series 6", Detachable Caster # PS1400750340, which has a capacity of 1,200 lbs you would need to go by that capacity. To find out the capacity of the jack you need the easiest way is the Sherline Trailer Tongue Weight...
    view full answer...

  • Will Pro Series A-Frame Trailer Jack # PSRV20000103 Fit a Haulmark Trailer
  • The bolt pattern to mount an A-frame jack is a standard and the Pro Series jack, # PSRV20000103, also has slotted holes to allow for some variations in the pattern so it should work fine for you. Make sure that your current jack has an outer tube diameter of 2-1/8 inches so the new jack will fit. The Pro Series jack does not come with a foot or wheel. Your old foot might work if it fits around a 2 inch diameter lower tube. If you need a new foot use # PS1400700340. For a wheel use #...
    view full answer...

  • Replacement Trailer Jack Recommendation for a 2005 Haulmark Transport 6X10
  • I looked up some pictures of your trailer and it looks like the style of jack that came on your trailer is an A-frame style jack like part # PSRV20000103. This would be a great jack to use as a replacement as it should replace what you currently have and has plenty of capacity. I feel confident recommending this jack because of how many positive reviews it has as well. You may also be interested in a wheel caster part # PS1400750340 but should note that it would reduce the capacity...
    view full answer...

  • Replacement Trailer Jack Recommendation for a 2015 Little Guy Tag Trailer
  • From the picture you submitted you have an A-frame jack with a very similar sidewind jack handle to the part # PSRV20000103 that you referenced. This jack has a 2,000 lb capacity which should be more than enough and would work well. I attached a review video for you to check out as well.
    view full answer...

  • Replacement A-Frame Trailer Jack that Provides Clearance to Lower Tailgate
  • The Bulldog Round, A-Frame Jack w/ External Gearbox # BD155157 is one of the better options. This jack will measures 13 inches from the bracket to the top of the jack. It offers 13 inches of lift and is rated for 2,000 pounds. Another option is the Pro Series Round, A-Frame Jack w/ External Gearbox # PSRV20000103. This jack is also 13 inches from the bracket to the top of the jack. It's also rated for 2,000 pounds and has 14 inches of lift. A third option is to replace your ball...
    view full answer...

  • A-Frame Jack Solution for Trailer with Small Diameter Lower Jack Hole
  • Your best option is going to be to take your trailer to a welder/fabricator and explain to them that you need to have either that lower plate removed or expanded so that you can fit a new trailer jack in it's place. The standard jack outer tube diameter is right at 2-1/4 inches. We don't carry a jack that would fit the lower hole of your trailer so modifying your trailer will be your only option. Once you get that taken care of an A-frame jack like the part # PSRV20000103 would work...
    view full answer...

  • Can't Lower Truck Tailgate Because it Hits the Trailer Jack
  • There is an easier solution that a different jack. You can use a longer ball mount so that the trailer, and the jack, will be further away allowing you to lower the tail gate without hitting the jack. Then you could use any jack you wanted. If that sounds like something you are interested in I would need to know the length of the ball mount you are using measured from the center of the hitch pin hole to the center of the ball hole and the amount of rise or drop needed to tow the trailer...
    view full answer...

  • Foot Plate Recommendation for Pro Series Jack # PSRV20000103
  • For a foot plate that fits your Pro Series Jack # PSRV20000103 the part # PS1400700340 is the recommended plate. The # JF-1005H-Z fits other brand jacks and would not be the correct one to use.
    view full answer...

  • Replacing Swivel Jack on Coleman Fleetwood Pop-Up Trailer
  • It sounds like an A-Frame jack might be the way to go for you. If the gusset of your trailer tongue A-frame has the jack mounting holes, the Pro Series # PSRV20000103 would work great for you. The jack has a total lift of 14 inches, and a fully retracted mounting bracket height of 9 inches. If your A-frame does not have the mounting hole, you could replace the coupler with one that does. You will want to choose a coupler with the appropriate weight rating and for the same ball size as...
    view full answer...

  • Recommended A-Frame Side-Wind Tongue Jack for 2200-lb KZ Sportsman
  • With jacks or winches it is usually best to select an item with more capacity than you absolutely need. This extra capacity provides a safety margin and tends to mean such items will function better and last longer than ones that are used closer to their maximum. Plus this extra capacity usually does not cost you much more. I suggest the Pro Series side-wind A-frame jack # PSRV20000103 along with Caster Wheel # PS1400750340.
    view full answer...

  • Measurement From Outer Tube Of Pro Series 2,000 Lb Trailer Jack To End Of Handle
  • I went to our warehouse and pulled one of the Pro Series Trailer Jack part # PSRV20000103. I took some measurements and have attached a photo of the jack with the measurements noted. From the end of the handle to the outer tube on the jack it measures 4-1/8 inches. From the ends of the nuts on the top of the jack to the end of the handle the measurement is 7-1/4 inches.
    view full answer...

  • Available Types of Trailer Jacks
  • You'll first want to confirm the required tongue weight (TW) capacity of your new jack to ensure you choose one rated high enough for the job. A simple way to measure a trailer's actual TW is a scale like # 5780 but other ways to measure are noted in the linked article. It is generally a good idea to select one with a good bit more capacity than you actually need since this will typically help the jack last longer. Jacks come in several types. The ones you referenced, MaxxTow Round Swivel...
    view full answer...

  • Recommended A-Frame Jack for a 2006 Nash 22h Travel Trailer That Weighs 4,087 Pounds
  • Your 2006 Nash 22h travel trailer weighs 4,087 pounds and is 23 feet based on my research. It will have a tongue weight of 408-614 pounds. Take into consideration that the 4,087 pounds is the dry weight of your Nash travel trailer. The Pro Series A-frame jack # PSRV20000103 you referenced will not work because the outer tube diameter is 2-1/8 and your Atwood trailer coupler # AT81912 has a 2-1/4 inch diameter. I recommend # TJA-2000S-B. It has a capacity of 2,000 pounds and has an...
    view full answer...

  • Correct Trailer Tongue Jack Capacity for a Trailer with GVWR of 2980-lbs
  • When it comes to either trailer tires, hitches, winches or jacks, having extra capacity is a good idea. With jacks, using one rated for more weight than you're actually going to ask it to lift means it will have to work less hard to do its job. That tends to mean reduced wear and tear and can lead to a longer working lifespan for the jack. Since the cost difference between 1000-lb and 2000-lb jack is often quite small, it just makes sense to add safety margin whenever possible. For...
    view full answer...

  • Inner Leg Diameter and Wheel Caster Recommendation for Pro Series Jack part # PSRV20000103
  • The inner leg of the Pro Series jack part # PSRV20000103 that you referenced measures 2-1/4 inches in diameter. For a detachable wheel caster to fit this jack you'd want the part # PS1400750340 which is a confirmed fit as well.
    view full answer...

  • Replacement A-Frame Jack Recommendation for a 1992 Pace Enclosed Trailer
  • Sounds like you need an A-frame jack to replace what you currently have on your trailer. The Pro Series A-frame jack part # PSRV20000103 should work well for you as it has a 2,000 lb capacity and 14 inches of lift. For a foot you would want the part # PS1400700340, or for a wheel part # PS1400750340. You should note that using a wheel like this will cut the overall capacity down to 1,200 lbs.
    view full answer...

  • Trailer Jack Option for Trailer with 1-3/4 inch Hole for Jack Leg to Fit
  • All of the sidewind jacks like the part # PSRV20000103 will have an outer diameter of 2 or 2-1/4 inches. This one happens to be 2-1/4 inches. You would have to open up the lower hole to match the correct size of the larger jack. A qualified fabricator in your area would have no problem doing this. This jack would work great for you as it has more than enough capacity. For a foot plate you would need part # PS1400700340 or a wheel caster # PS1400750340.
    view full answer...

  • Recommendation for Car Trailer Jack That Won't Hit Tailgate of Tow Vehicle
  • In order to recommend a jack for you, I'll need some information. -What's the capacity of your current jack? -Is it an A-Frame jack like part # PSRV20000103? -How much clearance do you need? Measure from the top of the trailer tongue to the undrerside of the tailgate. If you can reply with this information, I'd be happy to make a recommendation.
    view full answer...

  • Length of Bracket To Jack Bottom and Bolt Hole Distance On Center for A-Frame Jack # PSRV20000103
  • Yes. The distance from the bracket to the bottom of the jack when retracted is 9 inches. The bolt holes on the mounting flange are 3 inches from center of one hole to the center of the next hole. The holes are equally spaced around the flange.
    view full answer...

  • Replacement A-Frame Jack Recommendation for 2003 Jayco 27BH
  • I looked up your 2003 Jayco 27BH and it looks like it uses a sidewind A-frame trailer jack just like the Pro Series part # PSRV20000103 you referenced. This jack has a lifting capacity of 2,000 lbs which would be a great option for your trailer that will be really easy to crank. I attached a review video link for this jack for you to check out as well. For a standard foot plate you'd want the part # PS1400700340 or for a wheel caster # PS1400750340 and you'd be set.
    view full answer...

  • How Easy Would it Be to Remove the Handle of the Pro Series Jack part # PSRV20000103
  • I pulled a Pro-Series Jack part # PSRV20000103 that you referenced to show you what it would take to remove the handle. When the reviewer said that it was easy to remove the handle he was referring to just the plastic portion, which can be removed with a wrench and socket. I attached a video that shows how the plastic portion of the handle does get removed.
    view full answer...

  • What is Outer Tube Diameter of Pro Series A-Frame Jack # PSRV20000103
  • The Pro Series Round A-Frame Jack # PSRV20000103 referenced in your question has an outer tube diameter of 2-1/4 inches. The inner tube has a diameter of 2 inches. This A-frame jack features a 9 inch retracted height and measures 13 inches from the mounting bracket to the top. It has a lift capacity of 2,000 pounds with a total lift of 14 inches. You can add a footplate with the Pro Series # PS1400700340 or a Caster Wheel with # PS1400750340. I have also attached a short video demonstration...
    view full answer...

  • Can Pro Series Round A-Frame Jack # PSRV20000103 Support the Tongue of a 5400-lb Travel Trailer
  • The Pro Series Round A-Frame Jack with External Gearbox, part # PSRV20000103, has a lift capacity of 2000-lbs. Typically trailer tongue weight is within 10-15 percent of gross trailer weight. If your trailer gross weight is 5400-lbs then this jack will have more than enough capacity to support the trailer tongue. You can confirm the trailer tongue weight by using either a tongue weight scale such as the Sherline # 5780 or by one of the alternate methods outlined in the included article. Please...
    view full answer...

  • A Frame Jack
  • Most A-frame jacks like Pro Series # PSRV20000103 and etrailer # TJA-2001-B do not have a swiveling inner tube since it is possible to just add a caster wheel like # PS1400750340 which does have a swivel mechanism. For your application where you need a jack with a swiveling inner tube you can use jack # BD1541150301.
    view full answer...


Do you have a question about this Trailer Jack?




  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality trailer jack for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate trailer jack information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Written by:
Lindsey S
Expert Research:
Robert G
Expert Research:
Michael H
Expert Research:
Jeff D
Expert Research:
Jameson C
Expert Research:
Adam R
Updated by:
Laura H
Updated by:
Rachael H
Updated by:
Sarah W
Updated by:
Ronnie R

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.
