Pro Series Square Jack with Footplate - Drop Leg - Sidewind - 28-5/8" Lift - 5,000 lbs

Pro Series Square Jack with Footplate - Drop Leg - Sidewind - 28-5/8" Lift - 5,000 lbs

Item # PS1401600383

lowest price pledge

Retail:$97.80

Our Price: $56.95

You Save: 42%
Trailer Jack

Orders above $99 qualify for Free Shipping

Shipping Weight: 19 lbs

Quantity:
In Stock
PS1401600383 - 29 Inch Lift Pro Series Trailer Jack
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Customer Photos


  • Side Frame Mount Jack
  • 5000 lbs
  • Sidewind Jack
  • Drop Leg
  • Fixed Mount Jack
  • Weld-On
  • Pro Series
  • 29 Inch Lift
  • With Foot
Drop leg jack with integrated footplate welds directly onto your application, has 25-3/4" retracted height and offers superior side-load strength for your agricultural or industrial needs. Includes sidewind crank. Lowest Prices for the best trailer jack from Pro Series. Pro Series Square Jack with Footplate - Drop Leg - Sidewind - 28-5/8" Lift - 5,000 lbs part number PS1401600383 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (25)
  • Q & A (20)
  • Videos (1)
  • Photos
  • Why etrailer?

Pro Series Trailer Jack - PS1401600383

Drop leg jack with integrated footplate welds directly onto your application, has 25-3/4" retracted height and offers superior side-load strength for your agricultural or industrial needs. Includes sidewind crank.


Features:

  • Superior side-load capacity compared with round jacks
    • Square design provides additional support for side loading
  • Durable, long-lasting steel construction
  • Outer tube has black paint finish
  • Inner tube is zinc plated
  • Sidewind handle has smooth, ergonomic design for easy cranking
  • Drop leg increases overall extension for maximum adjustability
  • Direct-weld design
  • Integrated footplate base


Specs:

  • Bracket height:
    • 25-3/4" Retracted
    • 54-3/8" Extended
  • Total lift: 28-5/8"
    • Travel: 15"
    • Drop leg: 13-5/8"
  • Lift capacity: 5,000 lbs
  • Static capacity: 5,000 lbs
  • Limited 1-year warranty


1401600383 Pro Series Square Direct Weld Jack with Drop Leg - Sidewind - 15" Travel - 5,000 lbs






California residents: click here

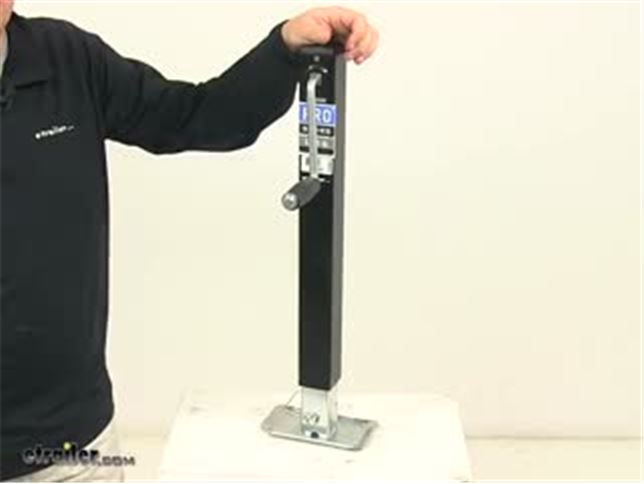

Video of Pro Series Square Jack with Footplate - Drop Leg - Sidewind - 28-5/8" Lift - 5,000 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Pro Series Trailer Jack - Side Frame Mount Jack - PS1401600383 Review

Today, we're going to take a look at the Pro Series Square Jack with Footplate, part number PS1401600383. Now, Pro Series covers this jack with a limited one-year warranty. It has the static capacity of 5000 pounds and a lift capacity of 3000. It's a sidewind style jack where the handle is on the side and it has a nice grip to make operation of the jack smooth and easy. The outer tube is finished in a black paint. The inner tubes and the welded footplate are zinc plated to provide corrosion resistance for the steel underneath.

Now, we're going to go over a couple of measurements. First, we're going to measure the completely retracted height. From the top of the jack to the bottom of the footplate, we get 25.8 inches. Now, we have the same jack here. However, this one is completely extended except for the dropleg and we're going to take that same measurement, again, from the top of the jack all the way to the bottom of the footplate and we get 40.8 inches.

Now, for you to extend the dropleg all the way, we did add up with a total length of 54.4 inches. The difference between the retracted and the extended measurement is 15 inches and that's known as the jack's lift or travel. And that's it for our quick look at the Pro Series Square Jack with Footplate, part number PS1401600383.


Customer Reviews

Pro Series Square Jack with Footplate - Drop Leg - Sidewind - 28-5/8" Lift - 5,000 lbs - PS1401600383

Average Customer Rating:  4.6 out of 5 stars   (25 Customer Reviews)

Drop leg jack with integrated footplate welds directly onto your application, has 25-3/4" retracted height and offers superior side-load strength for your agricultural or industrial needs. Includes sidewind crank.

- PS1401600383
by:

The jacks themselves are of very high quality. They are used to crank up a slide in truck camper. The only thing we wish we had are longer leg inserts (chrome plated legs). It would work much better if so. We ordered the longest extended size we could find in your selection. Great product and great experience with your business, thanks for following up! Ryan 351783



- PS1401600383
by:

I have a low car hauler trailer I use to transport my tractor from my home to my farm which is about 40 miles away. I wanted to move my trailer jack up toward the very front of the trailer to make room for the winch I am installing. (Don't want to leave the trailer at the farm because I use it more around here) So the winch is needed to pull the tractor onto the trailer in case it decides not to start. I needed a heavier jack than the one I had. The Pro Series from etrailer fit the bill perfectly. And the price with shipping was $20.00 less than the best price from local dealers. I have installed it and could not be more pleased with the product and customer service from etrailer.com. If you need trailer parts check out etrailer.com! You'll be glad you did! 180628



- PS1401600383
by:

Package was received timely. We have not yet opened the package Intendeling to install the replacement trailer jack next week 594777



- PS1401600383
by:

Item is as described, it is very well built. I think it is much stronger than what I will ever use it for. Should last just as long if not longer than the trailer it is welded to. 517905



- PS1401600383
by:

Excellent product. The biggest problem is that when they are shipped there is almost always damage. This time I bought ten and about half of them have the plastic dust cover on top broken or missing. 494634



- PS1401600383
by:

This product is what was needed to fix and support the trailer. works smoothly and does the job. 429637



- PS1401600383
by:

Just received the jack, very nice. Fast delivery and reasonably priced. 411026



- PS1401600383
by:

great to do business with 295351



- PS1401600383
by:

These jacks are relatively heavy and as good as they are strong it amazes me that UPS can damage a box attempt to conceal the damage by taping it up IN MY DRIVEWAY prior to delivering the product. New driver I guess. The jack is a solid performer for my trailers I am veto pleased with its performance. I think however ETrailer should post a product repair video when it come to maintenance beyond the grease gun. Like handle replacement ETC. Good job though 244440



- PS1401600383
by:

looks and works great 235770



- PS1401600383
by:

I ordered these Jacks for a special situation on one of my off road campers.they work exactly as I hoped.the shipping was very timely,and they were packaged well and in good order when I received them. Thanks! 208774



- PS1401600383
by:

This purchase was my third of this product. All work great. 158670



- PS1401600383
by:

The jacks themselves look to be very good, and I am happy with them. However the packaging was not done very well and the 3 jacks scratched each other up during transport. 150722



- PS1401600383
by:

Things couldn't have been better! Quick efficient service and kept me up with shipping! 127921



- PS1401600383
by:

The Good - This jack is a solid piece of equipment. Cranks smooth and the footplate is 1/4 inch thick with rolled edges. Plus a drop leg at a great price - Primo. The Bad - As seen in other jack reviews before my purchase - Packaging of such a heavy item needs attention. The box itself was so large that the jack assembly leaned from bottom corner to opposite top corner with a little extra room remaining. Packing consisted of 2 pieces of brown wrapping paper, maybe a total of 15 feet by 12 inch, if taped back together. This packing method announced a damaged product upon delivery, three punctures to the box (foot plate, crank handle, top cap). The cap did not survive. A piece of doubled over cardboard on each end of the jack may have prevented the damage altogether. The Conclusion - E-Trailer has provided everything someone in this position (Damage return product) could possibly expect. Courteous dialogue and a tone of trying to make the situation right. Return postage included. I WILL definitely return once this transaction is behind us, and I WILL definitely suggest E-Trailer to friends and family. They have great prices, service, and actually know what they're talking about - They also make you feel like a guest to their business, not just "another customer". 112726



- PS1401600383
by:

SOLID, this jack is heavy and does a great job. Love the drop down feature so I don't have to crank as much as on a standard jack. Just pull the pin leg drops to ground the put the pin back in the nearest hole. 107362



- PS1401600383
by:

trailer jack. Purchase two of them to attach to the rear of my 18' trailer for support to each side while loading equipment. Works as expected. 84429



- PS1401600383
by:

quality mdse, excellent prices 77835



- PS1401600383
by:

As advertised. 73993



- PS1401600383
by:

After receiving the jack in good order I Have begun to assemble and install them. they appear to be well constructed and sturdy. I compared the price with some Jacks at the local Farmers coop and these 5000# jacks were lower cost than their 2000# ones.So I believe These will serve my needs well. 62239



- PS1401600383
by:

Very well made product. Etrailer is great to deal with. Very fast shipping. 56854



- PS1401600383
by:

I ordered four of these for a trailer and they are exactly what I needed. I also ordered them on a Wednesday night and they were here by Friday. 56585



- PS1401600383
by:

Look to be good jacks 46121



- PS1401600383
by:

I ordered the products on Thursday and got them on Friday... Super fast shipping... 42679



- PS1401600383
by:

pro jack looks plenty stout for my trailer. Great service. Forgot about the order and by the time I remembered, it was here. Many thanks. 27274


27
27

Ask the Experts about this Pro Series Trailer Jack

Do you have a question about this Trailer Jack?


  • Replacement Parts for Pro Series 12000 Trailer Jack
  • Unlike costlier brands of trailer jack the entry-level Pro Series line is not supported with the same repair/replacement parts availability as with the upper tier sister brands like Bulldog and Fulton. The few parts we have available to us are shown on the linked page. Those other product lines cost more because the manufacturer bears the cost of maintaining spare parts inventory. You can refer to the linked page for all jacks to select the type you need, such as 5th wheel landing gear...
    view full answer...

  • Can a Leg/Foot be Added to the Pro Series Jack # PS1401440303
  • We do have other swivel jacks with the same weight rating that will allow you to use a foot like part # FA88-00-4500, but since the Pro Series Jack # PS1401440303 that you referenced has the foot plate welded to the inner leg you will need to go with the Pro Series # PS1401600383 instead. You can have the pipe mount # TJP-OP58 welded to the jack and the pipe mount # BD005024 welded to your trailer so that the jack can swivel if that is what you are wanting.
    view full answer...

  • Drop Leg Square Trailer Jack Recommendation for a Car Hauler
  • The Pro Series Square Jack, # PS1401600383, is a weld-on jack. Once you start getting to higher capacities, like 5,000 pounds, you will see less and less bolt-on options. For a bolt on jack with a 2,500 pound capacity, we have # DL22320. Given the weight of a loaded car hauler this may not be enough. A weld-on jack like you referenced would be more ideal. Welding should be performed by a qualified professional welder.
    view full answer...

  • Replacement Gear Kit and Handle for a Pro Series Jack part # PS1401600383
  • The correct replacement handle for the Pro Series Jack part # PS1401600383 that you referenced is part # BD500105, and the correct replacement gear kit is part # BD500106. This should be everything you need.
    view full answer...

  • How does the Pro Series Square Jack with Footplate, # S1401600383 Weld to a Trailer
  • The Pro Series Square Jack with Footplate, # PS1401600383, is a direct-weld jack meaning that you would weld the outer tube of the jack directly to the trailer frame. Welding should be done by a qualified professional welder. It would be best to determine where on the jack the welding will be and remove the powdercoating ahead of time to get the best weld.
    view full answer...

  • Recommended Weld-On Square Jack with Removable Handle for 4 Corners of Trailer
  • The Pro Series Square Jack with Footplate - Drop Leg - Sidewind - 15" Lift - 5,000 lbs # PS1401600383 cannot have the handle removed and reinstalled easily. It would require opening up the jack each time. I recommend using the Square Direct Weld Jack - Drop Leg w/ Spring Return - Sidewind - 12-3/8" Travel - 10K # TJD-12000SP-F2 for your application.
    view full answer...

  • Options for Raising the Tongue Height on a Boat Trailer on a Slanted Driveway to Drain Water
  • Your best option would be to either replace your trailer jack or add a second jack that comes with a drop leg. We had a trailer here at our facility that was in a similar situation and this method worked pretty well. We kept the original sidewind swivel jack with the wheel caster on the trailer and added the Pro Series Square Jack, # PS1401600383. This jack is welded to the trailer tongue and it can be welded at any part of the outer tube. The jack has a standard lift height of 15 inches,...
    view full answer...

  • Options for Raising the Tongue Height on a Boat Trailer on a Slanted Driveway to Drain Water
  • Your best option would be to either replace your trailer jack or add a second jack that comes with a drop leg. We had a trailer here at our facility that was in a similar situation and this method worked pretty well. We kept the original sidewind swivel jack with the wheel caster on the trailer and added the Pro Series Square Jack, # PS1401600383. This jack is welded to the trailer tongue and it can be welded at any part of the outer tube. The jack has a standard lift height of 15 inches,...
    view full answer...

  • Does Pro Series Trailer Jack # PS1401600383 have a Plastic Cap on Top
  • The jack pictured is just a typical photo but is not the actual Pro Series, # PS1401600383. The actual jack, which you can see if you scroll down the product page to questions answered about this jack, is pictured along with some measurements. It does have a black plastic cap on top. I will also add the picture to this answer.
    view full answer...

  • Dual Landing Gear Trailer Jacks That Operate with Hand Crank
  • The Pro Series Square Jack with Footplate # PS1401600383 is a stand-alone jack that welds on to a trailer frame. This 5000-lb-rated jack is intended to be used by itself, not along with another jack. The dual jack landing gear setups like # RVLG-8000 are typically for 5th wheel trailers and these do use two jacks connected by a rod. One hand crank operates both jacks at the same time. These landing gear systems appear on the linked page. You can also refer to the linked article for...
    view full answer...

  • How Does Pro Series Square 5K Drop-Leg Trailer Jack Install on a Trailer
  • Pro Series trailer jack # PS1401600383 is a weld-on application so there is no mounting hardware for it. A professional welder at a machine shop or a local iron worker could weld it to the trailer in a few minutes for a nominal fee.
    view full answer...

  • What are the Dimensions of the Outer Tube on the Pro Series Square Jack # PS1401600383
  • I went out to the warehouse and measured the outer tube on the Pro-Series Square Jack with Footplate, item # PS1401600383, and the outer square steel tube measures 2-1/4 inches square, the inner tube measures 2 inches square. I have attached an actual photo of the jack and the measurements I took for you to review.
    view full answer...

  • What are the Handle Dimensions on Pro Series 5k Side Wind Trailer Jack
  • I went out to the warehouse and pulled the Pro Series trailer jack # PS1401600383 to measure the handle. I have included a video showing the measurements I took. The overall height of the handle is about 7 inches. From the jack tube to the end of the handle it sticks out 5-1/2 inches. From the End of the handle to the vertical part of the handle it measures 4-1/4 inches. From the top of the jack to the top of the handle when it is sticking straight up it is 4-5/8 inches.
    view full answer...

  • Replacement Drop Leg and Foot for Pro Series 5K Square Jack # PS1401600383
  • The foot on the Pro Series jack # PS1401600383 is attached to the drop leg. To replace the drop leg you would need # BDDF3500. This leg is 17-3/4 inches tall and 1-3/4 inches square. The adjustment holes are 3-1/2 inches apart on center. The pin hole is 5/8 inches in diameter.
    view full answer...

  • How Many Cranks Do Most Trailer Jacks Take to Fully Extend
  • Most trailer jacks like the Pro Series Square Jack with Footplate # PS1401600383 that you referenced will take right at around 5 cranks to travel 1 inch. Since this jack has 15 inches of lift that it is capable of that would mean it would take 75 cranks to go the full travel of the jack.
    view full answer...

  • Replacement 5K Trailer Jack Needed with Bolt-On Installation
  • We do have a very similar 5K trailer jack like the Pro Series # PS1401600383 but that is a bolt-on installation instead of a weld-on. The Fulton Marine Jack # HD50000101 is also rated for 5K and it has a lift of 14" as opposed to 15" like the Pro Series jack has. This has a Zmax 600 finish for superior corrosion resistance and comes with a limited 5-year warranty. I have attached some review videos that you can check out as well.
    view full answer...

  • Inexpensive Jack Recommendation that Has No Mount on Side of Pipe
  • Best option we have is the Pro Series Jack part # PS1401600383. This jack has no mounts on the side of it and is our best priced option for this style of jack.
    view full answer...

  • Tube Dimensions on the Pro Series Jack part # PS1401600383
  • I went out to the warehouse and measured the outer tube on the Pro-Series Square Jack with Footplate, item # PS1401600383, and the outer square steel tube measures 2-1/4 inches square, the inner tube measures 2 inches square. I have attached an actual photo of the jack and the measurements I took for you to review.
    view full answer...

  • Available Space for Welding Pro Series Square Trailer Jack to Trailer
  • The Pro Series Square Jack with Footplate # PS1401600383 welds directly to your trailer anywhere along the outer tube. Essentially, there is about 18-3/4 inches of available space on the backside of the outer tube for welding.
    view full answer...

  • Sidewind Jack Recommendations for Supporting Equipment Hauled on a Trailer
  • It sounds like you are going to have to do a custom installation. I would recommend the Pro Series Square Jack with Footplate, # PS1401600383, along with a male pipe mount, # BD015273, to weld to the jack in the correct position, and a female pipe mount, # BD015271, to weld to your piece of equipment. This would allow you to custom fit the jack to your equipment. Using a standard jack with mounting plate already welded to it is not going to allow the adjustability you need. Cutting...
    view full answer...
