Pro Series Round, Pipe-Mount Swivel Jack w/ Footplate - Sidewind - 10" Lift - 5,000 lbs

Pro Series Round, Pipe-Mount Swivel Jack w/ Footplate - Sidewind - 10" Lift - 5,000 lbs

Item # PS1401420303

lowest price pledge

Retail:$59.78

Our Price: $41.95

You Save: 30%
Trailer Jack

Orders above $99 qualify for Free Shipping

Shipping Weight: 14 lbs

Quantity:
In Stock, Ships Today
Pro Series Round, Pipe-Mount Swivel Jack w/ Footplate - Sidewind - 10" Lift - 5,000 lbs 10 Inch Lift PS1401420303
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Customer Photos


  • Side Frame Mount Jack
  • 5000 lbs
  • Sidewind Jack
  • No Drop Leg
  • Swivel Jack - Pipe Mount
  • Weld-On
  • Pro Series
  • 10 Inch Lift
  • With Foot
Footplate, weld-on mount and pull pin are included with this round swivel jack. Ideal for agricultural and commercial uses. Jack has 10-1/2" retracted height and measures 6-1/4" from mounting bracket to top, excluding handle. Lowest Prices for the best trailer jack from Pro Series. Pro Series Round, Pipe-Mount Swivel Jack w/ Footplate - Sidewind - 10" Lift - 5,000 lbs part number PS1401420303 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (36)
  • Q & A (9)
  • Videos (1)
  • Photos
  • Why etrailer?

Pro Series Trailer Jack - PS1401420303

Footplate, weld-on mount and pull pin are included with this round swivel jack. Ideal for agricultural and commercial uses. Jack has 10-1/2" retracted height and measures 6-1/4" from mounting bracket to top, excluding handle.


Features:

  • Utility jack is perfect for agricultural and commercial applications
  • Tubular swivel design lets you swing jack up for travel, down for use
    • Included pull pin holds jack in place
  • Sidewind handle has smooth, ergonomic design for easy cranking
  • Outer tube has black paint finish
  • Inner tube is zinc plated
  • Weld-on pipe mount and standard footplate included


Specs:

  • Bracket height:
    • 10-1/2" Retracted
    • 20-1/2" Extended
  • Lift: 10"
  • Clearance: 6-1/4" from mounting bracket to top of jack
  • Inner tube diameter: 2"
  • Outer tube diameter: 2-1/4"
  • Lift capacity: 5,000 lbs
  • Limited 1-year warranty


1401420303 Pro Series Round Tubular Swivel Jack - Sidewind - 10" Travel - 5,000 lbs






California residents: click here

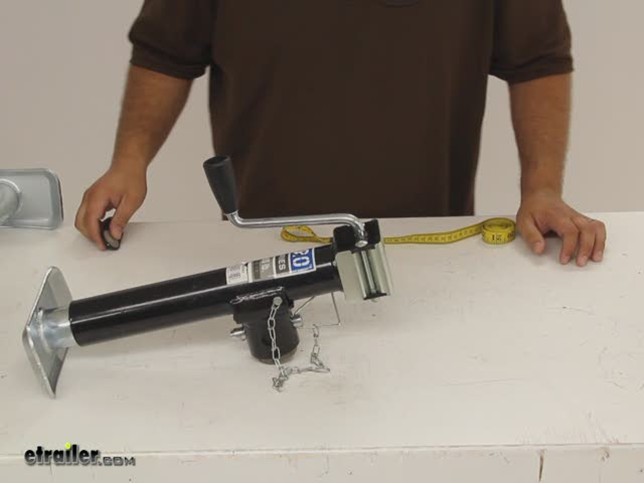

Video of Pro Series Round, Pipe-Mount Swivel Jack w/ Footplate - Sidewind - 10" Lift - 5,000 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Pro Series Trailer Jack - Side Frame Mount Jack - PS1401420303 Review

Today were going to take a quick look at the Pro Series round pipe mount swivel jack part #: PS1401420303. Now Pro Series covers this jack with a limited one year warranty. It has a lift capacity of 5,000lbs. Were going to go over a few measurements real quick. Well measure from the top of our jack to the center of our mounting bracket and it comes in at about 6 inches. Were also going to measure from the center of our mounting bracket down to the base of the jack, that puts us at 10 inches.

Well take the same jack thats fully extended and take the same measurement. This time it comes out to 20 inches. The difference between those two measurement, 10 inches, is known as the jacks lift or travel. Its built with 2 inch diameter tubing, its a side wind style with a nice ergonomic handle to make easy to operate the jack. The outer tube is finished in black paint, the inner tube is zinc plated as well as the footplate thats welded onto the bottom.

This footplate is going to provide a nice flat base to support the nose of your trailer. On the back of the jack we can take a look at the mount setup. Youll take this steel piece and weld it to the frame of your trailer. The jack will slip over it and youll secure it with a pin. You can also remove the pin, rotate the jack and flay it up flat so that you can tow your trailer down the road without having to worry about your jack being damaged against the ground.

And thats it for our quick look at the Pro Series round pipe swivel mount jack part #: PS1401420303.


Customer Reviews

Pro Series Round, Pipe-Mount Swivel Jack w/ Footplate - Sidewind - 10" Lift - 5,000 lbs - PS1401420303

Average Customer Rating:  4.9 out of 5 stars   (36 Customer Reviews)

Footplate, weld-on mount and pull pin are included with this round swivel jack. Ideal for agricultural and commercial uses. Jack has 10-1/2" retracted height and measures 6-1/4" from mounting bracket to top, excluding handle.

- PS1401420303
by:

These jacks are essential elements for moving and installing our interactive public art work "Ourself". Each side of the piece has 3 jacks in it. The jacks are critical for the last step which we require precise and careful assembly. When in place we retract the jacks and the piece sits exactly where we want it. Thank you for such a great product! Cheers, 368386



- PS1401420303
by:

Speedy shipping good packaging product will be perfect for my application 235306



- PS1401420303
by:

This sidewind jack was just what I needed. Great quality and uber strong. My trailer has a taller jack with footplate. I wanted to add a caster to it but then that jack would have been too tall with the addition of the 6" wheel. So, I ordered this one, cut the footplate off, drilled a hole and bolted the caster on. Couldn't be happier! And yes, I know that it is no longer rated to 5000 lbs with my modification. It will never see more than 1000 lbs. 277591



- PS1401420303
by:

My utility trailer had a center-mounted jack which I never liked. It was always getting in the way when dropping the tailgate on my truck, or opening a back door on my van while the trailer was hooked up. It also had a horizontal crank which interfered with the trailer spare tire mounted on the front of the trailer. This jack solved all my problems plus looks great. This trailer jack is rated for more weight than I really need, but I tend to "over-engineer" things anyway. Very pleased. 638006



- PS1401420303
by:

The product is outstanding. However, I am going to have to return it. I need the same jack in a top crank version. I thought this side crank would work. The crank does not clear diagonal bracing on the trailer. I intended to call Monday to see if I can exchange this for a top crank version. 576054


Comments

If you are looking for a top wind version of this jack I recommend Proseries pipe-mount trailer jack part # PS1401460303
Pro Series Round, Pipe-Mount Swivel Jack w/ Footplate - Topwind - 10" Lift - 5,000 lbs
$27.95
. Part # PS1401460303
Pro Series Round, Pipe-Mount Swivel Jack w/ Footplate - Topwind - 10" Lift - 5,000 lbs
$27.95
is Pipe-Mount Swivel Top Wind Jack that includes the Footplate with a 10 inch lift. It can lift up to 5,000 lbs and should give you more clearance than a sidewind jack.

-- Heather A - 10/23/2018

44964

- PS1401420303
by:

Just received them, and hoping they will work for what we are attempting to do. They feel heavy and sturdy and should do a great job. Have to work with students to get them set and mounted to our Trebuchet. If you would like a picture when we are done, please let us know. 575064



- PS1401420303
by:

Great product and excellent customer se rvice! 574927



- PS1401420303
by:

Owned it for a year, worked perfect every time!! 554858



- PS1401420303
by:

a fine jack 539454



- PS1401420303
by:

Product was delivered quickly and works very well, fits perfectly and is able to hold up my heavy farm equipment very easily. 523986



- PS1401420303
by:

Could not believe how fast I received this jack, it was delivered in one day WOW! It seems to be very good quality so I am very pleased. 431874



- PS1401420303
by:

The item was easy to order, I received it quickly, and it fits and works great. 410175



- PS1401420303
by:

This was a great product it installed easily and a year later it is still working correctly no issues, but I didn't expect any issues because everything I've bought so far from etrailers has been long lasting and great products, but most of all etrailers has the best customer service and the most experience people making me want to go to them for all of my trailer needs. Thanks again very satisfied customer. 391733



- PS1401420303
by:

Have not had time to use it yet but the shipping was very quick. 368057



- PS1401420303
by:

I have a bandsaw mill that i have made portable. The jacks are mounted to the mill to make setup quick and easy. 345943



- PS1401420303
by:

Great selection. Arrived very quickly standard delivery and just as advertised. I haven't welded it to my trailer yet, but it is a high quality jack. The videos available on this site make installation very straight-forward as well. Definitely a go to site for Trailer parts. 336896



- PS1401420303
by:

The jack was everything as it said it would be. The only problem was returns had to have a packing slip, couldn't find one, wasn't going to return it any way. 330904



- PS1401420303
by:

Item arrived lightning fast and was very pleased with the price and quality! Will do business again! Happy Holidays 325554



- PS1401420303
by:

Love the jacks, wish I had them sooner. 311952



- PS1401420303
by:

I got three Pro Series jacks for a small generator trailer. I used one on the tongue and two for the rear as out riggers to stabilize the trailer while the generator is in use. The jacks seem to be good quality and what you would expect, great price and fast shipping. 309947



- PS1401420303
by:

Product is well made and suited my application for a top dresser at a golf course perfectly. Thank you. 289275



- PS1401420303
by:

Great product and prompt delivery. 285721



- PS1401420303
by:

Ordered/received 3 side crank trailer jacks to replace broken and top crank jacks. Farm for a living and still don't know why some implements come from the manufacture(s) with those PITA top crank jobs. Top cranks are harder to operate and usually interfear with the hitch, hydraulic hoses, electrical hookups and whatnots. Next order will be for longer SIDE wind jacks 267902



- PS1401420303
by:

good - sturdy jack 244095



- PS1401420303
by:

Perfect to my needs, this will fit my trailer perfectly and no more dragging on the concrete and bumps! I ordered the wrong size too and the return was super easy, as was ordering the new one. It took one day for it to arrive, not too surprised considering I live three hours away, but the point is there was an issue, and they took care of me. Fantastic service! TWO THUMBS UP!! 229361



- PS1401420303
by:

We have a LOT of swivel jacks on this farm, the one I got from you will contend with the best of them. Even with shipping charges it was half the cost of anything in town. 218331



- PS1401420303
by:

I received my jack quickly. Already have it welded on my trailer. Nice, smooth action. I like the fact that I can remove the jack if I want. 211915



- PS1401420303
by:

excellant 183391



- PS1401420303
by:

Exactly what I wanted. Quick delivery. 176978



- PS1401420303
by:

Nice looking ,Well built Jacks that look good on my trailer 144606



- PS1401420303
by:

good product,fast shipping,good customer service. 136513



- PS1401420303
by:

product was in stock and ready to ship 134423



- PS1401420303
by:

Great value and high quality. I love the videos on the website. Shipping was fast and packaging was very good. If anyone is looking fir a high quality trailer jack - this is the place to go. I purchased 2 of these to go on my trailer to use as stabilizers on the very back of the trail when I load my tractor. They work great and install was easy! 108875



- PS1401420303
by:

Great jack, fast service, reasonable price. The side crank jack is well made, all fittings are sturdy, the side crank is easier to operate than the top crank, and it is less susceptible to rain intrusion. 39924



- PS1401420303
by:

Fast shipping, Very good pricing, Free shipping. Thanks 27047



- PS1401420303
by:

Item looks good at a reasonable price. 20277


36
36

Ask the Experts about this Pro Series Trailer Jack
Do you have a question about this Trailer Jack?


  • Where is the Retractable Height of the Pro-Series Pipe Mounted Jack Measure From
  • The 10-1/2 inch measurement that you referenced is the distance from the bottom of the foot bracket to the center of the mounting bracket. I went out and measured it and shot a little video for you as well that I attached.
    view full answer...

  • Will a Pipe Mount Swivel Jack Fit a 2-3/8 Inch Outer Diameter Pipe
  • Pro Series Round, Pipe-Mount Swivel Jack # PS1401420303 is a potential option for you. Please note that it does come with the pipe that gets welded onto the trailer. That pipe has an outer diameter of 2 inches. The 2-1/2 inch outer diameter mating pipe on the jack is meant to go over the included weld-on pipe. At 2-3/8 inches the pipe you have is an odd size for pipe mount jacks.
    view full answer...

  • Swivel Jack Recommendation for a Bot Trailer with a 3000 lb to 5000 lb Weight Capacity
  • We have a number of jacks that fall within the 3,000 lb to 5,000 lb capacities, however, the only jack that we carry that is similar to the Pro Series, Snap-Ring Swivel Jack, # PS1401020303, is the Bulldog Round, Snap-Ring Swivel Jack, # BD171401. This jack has a 10 inch lift and a 5,000 lb weight capacity. If you did not want to go with the Bulldog jack, we offer pipe-mount jacks like the Pro Series Round, Pipe-Mount Swivel Jack, # PS1401420303. The inner pipe mount of this jack must...
    view full answer...

  • Dimensions of Bulldog Jack Replacement Handle
  • The distance from the pin hole to the end of the rod of the Bulldog Square Jack Replacement Sidewind Handle # BD500171 is 2-7/16 inches. I've attached a diagram showing different measurements of the handle that may be helpful.
    view full answer...

  • Availability of a Pipe Mount Trailer Jack with Caster Wheel
  • I have a couple of jacks that I can recommend for you, but at this time we do not have a pipe mount jack available with the option of a caster wheel. The first and best fit would be the Bulldog Rack-and-Gear Jack with Steel Wheel - Weld On - 16 inch Lift - 750 lbs, item # BD161300, which has a angle mounting plate that is 3-1/2 inches tall by 1-3/4 inches wide. If the fact that this jack does not swivel up out of the way is acceptable, it would be your best bet. The second is the...
    view full answer...

  • Will 2-Inch Pipe Mount for Bulldog Trailer Jack # BD158109 Fit ProSeries Jack # 1401420303
  • I visited our warehouse and took measurements of both of these jack mounts to confirm their compatibility. Yes, both the 2000-lb-rated Bulldog Jack # BD158109 and the 5000-lb-rated Pro Series Jack # PS1401420303 use the same round 2-inch weld-on pipe mount.
    view full answer...

  • Replacement Swivel Jack with Pipe Mount for Snow Plow
  • The Pro Series Round, Pipe-Mount Swivel Jack w/ Footplate - Sidewind - 10" Lift - 5,000 lbs # PS1401420303 has a 10-1/2 inch dimension from the center of the mount but is only 6-1/2 inches from the center of the mount to the top of the unit. This is the shortest length from base to mount. If you need clearance when not in use, I recommend inverting the jack. If you need that measurement for function, then I recommend resting your plow on something to allow the jack to swing into...
    view full answer...

  • What Diameter Tube Does Pro Series Pipe Mount 5k Trailer Swivel Jack Mount To
  • The Pro Series jack # PS1401420303 fits on a 2 inch outer diameter tube welded to the trailer frame. The tube actually comes with the jack so you do not have to find a match or modify anything. Just have the new tube welded on. A professional welder or iron worker would charge a nominal fee to remove the old tube and weld on the new one.
    view full answer...

  • Can Pro Series Trailer Jack - PS1401420303 be Mounted at the Back of a Trailer for Support
  • You could put Pro Series Round, Pipe-Mount Swivel Jack # PS1401420303 anywhere that it will fit including at the rear of the trailer to help with support. Usually people use scissor jacks such as # UF48-979031 for this type of application though. The neat thing about these jacks is you can add adapter # UF48-979005 and raise and lower the scissor jacks using an electric drill. That will save you a lot of time and energy.
    view full answer...
