Pro Series Square Jack with Footplate - Drop Leg - Sidewind - 28-11/16" Lift - 5,000 lbs

Pro Series Square Jack with Footplate - Drop Leg - Sidewind - 28-11/16" Lift - 5,000 lbs

Item # PS1400850383
lowest price pledge
Retail:$98.54
Our Price: $56.98
You Save: 42%
Trailer Jack
Orders above $99 qualify for Free Shipping
Shipping Weight: 21 lbs
Quantity:
In Stock
Pro Series Square Jack with Footplate - Drop Leg - Sidewind - 28-11/16" Lift - 5,000 lbs Drop Leg PS1400850383
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Customer Photos

Drop leg jack with integrated footplate welds directly onto your application, has 25-1/8" retracted height and offers superior side-load strength for your agricultural or industrial needs. Includes sidewind crank. Lowest Prices for the best trailer jack from Pro Series. Pro Series Square Jack with Footplate - Drop Leg - Sidewind - 28-11/16" Lift - 5,000 lbs part number PS1400850383 can be ordered online at etrailer.com or call 800-298-8924 for expert service.
  • All Info
  • Reviews (67)
  • Q & A (19)
  • Videos (1)
  • Photos
  • Why etrailer?

Pro Series Trailer Jack - PS1400850383

  • Side Frame Mount Jack
  • 5000 lbs
  • Sidewind Jack
  • Drop Leg
  • Weld-On
  • Fixed Mount Jack
  • Pro Series
  • 29 Inch Lift
  • With Foot

Drop leg jack with integrated footplate welds directly onto your application, has 25-1/8" retracted height and offers superior side-load strength for your agricultural or industrial needs. Includes sidewind crank.


Features:

  • Superior side-load capacity compared with round jacks
    • Square design provides additional support for side loading
  • Durable, long-lasting steel construction
  • Black powder coat finish resists rust and corrosion
  • Sidewind handle has smooth, ergonomic design for easy cranking
  • Drop leg increases overall extension for maximum adjustability
  • Direct-weld design
  • Integrated footplate base


Specs:

  • Bracket height:
    • 25-1/8" Retracted
    • 53-11/16" Extended with the leg all of the way down
  • Total lift: 28-11/16"
    • Travel: 15"
    • Drop leg: 13-11/16"
  • Lift capacity: 5,000 lbs
  • Static capacity: 8,000 lbs
  • Handle radius: 7-1/8"
  • Footplate dimensions: 8" long x 6" wide
  • Limited 1-year warranty


1400850383 Pro Series Square Direct Weld Jack with Drop Leg - Sidewind - 15" Travel - 5,000 lbs




California residents: click here


Video of Pro Series Square Jack with Footplate - Drop Leg - Sidewind - 28-11/16" Lift - 5,000 lbs

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Pro Series Trailer Jack - Side Frame Mount Jack - PS1400850383 Review

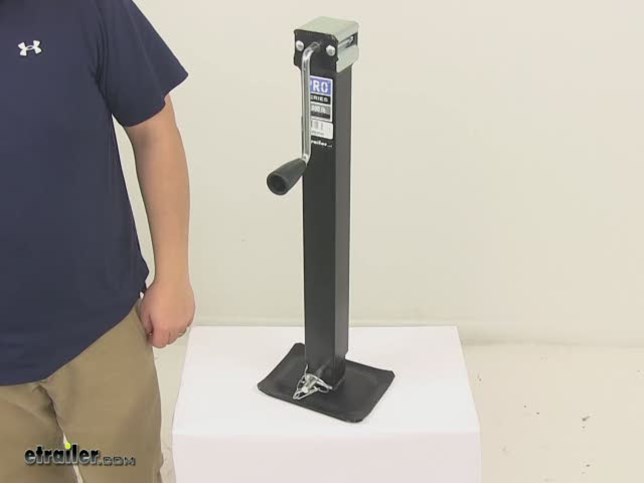

Today we're taking a look at the Pro Series side wind square jack with foot plate number PS1400850383. This is a drop leg jack that welds directly onto your application and offers superior side load strength for your agriculture or industrial needs. The square design provides additional support for side loading. It has a durable, long lasting, steel construction with a black paint finish on the outer tube and a zinc plate finish on the inner tube and the foot plate. The side wind handle has smooth ergonomic design for easy cranking and the drop leg increases the overall extension for maximum adjustability. It's really easy to maneuver.

You just pop that over, take this pin out, pull the pin out of here, and you can lift that up. As you can see you have different holes so you can choose the height that works for you. Very easy to put that back. Then you just lock that right back up. Taking a look at some of the specs again this is the fully retracted setting.

Looking at ta height of about 25 1/8th inches. We have another jack. It's the same model and it is fully extended as you can see here with the drop leg completely extended. The fully extended version is about 53 and 11/16th inches. The full extension of the drop leg is approximately 13 and 11/16th inches.

The lift which is the inner tube when it is at full extension is approximately 15 inches. The lift capacity is 5,000 pounds with a static capacity of 8,000 pounds. This product does come with a limited one year warranty. That should about do it for our Pro Series side wind square jack with foot plate number PS1400850383.
