MaxxTow Round, Swivel Trailer Jack w/Dual Wheels - Sidewind - 11.5" Lift

MaxxTow Round, Swivel Trailer Jack w/Dual Wheels - Sidewind - 11.5" Lift

Item # MT70149
lowest price pledge
Retail:$111.67
Our Price: $49.95
You Save: 55%
Trailer Jack
Orders above $99 qualify for Free Shipping
Shipping Weight: 20 lbs
Quantity:
In Stock
MaxxTow Side Frame Mount Jack - MT70149
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

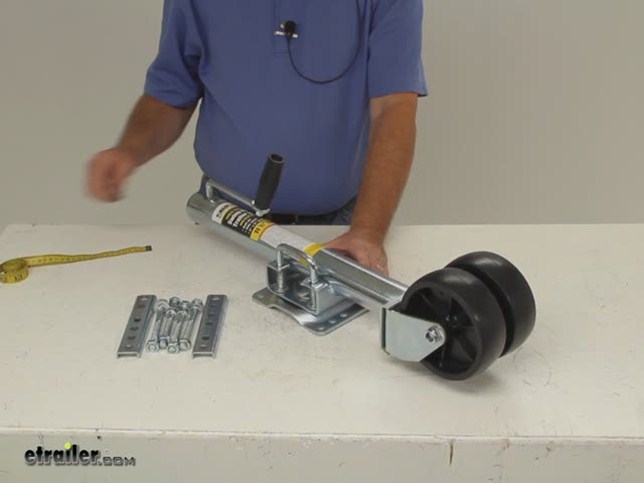

In Use/Installed

Customer Photos

Corrosion-resistant zinc plating makes this jack great for marine use. Spring-loaded handle lets you easily swing jack up for travel and down for use. Dual wheels offer support and simple maneuverability. Fits trailer tongues up to 4". Lowest Prices for the best trailer jack from MaxxTow. MaxxTow Round, Swivel Trailer Jack w/Dual Wheels - Sidewind - 11.5" Lift part number MT70149 can be ordered online at etrailer.com or call 800-298-8924 for expert service.
  • All Info
  • Reviews (230)
  • Q & A (62)
  • Photos
  • Why etrailer?

MaxxTow Trailer Jack - MT70149

  • Side Frame Mount Jack
  • 1500 lbs
  • Sidewind Jack
  • No Drop Leg
  • Bolt-On
  • MaxxTow
  • Swivel Jack - Pull Pin
  • 12 Inch Lift
  • With Wheel

Corrosion-resistant zinc plating makes this jack great for marine use. Spring-loaded handle lets you easily swing jack up for travel and down for use. Dual wheels offer support and simple maneuverability. Fits trailer tongues up to 4".


Features:

  • Marine jack supports, lifts and lowers your boat or recreational trailer
  • Convenient, spring-loaded handle lets you easily swing jack in place
    • Pivot up to stow parallel to trailer tongue for travel
    • Move back into upright position for use
  • Corrosion-resistant zinc finish
  • Sturdy steel construction
  • Dual thermoplastic wheels provide support and simple maneuverability
  • Sidewind crank
  • Bolt-on installation - hardware included


Specs:

  • Application: trailer tongues up to 4" tall
  • Bracket height:
    • 14-3/4" Retracted
    • 26-1/4" Extended
  • Lift: 11-1/2"
  • Lift capacity: 1,500 lbs
  • Wheel dimensions: 6" diameter x 2" wide
  • Mounting bracket dimensions: 6-1/2" wide x 5-1/2" tall
  • 90-Day warranty


70149 Maxx Tow Swivel Marine Jack - 11-1/2" Lift - 1,500 lbs






Customer Reviews

MaxxTow Round, Swivel Trailer Jack w/Dual Wheels - Sidewind - 11.5" Lift - MT70149

Average Customer Rating:  4.7 out of 5 stars   (230 Customer Reviews)

Corrosion-resistant zinc plating makes this jack great for marine use. Spring-loaded handle lets you easily swing jack up for travel and down for use. Dual wheels offer support and simple maneuverability. Fits trailer tongues up to 4".

- MT70149
by:

Solid construction. Rolls great! 563760



- MT70149
by:

BOUGHT THIS JACK FOR MY MOTORCYCLE TRAILER. IT IS A GREAT PRODUCT AT A SUPER PRICE. REALLY HEAVY DUTY & MY TRAILER ROLLS EASILY WITH THE DUEL WHEELS. VERY HAPPY WITH MY PURCHASE. 515881



- MT70149
by:

Arrived as ordered. Well packed and in 2 days! 711315



- MT70149
by:

This is a substantial trailer jack, or good, stout quality. More than actually needed on my pop up trailer, but it should give good service. Easily attached to frame with adjustable bolts/clamps. 411444


Comments
Still handling the loads. good lasting quality.
James B - 07/27/2018

41538

- MT70149
by:

Arrived on time and installed easily. 643114


Comments
This trailer Jack has worked fine without any problems.
Ryaan - 05/18/2020

76946

- MT70149
by:

Super easy project, seems it will definitely do the job :) 249753


Comments
Love this jack! I use my trailer for hauling wood and I no longer have to worry about unloading right away, I can just use this and let it sit in my barn until ready to hook it up and haul to my campsite!!
Becky S - 05/11/2017

23840

- MT70149
by:

Product, after three different jacks due to lifting requirements works great. Easy install and seems very solidly built. I used the same MFG'S jack but it's capacity was only 1000 lbs. A good jack but not heavy enough and I had to replace it every season. this new one rated at 500 lbs. more is a champ. I can feel the difference in quality and capacity. I know that this supposed to be a product review but I have to say that the customer service team at etrailer is the best. The first one I ordered without assistance. Wrong choice. That was gladly accepted without penalty as I ordered another with the aid of a customer service person. Wrong again, i used the wrong measurements. The third time, Chedi spent almost an hour total time on the phone helping me find the right jack. Even calling me back. I have to tell you that for a sale of this small amount and just to make a customer happy, this team went out of their way. I will never go anyplace else. You have earned a customer for life. Thank you ever so much for proving that all companies aren't just a bunch of money hungry goonies while putting the customer first has absolutely won over this customer...And Chedi, a special thanks to you...I was a pain in the butt, I'm sure but, your diligence paid off. I have what is needed and you have a happy customer. Tell the boss i said that you deserve a raise or at least a bonus... 492293



- MT70149
by:

The handle crank grip broke so I had to repair that. My main reason for getting a dual wheel was because I had hoped it would roll and turn easier. The opposite is true. The crank up mechanism feels rough and flimsy. Very dissatisfied. That's the price I paid for trying to save a few bucks on an off brand. I'd NEVER recommend this piece of junk to anyone. 639613



- MT70149
by:

This jack fits my trailer / tow vehicle perfectly. The rear door of my Jeep opens horizontally, so the jack's swing-up feature makes opening the door possible. The relatively short overall length stows nicely against the limited space on the trailer frame. Also, the dual wheels make rolling the trailer into it's storage location by hand much easier. 116383



- MT70149
by:

Excellent product, switched to dual wheel from single, so much better and easier to move, have it on my high country cargo trailer, superb service from George at etrailer as well, always my go to site for all my trailer needs. Thanks to you all. Very satisfied customer from Worcester county, MA. 476199



- MT70149
by:

Welded jack mounting plate to trailer. Then jack disconnected from mounting plate so that had to be welded back on. Then jack gears broke on top. So jack does not function. The one good thing about this product is the double wheels. 628536


Comments
The jack is covered by a 90-day warranty. Please call our Customer Service folks at 800-298-8924.
-- Mike L - 04/17/2019

53065

- MT70149
by:

This is a heavy duty trailer tongue jack. Last Fall, a large pine tree fell on the boat wrecking the T-top. The trailer jack was slightly bent where it joins the tongue. However, it is still serviceable. Any other jack would have been destroyed. 513744


Comments
Still doing its thing. A tough high quality tongue jack.
William G - 05/30/2019

55883

- MT70149
by:

The product arrived in two days after the order was placed. Arrival condition was good. All the required parts were in the carton with the instruction sheet. I assembled the lift on the trailer tongue myself without too much difficulty. I needed to shim out the mounting plate 1/4 inch to clear a strut on the trailer when the unit was in the travelling/folded up position. Other than than the installation was not hard and was very straight forward. I am looking forward to taking it out on the road. 519444



- MT70149
by:

Thanks for delivering a product that is a just as advertised. Functional and EASY to install. It is a good replacement of my old trailer jack. 749200



- MT70149
by:

Works great with one con: the retracted length was too tall and had to change the drop hitch to be able to unhook my boat trailer. 540973



- MT70149
by:

As with all my previous orders with ETrailer they are always complete, packaged good and arrive as scheduled. In addition to having a great selection of parts and supplies the parts are good quality and priced right. 225577


Comments
This is a solid unit that works very good on my older heavy boat. It rolls and turns good also
ERP - 09/14/2016

20965

- MT70149
by:

Shipping was super fast, I had a 30 year old jack that worked so hard, this new jack is so easy to turn and I am 70 years old and even I can move the boat with those duel wheels, all mounting hardware was included, the video's were a great help, I will say this, you won't be misled when ordering product from this company, I felt like they went beyond normal in everything concerning my purchase, thanks. 343120



- MT70149
by:

The double wheels make this trailer jack very hard to maneuver. Putting any side pressure on it makes the shaft bend. One time it actually pulled the swivel joint out of place and the trailer tongue went down on my concrete driveway, requiring me to buy a new (small) car jack to fit under the tongue to get it back up. I have found that if I lower the jack to its minimum height then it works much better. This is a pain, since I typically store the trailer with the jack at the maximum height so if any rain gets in my boat it will run out the drain holes in the back. I wish I had bought a trailer jack with a single wheel. 516711



- MT70149
by:

The Towmaxx Trailer Jack worked as I hoped it would. It allows me to maneuver my 2800 lb trailer around and lifts the hitch for easy hookups. The finish held up to the weather showing no signs of rust after a year of use. The crank operates smoothly and guickly up and down and the spring locking handle for jack still works well. I would like it if the mounting brackets were thicker so they didn't bend so easily when tightening the nuts and bolts. Also the pivot piont of the jack is loose allowing the trailer to flop around. Still I would purchase another jack like this one if the need were to arise. 551323



- MT70149
by:

The maxxtow round trailer jack was priced very good. Plus etrailer.com up graded my shipping order to priority at no extra cost. The product was excellent. I would definitely order again with etrailer.com. Thank you 875594



- MT70149
by: 09/03/2020

Piece of junk. Returned. Etrailer is great however. 873283



- MT70149
by:

Very good deal, thank you 872473



- MT70149
by: 09/01/2020

872284



- MT70149
by:

Jack was exactly what I needed. Etrailer even upgraded my shipping at no cost! excellent company and product! 866937



- MT70149
by:

My order arrived timely and packaged well. The product quality looks good as expected. 865749


27
236
Show More Reviews

Ask the Experts about this MaxxTow Trailer Jack

  • Recommended Trailer Jack with Lower Retracted Height for Landscaping Trailer
    I looked through our selection trying to find a similar jack to the MaxxTow, part # MT70149, with a retracted height less than 14-3/4 inches and found a couple of good options for you. You didn't say exactly what height you need, however part # MJ-1200B has a retracted height of 12-1/2 inches. The weight capacity is slightly less, at 1,200 pounds but that's probably still plenty for your trailer. It also offers 11 inches of travel which is a 1/2 inch less than the MaxxTow. A second...
    view full answer...
  • Replacement For Shelby Trailer Jack 5764A Missing Handle
    Since Shelby is no longer in business, and jack handles are not universal, what that means is there isn't a replacement handle available, so your only option is to get a brand new jack. Since the Shelby is a weld-on jack, the best option we have for a replacement is the Fulton Bolt-Thru Swivel Marine Jack - Weld On - Sidewind - 10" Lift - 1,200 lbs # FXP10W0301. You will also need Jack Mounting Bracket for Fulton Marine Jack - Weld-On # P9012-00. Of, if you have room on your trailer...
    view full answer...
  • Dimensions of the MaxxTow Round, Swivel Trailer Jack # MT70149
    I went and grabbed a MaxxTow Round, Swivel Trailer Jack # MT70149 from our warehouse to get the dimensions you asked for. I found that the distance from the center of the mounting bracket to the top of the jack measures 12-1/4 inches. The handle length is 6-7/8 inches, and the overall height is 26-1/4 inches. I attached these dimensions to the picture you submitted.
    view full answer...
  • What is Maximum Frame Dimension the MaxxTow Trailer Jack MT70149 Can Install on
    If your trailer frame is up to 4 inches in height the MaxxTow jack part # MT70149 that you referenced will fit and work well. I attached a picture of this jack installed on a trailer tongue that is 4 inches tall for you to check out.
    view full answer...
  • Using Weight Distribution Hitch on Trailer with Side-Frame-Mount Jack
    In order to use a weight distribution/sway control (WD/SC) system it is necessary to have room on the trailer A-frame to mount the spring bar lift brackets and the hitch on the tow vehicle must specifically be rated for use with WD/SC systems. The hitch safety sticker will indicate if it is indeed rated for use with WD. As for the jack, it sounds like you have a side-frame-mount jack like # MT70149 or one of the similar jacks of this type shown on the linked page. Some of these, like...
    view full answer...
  • Spare Tire Carrier and Jack Recommendations for a Load Rite Single Axle Boat Trailer
    Yes, there does appear to be plenty of space to mount a spare tire carrier and spare on the tongue of your boat trailer. Fulton Hi-Mount Spare Tire Carrier - Fits 4- and 5-Lug Wheels Item # FSTC1000301 is a popular option. It will hold the tire out from the frame 4-1/2 inches so it will clear the winch stand. On trailer jacks such as # MT70149 the retracted/extended measurements are taking from the center of the jack mounting bracket to the bottom of the jack. So on MaxxTow Round, Swivel...
    view full answer...
  • Replacement Side-Frame-Mount Wheeled Jack for Triton Boat Trailer
    Triton boat trailers are usually equipped with a side-frame-mounted swivel jack like the 1500-lb-rated MaxxTow side-wind jack # MT70149, which is a bolt-on design with dual wheels. The highest-rated wheeled jacks of this type have a 1600-lb rating, like the Fulton F2 bolt-on swivel jack # F1413020134. All jacks of this type are shown on the linked page. There are also jacks like # FTJ120W0301 which install using a snap ring that connects the jack to the mounting plate welded on the trailer...
    view full answer...
  • Replacement Parts for Shelby 5854A Trailer Jack
    I do have a solution for you, however replacement parts for your Shelby 5854A Trailer Jack are no longer available. I recommend simply replacing your Shelby jack with a similar unit like the MaxxTow Round, Swivel Trailer Jack # MT70149. This zinc plated marine jack has a lift capacity of 1,500 pounds and a total lift of 11-1/4 inches. It is designed for trailer tongues up to 4 inches tall and features mounting bracket dimensions of 6-1/2 inches wide and 5-1/2 inches tall. It is a bolt-on...
    view full answer...
  • Replacement Trailer Jack Recommendation for Shelby Jack 5854A
    The specific Shelby jack you are looking for is not available from us but for a very similar jack we have the MaxxTow part # MT70149 which uses a similar mounting style, is a sidewind, and has a wheel caster setup.
    view full answer...
  • Recommendation for a Trailer Jack with Dual Wheels for Pop-up Camper with Off Road Package
    A trailer jack with dual wheels such as # MT70149 are generally easier to move around on different types of terrain. I actually recommend a Dutton-Lainson swivel jack # DL22580. It also has dual wheels. It features 12 inches of lift, fits up to 3x5 inch frames, and is higher quality with a much better warranty (3 years). I have linked a video review of this jack for you.
    view full answer...
  • Do Trailer Jacks with Two Wheels Make it Easier to Maneuver a Jack on Concrete
    Having 2 wheels will provide more surface area/contact with the ground. This could actually make it more difficult to maneuver compared to a single wheel. But two wheels are better than one when not on pavement. A single wheel tends to dig into dirt or gravel easier. A Fulton jack such as # FXPD15L is going to be the better jack compared to the MaxxTow line of jacks. I do recommend going with a Fulton. For a single wheel version use # FXP15L.
    view full answer...
  • Replacement Jack Recommendation for Replacing Shelby 5764A Jack
    Your Shelby jack that you are looking to replace has a 1,200 lb capacity. The MaxxTow Jack part # MT70149 would be a great replacement jack that has even more capacity at 1,500 lbs. I attached a review video for this jack for you to check out as well.
    view full answer...
  • Replacement Bolt-On Side-Frame-Mount Swivel Jack to Replace Shelby 5876A8
    The Shelby 1500-lb trailer jack 5876A8 is not available but we do have options in other 1500-lb-rated side-frame-mount swivel jacks. You can see all such products on the linked page. For cost-effective options that offer bolt-on installation consider the MaxxTow # MT70149 or the etrailer # MJ-1500B.
    view full answer...
  • Features and Capacity of MaxxTow Round Dual-Wheel Swivel Trailer Jack # MT70149
    The MaxxTow Round Dual-Wheel Swivel Trailer Jack # MT70149 is a corrosion-resistant bolt-on marine jack that can fit trailer frames up to 4-inches wide. It offers a 1500-lb lift capacity, dual wheels for easy maneuvering and a lift range of 11-1/2-inches. The linked video further illustrates its features.
    view full answer...
  • Replacement Jack For MaxxHaul and MaxxTow 1500 lb Trailer Jack
    We don't have any replacement gear kits for MaxxTow and MaxxHaul products. My recommendation is to replace your current jack with the MaxxTow Round, Swivel Trailer Jack w/Dual Wheels - Sidewind - 11.5" Lift # MT70149. At the price of the Jack it makes sense to replace versus repair it which is likely why the manufacturer doesn't offer replacement parts.
    view full answer...
  • Recommended Swivel Jack for 2004 Shorlandr Boat Trailer
    for your 2004 Shorlandr trailer, I recommend the MaxxTow Round, Swivel Trailer Jack w/ Dual Wheels # MT70149 for a bolt on option. If you have the welded connection on your trailer, then I recommend the Fulton Bolt-Thru Swivel Marine Jack # F1411300301 or the Snap Ring # FTJ120W0301.
    view full answer...
  • Can Trailer Jack # MT70149 Attach to Angle Iron Trailer
    You would have to box the frame to install the trailer jack part # MT70149 as it cannot attach directly to an angle-iron frame.
    view full answer...
  • Rolling Pin Sheared on Shelby Boat Trailer Jack
    I do have an option for you but we do not carry any replacement parts for Shelby Boat Trailer Jacks. The Shelby Boat Trailer Jacks have also been discontinued for some time therefore replacement parts will be hard to come by so I recommend just replacing the entire jack. I was not able to find any information on the Shelby Boat Trailer Jack 2561-1 so if you can provide me with some specs I would be glad to help pair you with a suitable replacement. If not I have attached our selection...
    view full answer...
  • Recommended Caster Wheel Jack for Moving Trailer
    It sounds like you are looking for a side mount trailer jack that features a caster wheel for your trailer. We have a large selection of jacks that should work great for you, depending on the capacity you are needing. For example, the MaxxTow Round Swivel Trailer Jack # MT70149 features a 1,500 pound lift capacity and dual thermoplastic wheels that will provide support and easy maneuverability. This can be bolted to trailer tongues that are up to 4 inches tall. It has a retracted bracket...
    view full answer...
  • High Capacity Trailer Jack Recommendation with Wheel Caster and Tall Bracket Height
    The jacks we offer with wheels have lower capacities as it's hard to make a wheel as strong as a flat plate like what is seen on the higher capacity jacks. Since jack capacity is based on the tongue weight of a trailer, and tongue weight is typically right at 10 percent of a trailer's total weight the need for a 2,000 lb tongue weight jack is kind of scary to think about. Reason being that the total trailer weight would be around 20,000 lbs which would be nearly impossible to move by hand...
    view full answer...
  • Replacement Trailer Jack Recommendation for Replacing Shelby Jack 5854
    The specific Shelby jack you are looking for is not available from us but for a very similar jack we have the MaxxTow part # MT70149 which uses a similar mounting style, is a sidewind, and has a wheel caster setup.
    view full answer...
  • Can Side Mount Jack Install on A-Frame Trailer to Replace A-Frame Jack for Better Ground Clearance
    A side mounted jack that you could pivot up and out of the way for better ground clearance would work just fine. The A-frame location is convenient but in a situation like yours you certainly could go with the side mounted style. For that something like the bolt on MaxxTow part # MT70149 would work great. I attached an install video for this for you to check out as well.
    view full answer...
  • Needing a Jack to Mount to a 5 Inch Tall Frame Rail
    I have a solution for you, however, the jack that you referenced # MT70149 will not fit a 5 inch trailer tongue. The Fulton Bolt-Thru Swivel Marine Jack, # FXP15, will fit 3 inch x 5 inch trailer tongue and has a lift capacity of 1,500 lbs. This Fulton jack is made of galvanized steel for rust protection. In my research, I found using zinc coated steel with aluminum will cause none to very little corrosion damage in warm, humid, or marine climates.
    view full answer...
  • Recommended Swivel Jack for Magnum Boat Trailer to Replace Broken Shelby Trailer Jack
    For your replacement jack, I recommend the MaxxTow Round, Swivel Trailer Jack w/ Dual Wheels - Sidewind # MT70149. This jack is an easy bolt on installation to replace your broken Shelby Jack. This jack has a corrosion-resistant zinc plating and dual support thermoplastic wheels. I've attached a couple of videos to further assist.
    view full answer...
  • How Well Does the Dual Wheeled MaxxTow Round, Swivel Trailer Jack # MT70149 Work on Gravel
    The dual wheels on MaxxTow Round, Swivel Trailer Jack # MT70149 will work better on loose gravel than a single wheeled jack but not as well as wide stance rubber wheels on something like a trailer dolly # MT70225 or the new Trailer Valet XL # TVXL2. The Trailer Valet in particular has chain driven wheels allow you to crank the handle to move the trailer unlike a regular trailer dolly where you'd have to use pure muscle to move the trailer around. I have linked videos on all 3 parts for you.
    view full answer...
  • Clearance Between the Wheel Assembly and Trailer Frame When Folded Up MaxxTow Swivel Jack
    I pulled a MaxxTow Round Swivel Jack part # MT70149 from our warehouse to measure the distance between the wheel assembly and where the frame of your trailer would be and found it to be 1-1/8 inches. This should clear your clearance light if it was located in that area since you said it sticks out only 3/4 of an inch. I attached a review video for this product for you to check out also.
    view full answer...
  • Trailer Jack Needed to Easily Maneuver Boat Trailer in Garage
    Since you are maneuvering your boat trailer on a smooth garage floor there really isn't any advantage to using a dual wheel jack like the MaxxTow # MT70149 over a single wheel jack. The dual wheels basically help to make moving the trailer easier when rough terrain is involved. If you are having difficulties moving your trailer (and it is affecting you physically) then you may opt for a jack that is easier to use. Trailer Valet has a few different options to choose from with the base...
    view full answer...
  • Trailer Jack and Stabilizer Recommendation for Trailer that Sits 25 inches Off Ground
    The MaxxTow Trailer Jack part # MT70149 that you referenced can extend 26-1/4 inches from the bracket down to the ground. The scissor jacks part # UF48-979031 have a lift of up to 30 inches so they would work great as well.
    view full answer...
  • Solution for MaxxTow Trailer Jack # MT70149 with Internal Damage
    If your MaxxTow Trailer Jack part # MT70149 has internal damage the only solution will be to replace the entire jack as we do not have replacement parts for it.
    view full answer...
  • Can MaxxTow Swivel Trailer Jack # MT70149 Be Welded to the Trailer Frame
    I spoke with my contact at MAXXTOW and he said you can weld the MaxxTow Swivel Trailer Jack # MT70149 to your trailer frame. I would also recommend you check your trailer tongue weight to be sure you have the correctly-rated jack.
    view full answer...
