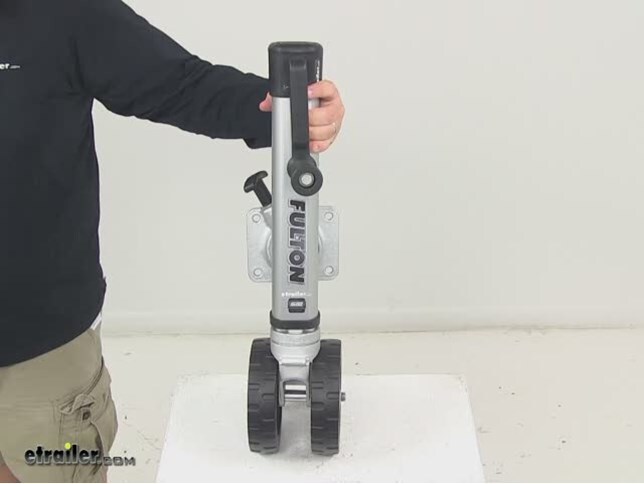

Fulton F2 Swing-Up Trailer Jack with Dual 7" Wheels, Sidewind -1,600 lbs - No Mounting Hardware

Ask the Experts about this Fulton Trailer Jack

• Bolt-On Side-Mount Dual Wheel Trailer Jack Recommendation for Utility Trailer
  Since you want a side-mount jack that will work on dirt/grass surfaces I suggest a dual-wheel type such as the MaxxTow # MT70149. Dual wheel will spread the weight over a larger area and help the jack function on such softer surfaces. The jack offers bolt-on installation, a hefty 1500-lb tongue weight rating, pull-pin swivel operation and 12-inches of lift. If the surfaces are very soft or rutted you may instead prefer the Trailer Valet 5X Swivel Jack and Trailer Mover # STC-V211. This...
  view full answer...
• Mounting Plate for F1413100334 Fulton F2 Swing-Up Trailer Jack
  After looking closely at the photo, it looks like the # F1413100334 jack is mounted to the trailer frame using the # F500277 weld-on mounting plate. This is the recommended method of installing this jack.
  view full answer...
• Boat Trailer Jack Recommendation for Uneven Terrain
  I'd recommend using a jack specifically designed for uneven terrain, like the ARK off-road swing up trailer jack, part # ORJW350D. The jack is rated for up to 770 lbs of tongue weight, and features dual wheels for easy maneuvering in all types of terrain. ARK is located in Australia where off road camping is more prevalent than what's found in the US. They design their trailer jacks to withstand punishment that wouldn't likely be encountered here, so this jack would be an excellent choice...
  view full answer...
• Replacement Jack for my 2006 Extreme Boat Trailer
  The Fulton F2 Swing-Up Trailer Jack with Dual 7" Wheels part # F1413100334 that you looked at does not have mounting hardware instead use the Fulton F2 Swing-Up Trailer Jack, Dual 7" Wheels part # F1413020134. It is the exact same jack but includes the u bolt kit you will need to mount it on to the trailer. Check out the video on it that I linked for you.
  view full answer...
• Fulton F2 Dual Wheel Jack Compatibile 2000 Ranger R83 Ranger Trail Single Axle Trailer
  The Fulton F2 Swing-Up Trailer Jack w/ Dual Wheels - Sidewind - 9-3/8" Lift - Bolt On - 1,600 lbs # F1413130334 is designed to work on 3 x 5 inch trailer frames. It won't fit the current mounting locations but it will fit your trailer frame if it has that dimension. The distance between the mounting holes center to center is 4-1/2" wide x 5-1/2" long. If instead the frame is 3 x 4 inches then the Fulton F2 Swing-Up Trailer Jack, Dual 7" Wheels, Sidewind, Weld-On - 1,600 lbs # F1413060334....
  view full answer...
• Mounting Hardware for Fulton F2 Swing Up Trailer Jack Rated for 1600 Pounds
  For the Fulton F2 # F1413100334 Swing Up Trailer Jack with dual 7" wheels, rated for 1600 pounds the mouting hardware is Fulton # F0928059-00 which includes U-bolts in both 3" and 4" sizes along with washers and nuts. I have included links to both items so you can see the current pricing.
  view full answer...
• Replacement Pull Pin for Fulton F2 Swing-Up Jack
  Yes, the number 18 in the attached photo will be the Replacement Pull Pin Kit for Fulton F2 Swing-Up Jacks part # F500136 which is for the Fulton F2 Swing-Up Trailer Jacks like part # F1413100334.
  view full answer...
• Mounting the Fulton F2 Trailer Jack
  Thanks for the photo. The Fulton F2 jacks use a different mount so it isn't compatible with your current base. You will need to remove the base and then you can install the F2 # F1413100334 you referenced. If you want to keep your current mount, then I recommend the Fulton XLT Bolt-Thru Swivel Trailer Jack - Bolt On - Sidewind - 12" Lift - 1,500 lbs # F141133 which is the closest compatible option.
  view full answer...
• Will Fulton F2 Swing-Up Trailer Jack Replace Original F2 Trailer Jack
  Yes, the jack will bolt onto the mount of your original Fulton F2 jack. The Fulton F2 Swing-Up Trailer Jack # F1413100334 will mount to bolt holes that are 4-1/2" wide x 3-3/8" tall on center, which is what your mount will be for an F2 jack. I have added a link to a video review for you to check out as well of the Fulton F2 Swing-Up Trailer Jack # F1413100334.
  view full answer...
• Is Plastic Housing Piece on Fulton F2 Trailer Jack Available as Replacement Part
  According to Fulton the part labeled #9 in the attached photo isn't available as a replacement part. If you are needing to replace it then you likely need a new trailer jack. The 1,600 lb Fulton F2 Swing-Up Trailer Jack with Dual 7" Wheels # F1413100334 is a great option and it uses that same piece but if you are looking for something a little different just let me know what exact jack you currently have and I can recommend something that is similar.
  view full answer...
• Bolt Pattern Dimensions of Fulton F2 Swing-Up Trailer Jack
  The bolt hole dimensions on the Fulton F2 Swing-Up Trailer Jack # F1413100334 are 3.44 inches by 4.44 inches center-to-center, according to Fulton. It will fit on a 3" x 4" trailer tongue and has a 1,600 lb capacity. I've added a link to a video review of this product for you to take a look at.
  view full answer...
• Can Holes be Drilled Into Welded On Bracket to Mount Fulton F2 Jack
  I do not recommend drilling holes into your current welded on bracket in order to mount the Fulton F2 Swing-Up Trailer Jack # F1413100334. It may compromise the frame and bracket depending on where the holes are drilled so I highly recommend instead having a welder remove that weld-on bracket and adding the Weld-On Mounting Bracket and Hardware for Fulton Swing-Up Trailer Jacks with 3" x 4" Mount # F500277.
  view full answer...
• Replacement Parts for Fulton F2 Trailer Jacks
  It sounds like you need the replacement gear kit # F500314 which comes with the two gears, washers, and the two roll pins. It sounds like all you need is the roll pin but that roll pin is not available by itself. We also have bearing kit # F500137, pull pin # F500136, handle # F500134, handle holder # F500129 and gear cover # F500135 as replacement parts for the F2 jacks.
  view full answer...
• Recommended Replacement Bolt Thru Jack Similar To Fulton F2
  The Fulton XLT Bolt-Thru Swivel Trailer Jack - Bolt On - Sidewind - 12" Lift - 1,500 lbs # F141133 is the replacement for your original Fulton 1500 bolt thru jack. Another great option is the dual wheel Fulton Jack # FXPD15L. These jacks are similar to the F2 you mentioned. The Fulton F2 Swing-Up Trailer Jack, Dual 7" Wheels, Sidewind, Weld-On - 1,600 lbs # F1413060334 has a different style of swivel that is integrated into the design like all of the F2 models. The plate welds directly...
  view full answer...
• Plastic Housing Replacement Availability on Fulton F2 Trailer Jack
  The Fulton F2 Swing-Up Trailer Jack # F1413100334 (as well as other F2 jacks) has that plastic piece that as you referenced is #9 in the exploded diagram. I reached out to my tech contact at Fulton and unfortunately that is not a replaceable part. You will need to replace the entire jack.
  view full answer...
• Replacement 7-Inch Wheels for Fulton F2 Swing-Up Trailer Jack # F1413100334
  We can help you with a choice of two options for replacing the wheels on your Fulton F2 Swing-Up Trailer Jack # F1413100334. If you need just a single replacement wheel only you can use part # F500138. If you prefer a complete kit with two wheels and the mounting hardware we offer Replacement Twin-Track Wheel Kit # F500130. If you'd rather have an entire spare assembly you can use part # F500265 which includes the pull pin.
  view full answer...
• Fulton Jack Mounting Options
  We do not have a direct replacement that offers that type of bolt pattern. The bolt on variety commonly used is the 4" by 4". We do offer Fulton F2 Swing-Up Trailer Jack part # F1413060334 which can be welded on to your trailer in place of the current bracket to provide the connection point you need or Fulton F2 Swing-Up Trailer Jack, Dual 7" Wheels part # F1413020134 this one can be used on your application with a 1/2" spacer added below the frame of the trailer to take up the gap.
  view full answer...
• What is the Mounting Bolt Pattern on Fulton 1600-lb F2 Swing-Up Trailer Jack # F1413100334
  The Fulton F2 Swing-Up Trailer Jack you referenced, part # F1413100334, has according to my contact at Fulton a bolt pattern of 3.44 inches X 4.44 inches measured precisely from hole center to hole center, top to bottom and side to side, respectively. This hole spacing may sometimes be referred to as 3 x 4 inches for convenience. I pulled a sample of the matching mounting plate that we offer for weld-on installations, part # F500277, and measured the hole spacing on this part. Although...
  view full answer...
• Dimensions of Fulton F2 Jack F1413100334
  The Fulton F2 Swing-Up Trailer Jack # F1413100334 has a moveable mounting bracket (not shown in the photos) that provides an adjustment range of 8-inches. When extended fully the distance from the pivot center to the wheel center is 17-1/4-inches; when retracted it is 7-1/4-inches. From the top of the jack to the center of the pivot (with the sliding bracket at its lowest position) the distance is 14-5/8-inches.
  view full answer...
• Mounting Bracket Bolt Pattern of the Fulton F2 Trailer Jack
  I spoke with my contact at Fulton and he informed me that the mounting flange of this Fulton F2 Swing-Up Trailer Jack # F1413100334 and all of the other F2 jacks has center to center bolt hole measurements of 3.44 inches by 4.44 inches. What that means is that you could install this jack on either trailer frame with either a 3 inch tall frame or a 4 inch tall frame if you were using U-bolts. You may also be interested in purchasing a Weld-On Mounting Bracket and Hardware # F500277...
  view full answer...
• How to Change Height of Fulton Jack Mounting Bracket
  To adjust the height of the mounting bracket on the Fulton F2, part # F1413100334, you need to loosen the bolt behind the bracket (which it sounds like you have) as well as the bolt in the middle of the bracket. Take a look at the picture I've attached. Make sure to tighten both bolts back to spec per the instructions after adjusting the height.
  view full answer...
• Recommended Fulton F2 Trailer Jack to Replace Dutton Lainson Jack on Trailer
  The Fulton F2 Swing-Up Trailer Jack with No Mounting Hardware # F1413100334 referenced in your question features a bolt pattern that is 3-3/8 inches on center x 4-3/8 inches on center. There is not a Fulton jack currently available that includes a mounting plate that matches the 3-1/2 inch x 3-1/2 inch pattern that you mentioned. To use this particular jack, you will just need to a new plate welded to the trailer like part # F500277. Another option is the weld on Fulton F2 Swing-Up...
  view full answer...
• Troubleshooting a Frozen Screw Shaft in a Fulton F2 Jack
  I spoke to my contact at Fulton and he informed me that they don't sell replacement screws for the Fulton F2 jacks like the # F1413100334. But he said that what you are doing should free it up. You may have to soak the screw and collar assembly in gear oil for a couple days, but one way or the other it will free up. Once you get it to free up use a good grease like the LMX Red Grease part # L11390 on the threads to prevent this problem from happening again.
  view full answer...
• Troubleshooting Fulton F2 Trailer Jack with Dual Wheels that Will Not Roll Straight
  There's a few things that could be going on here. The most likely is that you need some weight on the trailer. With the dual wheels when the trailer is being moved the wheels have such a tight connection to the tube that it only takes an extremely slight bump in the road to disrupt them. Weight on the trailer will prevent this because the downward force keeps the wheels on the ground. Another possibility is the mounting of the jack. If the plate is not 100 percent vertical (which...
  view full answer...
• Mounting Flange Bolt Pattern Dimensions Fulton F2 Swing-Up Trailer Jack # F1413100334
  I spoke with my contact at Fulton and he informed me that the mounting flange of this Fulton F2 Swing-Up Trailer Jack # F1413100334 has center to center bolt hole measurements of 3.44 inches by 4.44 inches. What that means is that you could install this jack on either trailer frame with either a 3 inch tall frame or a 4 inch tall frame if you were using U-bolts. You may also be interested in purchasing a Weld-On Mounting Bracket and Hardware # F500277 if you would rather weld this...
  view full answer...
• Mount Recommendation for the Fulton F2 Swing-Up Trailer Jack with Dual 7" Wheels # F1413100334
  The Fulton F2 Swing-Up Trailer Jack with Dual 7" Wheels # F1413100334 is a great jack and I have an option for you to be able to install it on your trailer, but it would not mount to a mount like the part # P9012-00. Instead you would need to remove that mount and install a # F500277 in it's place.
  view full answer...
• Recommended Trailer Jack for Use Moving Chicken Tractor on Sandy Soil
  The Fulton F2 Swing-Up Trailer Jack # F1413100334 cannot take a solid 10-inch rubber wheel, but I do understand your interest in this idea since you need to move your chicken tractor on sandy soil where its 7-inch plastic wheels might sink in to the ground. A jack with dual wheels will definitely be better for you, and the pneumatic tires on the Trailer Valet 5X Swivel Jack and Trailer Mover # STC-V211 will be the best option for traction on a sandy surface. This 2-speed jack does cost...
  view full answer...
• Is Hardwre Included with the Fulton F2 Swing-Up Trailer Jack # F1413060334
  The Fulton F2 Swing-Up Trailer Jack, Dual 7 inch Wheels, Sidewind, Weld-On - 1,600 lbs, item # F1413060334, comes with the weld on mounting bracket that will need to be welded to the trailer frame. The Fulton F2 Swing-Up Trailer Jack with Dual 7 inch Wheels, Sidewind -1,600 lbs - No Mounting Hardware, item # F1413100334, does not come with any mounting hardware. You can purchase the weld on plate, item # F500277 separately to mount the jack to your trailer frame. A bolt on plate is not...
  view full answer...
• Fulton F2 Jack Without Mounting Hardware
  Check out the Fulton F2 Swing-Up Trailer Jack # F1413140334. This is an F2 jack with a single wide wheel track, except it comes with 2 U-bolts for installation that you could just discard. I wish we had an F2 without mounting hardware and a single wheel that I could recommend for you, but the # F1413140334 is the closest thing we have to that.
  view full answer...
