Bulldog Square Jack - Fixed Leg - Sidewind - 15" Lift - 3,000 lbs

Bulldog Square Jack - Fixed Leg - Sidewind - 15" Lift - 3,000 lbs

Item # BD195352
lowest price pledge
Retail:$113.59
Our Price: $76.44
You Save: 33%
Trailer Jack
Orders above $99 qualify for Free Shipping
Shipping Weight: 16 lbs
Quantity:
In Stock
Bulldog Side Frame Mount Jack - BD195352
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Customer Photos

Videos

Fixed leg jack with footplate base welds directly onto your application, has 24-3/8" retracted height and offers superior side-load strength for your agricultural or industrial needs. Includes sidewind crank. Lowest Prices for the best trailer jack from Bulldog. Bulldog Square Jack - Fixed Leg - Sidewind - 15" Lift - 3,000 lbs part number BD195352 can be ordered online at etrailer.com or call 800-298-1624 for expert service.
  • All Info
  • Reviews (71)
  • Q & A (2)
  • Videos (1)
  • Photos
  • Why etrailer?

Bulldog Trailer Jack - BD195352

  • Side Frame Mount Jack
  • 3000 lbs
  • Sidewind Jack
  • No Drop Leg
  • Weld-On
  • Fixed Mount Jack
  • 15 Inch Lift
  • With Foot
  • Bulldog

Fixed leg jack with footplate base welds directly onto your application, has 24-3/8" retracted height and offers superior side-load strength for your agricultural or industrial needs. Includes sidewind crank.


Features:

  • Superior side-load capacity compared with round jacks
    • Outer and inner tubes overlap for additional strength when jack is fully extended
    • Square design provides additional support for side loading
  • Durable, long-lasting construction
  • Weather-resistant coating on outer tube and zinc inner tube
  • Sidewind handle has smooth, ergonomic design for easy cranking
  • Fixed-leg jack welds directly to application
  • Standard footplate included
  • ASABE compliant


Specs:

  • Bracket height:
    • 24-3/8" Retracted
    • 39-3/8" Extended
  • Lift: 15"
  • Tubing width: 2-1/4"
  • Handle radius: 6-1/2"
  • Lift capacity: 3,000 lbs
  • Static capacity: 5,000 lbs
  • Limited 5-year warranty


195352 Bulldog Square Direct Weld Jack, Sidewind, 15" Travel, 3,000 lbs - SWS 195 DQ




California residents: click here

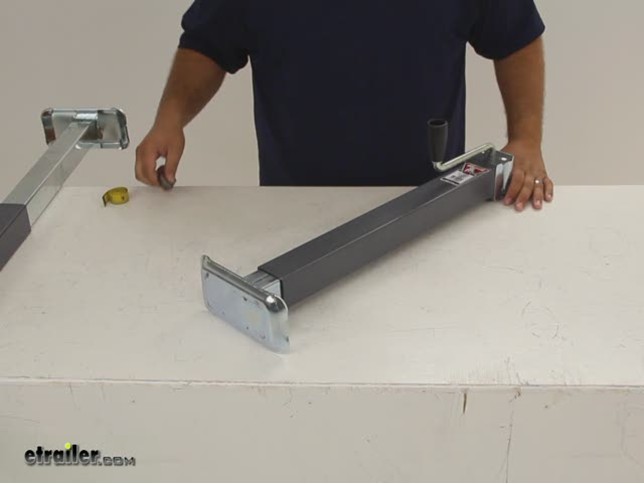

Video of Bulldog Square Jack - Fixed Leg - Sidewind - 15" Lift - 3,000 lbs

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Bulldog Trailer Jack - Side Frame Mount Jack - BD195352 Review

Today, we're going to take a quick look at the Bulldog Square Jack with Fixed Leg, part number BD195352. Now, Bulldog covers this jack with a limited five-year warranty. It's got a 5000-pound static capacity and a 3000-pound lift capacity. It's a direct weld style jack, meaning you can weld the housing of the jack anywhere along your trailer frame. That way you can fit it to best suit your needs. It's a sidewind style jack with the handle on the side of the jack.

This might come in handy if you've got LP bottles or other attachments on the front of your trailer. You won't have to worry about the handle interfering like you would a topwind. You'll also notice on the back of the jack is a grease zerk. This allows you to use a grease gun to keep the internals lubricated so they dont seize up and they operate properly. The outside tube of the jack is finished in gray paint and the inner tube and the welded footplate are zinc plated to help prevent against corrosion.

Now, this footplate is going to provide a nice flat surface for supporting the nose of your trailer. Next, I want to go over a couple of measurements. This jack is fully retracted and we'll measure from the top of the jack down to the bottom of the footplate, and we get about 24-1/2 inches. Now, we have another one of these jacks, same model, but we've extended it out all the way. Again, we'll measure from the top of the jack to the bottom of our footplate, and we get 39-1/2 inches.

The difference between the two measurements, 15 inches, is known as the jack's lift or travel. And that's it for our quick look at the Bulldog Square Jack with Fixed Leg, part number BD195352.


Customer Reviews

Bulldog Square Jack - Fixed Leg - Sidewind - 15" Lift - 3,000 lbs - BD195352

Average Customer Rating:  4.9 out of 5 stars   (71 Customer Reviews)

Fixed leg jack with footplate base welds directly onto your application, has 24-3/8" retracted height and offers superior side-load strength for your agricultural or industrial needs. Includes sidewind crank.

- BD195352
by:

Although it's a trailer jack I used this and one I previously bought as outriggers to support my home built log splitter. They keep things solid when handling large logs using the hydraulic crane and electric winch to lift and place the logs on the splitter cradle.


Comments
Still doing the job after several major woodcutting sessions.
Pappy40 - 10/16/2018



- BD195352
by:

The Bulldog products that I have received is designed well and construction is very good. It serves our purpose well, not only in our trailer fleet, but for other purposes also, specifically as an inexpensive way to construct adjustable tables, supports, etc. The personnel at etrailer knows the product line and is very efficient in handling questions and getting the orders out on a timely fashion. We, at Green Consulting Group, LLC recommends both product and etrailer for Bulldog product purchases. DG



- BD195352
by:

Excellent quality and a great price. Perfect for our top secret application.



- BD195352
by:



- BD195352
by:

Came in as described and on time



- BD180455
by:

Review from a similar SW Heavy Duty Square Direct Jack in Trailer Jack


The jacks have been working very well for us. We use them on our fire pump test trailer. They are used to support the 3000 gals of water in the tank while we are performing pump capacity test for local fire depts. They replaced lighter duty jacks. We replaced two last year and just purchased two more this year to complete the change over.



- BD190754
by:

Review from a similar SW Heavy Duty Square Direct Jack in Trailer Jack


Needed to replace a jack that have been ruined by someone who didn't understand the concept of a drop foot. After a couple local stops looking for a replacement at Farm Stores I decided to go to etrailer again. I've used them many times in the past and I don't know what I was thinking by driving around. I needed a very exact application tongue jack. Etrailer had all of the Bulldog line and I easily found what I needed. Shipping was fast. I'm a big fan of etrailer



- BD180455
by:

Review from a similar SW Heavy Duty Square Direct Jack in Trailer Jack


A great heavy duty jack for an awesome price.


Comments
Excellent
Doug S - 01/07/2021


- BD180455
by:

Review from a similar SW Heavy Duty Square Direct Jack in Trailer Jack


Great product, heavy duty, works like a charm !!!


Comments
has preformed flawlessly a good investment.
Eric C - 07/02/2021


- BD180455
by:

Review from a similar SW Heavy Duty Square Direct Jack in Trailer Jack


The trailer Jack arrived very quickly. It was boxed extremely well to ensure that there was no damage upon arrival. The service was excellent also. This heavy duty Jack will be installed on my dump trailer. I look forward to ordering more products. Thank you etrailer.



- BD180455
by:

Review from a similar SW Heavy Duty Square Direct Jack in Trailer Jack


good however i puchased jacs for my fith wheel no good on that one



- BD190754
by:

Review from a similar SW Heavy Duty Square Direct Jack in Trailer Jack


Heavy duty weld on jack! Bulldog is boss



- BD195369
by:

Review from a similar SW Heavy Duty Square Direct Jack in Trailer Jack


The service provided by etrailer.com was superb. I got "in house" updates on who/when prepared my order, pulled it from the warehouse, packaged it, and shipped it. It was kinda like when you order a pizza from Domino's online! You are updated on every step of the ordering and shipping process, until your order leaves the warehouse. My order arrived at my door by the estimated arrival date and was impressed with the packaging.



- BD180455
by:

Review from a similar SW Heavy Duty Square Direct Jack in Trailer Jack


Hitch works flawlessly after one year. Can't complain about the quality of price.


Comments
Great no issues at all
Clint E - 11/08/2020


- BD190754
by:

Review from a similar SW Heavy Duty Square Direct Jack in Trailer Jack


Order was on time and in good condition.



- BD190754
by:

Review from a similar SW Heavy Duty Square Direct Jack in Trailer Jack


I called in for support regarding this product, replacing a bulldog 2,000lb sidewinder jack originally supplied on my trailer. I wanted to upsize to this larger unit as the previous one was barely adequate. I discussed the dimensions and availability in stock. etrailer support was very helpful with the specs and ordering process. I received the item quickly and was exactly as presented at a great price. I cut the bracket from my old unit, mig welded it onto this new unit and it works like a charm. Definitely a positive experience. Highly recommended to buy from etrailer!



- BD180455
by:

Review from a similar SW Heavy Duty Square Direct Jack in Trailer Jack


Great jack, once installed. Could come with a mounting bracket or some way to mount it. If we didn't have welding capabilities there wouldn't have been a way to attach it. Other than that, it is a great jack that works a lot better than the small flimsy jack that came on our 16' enclosed trailer.



- BD180455
by:

Review from a similar SW Heavy Duty Square Direct Jack in Trailer Jack


This jack was poorly assembled, the jack was barely useable, as the gears barely touched causing it to skip and strip the tops of the gears. We had to use a hydraulic jack to lift the trailer off of the ball to separate the truck and trailer. Took the jack completely apart, spent two hours to adjust shims that are washers to raise main gear to turn handle gear. The gears are now fully engaged together, the jack works correctly as it was designed.



- BD195369
by:

Review from a similar SW Heavy Duty Square Direct Jack in Trailer Jack


Great service



- BD180455
by:

Review from a similar SW Heavy Duty Square Direct Jack in Trailer Jack


Just got the trailer-jack and haven't welded it on yet, so this is just about the service- Helen was superb! Highly knowledgeable and helpful and the whole process was painless and the product was here before I was even ready to put it on. etrailer.com will definitely be my first stop for trailer parts!



- BD190754
by:

Review from a similar SW Heavy Duty Square Direct Jack in Trailer Jack


Works great.



- BD180455
by:

Review from a similar SW Heavy Duty Square Direct Jack in Trailer Jack


I purchased this jack for a 15xp Brush Bandit chipper. My original jack (Not this company) broke and so I found this online. It has been great for me. No issues for over a year.



- BD180455
by:

Review from a similar SW Heavy Duty Square Direct Jack in Trailer Jack


Worked great. Great price.



- BD182500
by:

Review from a similar SW Heavy Duty Square Direct Jack in Trailer Jack


High quality item at a cheaper price than local suppliers. Product was in stock and delivered promptly. I installed a pair of these jacks on my custom bbq catering trailer and they performed flawlessly.



- BD190751
by:

Review from a similar SW Heavy Duty Square Direct Jack in Trailer Jack


HI, EVERYTHING IS WORKING GREAT WITH THE JACKS. WE HAVE PURCHASED MANY OF THEM THROUGHT OUR FACILITY. I’M SURE WE WILL BE ORDERING MORE IN THE FUTURE. THANKS


25
71
Show More Reviews

Ask the Experts about this Bulldog Trailer Jack

  • Is There a Recommended Footplate-to-Ground Clearance When Installing a Trailer Jack
    There isn't really a recommended footplate-to-ground clearance for mounting a trailer jack like the Bulldog Square Jack # BD195352 that you referenced. The best way to determine where to install it would be to hook it up to your tow vehicle and then lift the trailer to uncouple and mark the height. You will then want to install the jack at a height that the jack can achieve. Aside from that, there really is no specific height for mounting a trailer jack. I have attached a review video...
    view full answer...
  • Pipe Mount for Square Bulldog Jack Compatible with Dimensions
    The Bulldog Replacement Pipe Mount for Swivel Jack - Weld On - 5/8" Pull Pin, # BD500339 is for square jack mounting. The mount measures 2-1/4 inches wide which is the tubing width of the Bulldog Square Jack # BD195352 and # BD195368 you referenced. The weld on male mount compatible with this is the Weld-On Male Mount Kit for Bulldog Round Jack # BD500240 you also referenced which has a 2 inch outer diameter. I've attached photos to assist further.
    view full answer...
