Bulldog A-Frame Round Jack - Sidewind - Weld or Bolt On - Zinc Finish - 5,000 lbs

Item # BD1700100301

lowest price pledge

Our Price: $84.65

Trailer Jack

Orders above $99 qualify for Free Shipping

Shipping Weight: 14 lbs

Quantity:

In Stock
Bulldog Trailer Jack - BD1700100301
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

Bulldog Trailer Jack - BD1700100301
Bulldog A-Frame Jack - BD1700100301
Bulldog A-Frame Jack - BD1700100301
BD1700100301 - Bolt-On,Weld-On Bulldog A-Frame Jack
Trailer Jack BD1700100301 - Bolt-On,Weld-On - Bulldog
Bulldog No Wheel or Foot Trailer Jack - BD1700100301
Bulldog A-Frame Jack - BD1700100301
Bulldog Trailer Jack - BD1700100301
Bulldog A-Frame Round Jack - Sidewind - Weld or Bolt On - Zinc Finish - 5,000 lbs No Drop Leg BD1700100301

In Use/Installed

Bulldog Trailer Jack - BD1700100301
BD1700100301 - Bolt-On,Weld-On Bulldog Trailer Jack
Bulldog Standard A-Frame Jack Trailer Jack - BD1700100301
BD1700100301 - Standard A-Frame Jack Bulldog Trailer Jack
Bulldog 5000 lbs Trailer Jack - BD1700100301

Customer Photos


  • A-Frame Jack
  • 5000 lbs
  • Sidewind Jack
  • No Drop Leg
  • Standard A-Frame Jack
  • Bolt-On
  • Weld-On
  • Bulldog
  • 15 Inch Lift
  • No Wheel or Foot
Ideal for multiple agricultural and commercial applications, this standard A-frame jack features a 8-5/8" retracted height and measures 23-5/8" from the mounting bracket to the top, excluding the handle. Base sold separately. Lowest Prices for the best trailer jack from Bulldog. Bulldog A-Frame Round Jack - Sidewind - Weld or Bolt On - Zinc Finish - 5,000 lbs part number BD1700100301 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (82)
  • Q & A (19)
  • Videos (2)
  • Photos
  • Why etrailer?

Bulldog Trailer Jack - BD1700100301

Ideal for multiple agricultural and commercial applications, this standard A-frame jack features a 8-5/8" retracted height and measures 23-5/8" from the mounting bracket to the top, excluding the handle. Base sold separately.


Features:

  • Dependable jack is recognized as industry standard for agricultural and commercial applications
    • ASABE compliant
  • Precision-fitted parts provide exceptional stability and reliability
  • Weld-on/bolt-on bracket mounts to any standard A-frame coupler
  • Sidewind handle has smooth, ergonomic design for easy cranking
  • Outer and inner tubes are zinc finished
  • Footplate or caster assembly sold separately


Specs:

  • Bracket height
    • Retracted: 8-5/8"
    • Extended: 23-5/8"
  • Travel: 15"
  • Clearance: 14-3/4" from mounting bracket to top of jack
  • Handle radius: 6-11/16"
  • Outer tube outer diameter: 2-1/2"
  • Inner tube outer diameter: 2"
  • Capacity: 5,000 lbs
  • Limited 5-year warranty


1700100301 Bulldog A-Frame Round Jack - 5K - Zinc Finish



BD1700100301 Installation InstructionsInstallation Details BD1700100301 Installation instructions


Video of Bulldog A-Frame Round Jack - Sidewind - Weld or Bolt On - Zinc Finish - 5,000 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

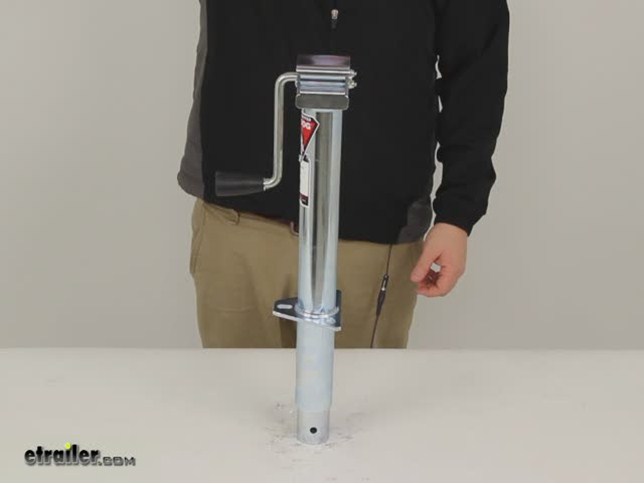

Video Transcript for Bulldog Trailer Jack BD1700100301 Review

Today well be reviewing part number BD1700100301. This is the Bulldog A Frame Round Jack with the Side wind Handle. Its going to provide a weld on or a bolt on install, has a nice zinc plated finish which is going to help it stand up against rust and corrosion and its rated at 5,000 pounds. This does have precision fitted parts that are going to help provide exceptional stability and reliability. Again, the outer and inner tubes have a clear zinc plated finish, which is going to help it stand up well against corrosion. You have a couple different options when it comes to mounting this to your trailer. You can choose to weld this on to your trailer or you can use the bolt pattern to bolt this on to your trailer.

Just keep in mind that no hardware is included with this purchase. This mounting bracket is designed to fit any standard A frame coupler. The side wind handle has a smooth ergonomic design for easy cranking and its going to provide us with a radius of 6-11/16 of an inch. Now, a couple different accessories that I want to show you that are not included with this purchase, but they are available at Etrailer dot com. The first one is a caster wheel assembly. Your jack simply fits into the assembly.

You line up your pinholes and install your safety pin. This is ideal for marine applications or any application where you need a little bit easier mobility of your trailer. The other accessory that Id like to show you is the Bulldog footplate. This is available at Etrailer dot com with part number BD018564 and it simply installs the same way. Line up your pinholes and install your safety pin.When this jack is fully retracted, were going to have a bracket height of 8-5/8 of an inch. Thats measuring from our mounting bracket to the bottom of the inner tube.

When its fully extended, that measurement increases to 23-5/8 of an inch and if we subtract those 2 measurements, were left with 15 inches, which is where we get our lift measurement from. This does provide a clearance of 14-3/4 inches. Thats measuring from the mounting bracket to the top of our jack. Our outer tubing is going to have a diameter of 2-1/4 inches and our inner tubing is going to have a diameter of right at 2 inches.This does provide a lift capacity of 5,000 pounds and you can see that with our triangular design here on our mounting bracket, one of our points is a flat edge, so what Im going to do is I want to give you the measurement of one of the sides that connects to that flat edge and then the measurement of the side that just connects to the 2 sharper points. The side that connects to the flat edge is going to have a measurement of 4-1/4 inches and thats going to be the same on both sides and then the side that goes point to point has a measurement of 4-3/4 inches.

Our bolt holes are going to measure about inch wide by 7/8 inch long.Thats going to complete todays review of part number BD1700100301. This is the Bulldog A Frame Round Jack with a Side Wind Handle rated at 5,000 pounds. .


Customer Reviews

Bulldog A-Frame Round Jack - Sidewind - Weld or Bolt On - Zinc Finish - 5,000 lbs - BD1700100301

Average Customer Rating:  4.9 out of 5 stars   (82 Customer Reviews)

Ideal for multiple agricultural and commercial applications, this standard A-frame jack features a 8-5/8" retracted height and measures 23-5/8" from the mounting bracket to the top, excluding the handle. Base sold separately.

- BD1700100301

by:


Fantastic! I can once again jack my horse trailer up effortlessly! I was able to remove the old jack and put the new jack on by myself. Looks great on my trailer too. 142029


Comments

we love our jack! Its still operating wonderfully. We try and keep a bucket over it when not in use to keep the rain out. Thanks for the reminder that its been a year. Time to give it a grease job!

Marilyn W - 07/20/2015

13515

- BD1700100301

by:


Came on date promised and at exactly the time of day I was ready to install. Jack works great. Smooth, easy cranking even when car trailer is loaded. Very satisfied with this vendor and product. 153913


Comments

Still working perfectly. No problems. Very satisfied.

Jim S - 10/28/2015

15716

- BD1700100301

by:


I was very happy to find exactly what I needed for my trailer restoration project. etrailer had a large selection of trailer jacks to choose from. I needed a heavy duty zinc finish jack for my re galvanized fishing boat trailer and they not only had the perfect jack for the job but the pricing and equally important GREAT customer service. I couldn't ask for more. etrailer will be getting more of my business. I can't really write a review of the product because it will be 10-20 years before I'll know how it holds up but based on the description, the number of reviews and the number of good reviews that this product has, I am very confident that I will be happy with my new jack. Happy fishing to you - Brian 274354



- BD1700100301

by:


Very robust product. (trailer A-frame orientation was perfect to have the crank handle positioned to the rear of the tube). 224244


Comments

All the products are fabulous!! Thanks for following up with me. They are in use regularly.

JP - 09/13/2016

20949

- BD1700100301

by:


I love this design. The installation went great until I tried to attach the foot to the end of the stem. The stem would not fit into the foot. So I am waiting for a new foot to match this jack. :( The bolt holes lined up perfectly with the threaded holes in the trailer tongue. The only other features I would like to see for this product would be a waterproof cover to place over the top of it to keep water out of it and a grease fitting to lubricate the gears. 100724



- BD1700100301

by:


The power jack I had on my travel trailor stopped working due water getting into the power head over the winter. I looked at other power jacks etrailor had as well as the manual crank type. In the end I got the manual crank type ( rated for 5000 lbs ) as I`ve used these on previous travel trailors . My trailor is about 2500 lbs and it raises it very easily. I was very impressed with the descriptions and tutorials of all the products I looked at on etrailor. It did help to answer some questions I had. I received the jack in a matter of days after placing the order and installed it without any problems. I`ll definitely visit etrailor again. 149272



- BD1700100301

by:


I bought this tongue jack to replace one on my vintage (1960) trailer that had rusted out. The old jack has a smaller diameter than what is now the standard, so it took some work to get in. This jack seems like it is much higher quality than the old one, and gearing is quite smooth. Much less expensive than I had anticipated as well. I have to say that the seller was awesome, shipping to me very quickly and followed up to make sure the jack was what I needed. Highly recommend the jack and buying from etrailer.com. 457217



- BD1700100301

by:


First time dealing with E trailer. Outstanding inventory and pricing. 1st rate customer service and follow through after the order was placed and update shipping info from start to delivery. Fast shipping that was very reasonable! Bulldog A-frame jack is a solid well built product and fits my needs. For anyone looking for a marine application this jack came in a Zinc plated model. Corrosion protection and easy to maintain or apply zinc paint for protection down the road. 97631



- BD1700100301

by:


The product arrived in a couple of days which was really fast and much needed because my original equipment had failed and would not extend enough to allow release of my truck from my travel trailer because I could not extend the trailer hitch high enough. Installation was a snap, maybe 15 minutes. Unbolt original and replace it with this new item. All holes and alignments were precise and correct. etrailer saved my "fulltimer" life again ! 463672



- BD1700100301

by:


Outstanding product. Extremely heavy duty and was a breeze to install (5 minutes). I replaced a broken 2000 pound-rated jack (the jack that came with my 1 year-old Forest River Travel Trailer). The Bulldog Jack is obviously so much better/stronger! As always, shopping at etrailer was a great experience. Items arrived in perfect condition and, as always, you exceeded my expectations for delivery speed. Thanks guys! 77831



- BD1700100301

by:


This Bulldog A-Frame Jack fits my trailer perfectly. I had to tap it with a piece of wood to seat it the last couple of inches before bolting it on. Nice tight fit with no slack or wobble. The sidewind action works like a charm and easily lifts the trailer tongue and rear of my truck allowing me to install my weight distributing hitch bars without much effort. The zinc finish matches my Vintage Airstream trailer. 96759



- BD1700100301

by:


The perfect solution for a front frame Jack. This now allows me to mount my tool box between the trailer box and the Jack. No more interference for the crank, because it is on the front of the Jack not the top. I sure wish other internet sales companies would copy Etrailer. What's not to like, easy to use site, massive choice of products with fast reasonable shipping now add personal service and great prices. 218525



- BD1700100301

by:


I haven't used the jack with a car on my trailer. Just installed it last night. Quality of the Jack looks real good. Very easy to install if you have any mechanical skill at all! Without a load on the trailer, it cranks smoothly. I also bought the foot plate for it and it looks and fits really good too. Retracted height is better than my old one. Maybe I won't drag and bend this one on roadway access's. 206730



- BD1700100301

by:


Great jack. Well made, smooth operation. Amazing customer service from etrailer.com. I called them to discuss various products, to which they made a thoughtful recommendation. When the product was back-ordered by the manufacturer, they contacted me to alert me and provide options if I couldn't wait. My first choice came in sooner than anticipated. Will definitely shop with these guys again. 106874



- BD1700100301

by:


Brought the bulldog jack to replace the one on my boat trailer. Great product, easy to install, and operates smooth and easy Highly recommend for any large trailer! Charlie P Mobile, Al 187934



- BD1700100301

by:


Ordered on Friday and it arrived Tues...early. Very easy install and cranks even more easy. Thank you so much, and my elbows and shoulders thank you too. Will recommend to fellow farriers. 365835



- BD1700100301

by:


It seems like a quality jack. It fit the a-frame hole perfectly. 3" centers. If it doesn't hold up it comes with a five year warranty so I don't see how I can go wrong with this product. Replaced my 1500 lb. jack with this one which is a 5,000 lb. so it should not strain so much on my 7 X 12 enclosed trailer. I would recommend this product as far as I can tell right now. 491006



- BD1700100301

by:


I was very happy to receive this, as it was replacing a poorly cared for, and incorrect size jack on a larger boat trailer. It is a slow extend/retract jack, but strength seems to be as advertised. Very reliable, and it feels solid under weight. I especially like the heavy duty sealed gearing, as my use will be around salt water. It should last a very long time 297179


Comments

The parts have held up well, with proper care. Our use is around salt water, typically parts can get abused by nature. Theyve performed well.

John H - 10/17/2017

29457

- BD1700100301

by:


Not as easy to crank as other reviews claim. I bought this for a 4300# enclosed trailer. The tongue weight is under 600#. In theory, I should be able to get by with a much lighter duty jack but I went with this to make life easier. I can't imagine how hard it would have been if I had went with a 2000# jack. 431381



- BD1700100301

by:


Excellent look and quality. Excellent customer service and fast free shipping. 111050



- BD1700100301

by:


Although I have not yet had a chance to install the new jack it appears to be well built. What has impressed me is the quality of service. The detailed videos and the attention given to making sure I am satisfied. This is so rare in today's market place. 390908



- BD1700100301

by:


Product fit great and works perfect for my enclosed utility work trailer. Needed a heavy duty lift and could not find one locally. Internet search helped me located etrailers. And they offered a special with free shipping! Thanks! Mattehw 165991



- BD1700100301

by:


I have had the jack on my enclosed 5 place snowmobile trailer for a year. It installed easy, and is working better than the original jack and a few other replacements i tried. I would recommend this product and etrailer to anyone with confidence. 461043



- BD1700100301

by:


I'm a first time customer here! This is the place I'll be buying from here on out! Very easy to look up the parts I needed and described in detail what I was buying! Fast Shipping!! The jack was easy to install and was exactly what pics showed!! 294016



- BD1700100301

by:


I recived the Bulldog A-Frame Jack sooner than what was told me, witch worked out real good for me. The price was great. etrailer even was able to nock some of the shipping off. Porduct works great. Will so business again with Etrailer.com. 101890



- BD1700100301

by:


Don't mess around with anything else. This costs a little more and I have total confidence in it. My travel trailer came with a 1000 pound jack. I think this has enough margin to get the job done no matter what. And it looks good too... 491968



- BD1700100301

by:


I'm waiting for warmer weather to install my jack so I can't really give a rave review yet. I just really wanted to tell everyone out there what AWESOME SERVICE e trailer has. I got my jack just a few days after I placed my order. 175756



- BD1700100301

by:


This is my second of these jacks and the first went on a horse trailer. The latest one went on my 16 foot flatbed trailer replacing an old and worn out jack. I really like the orientation of the handle turn. It is a great jack! 403302



- BD1700100301

by:


Very impressed with the quality and weight of my product. I use a large Toy Hauler for work and the original jack is just about ready to blow. The new Jack is what I was hoping for when I ordered. I got what I wanted Thank You 258433



- BD1700100301

by:


Works great easy to install. 115959



- BD1700100301

by:


Works nice. 264704



- BD1700100301

by:


The jack was just what I needed. Galvanized for marine trailer application, and with a greater lift rating than the jack I was replacing. etrailer processed and shipped the order out promptly. 130319



- BD1700100301

by:


Looks to be high quality for the money. Great service and fast shipping. I have ordered several things from them and products have been exactly what the description has said them to be. 239356



- BD1700100301

by:


Very happy with my order, can't believe it took me this long to find the site. They had everything I was looking for and with fast shipping.. Will definitely order from them again. 146849



- BD1700100301

by:


This jack was a great buy. Fit and looks good and is heavier duty than the junk that came on my camper. The people at etrailer are what make the company. Keep up the good work ! 213492



- BD1700100301

by:


We purchased this unit about a year age to replace the OEM unit that had worn out. This new unit works well, better that the old unit ever did. We will use it again if needed. 248583


Comments

The product is doing well.

Bert - 01/30/2018

34065

- BD1700100301

by:


Got the product quickly and the box was torn open but everything was still inside. Weather prevents me from installing the jack but it does look like it will do the job. 464722



- BD1700100301

by:


Received the product even faster than I expected. Bolted it up without any issues and works just as expected. What more could you ask for - good experience. 179434



- BD1700100301

by:


Exactly what I was looking for.....fast shipping and excellent communication throughout the process. I would highly recommend using your site........ Thanks, 62244



- BD1700100301

by:


Just as advertized . . . quality product. As usual, the order shipped quickly and met my expectations. eTrailer.com is one of my favorite stores. 169095



- BD1700100301

by:


Excellent service ,never had this good of service ever anywhere from any company. I don't have it installed yet but when I do I will email photos. 184407



- BD1700100301

by:


The trailer jack that I ordered showed up super fast and in excellent condition! I will definitely use these guys again when I need something. 207379



- BD1700100301

by:


Heavy duty great jack...would purchase again ...at a good price. .would tell others to n purchase if they need a new jack! 303265


Comments

Still love it

Jake - 10/12/2017

29105

- BD1700100301

by:


Great looking product. Easy to install and makes jacking my 26' boat an easy chore. Will buy from Etrailer.com again. 51403



- BD1700100301

by:


The trailer jack is better than I expected. The price I paid was well within reason, for the quality of the jack. 451008



- BD1700100301

by:


works great and was easy to install. the handle was on the front which did not interfere with tool box behind it. 162289



- BD1700100301

by:


Excellent trailer jack for heavy trailers.....well built and is very strong....would highly recommend.... 163564



- BD1700100301

by:


Product arrived ahead of schedule great communication from the supplier and a great quality product 506373



- BD1700100301

by:


I received my order faster than expected. Exactly what I ordered and no glitches. Great service! 135551



- BD1700100301

by:


Went to this jack so I could mount a storage box to the front of a car hauler. Worked perfect. 287877


50
82
Show More Reviews

Ask the Experts about this Bulldog Trailer Jack
Do you have a question about this Trailer Jack?


  • A-Frame, Zinc Coated, Sidewind Jack with Drop Leg Option Recommendation
  • I have a solution for you, but no the Replacement Drop Leg and Pin Kit # BD500190 will not work on the Bulldog Jack part # BD1700100301 that you referenced. The best solution I could give you would be to get the # BD1700100301 as it is an A-frame jack, with a sidewind, that is zinc coated and then also get the Husky Brute Super Foot Fold-Up Jack Foot # HT31610. Check out the review video I attached.
    view full answer...

  • Which Is Easier to Crank, a Side Wind Jack or a Top Wind Jack
  • All A-Frame mounted jacks like the Pro Series Jack part # PS1400600303 use the same 3-inch mounting hole bolt pattern. In other words, the mounting holes are a universal size and pattern so that any A-Frame jack will fit into any A-Frame jack mount. As long as your trailer has an A-Frame jack mount, this jack will fit. Topwind jacks and sidewind jacks will both require the same amount of force to operate. Personally I prefer sidewinds as the cranking movement feels less awkward and more...
    view full answer...

  • Dimensions of Bulldog Trailer Jack # BD1700100301
  • I ran out to our warehouse and pulled one of the Bulldog # BD1700100301 jacks off the shelf. I measured the retracted height of the jack at 21-5/16 inches, and found the outer tube to be 2-1/4 inches in diameter. I edited a photo showing these and other relevant dimensions for you.
    view full answer...

  • Differences Between Bulldog A-Frame Jacks # BD1700100301 and # BD1700100317
  • Bulldog jacks # BD1700100317 and 1700100117 are the same item; the different part references denote individual retail boxed packaging versus bulk (unboxed) packaging for the # BD1700100317. Jack # BD1700100301 is the same jack only with a zinc finish instead of the painted finish. All share the same capacities.
    view full answer...

  • A-Frame Jack Recommendations with High Capacity and High Lift
  • I believe your best option would be the Bulldog Jack part # BD1700100301. This A-frame jack has a 5,000 lb capacity and has 15 inches of lift. There is no way to remove the handle or any of the other 5k jacks so that it could be operated with a power drill. A powered jack like the part # HT87247 might be a better option. This is the highest rated powered jack we have at 4,500 lbs and has 18 inches of lift. I attached review videos for both jacks for you to check out.
    view full answer...

  • Can the Bulldog A-Frame Jack Drop Leg # BD500377 be Used with the Bulldog Round Jack # BD1700100301
  • Yes, you can use the Bulldog Round, A-Frame Jack Drop Leg and Pull Pin Assembly # BD500377 in the shortest position on the Bulldog A-Frame Round Jack # BD1700100301 while you are traveling. The inside diameter of the jack is about 2 inches and the outside diameter of the drop leg is about 1-3/4 inches so they are compatible with each other.
    view full answer...

  • Difference Between Bulldog Powder Coated and Zinc Finish 5,000 Pound A-Frame Trailer Jacks
  • The difference is just as you have said. Bulldog jack # BD1700100317 is powder coated while # BD1700100301 has a zinc finish which makes it better for marine applications. Both are rated for 5,000 pounds, have 15 inches of lift, and install the same way with the same 3-hole mounting flange. I have linked video reviews for each jack for you.
    view full answer...

  • Recommended Tongue Jack for 10,000 lb Car Hauler Trailer
  • For your 10,000 lb car hauler trailer, I recommend the Bulldog A-Frame Round Jack - Sidewind - Weld or Bolt On - Zinc Finish - 5,000 lbs # BD1700100301 for a manual jack along with footplate # BD018564. The majority of the weight of your trailer will be on your axles and this will definitely support the tongue weight without issue. If you want an electric jack, I recommend the Stromberg Carlson Electric Trailer Jack - Drop Leg - A-Frame - 23" Lift - 5,000 lbs - Black # JET-5000 or...
    view full answer...

  • Bulldog Jack Recommendation and Maintenance for Thuro-bilt Horse Trailer
  • Typically tongue weight is 10-15 percent of the total trailer weight. Since your trailer weighs 9,760 lbs you would most likely have a tongue weight of 1,464 lbs. The Bulldog Jack part # BD1700100301 that you referenced has a lifting capacity of 5,000 lbs so it would have more than enough capacity. According to Bulldog for side-wind models, the internal gearing and bushings of the jack must be kept lubricated at least annualy. Apply a small amount of automotive grease to the internal...
    view full answer...

  • Recommended Replacement A-frame Sidewind Jack for Airstream Trailer
  • We offer several A-frame sidewind jacks that would work for your Airstream trailer. The jack I recommend is the Bulldog A-Frame Round Jack, part # BD1700100301. This jack features 15 inches of travel and has a 5,000-lb capacity. The distance from the mounting plate to the top of the jack is 14-3/4 inches. I have attached a photo of this jack with the dimensions noted you can check out. The mounting plate for the jack is typically universal as you mentioned. Check the mounting holes...
    view full answer...

  • Dimensions of Bulldog A-Frame Round Jack # BD1700100301
  • The dimensions you asked for are shown on the linked photo that I have prepared for you. The height from the top of the mounting plate to the top of the housing is 14-3/4-inches. The radius of the crank handle (including the outside edge of the black plastic grip) is 7-inches from the shaft center point.
    view full answer...

  • Replacement A-Frame Jack for 6750 lb Travel Trailer
  • From your description, it sounds like you're needing an A-frame jack. Given the weights you've provided, your trailer likely has a maximum tongue weight of around 1000 lbs. I typically recommend folks go with the heaviest capacity jack they can, this makes for easy operation and long life for the trailer jack because it's only using a percentage of its capacity. The Bulldog # BD1700100317 with its 5000 lb capacity would be a great choice. The bracket to the top of the jack is similar...
    view full answer...

  • Trailer Jack Recommendation for A-Frame 2014 Arising 6x12 Enclosed Trailer
  • The Bulldog jack part # BD1700100301 has a 5,000 lb capacity. I prefer the sidewind styles of jacks as I found them to be easier to crank than the top wind jacks. So for your application the # BD1700100301 would easily be a great fit. Since the capacity is much more than you'd need the crank would be incredibly easy to operate. I attached a review video for this jack for you to check out as well.
    view full answer...

  • Maintenance of the Jack Bevel Gears on the Bulldog A-Frame Round Sidewind Jack
  • Yes, the cover of the Bulldog A-Frame Round Sidewind Jack, # BD1700100301, can be removed to grease the bevel gears. If you reference the instructions that are linked at the bottom of this page, you will find on page 2 maintenance instructions for the jack.
    view full answer...

  • Wheel Caster Recommendation for a Bulldog A-Frame Round Jack # BD1700100301
  • Yes, the correct wheel caster for the Bulldog A-Frame Round Jack # BD1700100301 that you referenced is the Replacement Heavy-Duty, 6" Caster # BDCP555. I attached an install video for you to check out as well.
    view full answer...

  • Bulldog Jack Recommendation for Thuro-Bilt Horse Trailer
  • All A-frame mounted jacks like the Bulldog A-Frame Round Jack # BD1700100301 use the same 3-inch mounting hole bolt pattern. In other words, the mounting holes are a universal size and pattern so that any A-Frame jack will fit into any A-Frame jack mount. As long as your trailer has an A-Frame jack mount, this jack will fit. The # BD1700100301 that you referenced would have more than enough capacity and would work very well on your Thuro-Bilt 3 horse trailer.
    view full answer...

  • Recommended Sidewind A-Frame Jack
  • We have several A-frame bolt-on jacks you can choose from. I recommend the Bulldog A-Frame Round Jack, part # BD1700100301. This is a weld-on or bolt-on installation and has the handle mounted on the side. It has a 5,000 lb capacity and features a 15 inch travel. This jack also has a 5-year warranty. I have attached a product review video you can check out. The round jacks with a drop-leg feature we offer are electric jacks.
    view full answer...

  • A-Frame Trailer Jack Recommendation for Camper
  • We have several jacks here that should work well on your camper. The Bulldog A-Frame jack part # BD1700100301 that you referenced would be a great choice for if you are looking for an A-frame style jack with a higher capacity.
    view full answer...

  • Availability of Square Tube Bulldog A-Frame Jack
  • We do carry square tube Bulldog A-frame jacks. You would want the Bulldog Square, A-Frame Jack # BD195322 if you can use a topwind jack, currently there are no sidewind square Bulldog jacks. This jack should do very well for you, and yes the square tube jacks do have superior side-load strength. From your picture it looks like you would want the Bulldog Jack part # BD1700100301 since you need a sidewind jack. Barker only makes powered jacks so the dimensions would be much different....
    view full answer...


Do you have a question about this Trailer Jack?




  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality trailer jack for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate trailer jack information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Photos by:
Theodore B
Expert Research:
Michael L
Expert Research:
Jameson C
Updated by:
Adele M
Updated by:
Laura H
Photos by:
Jim W
Installed by:
Cole B
Photos by:
Amber A
Expert Research:
Jeffrey L
Photos by:
Sarah H
Updated by:
Sarah W

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.




^
About Us
photos and videos
1,056,204

Original Photos & Videos

Produced to make sure you know what you are getting and you get exactly what you need.

installations
35,570

Installations Completed

To make sure products work and fit the way they are supposed to.

etrailer call center
2,476,511

Phone Calls & Emails Answered

1,125,924 phone calls and 1,350,587 emails to help find the right solution.

etrailer training
400+

Average Hours of Product Training

We get to know our products firsthand so experts can better help you.

etrailer service
71

Years of Quality Customer Service

Assisting our neighbors and customers, face to face at the counter.

etrailer experts
193,357

Pages of Expert Information

Created to make sure you have all the answers to your questions, from real experts.
