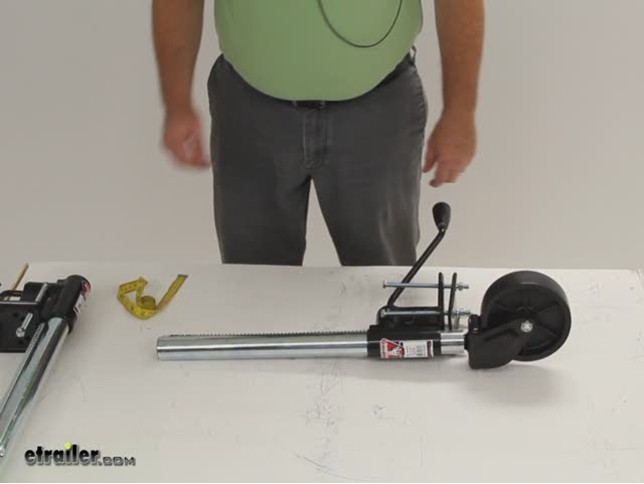

Bulldog Rack-and-Gear Jack w/ Poly Wheel - Rectangular, Bolt On - 16" Lift - 750 lbs

Bulldog Rack-and-Gear Jack w/ Poly Wheel - Rectangular, Bolt On - 16" Lift - 750 lbs

lowest price pledge
Retail:$243.49
Our Price: $151.21
You Save: $92.28
Trailer Jack
This item qualifies for Free Shipping
Shipping Weight: 16 lbs
Quantity:
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Customer Photos

Videos

Need help with installation?
Locate installers near me
Durable rack-and-gear jack fits up to a 3" x 5" trailer tongue. Allows you to jack up your trailer and roll it easily into position. Includes mounting kit. Lowest Prices for the best trailer jack from Bulldog. Bulldog Rack-and-Gear Jack w/ Poly Wheel - Rectangular, Bolt On - 16" Lift - 750 lbs part number BD169201 can be ordered online at etrailer.com or call 1-800-940-8924 for expert service.
  • All Info
  • Reviews (32)
  • Q & A (0)
  • Photos
  • Why etrailer?

Bulldog Trailer Jack

  • Side Frame Mount Jack
  • 0 - 1000 lbs
  • Bolt-On
  • Rack and Gear Jack
  • 16 Inch Lift
  • With Wheel
  • Bulldog

Durable rack-and-gear jack fits up to a 3" x 5" trailer tongue. Allows you to jack up your trailer and roll it easily into position. Includes mounting kit.


Features:

  • Durable rack-and-gear jack is efficient and easy to use
  • Allows you to jack up your trailer and roll it easily into position
  • Smooth cranking produces 1" of travel for every 4 turns
  • Welded steel gearbox with gray-primer-painted finish
  • Rack post is zinc plated for corrosion resistance
  • Bolt-on design ensures secure mounting
    • Mounting kit included
  • Black-finished polyolefin wheel included


Specs:

  • Bracket height:
    • 8" Retracted
    • 22" Extended
  • Lift: 16"
  • Clearance: 20-5/16" from mounting bracket to top of jack
  • Application: up to 3" x 5" rectangular trailer tongue
  • Lift capacity: 750 lbs
  • Limited 5-year warranty


169201 Bulldog Rectangular Bolt-On Rack and Gear Jack - 169 RB

Item # BD169201

Installation Details BD169201 Installation instructions


California residents: click here



Customer Reviews

Bulldog Rack-and-Gear Jack w/ Poly Wheel - Rectangular, Bolt On - 16" Lift - 750 lbs - BD169201

Average Customer Rating:  4.8 out of 5 stars   (32 Customer Reviews)

Durable rack-and-gear jack fits up to a 3" x 5" trailer tongue. Allows you to jack up your trailer and roll it easily into position. Includes mounting kit.

by:

I received the box with the Bulldog Jack. The packaging was not real good and could use a lot of improvement. Was missing a hex nut and lock washer, (3) bolts were outside of the plastic bag and (1) was still in the bag. The bag didn't seem to have any holes in it so I assume they weren't all inn the bag to start with. I did get it assembled and mounted and seem to work good. The installation instructions I received with it call for using lock nuts and hex nuts were supplied so I put both lock nuts and also hex nuts on it.



by:

Excellent product.Fast delivery.



by:

Great product. The last Bulldog jack lasted 25 years! Probably could have rebuilt it but I wanted fresh. This is what came on my Gambler bass boat trailer and it fits the 3" x 5" trailer tongue perfectly. This style is ridged and seems to last longer then the swing up kind and I just don't have the room to swing a jack up without hitting on something else. I hope to keep another 25 years out of it! Tight lines.



by:

Jack mechanism always runs smoothly and the wheel tracks beautifully. Consequently the trailer is far easier to push and maneuver by hand. We've replaced the jacks on all our trailers with this model jack.



by:

I got exactly what I ordered and very Quick .IT has been installed on the trailer and is working fine .I will refer your company to anyone I know who needs trailer parts or equipment .Thankyou



by:

Thi is a solid and very suitable replacement for an old unit on an old trailer. The wheel is larger and wider than I expected, making it easy to maneuver the front of the trailer.

Step one for assembly: Throw away the written instructions. They're unnecessary, and unless you have a very good magnifying glass, you can't read them anyway.



by:

We mounted the trailer jack on my boat trailer. The jack works very well.



by:

your product was exactly what I was looking for (replacement of my older jack). only took minutes replace and everything is okay. thanks for your prompt service.



by:

Jack is excellent. Heavy duty and has larger than expected wheel. Smooth and easy to use. J



by:

Fantastic service.



by:

Delivered to front door and was the correct product.



by:

Does what it’s supposed to do but steel gear case tack welds rusted. Appearance only so far



by:

Product is great! But I ordered 30 of the April 1st and still don't have them.



by:

Great Product - replaces the old one which was over twelve years old.



by:



by:

worked great



by:

Review from a similar Rack and Gear Jack in Trailer Jack


The jack itself if ok except it def is not like the jack that was suppose to be like my 2005 Kingston horse trailer one. The wheel is too big to tuck into the frame as it should therefore the clearance to ground is low and I have to be careful at raised rail crossings. Unfortunately I did not notice until after it was installed and too late for any recoup, so stuck or have to replace again which I cannot afford. It is a nice jack, just not for my trailer. Wheel needs to be a smaller diameter for sure !!!!



by:

Review from a similar Rack and Gear Jack in Trailer Jack


Great range allowing lift to reach different vehicles and fully pull the wheel up and out of the way.



by:

Review from a similar Rack and Gear Jack in Trailer Jack


Was perfect fit for my boat. Easy to install . Highly recommend this product.



by:

Review from a similar Rack and Gear Jack in Trailer Jack


Replaced a 40 year old jack bolted up perfect and works much better plus it has a spot to grease old one did not



by:

Review from a similar Rack and Gear Jack in Trailer Jack


this is the only jack I could find w/ a 3 point center mount and a steel wheel. Exactly what I was looking for. I would have given 5 starts but it did take almost 6 months to get. I would have canceled but it was the only one I could find and etrailer immediately and completely respond every time with updates when emailed for an update. I would do business with them again



by:

Review from a similar Rack and Gear Jack in Trailer Jack


Excellent product was very well made and easy to install and etrailer is also excellent great customer service and shipping was also the package was very well packaged in a heavy duty box and prompt delivery i just placed another order with them.



by:

Review from a similar Rack and Gear Jack in Trailer Jack


Everything I expected! Photo is accurate...

Thanks,


-- Rod --


Comments
Still working as planned! Thank you again...
Rod P - 02/04/2015


by:

Review from a similar Rack and Gear Jack in Trailer Jack


Looks great & easy to install & provides low clearance when trailer on a incline & Geoff at etrailer was so helpful ,I had so many questions .



by:

Review from a similar Rack and Gear Jack in Trailer Jack


this is a great jack for light tongue weights only. It's simply to hard to crank with heavy (over 800)lbs


25
32
Show More Reviews

Ask the Experts about this Bulldog Trailer Jack



  • Bolt Hole Pattern for the Mounting Plate of the Bulldog Rack-and-Gear Jack # BD169201
    I attached a picture of the mounting plate of the Bulldog Rack-and-Gear Jack # BD169201 that has all of the bolt hole dimensions for you to check out.
    view full answer...
    Image 1 for
  • Recommended Side Frame Mount Replacement Bulldog Trailer Jack
    I spoke with my contact at Bulldog and it looks like the 1988 Bulldog Model 160 Trailer Jack you have is welded shut, so you would need to cut into it to reach anything that needs to be fixed. If it is just the pin to the handle that broke, it may be able to be fixed, but I recommend contacting Bulldog directly to see if they have any replacement pins available. If you find that you need to get a complete replacement, I recommend the Bulldog Rack-and-Gear Jack w/ Polly Wheel # BD169201....
    view full answer...
  • Parts Needed to Replace a Broken Wheel Assembly on a Bulldog Rack and Gear Jack
    I spoke to my contact at Bulldog and he informed me that you would need the Bulldog Rack and Post Assembly part # BD018006. This is the only way to replace the parts you damaged.
    view full answer...
  • How to Get a Replacement Wheel for the Bulldog Rack and Gear Jacks
    Since the caster (wheel assembly) of the Bulldog Rack and Gear jacks like your # BD169201 are not designed to come off the only way to replace the wheel is to replace the entire post with the part # BD018308.
    view full answer...
  • What are the Dimensions of the Mounting Brackets on Bulldog Rack and Gear 750lb Trailer Jack
    I went out to the warehouse and pulled Bulldog jack # BD169201 and measured the mounting plate. Its dimensions are 4 inches wide by 4-1/2 inches long. I made a short video that will appear on this page showing the measurements. If this jack will not work for you I recommend something like rack and gear jack # BD018161 along with # BD018006. It will need to be welded to the bottom and outside of the trailer frame. Welding should be done by a qualified professional.
    view full answer...
  • Replacement Handle Knob for Old 750 lb Capacity Bulldog Rack and Gear Jack
    Is the jack you're speaking of a Rack and Gear jack like part # BD169201, with the teeth running up and down the tube? If so, your replacement knob is part # BD500248. I have confirmed this with Bulldog. If you have a different kind of jack, please send me a photo of it and I'd be happy to look for a replacement.
    view full answer...
  • Will a Rack and Gear Jack Rated for 750 Pounds Work on a 2,600 Pound Trailer
    Since the trailer jack is only lifting a portion of the weight it is possible that a 750 pound rack and gear jack, see link, could work. If the gross trailer weight is 2,600 pounds then that would put the tongue weight somewhere around 260 to 390 pounds which is well within the capabilities of a 750 pound jack. There are some options that bolt around the frame such as # BD169201 or a weld-on/bolt-on option, # BD162300.
    view full answer...
  • Trailer Jack Recommendation for a Car Dolly with 18 Inches of Clearance from Ground to Frame
    The bolt-on swivel jack # PSEJ10000101, has a retracted height of 13 inches from the bottom of the wheel to the mounting bracket so it should work well for you. this jack is designed to fit 3 x 5 inch frames. A jack with even more clearance would be the Bulldog rack and gear jack, # BD169201. This jack measures only 8 inches from the bottom of the wheel to the mounting bracket when retracted. It does have a lower capacity at 750 pounds. It fits on frames up to 3 x 5 inches.
    view full answer...
  • Bulldog Rack and Gear Jack BD169201 Replacement Wheel Recommendation
    Yes, the correct replacement wheel for your Bulldog Rack-and-Gear Jack w/ Poly Wheel # BD169201 would be the Replacement 6" Poly Wheel for Bulldog Jacks # BD0917501S00.
    view full answer...
  • Bolt-On Trailer Jack for Small Ironton Utility Trailer
    For your trailer you might like a rack and gear jack such as # BD169201. This jack will bolt around trailer frames or tongues that are up to 3"x5". This type of jack has the ability to draw the wheel up very close to the mounting bracket which means the clearance from where it mounts to the bottom of the wheel is only 7-1/2 inches when the jack is fully retracted. I have linked a video review of this jack for you. It isn't a swivel jack but since it can retract so far it is an alternative...
    view full answer...
  • Trailer Jack with Best Ground Clearance and a Wheel for a Pop-up Trailer
    If your trailer tongue weight is less than 750 pounds then I have the perfect solution for you. A Rack and gear jack, such as # BD162300, can get very low. When fully retracted it measures just 6 inches from where it mounts to the bottom of the wheel. This jack is designed to fit frames that are up to 4 inches square but no larger or can be welded directly to the trailer. We also have the similar # BD169201 for trailers 3"x5". If you can tell me your frame width and height and the tongue...
    view full answer...
  • What Rack and Gear Trailer Jack Provides the Most Clearance
    For the Bulldog Rack-and-Gear Jack w/ Poly Wheel - Rectangular, Bolt On - 16" Lift - 750 lbs # BD169201 the measurement from the bottom of the wheel to the bottom of the mounting bracket is 8" fully retracted. Fully extended, the same jack measurement is 24" providing 16" of lift. The clearance provided is 20" measuring from the mounting bracket to the top of the jack. The Bulldog # BD162300 will provide 2 extra inches of clearance, as it has a bracket height of 6", so that's your best...
    view full answer...
  • Comparing Rack and Gear Trailer Jacks with Regular Jacks
    If you are looking at a rack and post such as # BD018006 it is just a replacement for the post in a rack and gear jack. A rack and gear jack such as # BD018161 works along with # BD018006. This one gets welded to the frame. Jack # BD169201 clamps to the frame, and one like # BD165411 bolts in as an A-Frame jack. Unlike a typical jack that has a fixed nut inside and a screw that turns in it to raise/lower the inner leg, rack and gear jacks have the gear track fixed to the post and the...
    view full answer...
  • Replacement Rack-and-Post Assembly for a Bulldog Rack-and-Gear Trailer Jack
    The rack and post assembly that you will want for your Bulldog jack is part # BD018006. This is the replacement rack and post assembly for the Bulldog Rack-and-Gear Bolt On Jack, # BD169201, which is what you have on your trailer. I spoke with my contact at Bulldog and he said the design of the jacks has changed very little since 1997, so it will fit. The rack and post assembly # BD018006, that you referenced would still fit, but has been discontinued. It was designed for the A-frame...
    view full answer...
    Image 1 for Image 2 for
  • Replacement for Older Bolt-On Bulldog Swivel Trailer Jack
    Thanks for the photos and from that it looks like you need a pull-pin swivel trailer jack, and you're right that the Bulldog Rack-and-Gear Jack # BD169201 is not one of those. There are few 750 lb jacks but going over that certainly isn't going to be a problem so the only question is the height you need. That's not something I would be able to tell you so you should take a look at the linked help article on trailer jacks for how to determine the right height you need. After that you also...
    view full answer...
    Image 1 for Image 2 for Image 3 for
  • Side-Mount Swivel Trailer Jacks that have a Retracted Height Less than 11-1/2 Inches
    We have pipe-mount swivel jack # PS1401060303 which, when retracted, has a height of 11-3/16 inches measured from the bottom of the foot to the center of the pipe mount. Are you looking for any specific features or capacity? If you are looking for an option with a wheel then Rack and Gear jacks such as # BD169201 can get very low (8 inches for this model). But the capacity is only 750 pounds. jack # BD162300 can get even lower at 6 inches. If the 750 pound capacity is enough for your trailer's...
    view full answer...
  • Swivel Trailer Jack with Bracket Height Under 12 Inches
    Rack and gear jacks like # BD169201 can get low with a bracket height when retracted of only 8 inches. But rack and gear jacks are low capacity, 750 pounds, and do not swivel. Another low option is Fulton fixed jack # TJ12220301 which can actually get lower than even a rack and gear jack. This jack measures a mere 9 inches from the center of the mounting bracket to the bottom of the wheel. But it does not swivel. The lowest I can get on a swivel jack with a wheel is 12-3/4 inches like...
    view full answer...
