Complete Agricultural Hub Assembly for Spindle # AS3000F
(10 reviews)
Price: $95.74
Redline
Add to cart

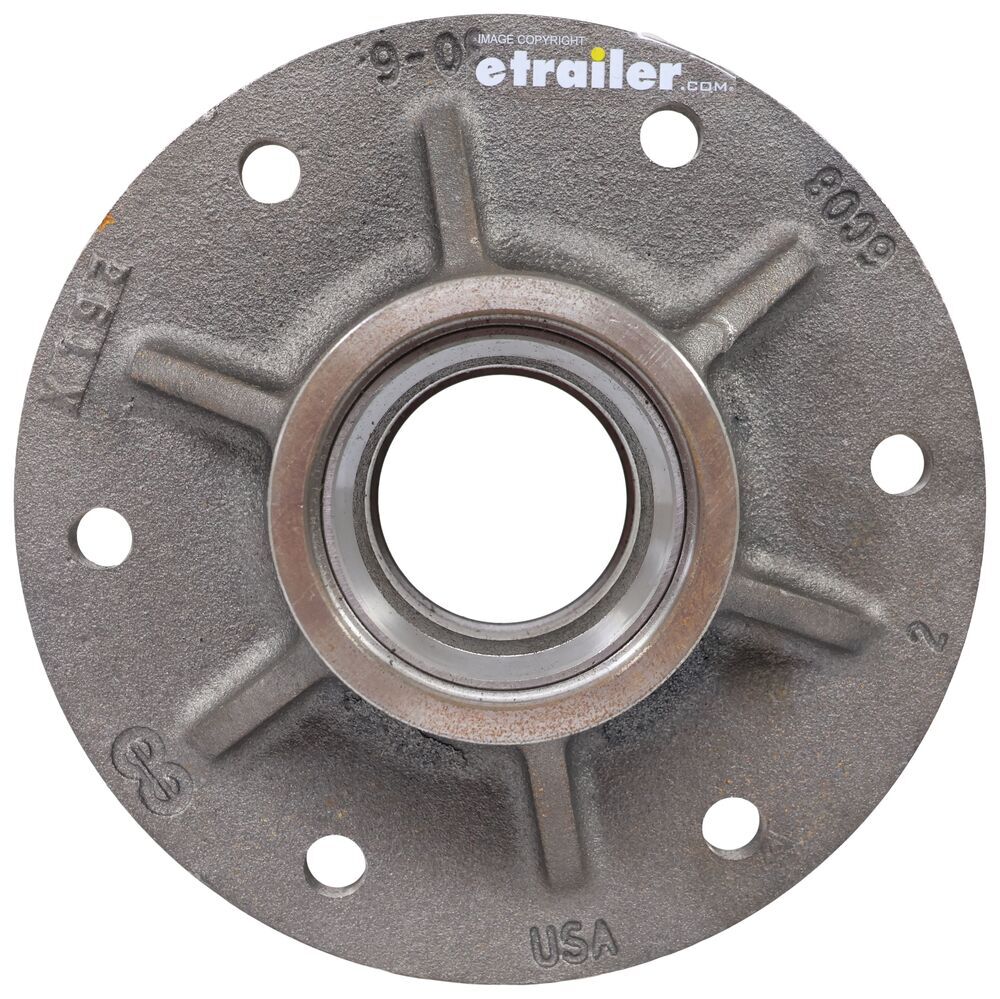

Complete Agricultural Hub Assembly for Spindle # AS3000F
Part Number: AH30660FCOMP
$95.74
Retail:$100.86
You Save: 5%
In-stock alternatives that can ship today
- All Info
- Reviews (10)
- Q & A (0)
- Videos (1)
- Photos
Redline Trailer Hubs and Drums - AH30660FCOMP
- 6 on 6 Inch
- For 3000 lbs Axles
- Hub
- Agricultural
- LM67048
- LM29749
- 1/2 Inch Stud
- Redline
Features:
- Fits Agricultural Spindle (AS3000F)
- Bolt pattern: 6 on 6
- Pilot hole diameter: 3"
- Capacity: 3,000 lbs

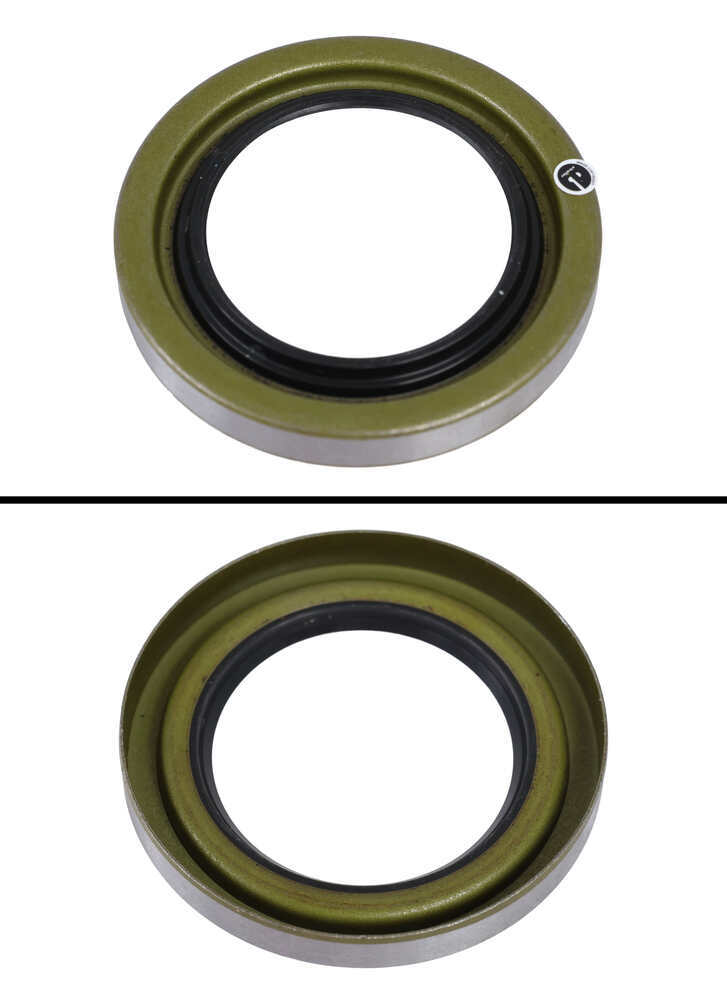

- Grease Seal: SL175 (2.722" OD, 1.75" ID) Single Lip

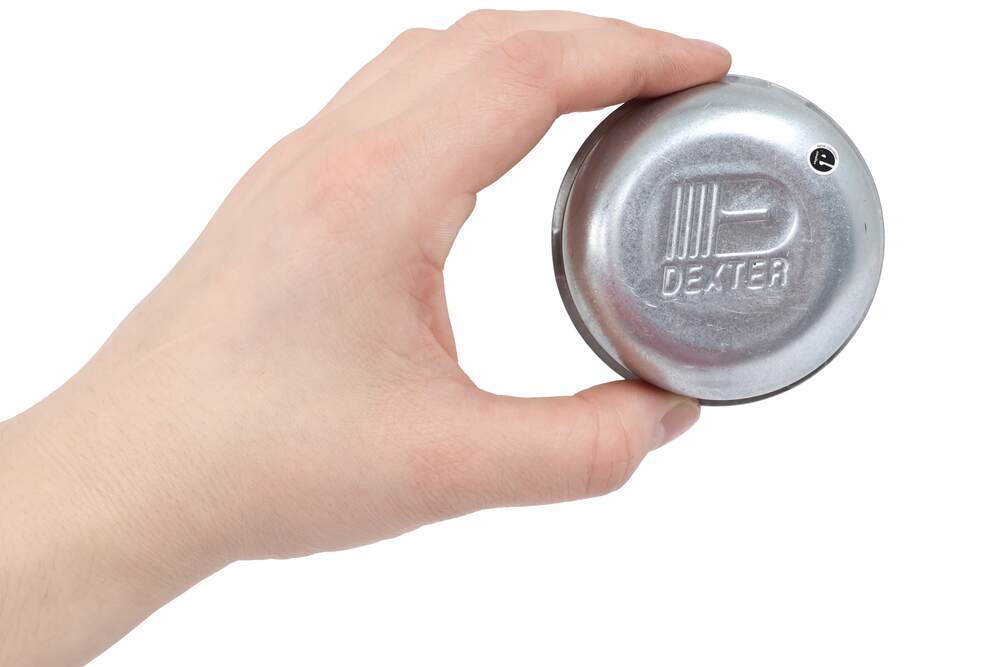

- Grease Cap: 45896, 2.44" OD, drive in
- 1/2 inch wheel bolts
- Inner bearing: LM29749
- Outer bearing: LM67048
- Inner Race: LM29710
- Outer Race: LM67010
126400 Redline Complete Agricultural Hub Assembly
Video of Complete Agricultural Hub Assembly for Spindle # AS3000F
Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.
Video Transcript for A Closer Look at the Complete Agricultural Hub Assembly for Spindle # AS3000F
Hi everybody. Andy here with etrailer.com. Let's take a brief look at this Complete Agricultural Hub Assembly. Now this has a capacity of 3000 pounds and this is gonna fit that agricultural spindle that you see there on your screen. The model number is AS3000F. And the bolt pattern is six on six inches and it has a pilot hole diameter of three inches.
Now this does come with the races, the outer and inner races pressed in, and then on your screen I am including the numbers of those races. The inner race is LM29710. The outer race is LM67010, and then this also includes the bearing. So looking at the inner bearing here as stamped on this bearing, which might be kind of difficult for you to see. But this inner bearing is LM29749, and then our outer bearing here, which of course will fit right in there.
See, looking forward, stamped on there, it is LM67048. So these bearings do have those numbers engraved on there. Helps you identify what bearings they are. And then this also includes the single lip grease seal, and this is SL175. So again, this is a single lip grease seal.
This also includes grease cap, so drive in grease cap, and then 1, 2, 3, 4, 5, 6 half inch wheel studs. (metal clinking) Well, I think that's going to wrap up our brief look today. I do hope that it was helpful for you. Again, my name is Andy. Thank you for joining me.
.
Customer Satisfaction Score:
90% were satisfied with this product
10% of customers were not satisfied
- Wrong item was ordered
- etrailer mistake
- Product did not meet expectations
Customer Reviews
Complete Agricultural Hub Assembly for Spindle # AS3000F - AH30660FCOMP
Average Customer Rating: 5.0 out of 5 stars (10 Customer Reviews)
by: Rick12/31/2017
Used this hub and a spindle to convert an old tractor front end over to a modern wheel. It’s worked perfectly for a year now. Tractor is used for pulling only so it doesn’t see a lot of use but the occasional drop from having the front end up in the air. Haven’t had any trouble at all with anything I’ve ordered from etrailer.
by: Ronald 02/26/2020
I am EXTREMELY Satisfied with my purchase and the ETA given.... I ordered the parts Monday and received it at my doorstep Tuesday night... I wasn't expecting a fast turnaround but am very happy.... I installed the hub asm on the haywagon and it's back in operation.... WOW!!!! Yes I would definately recommend friends.. and will use you for future components........ ....... Sorry but I didn't take any pics
by: Jeffrey 05/13/2020
Thank you eTrailer! You had the spindle and hub I was looking for and they worked out fine.
by: Jesus A01/31/2024
A++++
by: Jim04/06/2019
Great help on the phone and arrived on time.
by: Thomas 10/06/2021
Super fast delivery Thankyou
by: Angie 08/23/2023
by: Jace10/25/2021
by: Zachary 03/31/2021
by: Jake 01/06/2022
10
10
See what our Experts say about this Redline Trailer Hubs and Drums
- What is the Bore Diameter of this Hub?The bore diameter or hole size in the center of the wheel for the Complete Agricultural Hub Assembly for Spindle # AS3000F part # AH30660FCOMP is 3".
view full answer... - Which Hub Assembly is Compatible with the Agricultural Spindle # TRU34FRAlthough the outer bearing of the # AKIHUB-655-6-K hub assembly will fit, the inner bearing will be too large. Instead, you'll need the Complete Agricultural Hub Assembly, # AH30660FCOMP, which is designed to fit the agricultural spindle # TRU34FR. I've attached a couple of review videos for you to check out.
view full answer... - Info Needed to Pick Out Replacement Hub for Older TrailerYou'll have to pull the hub off and either get me the dimensions of the spindle where the bearings ride or the bearing numbers out of the hub to determine if we have something that will fit. You'll need a caliper to do this. If you get back to me with that information, I will help you pick out the right hub assemblies. Or, you can follow the link I attached that will take you to the page that has all of our replacement hubs. You would want to first select the bolt pattern that you have,...
view full answer...
- Trailer Hub w/6 Lug Pattern, Inner Bearing Inner Diameter 1.5, Outer Bearing Inner Diameter 1.25Bearing measurements need to be as accurate as possible, to at least the thousandth of an inch, and require calipers if you have to measure them. Otherwise look at the bearing numbers that are stamped into the sides of the bearings. With those numbers we can determine a lot about the running gear and if anything else will fit. If the measurements are exactly 1-1/2 and 1-1/4 inches then the only option we have would be agricultural hub # AH30660FCOMP which has a 6 on 6 bolt pattern. If...
view full answer... - Replacement Bearings And Races For Agricultural HubWhat you have is an agricultural hub assembly. We will not have a replacement hub but we do offer replacement bearings and races. Inner Bearing # LM48548 Inner Race # LM48510 Outer Bearing # LM67048 Outer Race # LM67010
view full answer... - Replacement Agricultural Hub Assembly for 6 on 6 Inch Bolt PatternThe Bearing # 29749 has a 1.5 inch inner diameter and the # LM67048 has a 1.250 inch inner diameter. I was able to find the complete assembly for you as Complete Agricultural Hub Assembly # AH30660FCOMP.
view full answer... - Is There A Shorter Version Of The Complete Agricultural Hub Assembly # AH30660FCOMP? The Complete Agricultural Hub Assembly # AH30660FCOMP is our only hub which uses the Inner Bearing # 29749 and Outer Bearing # LM67048. We do have the Spindle # TRU34FR you can install on your axle for this hub if you are unable to find the correct depth hub.
view full answer... - 6-Lug Hub to Fit Spindle for 3,500 Pound AxleThe # TRU84FR spindle is rated for 3,500 pounds and uses bearings # L68149 and # L44649. We have some 6-lug hubs that fit but they aren't 6 on 6 they're 6 on 5-1/2 like part # AKHD-655-35-EZ-K. We only carry two hubs with a 6 on 6 pattern and neither of them fit that spindle; parts # 42660UC1 and # AH30660FCOMP.
view full answer... - Agricultural Spindle and Hub Combinations with 6 on 6 Inch and 8 on 8 Inch Bolt PatternsThe correct trailer hub to use with the Agricultural Spindle part # TRU67FR is the Trailer Hub Assembly part # AH60880FCOMP which features an 8 on 8" bolt pattern. The Dexter Trailer Idler Hub Assembly part # 42660UC1 will not fit the Agricultural Spindle part # TRU67FR but it will fit the EZ Lube Spindle part # TRU37FR. We also have the Agricultural Spindle part # TRU34FR which can be paired with the Complete Agricultural Hub Assembly part # AH30660FCOMP. I have attached the pairs for...
view full answer... - Availability of Idler Hub Assembly with Threaded Bolt HolesWe do have a few idler hub assemblies with threaded lug bolt holes currently available, such as the Redline Complete Agricultural Hub Assembly # AH30660FCOMP. This hub has a 6 on 6 bolt pattern and will fit Spindle # TRU34FR. It has an inner bearing # 29749 and outer bearing # LM67048. The Dexter Trailer Hub Assembly # 42660UC1 also has a 6 on 6 bolt pattern but has an inner bearing # 25580 and outer bearing # LM67048 The CE Smith Trailer Hub Assembly # CE13100 is pre-greased and has...
view full answer... - Bearing Identification for Selecting Replacement 6-Lug Trailer HubWe do have one agricultural hub that uses the inner bearing LM29749, that is the Redline 6-on-6 hub # AH30660FCOMP that you referenced. This hub is rated for use on a 3K axle. The outer bearing in this hub is part # LM67048. We have no hubs that use outer bearing L44640 but we do have hubs that use two other outer bearings with very similar part numbers. I think one digit of your part number might be wrong. Bearing part # L44649 is often used as the outer bearing in a hub rated for use...
view full answer... - Does the Agricultural Hub Assembly # AH30660FCOMP Have Threaded Bolt Holes Or Lug Studs?The Complete Agricultural Hub Assembly for Spindle AS3000F # AH30660FCOMP has threaded bolt holes for the 1/2 inch Lug bolts that come with the hub. We don't have any that are the same 6 on 6 inch bolt pattern with lug studs, but the lug bolts will center the wheel just as well as a lug nut with their 90 degree coned bolt head. I've attached the replacement Wheel Bolts, 1/2" x 7/8", 90 Degree (Qty 4) # RG02-040 for further help.
view full answer...
