Kodiak Trailer Hubs and Drums
- KHR1389D
- 8 on 6-1/2 Inch
- For 7000 lbs Axles
- For 8000 lbs Axles
- Hub with Integrated Rotor
- 16 Inch Wheel
- 16-1/2 Inch Wheel
- 17 Inch Wheel
- 17-1/2 Inch Wheel
- Standard
- Marine Grade
- 25580 / 02475
- 9/16 Inch Stud
- Kodiak

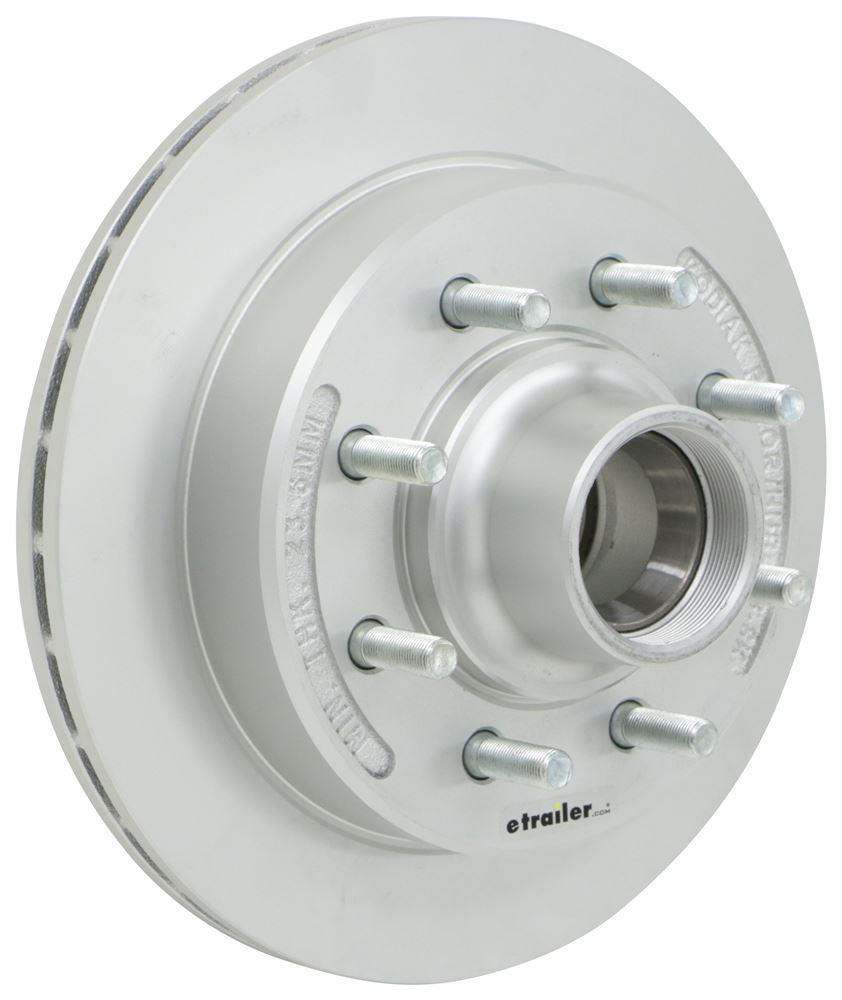

Kodiak's hub-and-rotor assembly makes it easy to change from drum brakes to disc brakes. Made of machined cast iron with Dacromet plating, this 1-piece unit is balanced for a smooth ride and furnished with standard races.
Features:
- Single-piece assembly makes installation a snap, whether you're retrofitting or switching from drum brakes
- Machined process minimizes runout and warping
- Contaminants can't get in between rotor and hub
- Balanced unit provides smooth ride
- Vented design effectively dissipates heat, preventing heat-related damage
- Wheel studs and industry-standard races are included
- Cast iron construction ensures a favorable friction coefficient for necessary stopping power
- Dacromet plating provides superior corrosion resistance for freshwater or saltwater use
- 300- to 400-Hour salt-spray rating
Specs:
- Fits:
- Axle capacity: 7,000 lbs - 8,000 lbs
- Wheel size: 16" and larger
- Bolt pattern: 8 on 6-1/2"
- Wheel bolt diameter: 9/16"
- Rotor diameter: 13"
- 3-Year warranty
Bearing, Race and Seal Information
- Bearings (sold separately)
- Inner bearing: 25580
- Outer bearing: 02475
- Races (included)
- Inner race: 25520
- Outer race: 02420
- Seal: RG06-070 (sold separately)
- Inner diameter: 2.250"
- Outer diameter: 3.376"
008-RH-133-8-9-D-S-C Kodiak Disc Brake Integral Hub and Rotor - Dacromet Finish - 9/16" Wheel Bolts - 7,000 lbs - 8,000 lbs
Replaces KHR1389SC (ROTOR/HUB-133-8-9-SCAD), KHR1389D (R/H-133-8-9-E-S-C), R/H-133-8-9-D-S, and ROTOR/HUB-133-8-9-DAC
