Dexter Trailer Idler Hub Assembly for 2,000-lb Axles - 5 on 4-1/2 - L44649 Bearings

Dexter Trailer Idler Hub Assembly for 2,000-lb Axles - 5 on 4-1/2 - L44649 Bearings

Retail:$122.06
Our Price: $72.81
Trailer Hubs and Drums
Add to cart
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Customer Photos

Videos

Need help with installation?
Locate installers near me
Hub is designed for use on trailer idler axles. Fits 2,000-lb axles with BTR spindles. Inner bearing (L44649) and race, outer bearing (L44649) and race, grease seal, grease cap, wheel bolts, and lug nuts included. Great Prices for the best trailer hubs and drums from Dexter. Dexter Trailer Idler Hub Assembly for 2,000-lb Axles - 5 on 4-1/2 - L44649 Bearings part number 8-259-5UC1 can be ordered online at etrailer.com or call 1-800-940-8924 for expert service.
  • All Info
  • Reviews (41)
  • Q & A (0)
  • Photos

Dexter Trailer Hubs and Drums

  • 5 on 4-1/2 Inch
  • For 2000 lbs Axles
  • Hub
  • 10 Inch Wheel
  • 12 Inch Wheel
  • Standard
  • L44649
  • L44649
  • Dexter

Hub is designed for use on trailer idler axles. Fits 2,000-lb axles with BTR spindles. Inner bearing (L44649) and race, outer bearing (L44649) and race, grease seal, grease cap, wheel bolts, and lug nuts included.


Features:

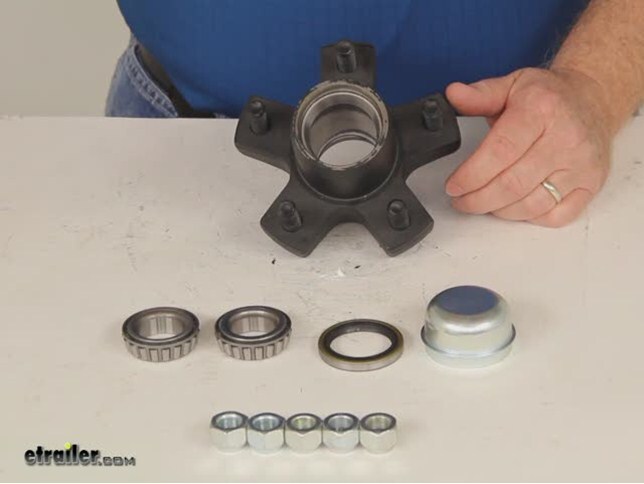

  • Trailer hub assembly fits idler axles
    • Bearings, races, seal, grease cap, wheel bolts, and lug nuts are included
  • Sturdy iron construction
  • Hub and drum are made in the USA


Specs:

  • Application: 2,000-lb trailer axles with BTR spindles
  • Wheel size: 10" to 12"
  • Hub flange diameter: 5-1/2"
  • Bolt pattern: 5 on 4-1/2"
  • Grease cap flange diameter: 1.986"
  • Wheel bolt diameter: 1/2"
  • Weight capacity: 1,000 lbs


Note: Some axles rated at 2,000 lbs require a different seal and bearings. Be sure that the bearings in the hub being replaced have L44649 stamped on them. If the bearings have L44643 stamped on them, use 34822545BX trailer hub.


Note: Trailer wheels that are smaller than 15" and have 5 bolts, have a 5 on 4-1/2" bolt pattern.


Bearing, Race, and Seal Information

  • Bearings (included)
    • Inner bearing: L44649 (1.063" inner diameter)
    • Outer bearing: L44649 (1.063" inner diameter)
  • Races (included)
    • Inner race: L44610
    • Outer race: L44610
  • Grease seal (included): 10-9
    • Inner diameter: 1.5"
    • Outer diameter: 1.987"

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.


Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)


Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)


Bolt Pattern Side

Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"


008-259-91 Dexter Trailer Idler Hub Assembly for 2K Axle with Hardware - 5 on 4-1/2 - L44649 Bearings

Replaces 8-259-5UC1

Item # 8-259-5UC1





Customer Satisfaction Score:


Customer Reviews

Dexter Trailer Idler Hub Assembly for 2,000-lb Axles - 5 on 4-1/2 - L44649 Bearings - 8-259-5UC1

Average Customer Rating:  4.9 out of 5 stars   (41 Customer Reviews)

Hub is designed for use on trailer idler axles. Fits 2,000-lb axles with BTR spindles. Inner bearing (L44649) and race, outer bearing (L44649) and race, grease seal, grease cap, wheel bolts, and lug nuts included.

by:

I received hubs yesterday. Put them together and it was a match on my trailer. Haven't towed it very far yet, appears all is well.



by:

Hubs and bearings were a perfect fit ! Etrailer is excellent also got tires and bearing buddies as well.



by:

after visiting 2 local parts stores and still not getting what I needed, I decided to use etrailer. within a couple minutes I had found exactly what i needed. I took all the stuff back to the auto parts store and bought from etrailer for way cheaper! Parts fit perfectly and customer service was excellent. First rate business all the way, in my opinion. Very happy with my etrailer experience.

Troy L.

11/13/2017

works great after one year of moderate to heavy use. No complaints!



by:

Good but didnt come with axel nuts.



by:

Ordered two replacement hubs for my 5x8 trailer. Sort of guessed at correct hubs. No much info remaining on trailer (make, model, etc.). All I knew was that they were 5 on 4.5 Dexter hubs and the number 08-259 stamped on the old hub. There are a number of dexter hubs on etrailer and info on them is sparse so just made my best guess based on the application of trailer use.
George J upgraded my shipment from 5-7 to 3-5 day express shipping at no additional charge and the package was received on the exact day estimated. Thanks for the special treatment.
Unfortunately UPS delivered the package next to a tree in the middle of a rain storm so when I got to package a few hours later it fell apart in my arms.Fortunately inside the individual boxes the parts were in a plastic bags with only a minimal amount of water dampness inside.
Would I use etrailer again?...Absolutely! Correct parts received, packaged well and fast shipping. Great job!



by:

Replaced hub on a snowbear trailer with a failed wheelbearing. Hub set included everything required (save your hub nut and cotter pin). Function is same as original hub, however, original hub has a full flange. Quality seems OK, however, original equipment was also a Dexter hub. Hope this wheel bearing is better than original equipment.



by:

Melissa W. Was very polite and very knowledgeable of the part that I needed. She was very helpful got my part right to me very quickly. All sales representative should be like Melissa. Will do business again as long as Melissa takes care of me a 5 star experience. Thank you. The part was priced fairly. The right parts delivered quickly job well done Thanks Melissa your The best

Michael

12/9/2018

Great



by:

Product arrived quickly. These were Trailer Hubs. Each hub was not restrained by packing and as they bounced around in the box. Needless to say the dust caps were dented to the point where they could not be used. I used the old ones instead.



by:

Just what I needed. Everything was great except dust cap did not fit properly.

Ralph

2/26/2018

Still great, no problems.



by:

These worked great for my sledbed 4 place trailer
Replaced all 4 & bought 1 spare



by:

Product arrived on time. Being a rookie at changing out the hub and bearing on my trailer would have been nice to have assembly instructions included or a video on the website on how this product goes together.



by:

I called first and talked to a real person who help to confirm that this part was a universal replacement for my axel. Parts arrived quicker than anticipated - and assembled like new. Thanks E-trailer.



by:

Great hubs at a great price. Fully loaded minus the grease. Mine shipped with a double lip seal. Not sure if it was supposed to as I ordered extra seals because it wasn't supposed to have a double lip seal. The good news is now I have a spare set of seals.



by:

Everything fit and functioned as expected. The one issue I found was the quality of the dust cap. I reused the original cap. It was more solidly built than its replacement, as typical of today's products.



by:

Very happy with these hubs. Perfect fit. Arrived right on time and exactly as described. Really appreciate all the info on the website as well! Will definitely purchase from etrailer.com again.



by:

This product was exactly as described on the website. On line product information/demos are very helpful. I placed the order by phone as there were concerns on ordering the correct parts. Customer service rep Bill E. was excellent in satisfying my concerns and processing the order efficiently. Prices are the best I could find.



by:

Received package on time and it nstalled the new hub on my trailer in less than 30 minutes. I am very pleased with the fit and quality.



by:

Products cheap and shipping fastI have been constructing a custom trailer and did an internet search for parts. etrailer was the cheapest overall that I could find. After placing my order, it arrived in only two days. Amazing!



by:

There is only one word to describe the service I received from etrailer.com.......FANTASTIC....



by:

Good service. Parts fit and installed easily.



by:

Received item(s) in good shape and on time. Installation was easy and as expected.



by:

Excellent service, and parts will us them again.
Thanks e trailer,



by:

Just as advertised. High quality. Will use etrailer again.



by:

This was the best product I have ever got and the service was spectacular. I would highly recommend this web site to everyone



by:

Got a great deal and quick service.


25
41
Show More Reviews

See what our Experts say about this Dexter Trailer Hubs and Drums

  • Replacement Hub and Bearing Kit For a Carry On Trailer With Dexter 8-259 Idler Hubs
    It sounds like you are looking for the Dexter 8-259 # 8-259-5UC1 hub. If you only need the internals it will use the Bearing Kit # BK1-150 for each hub. The bearing kit includes new bearings, races and a grease seal for 1 hub. I recommend filling the bearings with the Grease # L11390 when you install them.
    view full answer...
  • What Size Hub will Work with the 215/60-8 Trailer Tire with 8 Inch Galvanized Wheel Load Range D
    The proper size hub for the 215/60-8 bias trailer tire and wheel, # AM3H325, is going to depend on the weight capacity of the trailer you are designing. This wheel and tire combination is capable of 1,165 lbs at 70 psi, so each axle in your design would need to be rated for 2,330 lbs or less. Most likely if this is the proper capacity for your design you will be using a 2,000 lb axle and the Trailer Hub Assembly, # 34822545BX, would be the proper choice if the spindle on the axle you...
    view full answer...
  • Replacement Dexter Trailer Axles Marked 8-259
    The hub you have is the part # 8-259-5UC1 which is what you'd need for a replacement. This comes with all of the needed bearings, seals, and cap as well.
    view full answer...
  • Replacement Hubs for 2,000 lb Dexter Torflex Axle
    Thanks for the info, and since you know you have a 2,000 lb #9 Dexter Torflex axle, we can get you the right replacement hub because we know those use inner and outer bearings # L44649. So the correct replacement hub for your application is the Dexter Trailer Idler Hub Assembly for 2,000-lb Axles - 5 on 4-1/2" Bolt Pattern # 8-259-5UC1. That is for standard spindles, so if you have the EZ-Lube spindle, what you will need is the Dexter Trailer Idler Hub Assembly for 2,000-lb E-Z Lube Axle...
    view full answer...
  • Trailer Hub Recommendation for a Trailer that has Inner/Outer Bearing L44649
    If the bearings of your current hub are both L44649 the Dexter Hub part # 8-259-5UC1 that you referenced will fit on your current trailer spindle. Since this has the same bolt pattern as your wheels it would match up with them as well. The star shape of this hub will not matter in comparison to the round style you currently have.
    view full answer...
  • Recommended Replacement for Dexter 8-259 Idler Hub
    We offer the correct replacement for you. If you have EZ-Lube spindles, use # 8-259-5UC1-EZ or # 8-259-5UC1 for standard spindles. The hub includes the L44649 inner and outer bearings, the L44610 inner and outer race, the 10-9 grease seal, the dust cap and lug nuts.
    view full answer...
  • Replacement Bearing Kit For a Dexter 8-259 Idler Hub
    Your Dexter 8-259 # 8-259-5UC1 will use the Bearing Kit # BK1-150 for each hub. I recommend filling the bearings with the Grease # L11390 when you install them.
    view full answer...
  • Replacement Trailer Hub with L44649 Inner and Outer Bearings and 5 on 4-1/2 Bolt Pattern
    You have already done the hard part, which is getting the bearing numbers. With those numbers and the bolt pattern you have provided, we have 2 possible hubs that could work as replacements, depending on the trailer wheel size. If your trailer has 12 inch to 15 inch wheels, then you can use the Trailer Hub Assembly, # 8-258-5UC1, that you have referenced. If your trailer has 8 to 10 inch wheels, you will need Trailer Hub Assembly # 8-259-5UC1.
    view full answer...
  • Will Bearing Buddy Grease Caps Fit a Harbor Freight Trailer 62671 Folding Trailer?
    We don't have a kit for Harbor Freight trailers and their parts are very rarely compatible with standard trailer parts like we carry. We have however found there are times when the bearing buddies # BB2047 specifically has fit. We haven't confirmed a fit on that model yet, so you will need to measure the hub bore of the hubs on your trailer. If the hub bore is 2.047 then these will work for you. For a hub and bearings, you would need to pull the hub and look at the bearing numbers....
    view full answer...
  • Is there a Trailer Wheel that Fits a 4 on 3 Inch Bolt Pattern
    First, let's make sure that you are measuring the bolt pattern correctly. I have included a link to an article showing how to measure for bolt pattern. On a wheel or hub that has an even number of studs or holes all you have to do is measure from the center of one hole or stud straight across the center of the wheel to the center of the one across from it. If that is how you are measuring and still come up with a 4 on 3 bolt pattern then we do not have a wheel that will fit. But you may...
    view full answer...
  • Replacement Hub and Bearings for 1989 Tracker Boat Trailer
    Based on the pictures you attached and the outer bearing measurement you provided, it appears that you have 1-1/16 inch spindle like the BTR EZ Lube Spindle # TRU44FR. This particular spindle is designed for 2,000 pound axles and will use the same inner and outer bearing. I have attached the spindle's dimensions so you can compare them to what you have in order to verify the replacement bearing sizes. I recommend using a digital caliper like # PTW80157, as the measurements will need to...
    view full answer...
    Image 1 for Image 2 for
  • Where To Find Numbers For Replacement Bearings On Utility Trailer
    Since the axle you have is a Dexter Model 8259 you can choose one of the hub assemblies we offer from the attached product page. If you have an EZ-Lube axle on your trailer you may want to check out part # 8-259-5UC1-EZ, or part # 8-259-50UC1-EZ. If you do not have an EZ-Lube axle take a look at part # 8-259-5UC1 or part # 8-259-50UC1. I have attached links to some product review videos for these kits you can take a look at.
    view full answer...
    Image 1 for
  • Trailer Hub To Spindle Combinations for 2000 Pound or 3500 Pound Axle
    The HUB KIT # 8-259-5UC1, uses a 1,000 pound spindle, item # TRU44FR. This setup is for a 2,000 pound axle. The #84 Spindle for 3,500-lb Trailer Axles - 1-3/4" Diameter, item # TRU64FR, is for a 3500 pound axle. If you need a hub and spindle for a 3,500 pound axle then you would use the # TRU64FR spindle and the Trailer Hub Assembly for 3,500 lbs Axles with 5 on 4-1/2 bolt pattern, item # 84545BX.
    view full answer...
  • Recommended Replacement Idler Hub Assembly That Uses L44649 Bearings
    Art, the Dexter Trailer Idler Hub Assembly # 8-258-5UC1-EZ is not going to work with your L44649 bearings, unfortunately. Instead, you're going to want to use the Dexter Trailer Idler Hub Assembly for 2,000-lb Axles # 8-259-5UC1 instead. This idler hub will work with your L44649 bearings, has a 5 on 4 1/2" bolt pattern, and will also work with 2,000 lb axles.
    view full answer...
  • How to Determine Correct Replacement Hub For Small Trailer
    Ok, I can help you out here in regards to if you can get new hubs for larger wheels and tires for your small trailer, but hubs are quite specific fits for a trailer spindle, so it's going to take some measuring or knowing the hubs you have in order to determine if you can get a replacement or know if the 5-lug hubs you mentioned are the same as your 5-lug hubs. To determine if there is a replacement hub available, there's a number of things you will need to know. First, you need to know...
    view full answer...
    Image 1 for
  • Replacement Vintage Steal Wheel Recommendations
    We consider the wheel style you have a Vintage wheel. I attached a page that shows all of the wheels we offer in that style. You will need to know the width and diameter of the wheel in order to determine which wheel you would need as a replacement. This information can determined from the size on the tire. Check out the FAQ articles I attached on trailer wheels and tires. Or, if you like, you can email me back with the size of your tire and I will help you pick out a correct wheel.
    view full answer...
    Image 1 for
  • Troubleshooting Hub and Spindle Not Fitting Together after Replacing Spindle on a Utility Trailer
    It sounds and looks to me like you have the wrong hub assembly for the spindle that is welded to the axle on your trailer. The photos you sent clearly show a 1-1/16 inch spindle similar to the BTR EZ Lube Spindle item # TRU44FR. This is a spindle for a 2,000 pound axle. The parts that you referenced are for a 3,500 pound axle and definitely will not work on a spindle designed for a 2,000 pound axle. In addition, the photo of the hub that you sent looks like a hub for a 3,500 pound axle,...
    view full answer...
  • Is the Timbren Axle-Less Suspension System Available with 5 on 4-1/2 Inch Hubs
    Yes, you can switch the 4 bolt hub from the Timbren Axle-Less Suspension System, # A4WS440, with the 5 on 4-1/2 inch hub, # 8-259-5UC1. If you are looking to purchase this system, I recommend looking at part # A12WS545. This system comes with a 5 on 4-1/2 inch hub and would not require you to buy two different parts.
    view full answer...
  • Replacing Trailer Hubs on Loadrite Trailer
    From the dimensions you gave me, the Trailer Hub Assembly for 2000 lb Axle, 5 on 4-1/2 should fit. It has a 6-1/2 inch diameter hub flange. I measured the depth, and it is 4-1/4 inches (2 inches on each side of the flange, and the flange itself is 1/4 inch thick). If you take a look at your bearings, they should have a number stamped on them. This is the easiest way to match up a replacement hub. The hub I am suggesting fits L44649 bearings.
    view full answer...
  • Remove, Inspect, and Reinstall Trailer Bearings, Races, and Seals
    If you are replacing your existing hubs with Trailer Hub Assembly, # 8-91-05UC1, you will just need to remove the old hub without having to remove the races. The hubs we carry come with the races already in their proper places. If you are replacing bearings, races, and seals you will need to knock out the old races. I have linked a video that shows how our installer goes about this task. It will also show you how to put everything back together. This hub will fit if your trailer accepts...
    view full answer...
  • How to Determine the Bolt Hole Pattern on a Trailer Wheel
    The Trailer Hub Assembly, # 8-259-5UC1, has a 5 on 4-1/2 bolt pattern. To determine the bolt pattern of your trailer wheels, there is a simple way to measure. If there is an EVEN number of lugs, you will measure center to center on lugs directly across from each other. For example, if the wheel has 6 lugs and the center to center distance between 2 that are across from each other is 5-1/2 inches, then the bolt patter is 6 on 5-1/2. If there is an ODD number of lugs, you will measure...
    view full answer...
  • Can a Hub for 12 to 15 Inch Trailer Wheels Fit a 10 Inch Wheel for Axle T20BTR-6048
    Hubs are not included with trailer axle # T20BTR-6048 but for a compatible hub that will fit a 10 inch wheel with a 5 on 4-1/2 bolt pattern you can use # 8-259-5UC1. If a hub is listed as compatible with 12 to 15 inch wheels then a 10 inch wheel will not fit because there isn't enough space in the wheel for the hub.
    view full answer...
  • Replacement 8-259 Hub With 2,000 lb Capacity and 5 on 4-1/2 Bolt Pattern
    In order to find the correct hub for your trailer you will need to take the current hub off, take it apart and find the bearing numbers, which will be stamped on the bearings themselves. If you get back to me with that information I may be able to help you find the right hub.
    view full answer...
    Image 1 for
  • How To Measure An Axle To Determine The Correct Replacement
    All of our axles are measures across from hub-face to hub-face. I have attached a diagram below showing where we measure the axle from. The diagram shows the Trailer Idler Axle Beam # e78GR. We will look at the hub-face length and the distance between the spring seats when determining fitment of an axle. If you are replacing an old axle we would want to try to get you an identical replacement. It is also good to know the weight capacity of the old axle.
    view full answer...
