Dexter Trailer Idler Hub Assembly for 5,200-lb E-Z Lube Axles - 6 on 5-1/2
Dexter

Dexter Trailer Idler Hub Assembly for 5,200-lb E-Z Lube Axles - 6 on 5-1/2

Part Number: 8-213-5UC1-EZ
In Stock
$154.85
Trailer Hubs and Drums
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

In Use/Installed

Customer Photos

Hub is designed for use on trailer idler axles. Fits 5,200-lb E-Z Lube axles. Inner bearing (25580) and race, outer bearing (LM67048) and race, grease seal, grease cap, wheel bolts, and lug nuts included. Great Prices for the best trailer hubs and drums from Dexter. Dexter Trailer Idler Hub Assembly for 5,200-lb E-Z Lube Axles - 6 on 5-1/2 part number 8-213-5UC1-EZ can be ordered online at etrailer.com or call 1-800-940-8924 for expert service.
  • All Info
  • Reviews (70)
  • Q & A (0)
  • Photos

Dexter Trailer Hubs and Drums - 8-213-5UC1-EZ

  • 6 on 5-1/2 Inch
  • For 5200 lbs Axles
  • Hub
  • 14-1/2 Inch Wheel
  • 15 Inch Wheel
  • 16 Inch Wheel
  • 16-1/2 Inch Wheel
  • EZ Lube
  • Standard Grade
  • 25580 / LM67048
  • Dexter

Hub is designed for use on trailer idler axles. Fits 5,200-lb E-Z Lube axles. Inner bearing (25580) and race, outer bearing (LM67048) and race, grease seal, grease cap, wheel bolts, and lug nuts included.


Features:

  • Trailer hub assembly fits idler axles

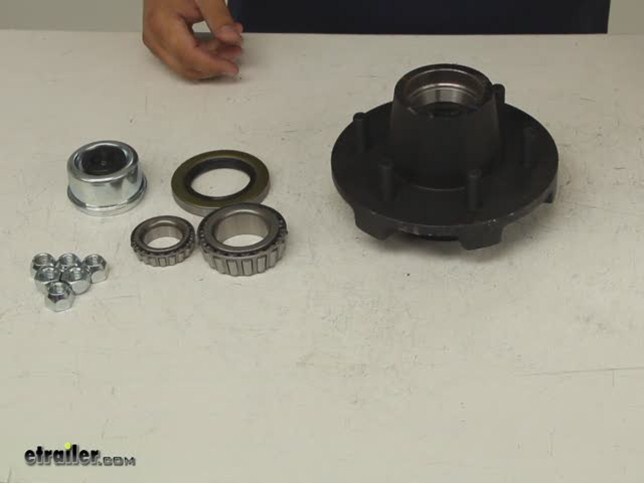

    • Bearings, races, seal, grease cap, wheel bolts, and lug nuts are included
  • E-Z Lube-compatible grease cap makes lubricating bearings fast and easy
    • Remove rubber plug to access zerk fitting on spindle - no need to disassemble hub
  • Sturdy iron construction
  • Hub and drum are made in the USA


Specs:

  • Application: 5,200-lb E-Z Lube trailer axles
  • Wheel size: 14" to 16-1/2"
  • Bolt pattern: 6 on 5-1/2"
  • Grease cap flange diameter: 2.44"
  • Wheel stud diameter: 1/2"
  • Weight capacity: 3,000 lbs


Bearing, Race, and Seal Information

  • Bearings (included)
    • Inner bearing: 25580 (1.75" inner diameter)
    • Outer bearing: LM67048 (1.25" inner diameter)
  • Races (included)
    • Inner race: 25520
    • Outer race: LM67010
  • Grease seal (included): 10-10
    • Inner diameter: 2.125"
    • Outer diameter: 3.376"

E-Z Lube-Compatible Hub for Simple Lubrication

The grease cap on this hub is specially designed to work with your Dexter E-Z Lube axle to make lubricating bearings quick and easy. Just remove the plug on the grease cap, attach a grease gun to the zerk fitting on the end of the spindle, and inject the grease. It will flow easily to both inner and outer bearings. Not only does this make lubricating the bearings easy, but it also helps to prevent corrosion of the hub. This is because you can lubricate the bearings without the mess of taking apart the entire assembly.


Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.


Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)


Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)


Bolt Pattern - Side

Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"


K08-213-92 Dexter Trailer Idler Hub Assembly for 5.2K Axle with Hardware - 6 on 5-1/2 - EZ Lube

Replaces 8-213-5UC1-EZ




California residents: click here


Customer Satisfaction Score:

Ratings & Reviews

4.8

70 reviews
Hub is designed for use on trailer idler axles. Fits 5,200-lb E-Z Lube axles. Inner bearing (25580) and race, outer bearing (LM67048) and race, grease seal, grease cap, wheel bolts, and lug nuts included.

by:



by:



by:



by:



by:

good seller all when good



by:

Shipped fast, was just what I needed



by:

Part was correct and delivered on time as stated!



by:

Dexter trailer hub assembly 42655UC1-EZ is great !!



by:

Great service



by:

Fast shipping and great parts!!!



by:

Worked perfectly



by:

Great service! So far so good. Highly recommend etrailer.com



by:

Is what it advertised as



by:

great Deal, Great Service



by:

I found exactly what I was looking for. Great quality and awesome price. Shipping was fast. Products arrived in good condition and earlier then promised. Thanks for the help.



by:

Awesome customer service. This is my go to for trailer parts.



by:

Fit perfectly, went together easily, trailer works great. No more goofy MH hubs and wheels.



by:

needed a new hub asembly for a 2003 Four winns trailer. got great customer support sorting out the right hub. got a great price. shippied quick. wish it included a new lock washer as i did not think of it till i put it on -but overall i'm a fan of e-trailer!



by:

This hub is complete and ready to install, just grease the bearings, install the seal and install this hub. This would make an excellent backup hub with packed bearings in a ziplock bag and it is ready for a quick field replacement.



by:

Last year, I completely overhauled my Myco triple axle trailer that sits under my 47' Fountain. Trailer and boat weigh just under 20,000 lbs. so having all wheel and brake components in top shape is critical for safety. I replaced everything down to the axles, ie: hubs, bearings, seals, rotors, calipers, brake controller, etc. I purchased everything from eTrailer.com. Shipping was very fast and not only were their prices a third of what Myco wanted to charge me, but any issue or question I had during the process, their customer service was always helpful. Very happy with eTrailer.com and I'm confident that my trailer is safe.



by:

Hubs are good but the studs were too short for a disc brake rotor using a aluminum wheel.I had to source longer studs.



by:

As usual, eTrailer delivers an excellent product at an excellent price. Service and communication are top notch. They always get my business for all my trailer/towing needs.



by:

Good Job EtrailerI ordered 3 tire and rim packages with a couple of hubs for converting the modile home axle under my trailer to a normal lug hub. Just put them on tonight and hubs and tires spun centrally and were very smooth. The hubs were included in oversize boxes for the tires. The boxes were a little beat and the bearing kits were rubbing on the metal parts inside. Just a little more packageing would have prevented a little wearing on the small parts. Sorry guys, the tape just doesn't keep the parts in place to prevent damage. Good job E-trailer



by:

Thank you for your product its was so easy working with it and it fits perfectly, will always do businesses with this company.



by:

Everything worked well


25
70
Show More Reviews

See what our Experts say about this Dexter Trailer Hubs and Drums

  • Replacing the Axle on a Gooseneck Horse Trailer
    An axle flip kit like part # K71-384-00 will raise the trailer the diameter of the axle plus the height of the leaf spring pack. I do have options for you but rotating the axle to where the bend faces the other direction is not one of them. The bend in the axle will actually straighten out once a load is placed on the trailer and if this was reversed, the axle would lose capacity. Now from this point forward you have two options both of which entail replacing the axle. Since your current...
    view full answer...
  • Determining Correct Axle Upgrade For 2018 Grand Design Imagine Travel Trailer
    I would be happy to make a recommendation for upgraded axles and suspension components for your 2018 Grand Design Imagine 2670MK, but first I will need a few measurements from your current components. Starting with the axle you will need to measure your current axles from hub face to hub face and from spring center to spring center to determine the correct length the replacement axle would need to be. For example the Dexter Trailer Axle Beam with E-Z Lube Spindles - 89" Long - 5,200 lbs...
    view full answer...
    Image 1 for
  • Hub And Bearing Replacement For A 5,200 LBS. Mobile Home Axle
    I do have a hub and bearing assembly that will allow you to replace the hubs on your mobile home axle however, mobile home axles are intended for a one time single use only, therefore there is a limitation to readily available replacement parts. When changing the hubs and bearing on a mobile home axle it is important to note the condition of the spindle. A discoloration or nicks/scarring on the spindle are a good sign of needing a replacement. Installing new parts on a damaged spindle...
    view full answer...
  • Lug Nut Torque for 1/2 Inch Hub Lug Nuts which Steel or Aluminum Wheels
    The Dexter Trailer Idler Hub Assembly for 5,200-lb E-Z Lube Axles - 6 on 5-1/2 # 8-213-5UC1-EZ with your added rotors will be torqued to between 90 and 120 foot lbs. If you switch to aluminum wheels like the Provider ST235/80R16 Radial Tire w 16" Viking Aluminum Wheel - 6 on 5-1/2 - LR E - Silver # A16RTK6FPS then the torque would change to between 90 and 100 ft lbs based on the aluminum wheels. I recommend getting aluminum wheels like these that have the steel inserts in the lug nut...
    view full answer...
    Image 1 for
  • Axle Recommendation for Trailer Carrying 9,000 Lbs
    Since you mention that your trailer will max out 9,000 pounds, which I assume includes the weight of the trailer frame and all cargo, I recommend going with the Timbren Axle-Less Suspension, # ASR5200S01. I spoke with my shop manager regarding whether he felt using the 5,200 pound axles would be overkill. He strongly recommends going with an axle that has a higher capacity than the amount of weight that you plan to carry and feels that the 5,200 capacity axles would be a good choice....
    view full answer...
  • Replacement Hub Solution for Dexter 8-155
    Yes, we had a customer who was able to replace his Dexter 8-155 hubs with the # 8-201-5UC3-EZ that you referenced so they should work well for you. You can verify that this hub will work for you by pulling your current hub and making sure they have inner bearing 25580 and outer bearing LM67048.
    view full answer...
  • How to Use a 3,500Lb Timbren Axle-Less Trailer Suspension System with 6 on 5-1/2 Inch Bolt Pattern
    Yes, there is a 3,500lb Timbren Axle-Less Trailer Suspension that will allow you to use trailer hubs with a 6 on 5-1/2" bolt pattern but you will need to use the Heavy-Duty version part # ASR35HDS01. This system has larger spindles which will be compatible with trailer hubs that have the bolt pattern you requested. If you just need idler hubs and do not have brakes then you can use the Dexter Trailer Idler Hub Assembly part # 8-213-5UC1-EZ which uses a 25580 inner and LM67048 outer bearing....
    view full answer...
  • Replacement Drop Axle for Old Horse Trailer with 6 on 5-1/2 Inch Bolt Pattern
    I would love to help but we do not have any trailer hubs that correspond to the dimensions that you provided. Therefore, the only option we can offer you would be to replace the axle all together. In order to offer a replacement for this we would need to know your spring center and hub face measurements (see photo). If you can provide me with these I can then see if we have an axle suitable for your trailer. For example, the Dexter Trailer Axle Beam with 4" Drop E-Z Lube Spindle part...
    view full answer...
    Image 1 for
  • Recommendation for Converting Fleetwood Neon Pop-Up to Axle-Less Suspension System with Jeep Tires
    To convert your offroad trailer to the Timbren Axle-Less Trailer Suspension System - 4" Lift Spindle w/ Brake Flange - 5,200 lbs # TASR5200S03 you will either use a crossbrace for your trailer frame at the axle location or you will add a 2 inch square tube between the assemblies (not included) into the integrated holes of the assemblies. This will give you much more ground clearance than a standard axle and will also include the suspension needed. Unfortunately that 5,200 lb Timbren...
    view full answer...
    Image 1 for
  • Recommended 5200lb Dexter Axle To Replace 5200lb Lippert Axle W/ 86-1/2" Hub Face Measurement
    I reached out to my contact at Lippert and based on the information you provide your axle has an axle rating of 5200lb, measures 86-1/2" hub face to hub face, 68-1/2" spring center to spring center, has the springs installed above the axle, and uses the 6 on 5-1/2" bolt pattern. For a replacement Dexter axle we have the Dexter Trailer Axle Beam with E-Z Lube Spindles - 86-1/2" Long - 5,200 lbs # 8327816 or the # 8327816-EB which already has the brakes and hub and drum assemblies installed...
    view full answer...
  • Timbren Axle Less System Recommendation to Replace Axle on Mobile Home Trailer
    Since your spring center dimension is 76 inches the best recommendation we can provide you with would be the part # A35RS545. This is a universal axle design that would work great on your mobile home trailer and comes with hubs as well. If you really want to go with a straight axle you would instead need to find a dealer near you who can order you in some custom axles to the dimensions you need. You will need to give them the hub face to hub face dimension as well as the spring center...
    view full answer...
  • Upgrading Dexter 8-222 Trailer Hubs
    The Dexter 8-222 was used on a mobile home axle, according to my research. Mobile home axles are meant for a one time use, so there aren't compatible replacement hubs available. If you need replacement bearings and seals, you will use # L68149 for the inner and # LM67048 for the outer. For the Grease Seal you will need # 10-40. If you can provide the hub face to hub face and spring center to spring center distance, we might have an off the shelf replacement axle that uses common bearing...
    view full answer...
  • Fit of Dexter Trailer Idler Hub Assembly for 6,000 lb E-Z Lube Axles
    Your photos did not come through but I think I can still answer your question. The hubs you get must be compatible with your spindle, and that means you will need to look at your hub bearings; wipe away the grease and you should be able to see the part number stamped directly on them. If you are unable to find them, you need to use a digital caliper and measure your spindle to the thousandths of an inch where the bearings and grease seal ride. You can use the photo I've attached to see...
    view full answer...
    Image 1 for
  • Raising Trailer with Welded On Torsion Axles
    There is a solution for you, but the lift kits you referred to such as # K71-725-02 will not work with welded on torsion axles. The best option is for you to simply remove your torsion axles and use the Timbren Axle-Less Trailer Suspension System # TASR5200S03, which is rated for 5,200 lbs and has a 4" lift spindle. With these you would need Hub and Drum Assembly # 8-201-5UC3-EZ or Idler Hub Assembly # 8-213-5UC1-EZ. With the Timbrens there is no alignment needed; the system does come...
    view full answer...
  • Hub and Wheel Recommendation for Use with Timbren Axle Less System part # ASR5200S04
    The Timbren Axle Less System part # ASR5200S04 comes with a left and right side for your trailer. You would need to put hubs on this kit like the part # 8-213-5UC1-EZ and then for wheels the # AM22653 and tires # TTWSF22515D are our most popular options with people who have bought this kit.
    view full answer...
  • Replacement Hubs for a 2003 Venture Boat Trailer Model 2250 with 6-Lug Hubs
    I did a little research and found that your 2003 Venture Boat trailer model 2250 has a capacity of 2,250 pounds but the 6-lug hubs and bearing information I found indicate that it uses hubs normally seen on 5,200 pound axles. Since you have a boat trailer you might be interested in Kodiak hub # KH42655S which is stainless steel so it won't corrode. It uses inner bearing 25580 and outer bearing 15123. Another option is hub # 8-213-5UC1 which uses the same inner bearing but a different...
    view full answer...
  • Hub Size and Axle Weight Rating to Fit Bearings 25580 and LM67048
    Based on the bearing sizes # 25580 and # LM67048, there are two possible hubs that will fit. The first has a wheel bolt pattern of 6 on 5-1/2 and fits axles rated for 5,200 lbs to 6,000 lbs. This hub can be purchased with the standard hub assembly # 8-213-5UC1 or the E-Z Lube axle hub assembly # 8-213-5UC1-EZ. Your bearing combination indicates that your axle capacity is 5,200 lbs. The other hub option has a bolt pattern of 6 on 6 and fits axles rated for 6,000 lbs. This hub can be...
    view full answer...
  • Replacing Trailer Hubs with 1.25", 1.75" Bearings and 2.3" Seal Measurements on Spindle
    Thank you for the measurements! From the info you gave me it sounds like you have axles rated somewhere between 5,200 lbs - 7,000 lbs. For this we have the following: Idler hub with 6 on 5-1/2" bolt pattern - # 8-213-5UC1-EZ Idler hub with 8 on 6-1/2" bolt pattern - # 42865-KIT Hub and Drum with 6 on 5-1/2" bolt pattern - # 8-201-9UC3-EZ You will need to use grease seals # RG06-070 for these Hub and Drum with 8 on 6-1/2" bolt pattern - # 42866UC3-EZ All of these kits have bearings that...
    view full answer...
    Image 1 for
  • Can Idler Hub and Over-The-Hub Rotors Be Used to Convert to Hydraulic Brakes on Camper
    You can certainly use idler hubs with slip on rotors to convert your 5th wheel camper to hydraulic disc brakes from electric drum brakes. As you noted, the benefit of this is being able to replace the rotors more easily down the road. This is nice if you find yourself in a situation where only either the hub or the rotor has been damaged, and only one of the two components need to be replaced. The Kodiak Disc Brake Kit # K2R526D that you referenced is a great choice for your camper. These...
    view full answer...
  • Timbren Axle-Less Suspension for 10,000 Pound Mobile Hydraulic Lift
    A tow-behind hydraulic lift is going to need to be stable so I recommend using a tandem axle set up just like you mentioned. That would equate to using 2 sets of Timbren Axle-Less systems rated for 5,200 pounds for a total capacity of 10,400 pounds. We have a couple of options in this capacity: # ASR5200S01 has regular spindles; no rise or drop, and # ASR5200S04 has a 4 inch drop spindle meaning that it will lower the trailer by 4 inches. For a hub and drum assembly that will fit these...
    view full answer...
  • Idler Hubs and Hub/Drums That Use Bearings 25580 and LM67048
    All idler hubs and hub/drums that use your bearing set # 25580 and # LM67048 appear on the linked page. For the idler hub use either standard 6-on-5-1/2 hub # 8-213-5UC1 or EZ-Lube hub # 8-213-5UC1-EZ. These include seals with a different I.D. so you'll also need 2.250-inch I.D. seal # GS-2250DL. For a 6-on-5-1/2 hub/drum use either standard model # 8-201-5UC3 or EZ-Lube model # 8-201-5UC3-EZ. Again you'll need to add the alternate seals # GS-2250DL. These various hubs use either a...
    view full answer...
  • Are all 5,200 Lbs. Axle hubs Standard on all 5,200 Lbs. Rated Axles
    Most hubs will be standard in the weight capacities for that sized axle. This range is usually 5200 to 7000 lbs. However, you will need to know some specific information about the hubs before you can pick the correct product for your application. There are a few things you need to consider when choosing hubs for 5200 lbs. trailer axles. The first thing you will need to know is what the bolt pattern of the hub you want to replace. A hub assembly like # 8-213-5UC1-EZ for 5200 to 6000 lbs...
    view full answer...
  • Hub Bolt Pattern and Bearing Compatibility with 5K Trailer Axles
    Your existing 3500-lb hubs could be used on a 5K axle if the spindles on both axles used the same inner and outer bearings. But usually these two different axle capacities mean different bearings with very different dimensions. That means 3500-lb hubs will not fit. Also 5K hubs use the 6-on-5-1/2 wheel bolt pattern. The most common bearings for a 3500-lb axle are # L68149 (inner) and # L44649 (outer) while a 5200-lb axle typically uses bearings # 25580 (inner) and # LM67048 (outer). If...
    view full answer...
  • How To Install a Timbren Axle-Less 5,200-lbs System on Aluminum Framed Travel Trailer
    You can absolutely use the Timbren Axle-Less Trailer Suspension System - 4" Lift Spindle w/ Brake Flange - 5,200 lbs # TASR5200S03 on your 2013 Livin Lite Camper with an aluminum frame, but you'll need to put some sort of buffer between the Timbren system and the frameto prevent galvanic corrosion. Your best bet is going to be putting a thin rubber pad between the steel mount and the aluminum I-beam. The powder coat on the steel should keep the two dissimilar metals from galvanic corrosion,...
    view full answer...
