Dexter Trailer Idler Hub Assembly for 2,000-lb Axles - 5 on 4-1/2

Dexter Trailer Idler Hub Assembly for 2,000-lb Axles - 5 on 4-1/2

Item # 34822545BX

lowest price pledge

Our Price: $36.97

Trailer Hubs and Drums

Orders above $99 qualify for Free Shipping

Shipping Weight: 7 lbs

Quantity:
In Stock, Ships Today
34822545BX - Standard Dexter Trailer Hubs and Drums
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Videos


  • 5 on 4-1/2 Inch
  • For 2000 lbs Axles
  • Hub
  • Standard
  • 8 Inch Wheel
  • 10 Inch Wheel
  • 12 Inch Wheel
  • L44643
  • Dexter
  • L44643
  • 1/2 Inch Stud
Hub is designed for use on trailer idler axles. Fits 2,000-lb axles with BT8 spindles. Inner bearing (L44643) and race, outer bearing (L44643) and race, grease seal, grease cap, wheel bolts, and lug nuts included. For 8" to 12" wheels. Lowest Prices for the best trailer hubs and drums from Dexter. Dexter Trailer Idler Hub Assembly for 2,000-lb Axles - 5 on 4-1/2 part number 34822545BX can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (12)
  • Q & A (38)
  • Videos (1)
  • Photos
  • Why etrailer?

Dexter Trailer Hubs and Drums - 34822545BX

Hub is designed for use on trailer idler axles. Fits 2,000-lb axles with BT8 spindles. Inner bearing (L44643) and race, outer bearing (L44643) and race, grease seal, grease cap, wheel bolts, and lug nuts included. For 8" to 12" wheels.


Features:

  • Trailer hub assembly fits idler axles
    • Bearings, races, seal, grease cap, wheel bolts, and lug nuts are included
  • Sturdy iron construction
  • Made in the USA


Specs:

  • Application: 2,000-lb trailer axles with BT8 spindles
  • Wheel size: 8" to 12"
  • Bolt pattern: 5 on 4-1/2"
  • Grease cap flange diameter: 1.986"
  • Wheel bolt diameter: 1/2"
  • Weight capacity: 1,000 lbs


Bearing, Race, and Seal Information

  • Bearings (included)
    • Inner bearing: L44643 (1" inner diameter)
    • Outer bearing: L44643 (1" inner diameter)
  • Races (included)
    • Inner race: L44610
    • Outer race: L44610
  • Grease seal (included): 34823
    • Inner diameter: 1.249"
    • Outer diameter: 1.983"

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.


Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)


Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)


Bolt Pattern - Side

Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"


H34822545BX Dexter Trailer Idler Hub Assembly for 2K Axle with Hardware - 5 on 4-1/2 - L44643 Bearings







Video of Dexter Trailer Idler Hub Assembly for 2,000-lb Axles - 5 on 4-1/2


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

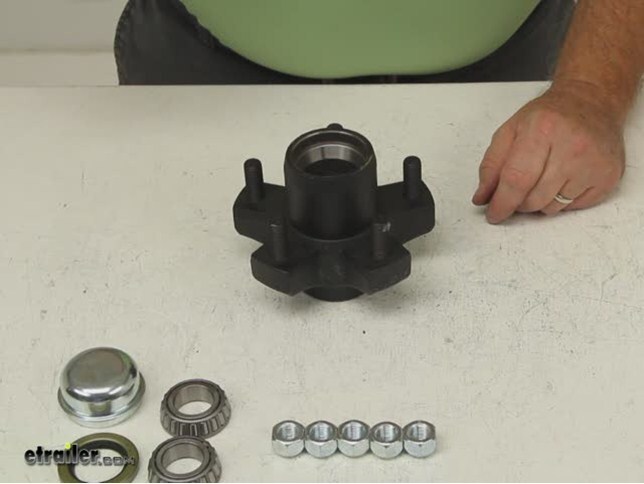

Video Transcript for Review of Dexter Trailer Hubs and Drums - Hub - 34822545BX

Today we're going to take a look at the Dexter Trailer Pre-Greased Idler Hub Assembly for a 2,000 pound axles, with the five on four and a half inch bolt pattern. Now this is a pre-greased idler hub, which is easy to install, so there's no need to pack bearings with grease. Comes all pre-greased. The bearings are all installed, and their pre-seal is pressed into place, so it's ready to put right on. Now this trailer hub assembly fits standard and easy-lube idler axles. Comes with the inner and outer bearings.

The bearing races, the grease seal, the wheel lug nuts and two different grease caps, one for a standard axle, the other for an easy lube axle, which has the center removable plug to allow you to grease the easy lube axle.The hub is a sturdy arm construction, has half-inch diameter wheel studs, and it is made in the U.S.A. A few specs on it. The application is 2000 trailer axles, with the BT8 spindles. It does have a five and a half inch diameter hub flange, which is measured from here to here, so that means you can use a wheel size of eight inches up to 12 inches. Bolt pattern on this is a five on four and a half inch bolt pattern.

We mentioned a wheel lug diameter of a half an inch. Weight capacity on this one hub is 1,250 pounds. The bearings that are pre-installed are part number L44643, for both inner and outer bearings. Races are pre-installed, and the grease seal that's installed is a part number 34823.But that should do it for the review on the Dexter Trailer Pre-Greased Idler Hub Assembly for the 2,000 pound axles, with the five on four and a half inch bolt pattern.


Customer Reviews

Dexter Trailer Idler Hub Assembly for 2,000-lb Axles - 5 on 4-1/2 - 34822545BX

Average Customer Rating:  4.9 out of 5 stars   (12 Customer Reviews)

Hub is designed for use on trailer idler axles. Fits 2,000-lb axles with BT8 spindles. Inner bearing (L44643) and race, outer bearing (L44643) and race, grease seal, grease cap, wheel bolts, and lug nuts included. For 8" to 12" wheels.

- 34822545BX
by:

Just what I was looking for. 179589



- 34822545BX
by:

Shipping was fast and install was easy...your measurement guide was very helpful to figure out my spindle size and lug stud spacing for my wheel. Thanks 664833



- 34822545BX
by:

good product 261728



- 34822545BX
by:

I have ordered from e-trailer twice. Both times they provide excellent service! Parts arrived amazingly fast!! One order had a damaged part, I called and got a very nice sales rep. Parts were replaced FREE. I will deffinatly order from them again. I ordered hubs, wheel and tires, and light kit for my boat trailer. All parts are good Quality. 203452



- 34822545BX
by:

fit perfect, great website I easily found what I needed, seems well made, the outside dust cover was hard to install (I had to fiddle with it) 198291



- 34822545BX
by:

nice product, went on super-easy 173167



- 34822545BX
by:

absolutely the best customer service ( George) and the fastest transit times - have been using them for years - never a problem 170954



- 34822545BX
by:

Not only is the product exactly what we needed (the dust caps are a little on the lightweight side) but Matthew was extremely helpful in getting me the parts I needed to fix my trailer! 135445



- 34822545BX
by:

Hubs went on without any trouble. Only tricky part was to get the caps seated into the hub to trap the grease. Haven't used the trailer yet, but don't anticipate any problems. Shipping was awesome. I ordered with standard shipping and the box was on my porch the next afternoon. 131003



- 34822545BX
by:

The hub I ordered for my trailer worked perfectly!!!!!! The customer service is unreal, from fast shipping to constant checks(personal emails) to see if item had arrvied on time, truly a professional company that puts their customers above all. I never write reviews put this company definetly earned it, Thanks and I will be back!!! 103272



- 34822545BX
by:

Nice assembly 48886



- 34822545BX
by:

good looking hub. Races are already installed so that was nice. 29305


12
12

Ask the Experts about this Dexter Trailer Hubs and Drums
Do you have a question about this Trailer Hubs and Drum?


  • Replacement Bearing Kit and Bearing Buddy Grease Caps for 2012 Triton LT Trailer with Reliable Axle
  • The owner's manual for the Reliable axle on your Triton PWC trailer indicates that the bearing used on the axle of your weight rating is # L44643. This part serves as both inner and outer bearing according to the manual, which I linked for you. We sell this bearing as an individual part and also as part of a complete bearing kit # BK1-100 which includes 2 of bearing # L44643, 2 of race # L44610, 1 grease seal # 34823 and a cotter pin. You'll need two kits per axle. The hub that uses...
    view full answer...

  • Inspecting Trailer Spindle and Locating Replacement Bearings for Used Trailer
  • The small cut that you noticed when inspecting the spindle on your trailer can cause bearings and seals to wear out very quickly (even extremely small ones). A quick test to see if a replacement spindle is in order is to simply run your fingernail across the spindle. If it catches as you run along the mentioned cut/nick, replacing the spindle will be your best option. I am not aware of a bearing that features an inner diameter of 1.125 inches like what you mentioned. With that being...
    view full answer...

  • Trailer Hubs Based on Spindle Measurements (3,500 Pound Axles)
  • It looks and sounds like your spindles take inner bearing L69149 and outer bearing L44649. These bearings indicate that the most likely size hubs you will need are for a 3,500 pound axle. For an idler hub you could use # AKIHUB-545-35-K. This one has a 5 on 4-1/2 bolt pattern. If you are looking for a brake drum then you could use # AKHD-545-35-K which also has a 5 on 4-1/2 bolt pattern. I have linked videos of both of these assemblies for you.
    view full answer...

  • How to Pick Out Hubs for a 1979 Jayco Popup Camper
  • In order to pick out the correct hub assembly for a trailer you are going to need know a few key pieces of information. The first thing you will need to know is the bolt pattern of your hubs, since you are looking for 5 on 4-1/2 inch bolt pattern this is covered. Next thing you will need to know is what spindle you have on your trailer. In order to do that you can either get the inner and outer bearing numbers from a hub or use a dial caliper to get exact measurements of the spindle....
    view full answer...

  • Trailer Hub Assembly Must be Put Together and Packed with Grease
  • The trailer hub assembly, part number, 34822545BX, comes with the race attached to the hub. The seal and bearings are not attached. Those parts must be assembled and packed with grease prior to installing the cap. I have attached a FAQ sheet for wheel bearings and two videos for your review.
    view full answer...

  • Hub Recommendations to fit a BTR Spindle with 1.06 C and D Dimensions
  • Based on the C and D dimensions you listed you have a BTR spindle. The correct idler hub with a 5 on 4-1/2 inch bolt pattern that you would need would be the Trailer Hub Assembly # 8-259-5UC1-EZ. If you needed a hub and drum assembly for your spindle you would need the Trailer Hub and Drum Assembly # 8-257-5UC3. The # 34822545BX would not work on your spindle dimensions.
    view full answer...

  • What Size Hub will Work with the 215/60-8 Trailer Tire with 8 Inch Galvanized Wheel Load Range D
  • The proper size hub for the 215/60-8 bias trailer tire and wheel, # AM3H325, is going to depend on the weight capacity of the trailer you are designing. This wheel and tire combination is capable of 1,165 lbs at 70 psi, so each axle in your design would need to be rated for 2,330 lbs or less. Most likely if this is the proper capacity for your design you will be using a 2,000 lb axle and the Trailer Hub Assembly, # 34822545BX, would be the proper choice if the spindle on the axle you...
    view full answer...

  • How to Determine The Correct Replacement Trailer Hubs by Bearing Numbers or Spindle Size
  • The best way to determine which replacement hubs you need for your trailer would be to remove one of the hubs and retrieve the bearings. Find the numbers stamped into the bearings and with those we will be able to get you the correct hubs. If you are unable to retrieve the bearing numbers, you can take measurements of the spindle. I have included a link to our spindle main page. At the top of the page is a diagram showing all of the measurements we would need to find the correct hubs...
    view full answer...

  • Boat Trailer Hub that Uses L44610 Races and L44643 Bearings
  • Are you sure about the hub in question having a 5 on 4-3/4 bolt pattern? The only idler hub we offer that uses that race/ bearing combination is part # 34822545BX for 8-10 inch wheels or # 8-258BTUC1 for 12-15 inch wheels. Determining the bolt pattern of a wheel with an odd number of bolt holes can be a bit tricky, especially when the wheel is still in place on the trailer. The easy way to determine this is to take a measurement from the center of one bolt hole to the center of the...
    view full answer...

  • Replacement Hub and Axle for 2007 Triton LT Trailer
  • For your replacement axle and hubs, I recommend the Timbren Axle-Less Trailer Suspension System with Hubs - 5 on 4-1/2 - Regular Tires - 2,000 lbs # A20RS545 or the 4 on 4 inch hubs of the # A20RS440. These replacements contain Aeon rubber suspension and have EZ Lube spindles for easy maintenance. They do require a 2 inch square tube (not included) to join the assemblies utilizing the integrated holes. This would be a great upgrade for you. If you just want to replace the hubs,...
    view full answer...

  • Will the Dexter Trailer Idler Hub Assembly 34822545BX Work with a 14 Inch Diameter Wheel
  • If you have 14" wheels on your trailer then you will want to use the Trailer Idler Hub Assembly part # AKIHUB-545-2-LFEZ-1K instead of the Dexter Trailer Idler Hub Assembly part # 34822545BX. The Dexter Trailer Idler Hub Assembly is only rated for use with 8" to 12" wheels whereas the Trailer Idler Hub Assembly is rated for use with 13" to 15" wheels because it has more of a surface area on the hub face. Unfortunately, we don't have any pre-greased hubs that will work for you but greasing...
    view full answer...

  • Replacement Idler Hubs for Utility Trailer
  • Thank you for the photo of your trailer idler hub and for the details about its bearings. New hubs must use the very same bearing set in order to fit on your spindles. All 6-on-5-1/2-inch idler hubs we offer are shown on the linked page. Timken bearing 15118 does indeed have an inner bore of 1.189-inches but we offer no bearing with this same bore dimension. Bearing 09074 has a 0.75-inch inner bore and we offer one bearing with this same inner dimension, part # LM11949, which is commonly...
    view full answer...

  • Troubleshooting Trailer Hub/Drum that Gets Hot Ater New Bearings and Assembly Adjustment
  • If the adjustment and bearings are good you need to go in and check out what the inside of the hub drum looks like as it may have a wear issue that's causing heat to build up. While in there you'd want to check out everything in the brake assemblies too to make sure there's nothing broken or worn out as well.
    view full answer...

  • Recommended Hub Assemblies, Wheels And Tires For 1993 Jayco Popup Camper
  • The hub and bearing kit I recommend for your Jayco popup camper is part # AKIHUB-440-2-2K. This kit includes the idler hubs, bearings, races, seal, grease cap, and lug nuts. The hub has a 4 on 4 bolt pattern. The hub assembly kit you came from will not work with the spindle size you said you have on your trailer. We also have tire/wheel combos that will work with this hub assembly. The combo I recommend is part # AM31208HWT. This is a 12-inch radial tire/wheel combo with an aluminum...
    view full answer...

  • Availability of Bearing Kit and Hub that Fits BT8 Spindle
  • The bearing kit for a BT8 spindle like the part # SP204BT8 that you referenced is the part # BK1-100. For a hub that fits this spindle that would include the bearings you would want the part # 34822545BX. This has a bolt pattern of 5 on 4-1/2 inch. The distance between your lugs that you mentioned matches this bolt pattern.
    view full answer...

  • Should Spindle Be Replaced After Wheel Came Off Weekend Warrior Tri-Axle Trailer
  • Now would be a really good time to have the entire system inspected by a qualified shop. If the lug nuts were not tightened properly that could cause the wheel to come off the trailer. The bearing should have been inspected for obvious signs of wear or damage as well as the spindle. If the hub came off with the wheel and tire I imagine the threads on the spindle have been damaged. I would have someone inspect the entire system and replace or repair anything that is worn or damaged....
    view full answer...

  • Why Would Trailer Hub Get Hot When Leaking Grease/Oil
  • If the oil or grease of your hub is leaking out then the heat you have found is related to that. Without proper lubrication the hub is getting hot. If this is a grease hub and you put oil in it then that would be why it would be leaking out. Or you overfilled the hub with grease and in doing so blew out the seal. This is a common problem with people who use Bearing Buddies. Either way you need to replace the seal and repack the hub with grease properly. I attached a video that demonstrates...
    view full answer...

  • Troubleshooting Overheating Hubs on a Trailer With New Bearings and Grease
  • Hubs will heat up when driving, but if it feels like they are getting too hot, then you will want to look at a few things on your hub. My guess is that the spindle nut is too tight and the added stress on the bearings is overheating the bearings and hub and could be causing damage to the bearings. When you install the castle nut you will want to tighten the spindle nut while turning the hub. When there is a slight bind on the bearing, the parts are seated correctly. Back the nut off...
    view full answer...

  • Distance From Side wall to Spindle End with Tire/Wheel # AM30020, Hub # 3482254BX, Spindle BT8
  • I went out to the warehouse and pulled all of the parts: Kenda 4.80/4.00-8 Bias Trailer Tire and Wheel, # AM30020. Trailer Hub, # 34822545BX And Spindle, # R104BT8-38 I assembled all of the parts and measured from the inside side wall of the tire to the end of the spindle. It measured 4-3/16 inches.
    view full answer...

  • Which Bearing Buddies Fit Trailer Hub # 34822545BX
  • You will need Bearing Buddies that fit a 1.98 diameter hub bore. We have several models. For stainless steel use # BB1980A-SS. For chrome plated use # BB1980A. And, if the hub is threaded, use # BB1980T-SS. I also recommend special seals for use with Bearing Buddies, # BB60001, to prevent having a blow out with a regular seal.
    view full answer...

  • Which Spindles Will Work with the Trailer Hub Assembly for 2,000 lbs Axles
  • You can use any of three spindles with the Trailer Hub Assembly - 2,000 lbs Axles - 5 on 4-1/2, item # 34822545BX. I have listed these spindles below. The main difference in these spindles is the mounting dimensions on the inboard end of the spindles. the bearing seal and threaded portions of the spindles are all the same. Spindle 1.25 inch RD x 4 inch STUB Item, # R104BT8 Spindle 1-1/2 inch Square x 4 inch Long Stub, for 2,000 lb. Trailer Axles, Item # SP204BT8 Spindle 1.38 inch RD...
    view full answer...

  • Troubleshooting Trailer Hub that Gets Warms
  • If the bearings are good and the hub is greased properly that basically limits the issue to the brakes. How much drag can you feel as you turn the wheel by hand with the trailer jacked up in the air? It should feel like a light drag and turn easily. Do all hubs get warm or just the one? To see how to manually adjust trailer brake assemblies check out the video I attached, fast-forward to the 4:35 mark of the video. Basically you will adjust the brakes out so that there is a slight but...
    view full answer...

  • Which 5 Bolt Hub Assembly is Recommended for Use with the Redline Spindle # R104BT8
  • On the Redline Spindle, part # R104BT8, the hub assembly you would need is an idler hub assembly. An idler hub assembly does not have an integrated brake drum. It will also depend on what size wheel and tire you will be using. If you need an idler hub assembly with a 5 bolt pattern you can use the Dexter hub # 34822545BX. This is a idler hub assembly with a 5 on 4-1/2 inch bolt pattern that will work on 2000lb axles. It will only work with 8 inch to 10 inch wheels. If you need an...
    view full answer...

  • Dimensions Of Dexter Hub Assembly For 8 to 12 Inch Wheels
  • The Dexter Hub Assembly, part # 34822545BX is designed to be used with 2,000 lb axles and for 8 inch to 12 inch wheels. This assembly includes bearings, races, seal, grease cap, wheel bolts and lug nuts. I have attached a photo of the hub and have the hub length noted on the photo. The length of the hub is 4-1/4 inches and the inner diameter of the inner and outer bearings, part # L44643, that are included with the hub measure 1 inch. A spindle that is designed to work with the...
    view full answer...

  • Are the Bearings and Seal for the Dexter Trailer Idler Hub Dexter Brand
  • The included bearings and seal with the Dexter Trailer Idler Hub Assembly, # 34822545BX, were included with the hub from Dexter. Therefore, the bearings and seal are Dexter approved parts. Dexter does not manufacturer their bearings and seals for there hubs, but use the highest quality products from vendors with their products.
    view full answer...

  • Can Jayco Camper Trailer Swap from 4 Lug Hubs to 5 on 4-1/2 inch Hubs
  • Pull one of the hubs off of your trailer and measure the diameter of the spindle where the bearings ride. If the diameter for both is 1.06 inches then the correct 5 on 4-1/2 inch hub would be the part # 8-259-50. If instead you have a spindle with a diameter of .99 inch you'd instead want the # 34822545BX.
    view full answer...

  • Replacement Hub Recommendation for a Hub that Uses L44610 Outer and L68111 Inner Races
  • Actually the numbers you listed are races and not bearings, but nevertheless I was able to determine what you need. Also, it sounds like you meant to type 6 on 5-1/2 inch bolt pattern. For an idler hub you would want the part # 84655UC1-EZ. For a hub and drum you would want the part # 84656UC3-EZ.
    view full answer...

  • Hubs and Wheel Bearings Keep Working Loose Causing Play in the Wheels
  • It sounds like the problem you are having is related to one of the possibilities you have mentioned. It is nearly impossible to press a race in straight at home unless you have the proper equipment and have done it before. Taking the drums to a brake shop might be the best option to make sure the races are seated properly. If they are seated properly then it is possible that the hub bore could be off causing the races to get out of position. The solution would be to replace the drums. If...
    view full answer...

  • What Limits the Speed of a Trailer
  • What limits the speed a trailer can go is the tires. Trailer tires are only rated to go 65 miles per hour. If you are traveling fast enough that bearings in good condition begin to damage themselves the trailer tires are probably already in the process of failing. Trailer tires are built with a thicker sidewall, to handle vertical loads, that get hot enough to fail when you exceed 65 miles per hour. Going to a larger diameter wheel/tire will not give you the ability to exceed the...
    view full answer...
