Dexter Trailer Idler Hub Assembly for 2,000-lb Axles - 4 on 4 - L44649 Bearings

Dexter Trailer Idler Hub Assembly for 2,000-lb Axles - 4 on 4 - L44649 Bearings

Item # 8-91-05UC1
lowest price pledge
Our Price: $50.74
Trailer Hubs and Drums
This item qualifies for Free Shipping
Shipping Weight: 6 lbs
Quantity:
8-91-05UC1 - For 2000 lbs Axles Dexter Axle Trailer Hubs and Drums
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Customer Photos

Videos

Need help with installation?
Locate installers near me
Hub is designed for use on trailer idler axles. Fits 2,000-lb axles with BTR spindles. Inner bearing (L44649) and race, outer bearing (L44649) and race, grease seal, grease cap, wheel bolts, and lug nuts included. Lowest Prices for the best trailer hubs and drums from Dexter Axle. Dexter Trailer Idler Hub Assembly for 2,000-lb Axles - 4 on 4 - L44649 Bearings part number 8-91-05UC1 can be ordered online at etrailer.com or call 800-298-1624 for expert service.
  • All Info
  • Reviews (193)
  • Q & A (42)
  • Photos
  • Why etrailer?

Dexter Axle Trailer Hubs and Drums - 8-91-05UC1

  • 4 on 4 Inch
  • For 2000 lbs Axles
  • Hub
  • Standard
  • 10 Inch Wheel
  • 12 Inch Wheel
  • L44649
  • L44649
  • Dexter Axle

Hub is designed for use on trailer idler axles. Fits 2,000-lb axles with BTR spindles. Inner bearing (L44649) and race, outer bearing (L44649) and race, grease seal, grease cap, wheel bolts, and lug nuts included.


Features:

  • Trailer hub assembly fits idler axles

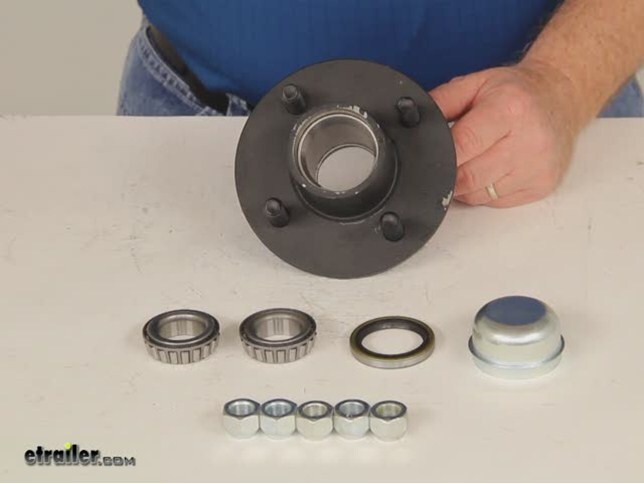

    • Bearings, races, seal, grease cap, wheel bolts, and lug nuts are included
  • Sturdy iron construction
  • Hub and drum are made in the USA


Specs:

  • Application: 2,000-lb trailer axles with BTR spindles
  • Wheel size: 10" to 12"
  • Hub flange diameter: 5-1/2"
  • Bolt pattern: 4 on 4"
  • Grease cap flange diameter: 1.986"
  • Wheel bolt diameter: 1/2"
  • Weight capacity: 1,000 lbs


Exploded View

Note: Some axles rated at 2,000 lbs require a different seal and bearings. Be sure that the bearings in the hub being replaced have L44649 stamped on them. If the bearings have L44643 stamped on them, use 34822BX trailer hub.


Bearing, Race, and Seal Information

  • Bearings (included)
    • Inner bearing: L44649 (1.063" inner diameter)
    • Outer bearing: L44649 (1.063" inner diameter)
  • Races (included)
    • Inner race: L44610
    • Outer race: L44610
  • Grease seal (included): 10-9
    • Inner diameter: 1.500"
    • Outer diameter: 1.987"

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.


Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)


Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)


Bolt Pattern Side

Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"


K08-091-91 Dexter Trailer Idler Hub Assembly for 2K Axle with Hardware - 4 on 4 - L44649 Bearings

Replaces 8-91-05UC1






Customer Reviews

Dexter Trailer Idler Hub Assembly for 2,000-lb Axles - 4 on 4 - L44649 Bearings - 8-91-05UC1

Average Customer Rating:  4.7 out of 5 stars   (193 Customer Reviews)

Hub is designed for use on trailer idler axles. Fits 2,000-lb axles with BTR spindles. Inner bearing (L44649) and race, outer bearing (L44649) and race, grease seal, grease cap, wheel bolts, and lug nuts included.

- 8-91-05UC1
by:

Parts fit perfectly and are made of good material, customer service with Nicole T was great . She was able to get me the right parts and super professional on helping me getting the right parts . Thank you


Comments
So far so good , working well . I lube the hubs once a year with marine grade lube
Hugo - 04/24/2021


- 8-91-05UC1
by:

Purchase a pair of hubs and leaf springs plus assorted hardware for an old trailer restoration. The pricing was great and the quality and shipping were equally as good. The trailer is a 1999 Haulin which seen it's better days. Thanks to Etrailer, I was able to order everything I needed at one time.



- 8-91-05UC1
by:

I've attached some pics of the smoker I'm building using the hubs and spindles I purchased from you. Thanks for the quick shipping. Hubs and spindles fit perfect.



- 8-91-05UC1
by:

The hub seemed to be of very good quality. It shipped out and I received it very quickly. I have only one issue and that was the grease cap seemed a tad small and was extremely difficult to put on without damaging, but in all fairness that could be my lack of experience installing them rather than a product issue. before an after pictures attached



- 8-91-05UC1
by:

I recently purchased a set of hubs and bearings for my Jon Boat trailer. I purchased 4 on 4 hubs to put 4.80 X 12" tires on the trailer. Delivery was very fast. I received the hubs in two days. However, the hubs and bearings I purchased would not fit the trailer axle. I contacted etrailer.com and explained that the internal diameter of the bearings was much too small. The ID was 1" and the spindle of the axle was 1.25". They checked their inventory and could not find bearings with 1.25" ID. They agreed to allow me to return the hubs and bearings. However, after considerable looking I found that the axle is non-standard for this type of trailer and no one has hubs (4 on 4 for 4.80 X 12" tires) to fit the axle. I ended up purchasing a proper axle and installed the hubs I had purchased from etrailer.com. The people at etrailer.com were very considerate and helpful. I recommend them highly.



- 8-91-05UC1
by:

Hubs was a direct fit... reasonably pri ced...



- 8-91-05UC1
by:

The hubs and bearing fit my seadoo trailer great. The reason for one star down is that the grease seals were the wrong diameter to seal on my axle and seeing as how this was a Saturday and I was 125 miles from home (trying to get this trailer road ready) I had to buy seals from a local auto parts store at $8.00 each (prices suck when your out in the country without many choices). Overall very pleased with the service and products. I would definitely visit etrailer again for my trailer needs.



- 8-91-05UC1
by:

second order, great products, quick delivery, good communication.



- 8-91-05UC1
by:

The staff at e-trailer was very helpful and informative regarding their product. I learned several things about trailer equipment, in general from the staff, as well. I especially appreciated their efforts to assist me in solving a problem that arose several weeks after I had received the tires and wheels that I had ordered. The fix was to replace the existing hubs (4.5 inches) with new ones that were the standard 4.0 inch hubs.


Comments
I am still relying and using those products purchased from e-trailer.
John M - 02/20/2015



- 8-91-05UC1
by:

My trailer had different sized hub which had me confused when trying to replace the bearings. The new hub fit and worked great and now it matches the other side.



- 8-91-05UC1
by:

I have a small 1200 lb Harbor Freight Tool trailer. The original bearings blew out and I had to replace the bearings, seal and hub. Went to our local Colorado Springs bearing supply house. I bought the hub, seal, bearings and cap for less that what they charged for one bearing, bought tires too - for less and better quality than what Discount Tire charged. Will be coming back


Comments
Hello, I also have a Harbor Freight trailer 1200 lb trailer. my hubs do not turn true. did you change just the bearing or the hubs too? I want to make sure these hubs fit this trailer?Jerry
-- comment by: Jerry M - 06/02/2015


Comments
Jerry M, In 2012 I replaced the spindle, bearings and tires on my Harbor Freight trailer. I had a local welder put the new spindles on the axle. Since this time, the trailer has remained true, no bearing issues, and no tire wear issues. Approx 2500 miles since then. Very happy with my decision to use eTrailer. Just wish they used FedEx and not UPS
-- comment by: Alex - 06/05/2015



- 8-91-05UC1
by:

Easy trailer repair with enclosed instructions for this non-mechanic. Quickly delivered and now I’m back on the water. Bought hub kit including hub, bearings, seal, and lug nuts. Also bought new washer and cotter pin.P



- 8-91-05UC1
by:

After getting a late start in preparing our trailer for the camping season and finding worn wheel bearings, these complete wheel hubs with new bearings and races ,saved us a lot of preparation time. Thanks



- 8-91-05UC1
by:

up on delivery had a damaged bearing and grease cap also damaged was the grease seal called customer service dayna who took care of damaged items with replacements same day i called thank you dayna and etrailer keep up the good work!



- 8-91-05UC1
by:

Actually using this spindle and hub for a wind turbine. I have bought from etrailer over the years. Always satisfied. Good service and support. Good quality products like this Dexter spindle and hub. Quick delivery. Will come back!!!


Comments
Working well. I am very pleased with the Dexter products. I have used enough axles, hubs, bearings over the years to know it is worth it to seek out quality name brand components like Dexter.
Tom - 02/10/2015



- 8-91-05UC1
by:

Perfect fit for my trailer. I installed them in the parking lot while the tire place mounted my tires. Very pleased and hoping for many more miles.



- 8-91-05UC1
by:

My old trailer hubs were made of cast iron and the cup portion was machined and impossible to keep smooth. The new hubs were machined for the cups and were already installed. Next time when I need to repack the hubs and inspect the bearings I will have the option of putting in new cups and cones making them new allover. Thanks for a great product at a great price!! Bill


Comments
With almost 1500 miles on the trailer I have had no issues with the hubs or bearings. I did learn to keep a log of the miles on my trailer so I can keep track when to do maintenance on the bearings.
Bill C - 09/23/2015



- 8-91-05UC1
by:

The actual hub is of exceptional quality as it is a cast hub and is a giant improvement over the tubular steel w/welded on lug plate I took off. Was not impressed with the fact that the MFG did not pack these in a cardboard box and just wrapped all the parts around the hub with tape, paint job on the hub was not the greatest but did not matter to me as I repainted it a different color to compliment my new wheels, the dust cap is flimsy and easy to dent unless you cut a notch the width of a hacksaw blade 1/2 way to the stop ring but again did not matter to me for anything but to keep the paint off the bearing race as I used my old bearing buddies. The hub is of automotive quality and I give it a 10 for quality, cost, fit and my hat's off to the service at Etrailer.



- 8-91-05UC1
by:

I am converting an old Coleman camper into a one room toy haler (model airplanes). The bearings in the wheels were shot. This pair of new hubs and bearings were cheaper then I could get the old hubs rebuilt locally. Also the old hubs had break drums I no longer needed. So the new hubs were lighter. Hubs look great and worked great. The new dust covers were not so great but my old caps worked. Shipping was unbelievable fast. All good stuff.



- 8-91-05UC1
by:

Ordering was fast and easy, shipping was quick. The Dexter hub kits were a good replacement for the boat trailer I put them on but the grease seals included in the hub kit were not the size I needed. I knew it when ordering so I just ordered the correct size seals at that time. I've ordered from etrailer several times......never had an issue. Good customer service and support.



- 8-91-05UC1
by:

Received item very quickly. Noticed rust on the hub inner raceway. Contacted etrailer and a new part was sent immediately. Issued was handled as well as possible. I would purchase from etrailer again.


Comments
All terrific. Thanks for asking.
p w - 11/13/2015



- 8-91-05UC1
by:

Hub itself is better quality than the original hub I replaced on the trailer. I am extremely happy with the hub and it rates excellent. However the bearings, grease seal and cap are very cheap parts made in china. They rate poor in my book. What do you expect from a $3.25 China bearing? I installed the dry bearing into the race to check fit and it had flat spots and wobbled as I spun the bearing. All four bearings in 2 kits all had the same problem. I purchased 4 SKS bearings from local parts store @ about $8.50 each. They spin perfectly in the race. I upgraded the grease seal to a double lip instead of the single lip in the kit. I installed the cap with a rubber mallet and block of wood but they are thin and dented badly before they seated. They may work if you had a large socket or a collar that fit around the lip but if you contact the center of the cap in any way it will dent badly. I will replace those with a bearing buddy or better quality cap someday. What is the point of an assembly if you have to replace the substandard parts within it? Cheap bearing and single lip grease seal may work fine with light duty local hauling but I plan to run several hundred miles and believe I need better bearings and seals to handle the long miles without trouble. I did a 220 mile test trip yesterday and the hubs did not build any heat at all after the parts upgrades. I am not telling people to not buy this hub because the hub is excelent quality but I am telling people to plan on upgrading the bearings, seals and caps if they need a top quality trouble free assembly. Now let me tell you the good news. The price of the assmebly from Etrailer is good enough that even after the upgrades, the price is better than other hubs I found locally or on the web. Buy it but upgade it for the best possible hub assembly. I plan to purchase one more assembly from etailer as a back up. I do not want to be several hundred miles from home without a replacement I can install on the road if needed. Best $35 "insurance" I ever spent.



- 8-91-05UC1
by:

Perfect fit for my 1" spindle. Went together very easily. I could not get the grease cap on though, and smashed it trying to get it in. I would order this again, though.



- 8-91-05UC1
by:

Nice product. Trailer’s up and running in no time, and I’m no mechanic.


Comments
Did both wheels— not bad for a DIY with little mechanical experience. Saved a bundle and we’re good to go for many more miles of boat hauling.
Tim - 06/15/2020


- 8-91-05UC1
by:

I needed to replace the hubs on my jon boat trailer. Etrailer had the exact hubs I needed, in stock. The description in their shopping cart made it easy to order the right part. They shipped promptly and I received the order within a few days. The hubs were well packed. Their quality is first rate. They even included bearings, seals, races which came installed in the hubs saving me some time (thank you!), and lug nuts at a price that was less than the bearings and seals alone were going to cost me at a local auto supply store. A diagram on their web site showed me how to install the innards and I installed both hubs on my trailer in a little over an hour. Thanks again, Etrailer.


35
206
Show More Reviews

Ask the Experts about this Dexter Axle Trailer Hubs and Drums

  • Replacement Hub and Bearing Buddys for a 2K Axle on a Boat Trailer
    Since these idler hubs will be used for a boat trailer I highly recommend going with the etrailer.com Trailer Idler Hub Assembly # AKIHUB-440-2-G-2K over the Dexter Trailer Idler Hub Assembly # 8-91-05UC1 because the eatrialer.com option has a galvanized finish that will protect it better than the powder coat finish on the Dexter option. Please note that the seals which come with these have an inner diameter of 1.500" so you will need to use part # 34823 for a grease seal instead as...
    view full answer...
  • Washer Needed to Install Dexter Trailer Idler Hub Assembly for 2,000-lb Axles
    If the Dexter Trailer Idler Hub Assembly for 2,000-lb Axles # 8-91-05UC1 is what fits your axle/spindle then you can use the Spindle Nut Kit for EZ Lube Axles # RG05-100 for an EZ Lube spindle or parts # SW1000, # 6-190, and # 165686 for a standard spindle.
    view full answer...
  • Replacement Dexter Hub for 8-91A Hub
    If the hub that was on your trailer axle previously had 8-91A stamped on the back of it your spindle should require inner and outer bearings of # L44649 like you used. The part # 8-91-05UC1 SHOULD be an exact replacement. However we need to double check your grease seal measurement. Double check to make sure you don't have a 1.5 inner diameter seal with outer diameter of 1.9. You can also measure the spindle where the seal rides as well. The seal dimensions you mentioned are not...
    view full answer...
  • Replacement Bearings and Seals for a Dexter Hub with 8-91A Stamped on Back
    If the spindle that was on your trailer axle previously had 8-91A stamped on the back of it your spindle should require inner and outer bearings of # L44649 like you used. The part # 8-91-05UC1 that you referenced would be an exact replacement. Grease seal # 10-9 is the correct replacement seal also. It has an inner diameter of 1.5 inch and an outer diameter of 1.987. The double lip version of this that is sold in pairs is our part # RG06-020. # 10-9 is sold individually. Double...
    view full answer...
  • Dexter Torflex #9 1000-2200 lbs Axle Hub and Bearing Kit Replacements
    The current hub for your Torflex #9 axle uses the inner and outer bearings # L44649 with a grease seal that has a 1.500" inner diameter. You can find the bearing kit as part # BK1-150 on our site. For a replacement hub we have the part # 8-91-05UC1 for a standard spindle or part # 8-91-05UC1-EZ for E-Z Lube spindles. If you have brakes then you would want part # 8-173-16UC3 for a standard spindle or part # 8-173-16UC3-EZ for E-Z Lube spindles. All of these hub kits come with bearings...
    view full answer...
  • Replacement for Dexter 8-91A Hub
    I did some research and there is no direct replacement for your hub due to how old it is. So in order to find the correct replacement, you will need to know the bearing numbers of your current hub because the information you gave is irrelevant. If you are unable to find them, you would need to use a digital caliper such as # PTW80157 and measure your spindle to the thousandths of an inch where the bearings ride. You can use the photo I've attached to see exactly where you need to measure. There...
    view full answer...
    Image 1 for
  • Can L44643 Bearings and L44649 Bearings Be Exchanged
    Yes, the Dexter Trailer Idler Hub Assembly part # 8-91-05UC1 will work with the bearing part # L44643 and the race part # L44610. They both have a 1.980" outer diameter which is why they are compatible with the above trailer hub. As long as your spindle has a 1" diameter where the bearing sits this option will work for you.
    view full answer...
  • Recommended Replacement Hub for Dexter 8-91A
    I reached out to my contact at Dexter regarding the numbers you gave. They couldn't match anything and suggested that you most likely have a 8-91A, which is a 4 on 4 bolt pattern. That is a very basic trailer hub assembly and the replacement part is # 8-91-05UC1. This assembly comes with the L44643 bearings, the grease seal, the lugs and the grease cap. I'd suggest a bearing packer like # PTW1218 and the Industrial Strength Grease # L11390.
    view full answer...
  • Correct Replacement Hub for a Trailer with Dexter L44649 Bearings
    In order to determine which is the correct hub for your trailer you will need to take some measurements of the spindle using dial or digital calipers for the most accurate measurement. I have included a picture that shows what measurements are needed. The difference between bearing L44649 and L44643 is only 0.063 inches but for bearings, it is critical to get the correct size. This is also why you cannot measure using a ruler or tape measure. It has to be dial or digital calipers.
    view full answer...
    Image 1 for
  • Needing Dexter Hub # 8-91A
    The hub that you are looking for comes in the Trailer Hub Assembly # 8-91-05UC1 on our site. For the E-Z Lube version you would instead want the Trailer Hub Assembly # 8-91-05UC1-EZ. I contacted Dexter Axle and confirmed that these were the correct hubs for the 8-91A hub you are looking to purchase.
    view full answer...
  • Replacement 4 on 4 Trailer Hub Assembly for 13 Inch Wheels
    We do have the Dexter Trailer Hub Assembly # 8-91-05UC1 that is compatible with 13 inch wheels. This has a 4 on 4 bolt pattern with a # L44649 inner and outer bearing. The hub assembly will fit 2,000 pound axles. I recommend pulling the hub on your trailer to confirm the bearing numbers. These will be stamped onto the bearings themselves but you can also measure the trailer spindle if they cannot be found. I have attached an image that shows the measurements needed. I have also attached...
    view full answer...
    Image 1 for
  • Replacement Wheel Bearings and Seal for Dexter Hub 8-91
    The inner and outer bearing that your Dexter Hub part # 8-91-05UC1 has is # L44649. Then for a seal you would want the part # 10-9.
    view full answer...
  • Is there a Torque Spec for Installation of Castle Nut on 2,000 lb Axle?
    The castle nuts do not have a torque spec. Bearings and races are fit to the spindle precisely and will have minimal movement to the washer and castle nut which will simply be tightened and held in place with the cotter pin # 165649. We recommend tightening until the nut stops without added force and then backing it off one notch to fit the castle nut. The Dexter Trailer Idler Hub Assembly for 2,000-lb Axles - 4 on 4 - L44649 Bearings # 8-91-05UC1 is a fit for 1.063 inch spindles and...
    view full answer...
  • Replacement Bearings and Seal for EZ Lube Hubs on #9 Torflex Axle
    Based on my research the Torflex #9 axle (2,000-2,200 pound capacity) features spindles that use the # L44649 inner and outer bearing. This bearing has an inner diameter of 1.063 inches. The grease seal used on the spindle has an inner diameter of 1.50 inches like the TruRyde # 10-9. For a complete kit that includes the bearings, grease seal, cotter pin, and EZ Lube spindle washer you can use part # BK1-150.
    view full answer...
  • Do Trailer Hub Assemblies Come Assembled, Greased and Ready for Installation
    The Trailer Hub Assembly - 2,000 lbs Axles - 4 on 4, item # 8-91-05UC1, does not come assembled. You will need to work grease into the bearings and hub and clean the spindle on your trailer before installation. You will also have to install the seal in the back side of the hub once the inner bearing is greased and installed. I like to use a small piece of 2X4 and lay the seal as straight as possible on the hub and tap the 2X4 with a hammer spinning it as I go around the seal, until it is...
    view full answer...
  • Replacement Idler Hubs for Lightweight Boat Trailer with 1.06 Inch Diameter Spindles
    With the spindle dimension you mentioned, it sounds like your existing hubs used # L44649 bearings. I'd recommend you check your existing bearings to confirm. If that's the case, you'd need the # 8-91-05UC1-EZ hub, which is compatible with a 1.06 diameter spindle. The surface of your spindle where the grease seal rides should measure 1.5 inches in diameter. You'd need a Bearing Buddy with a 1.980 diameter, like part # BB1980A-SS. Since you're planning on using the Bearing Buddies,...
    view full answer...
  • Replacement Hub Recommendation For 4 Bolt Spindle With L44649 Bearing
    I have attached a link to our product page that lists the hubs we offer that have a 4 bolt design.You will need to check both the inner and outer bearing numbers to see if they are both the same. For a 2,000 lb axle I recommend part # 8-91-05UC1. This hub has a 4 on 4 bolt pattern, and includes lug nuts, inner and outer bearings, part # L44649, and races, part # L44610, grease cap and grease seal, part # 10-9. The 5-1/2 inch diameter hub flange is designed to use with 8 inch to 12 inch...
    view full answer...
  • Remove, Inspect, and Reinstall Trailer Bearings, Races, and Seals
    If you are replacing your existing hubs with Trailer Hub Assembly, # 8-91-05UC1, you will just need to remove the old hub without having to remove the races. The hubs we carry come with the races already in their proper places. If you are replacing bearings, races, and seals you will need to knock out the old races. I have linked a video that shows how our installer goes about this task. It will also show you how to put everything back together. This hub will fit if your trailer accepts...
    view full answer...
  • Will Bearings from the 1970s Fit Current Trailer Hub Assemblies
    There have been changes here and there in the trailer industry since the 1970s. To be sure your old bearings will fit the newer components, like the Trailer Hub Assembly, # 8-91-05UC1, that you referenced, you will need to check the numbers on them. This drum accepts the following: Bearings (L44649 Inner/Outer), Races, Cap (1.986 inch outside diameter). The inner bearing dimension is 1.063 inches and the inner seal dimension is 1.5 inches. If your existing components match these...
    view full answer...
  • Trailer Hub Recommendation to Fit Spindle that Measures 1-1/16 inch with 4 on 4 Bolt Pattern
    Your spindle being 1-1/6 inch in diameter means you have the BTR spindle which is a very common size. For that you'd want the hub part # 8-91-05UC1 and you'd be set.
    view full answer...
  • 4 on 4 inch Bolt Pattern Hub Recommendation to Fit Trailer Spindle R104BT8
    Yes, the trailer hub part # 8-91-05UC1 does fit the spindle part # R104BT8. This hub is a 2,000 lb rated hub that has a 4 on 4 inch bolt pattern. For a coupler for your trailer that would take a 1-7/8 inch hitch ball you would want the part # E112000340. I attached a link to a page that has all of the 4 on 4 inch bolt pattern wheels we carry. Without knowing what size you are looking for it's hard to say for sure what would be your best option.
    view full answer...
  • Replacing The Hubs, Springs, And Wheels On A 2001 Venture Trailer
    I was also unable to locate any information about your Venture trailer, so there will be some measuring needed to make sure the correct parts are ordered. So to start with, the springs. The correct ones will depend on the style, width, and length. If you have a double eye spring, or closed at both ends like the # SP-169275, you will need to measure from the center of one eye to the center of the other. This will tell you what length is needed and you will not need to measure the width...
    view full answer...
  • How to Tell if Trailer has a BT8 or BTR Spindle Installed
    A BT8 spindle would have a diameter of .99 of an inch where the bearings would both install and would have a diameter of 1.24 where the great seal would ride. That would require a hub part # 8-91-05UC1 for an idler hub. A BTR spindle would have dimensions of 1.06 inch for outer and inner bearing plus 1.50 inch where grease seal would install. That would require an idler hub part # AKIHUB-545-2-G-2K.
    view full answer...
  • What is the Replacement Wheel Hub Needed on the Axle of a 1996 Jayco 1207 Popup Trailer
    We have a hub that will fit your 1996 Jayco popup trailer. The Dexter Trailer Hub assembly, # 8-91-05UC1-EZ, that you referenced will work on your trailer axle. This hub uses the # L44649 bearings and has a 4 bolt lugs. Measuring the current hubs bolt pattern will tell you for sure if this hub will work for you. I have attached an article that will explain how to find what your wheel bolt pattern is on your current hub. If you do not have grease zerks at the end your axle spindles,...
    view full answer...
  • Does a Trailer Wheel Center Hole and a Hub Bore have to Match
    The expert answer you have referenced is correct. A wheel that secures to the hub using bolts instead of lug nuts actually centers on the hub so the pilot hole of the wheel has to be exact. If it is too large the wheel can easily be off center and lead to all sorts of problems. Hub # 8-91-05UC1 has a center bore outer diameter of approximately 2.4375 inches; very close to 2.5 inches but not quite. If you use this hub and the wheels you are using have a pilot hole that is larger, it will...
    view full answer...
  • Hub, Rim and Spindle Recommendation for 13 inch Wheel with 4 on 4 inch Bolt Pattern
    For a hub with a 4 on 4 inch bolt pattern that can fit 13 inch wheels with the pilot diameter of 2.5 inches the part # 8-91-05UC1 would be what you would need. For a white rim to fit this the part # AM20222DX would work well. Then for a spindle for the hub to fit on you would want the part # TRU44FR.
    view full answer...
  • Trailer Hub Compatible with Caliper Measurement for Camping Trailer Axle
    Based on your photo it does appear you have the BTR spindle that takes the 1.063 inch inner bearings. The fact that it isn't a digital caliper with the precision of that thousandth does leave slight ambiguity but I am still confident you will want the Dexter Trailer Idler Hub Assembly # 8-91-05UC1. You will not need the # 8-91-05UC1-EZ you asked about because you don't have the grease zerk in your spindles. To confirm fit, I recommend putting your caliper on the grease seal location...
    view full answer...
    Image 1 for
  • Replacement Hubs for 2000 Dutchman Voyager Pop-Up Camper
    To select proper new hubs for your trailer you will need to confirm a few things: bolt pattern (see linked article), inner and outer bearing numbers (see linked photo) and axle weight rating (which should be indicated on a sticker or plate on the axle). You can then use the link provided to see our main page for hubs. Filters in the left margin will allow you to narrow the results based on your bearings, bolt pattern, wheel size and weight requirement, as well as whether or not you need...
    view full answer...
    Image 1 for
  • Replacement Bearing and Hub Kit Recommendation for Aluma 5310
    Your bearings having an inner diameter of 1-1/16 inch indicates you have a standard size spindle. The size matches the BTR spindle. The bearings part # L44649 that you referenced match what you'd need. For a hub that will fit this we have the part # 8-91-05UC1 for an idler hub with a 4 on 4 inch bolt pattern. Then if you need a 5 on 4-1/2 inch bolt pattern instead you'd want the part # 8-259-5UC1-EZ.
    view full answer...
  • Availability of Trailer Hub That is 4 Inches Long, Has 1-1/16 Inch Bearings, 4 on 4 Bolt Pattern
    The best way to determine the correct replacement hub assemblies for your trailer is to retrieve the bearing numbers stamped into the metal of both the inner and outer bearings. With those numbers, we can find which hubs would be a correct fit. I am including a link to a video that will show you how to remove, inspect, and reinstall trailer bearings, races, and seals. I have the Dexter Trailer Hub Assembly, part # 8-91-05UC1 which has a 4 on 4 bolt pattern. It uses the TruRyde Bearing,...
    view full answer...

Do you have a question about this Trailer Hubs and Drum?




  • Why etrailer.com?

    At etrailer.com we guarantee:
  • Highest quality trailer hubs and drums for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate trailer hubs and drum information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Employee Robert G
Expert Research:
Robert G
Employee Michael H
Expert Research:
Michael H
Employee Jeff D
Expert Research:
Jeff D
Employee Jameson C
Expert Research:
Jameson C
Employee Patrick B
Installed by:
Patrick B
Employee Adele M
Updated by:
Adele M
Employee Wilson B
Updated by:
Wilson B
Employee Hannah L
Updated by:
Hannah L

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.


Product Experts Available Now!
Call 800-298-1624
