Dexter Trailer Idler Hub Assembly for 5,200-lb and 6,000-lb Axles - 6 on 5-1/2

Item # 8-213-5UC1

lowest price pledge

Our Price: $56.61

Orders above $99 qualify for Free Shipping

Quantity:

In Stock
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

dexter axle trailer hubs and drums hub 6 on 5-1/2 inch idler assembly for 5 200-lb 000-lb axles -
dexter axle trailer hubs and drums for 5200 lbs axles 6000 6 on 5-1/2 inch idler hub assembly 5 200-lb 000-lb -
dexter axle trailer hubs and drums standard for 5200 lbs axles 6000 8-213-5uc1
dexter axle trailer hubs and drums hub for 5200 lbs axles 6000 idler assembly 5 200-lb 6 000-lb - on 5-1/2

Customer Photos

dexter axle trailer hubs and drums hub for 5200 lbs axles 6000 8-213-5uc1
dexter axle trailer hubs and drums hub for 5200 lbs axles 6000 idler assembly 5 200-lb 6 000-lb - on 5-1/2
dexter axle trailer hubs and drums hub for 5200 lbs axles 6000 8-213-5uc1
dexter axle trailer hubs and drums hub for 5200 lbs axles 6000 8-213-5uc1

Videos


  • 6 on 5-1/2 Inch
  • For 5200 lbs Axles
  • For 6000 lbs Axles
  • Hub
  • Standard
  • 14-1/2 Inch Wheel
  • 15 Inch Wheel
  • 16 Inch Wheel
  • 16-1/2 Inch Wheel
  • 25580
  • Dexter Axle
  • 1/2 Inch Stud
  • LM67048
Hub is designed for use on trailer idler axles. Fits 5,200-lb to 6,000-lb axles. Inner bearing (25580) and race, outer bearing (LM67048) and race, grease seal, grease cap, wheel bolts, and lug nuts included. Lowest Prices for the best trailer hubs and drums from Dexter Axle. Dexter Trailer Idler Hub Assembly for 5,200-lb and 6,000-lb Axles - 6 on 5-1/2 part number 8-213-5UC1 can be ordered online at etrailer.com or call 800-298-8924 for expert service.



Dexter Axle Trailer Hubs and Drums - 8-213-5UC1

Hub is designed for use on trailer idler axles. Fits 5,200-lb to 6,000-lb axles. Inner bearing (25580) and race, outer bearing (LM67048) and race, grease seal, grease cap, wheel bolts, and lug nuts included.


Features:

  • Trailer hub assembly fits idler axles
    • Bearings, races, seal, grease cap, wheel bolts, and lug nuts are included
  • Sturdy iron construction
  • Made in the USA


Specs:

  • Application: 5,200-lb to 6,000-lb trailer axles
  • Wheel size: 16" to 18-1/2"
  • Bolt pattern: 6 on 5-1/2"
  • Wheel studs: 1/2" diameter x 2" long
  • Grease cap flange diameter: 2.44"
  • Weight capacity: 3,000 lbs


Bearing, Race, and Seal Information

  • Bearings (included)
    • Inner bearing: 25580 (1.75" inner diameter)
    • Outer bearing: LM67048 (1.25" inner diameter)
  • Races (included)
    • Inner race: 25520
    • Outer race: LM67010
  • Grease seal (included): 10-10
    • Inner diameter: 2.125"
    • Outer diameter: 3.376"

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.


Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)


Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)


Bolt Pattern - Side

Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"


K08-213-90 Dexter Trailer Idler Hub Assembly for 5.2K to 6K Axle with Hardware - 6 on 5-1/2

Replaces 8-213-5UC1







Value - This item

Dexter Trailer Idler Hub Assembly for 5,200-lb and 6,000-lb Axles - 6 on 5-1/2


Dexter Trailer Idler Hub Assembly for 5,200-lb and 6,000-lb Axles - 6 on 5-1/2
Dexter Axle Trailer Hubs and Drums

49 reviews

Code: 8-213-5UC1

In Stock

Our Price: $56.61


  • Trailer Hubs and Drums
  • Hub
  • Standard
  • 25580
  • LM67048
  • For 5200 lbs Axles
  • For 6000 lbs Axles
  • 1/2 Inch Stud
  • 6 on 5-1/2 Inch
  • 14-1/2 Inch Wheel
  • 15 Inch Wheel
  • 16 Inch Wheel
  • 16-1/2 Inch Wheel
  • Dexter Axle


Hub is designed for use on trailer idler axles. Fits 5,200-lb to 6,000-lb axles. Inner bearing (25580) and race, outer bearing (LM67048) and race, grease seal, grease cap, wheel bolts, and lug nuts included.

more information →
Compare Similar Products
Economy
Price: $39.30
$17.31 Less

Trailer Idler Hub Assembly for 6,000-lb Axles - 6 on 5-1/2


Trailer Idler Hub Assembly for 6,000-lb Axles - 6 on 5-1/2
etrailer Trailer Hubs and Drums

6 reviews

Code: AKIHUB-655-6-K

In Stock

Our Price: $39.30


  • 15123
  • etrailer


Hub is designed for use on trailer idler axles. Fits 6,000-lb axles with #42 spindles. Inner bearing (25580) and race, outer bearing (15123) and race, grease seal, grease cap, and lug nuts included.

more information →
Value
Price: $56.09
$0.52 Less

Dexter Trailer Idler Hub Assembly for 5,200-lb and 6000-lb E-Z Lube Axles - 6 on 5-1/2


Dexter Trailer Idler Hub Assembly for 5,200-lb and 6000-lb E-Z Lube Axles - 6 on 5-1/2
Dexter Axle Trailer Hubs and Drums

9 reviews

Code: 8-213-5UC1-EZ

In Stock

Our Price: $56.09


  • EZ Lube


Hub is designed for use on trailer idler axles. Fits 5,200-lb to 6,000-lb E-Z Lube axles. Inner bearing (25580) and race, outer bearing (LM67048) and race, grease seal, grease cap, wheel bolts, and lug nuts included.

more information →
Premium
Price: $99.56
$42.95 More

Dexter Trailer Idler Hub Assembly for 6,000-lb Axles - 6 on 5-1/2


Dexter Trailer Idler Hub Assembly for 6,000-lb Axles - 6 on 5-1/2
Dexter Axle Trailer Hubs and Drums

11 reviews

Code: 42655UC1

In Stock

Our Price: $99.56


  • 15123


Hub is designed for use on trailer idler axles. Fits 6,000-lb axles with #42 spindles. Inner bearing (25580) and race, outer bearing (15123) and race, grease seal, grease cap, wheel bolts, and lug nuts included.

more information →

Related Products



Customers compare 8-213-5UC1 to these similar products





Customers Who Purchased This Trailer Hubs and Drums Also Bought...



Replacement parts available for this product







Video of Dexter Trailer Idler Hub Assembly for 5,200-lb and 6,000-lb Axles - 6 on 5-1/2


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Dexter Trailer Hubs and Drums 8-213-5UC1 Review

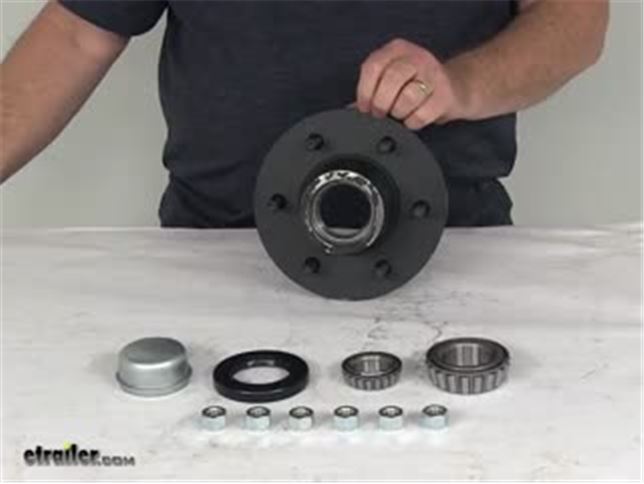

Today we're going to take a quick look at the Dexter Axle Trailer Hub Assembly part number 8-213-5uc1-ez. Now this hub has a capacity of 3,000 pounds, so when paired up with another it will have a gross weight capacity of 6,000 pounds, which makes it a great application for 5,200 pound and 6,000 pound axles. There are six studs pressed into place on the hub and theyre set up on a 6 on 5 1/2 pattern. If we were able to accurately measure across from one stud to the other we'd get our 5 1/2 inch measurement. Now included with the hub are the races that are actually already pressed into place. The outer race is an LM67010 and the inner race is a 25520.

You also get your inner and outer bearings. Your inner bearing is a 25580. Your outer bearing is an LM67048. You get your 6 conical lug nuts for securing a wheel to the trailer hub. You'll get the grease seal which will go on the back and that's a 10-10 grease seal for this model.

And you'll also get your dust cap. It'll fit over the outside here, but this dust cap also has a removable rubber plug so if you have easy lube spindles on your axle all you have to do is pop this plug off and then you can fit your grease gun over the zerk. And that's it for a quick look at the Dexter Axle Trailer Hub Assembly part number 8-213-5uc1-ez.


Customer Reviews

Dexter Trailer Idler Hub Assembly for 5,200-lb and 6,000-lb Axles - 6 on 5-1/2 - 8-213-5UC1

Average Customer Rating:  4.7 out of 5 stars   (49 Customer Reviews)

Hub is designed for use on trailer idler axles. Fits 5,200-lb to 6,000-lb axles. Inner bearing (25580) and race, outer bearing (LM67048) and race, grease seal, grease cap, wheel bolts, and lug nuts included.

- 8-213-5UC1

by: Brian10/27/2016


Product looks good, and well made. Trying to convert a trailer house axle however didn't fit my application. Knew I would need to make bearing sleeves but when arrived I found my spindle wasn't long enough. So had to order spindles to match. Also was planning on using rims off a 2006 chevy Silverado however they won't work because of the center hole needs to be larger. Older Chevy rims made for 4WD should work. Center hole should be around 4-4.5". For future reference, measure length of your spindles as well as bearing and seal diameters. A mention of spindle length needed as well as the center diameter of the hub would be a good things to add to description. Great people to work with. Very friendly and knowledgeable. In shipping a bearing and cap was destroyed. They took care of it right away. No pictures, no explanation needed. 311119



- 8-213-5UC1

by: Rick D.12/16/2012


I bought these hubs to replace the 30+ year old originals on the 6000 lb axle under my late fathers homemade 4x8 trailer. The original hubs couldn't have modern wheels mounted to them so doing this allowed me to mount modern 225/15r75 tires and wheels as well as have a spare. Install was quick and easy, the fit of every part was perfect. Service from etrailer was excellent, couldn't have been better. 61565



- 8-213-5UC1

by: Fred C06/27/2015


Perfect to replace the Mobile hubs on my 40 yr. old homemade trailer and put on 15" trailer wheels and tires. I will send pictures when finished. Thanks etrailer.com 207677


Comments

Everything worked perfectly. I wanted a conversion kit like this for over 20 years. Glad I found etrailer.com. Thanks

Fred C - 07/22/2016

19601

- 8-213-5UC1

by: David F10/08/2016


I have home built trailer with a mobile home axle on it. Getting tires for was getting harder to find and they were unable to balance them. I got replacement hubs, bearings, wheels and tire from etrailer. They arrived in 3 days. An hour after they arrived I had them instaled. The seals didn't match but the old seals were in good shape so I used them. The dust covers did not fit so I used the old ones there. I think it is just very hard to get everything to match up on those axles. I am very happy with the results. Rose at etrailer was very helpful on my initial call too. I have since placed another order for hubs, wheels and tires for an other trailer I am repairing. Thank you Rose for your help. . 304566



- 8-213-5UC1

by: Dave T.11/19/2016


I have a utility trailer that I have had for over 25 years. It had a mobile home axle on it with Dayton style hubs and 14.5. inch rims and tires. I wanted to change over to a more traditional hubs and wheels. The help from Sam G was great. I gave him the part number of outside and inside bearings and he found me the hub that fit my spindle. The delivery was fast. One of the bearings came bent but replacement was not an issue. The description of the hub only showed it was for 16" rims but Sam found a 15" rim that worked. - Taskmaster Steel Modular Trailer Wheel - 15" x 6" Rim - 6 on 5-1/2 - Black Pictures sent to Sam in email. 318099



- 8-213-5UC1

by: Nick06/21/2017


I had the bearing numbers from the original hub and I couldn't locate them on the website - probably because I wasnt searching right. So I figured I would give etrailer a call. Sure enough, they found the exact match and sent me the info I needed for ordering. Awesome customer service and this was the easiest swap from old mobile home hubs to a modern hub with radial tires. Not to mention that the price was affordable and definitely the lowest around. I feel like I got a great deal and an awesome product. The trailer rides so smooth now and looks much better. Thank you etrailer. I'll definitely be back in the future. 397338



- 8-213-5UC1

by: Tim11/16/2016


This seems to be a good quality hub. I haven't gotten the opportunity to install as circumstances have conspired against me so far but I'm sure it will work perfectly. The real bright spot is that there was a minor problem with my order and Rebecca and George were very quick to respond. They got everything fixed with absolutely no hassle! The level of customer service has proven to me that the staff at etrailer.com are willing to do everything possible to find the right solution for the customer. I will definitely be shopping with etrailer.com again!! 317280



- 8-213-5UC1

by: Joseph J09/02/2017


Quality Dexter product! These are to replace a brand new set of hubs installed by a trailer shop on my boat trailer. They installed cheap, Chinese made hubs and bearings which lasted just less than 1200 miles before one side completely failed. I installed both of these Dexter hubs and bearings last night and discovered the other side was probably very close behind. Comparing the two brands, it was obvious the Dexter products were far superior in machining, fit, finish and overall construction. 428180



- 8-213-5UC1

by: Phil C07/29/2016


Following a minor shipping hiccup, James at etrailer.com responded quickly and professionally to get my new hubs to me in a timely manner. Things may not always go as planned with shipments, but I know I can count on the crew at etrailer to make it right. Thanks James and George!! 277529



- 8-213-5UC1

by: franklin haygood08/27/2016


Received 2 dexter hubs and replaced my mobile home hubs with them in about an hour I used Toyota rims from a 1999 trunda fits great did use longer nuts becouse the rims had counter sunk holes 288454



- 8-213-5UC1

by: john03/05/2013


I received the parts yesterday and checked to see if they were correct. Everything sent were the correct items. The order was complete and the product appeared to be of outstanding material. I haven't installed them yet but I foresee no problems. Thankyou for your products and rapid shipment. I've already told several of my friends about your website. Sincerely Jack Jarvis 68973



- 8-213-5UC1

by: Hermann O08/01/2017


This is my second order in the past month, I was impressed with the ease of finding the parts,and ordering . The price was very reasonable, shipping was very timely. My son who lives in Alhambra IL. put me on to this site, he has ordered from etrailer many times before. I also like it that they accept pay pal. I really like the instructional videos that they sent. 418107



- 8-213-5UC1

by: Ron T02/07/2014


This is a on going project on a utility trailer that I have had for over 25 years that has a mobile home axle on it changing over to a more traditional hub and wheel, the help that I got from etrailers was great, delivery was fast and the product was out standing. Thank you for everything and pictures will follow this spring as the trailer get built.:) 116058



- 8-213-5UC1

by: John R06/06/2017


I've bought a number of things here over the years and have never been disappointed. This time I ordered 4 new hub assembly's and upon receiving them I discover one was just an empty box. etrailer immediately corrected the issue and sent me out another one. No questions asked. I wish all companies had such great service. Thanks 389810



- 8-213-5UC1

by: Robert01/28/2013


Excellent tech help, quick shipping, parts arrived and installed this weekend. As etrailer stated they fit perfect on my old mobile home axle and yes I would highly recommend them. The only thing that would have helped a little is stating the bearing seal size, in this kit it is 2.125. Bob 64344



- 8-213-5UC1

by: Wendell H.07/20/2015


Fit perfectly on my trailer house axles. My buddy and I swapped them out with ease. I already recommended the same type to two other friends with the same type of axles. David S. & Mark S. I'm ordering wheels and tires next. Thanks for offering a superior product. 213248



- 8-213-5UC1

by: J K09/19/2013


Awesome shipping. I ordered on a Sunday and had item in hand by Wednesday. The product was genuine dexter parts just as description stated. Great kit to replace mobile home hub kit to 6 by 5.5 legal hub and now can run legal tires instead of 14.5 MH. 100597



- 8-213-5UC1

by: Robyn08/26/2015


Everything looks good. When I received my order a bearing was smashed on one side. After sending a picture of the bearing they sent me a new one for free. My only complaint is that it took a while to receive the new bearing. 221895



- 8-213-5UC1

by: Ron Fountain03/18/2013


Everybody was telling me that i could not find regular hubs to go on a mobile home trailer axel but i knew tht they had to be out there somewhere an sure enough i found them although this was the only place i could find them 71474



- 8-213-5UC1

by: Ronald Killette10/04/2016


Shipped very quickly and arrived sooner than expected. Everything in the picture was included. Only gave 4 stars cause they should include a pack of grease because the bearing will need to be packed before installing. 303102



- 8-213-5UC1

by: Jay P.04/10/2012


Good quality product, that came exactly as described. It came with the bearings, seal, lug nuts and dust cap. These hubs also fit 15" rims for anyone interested in using these on 15" rims like I am. 36823



- 8-213-5UC1

by: Justin B05/24/2013


Great product, bearing, seals where all correct, no problems on installation on the old dexter axles. Delivery was fast, efficient and friendly. Great Service at E-trailer, I highly recommend! 81831



- 8-213-5UC1

by: ernie09/16/2015


The hubs fit like a glove. all worked perfectly. one stud had some crushed threads that I had to file to keep the nut from crossing. satisfied only wished I didn't need the file. thx. 225922



- 8-213-5UC1

by: k4racer07/21/2017


Quick and personal service - thank you for having a human being available for questions! Everything arrived in less than a week. Will order from etrailer.com again! 408742



- 8-213-5UC1

by: blake06/14/2013


product was at a good price, but when i got parts, dust caps were bent from packing, races were not seated all the way into hubs, i had to finish assembly properly. 84719



- 8-213-5UC1

by: Vernon W.03/19/2014


The dust cover is cheap. But the hubs and bearings were high quality and as advertised. Company is an excellent company to work with. Shipping was timely. 121274



- 8-213-5UC1

by: Andy H.03/12/2017


These were a perfect fit for my 1975 Hale Livestock trailer. It's very nice to have working brakes again. Now I need to order parts for the car hauler. 355432



- 8-213-5UC1

by: T brown Casper wy11/15/2017


Great price delivery was here in 3 days hav not put on yet but looks like it is what I need and ordered . Very happy with product and service 452195



- 8-213-5UC1

by: Wesly09/25/2014


fit perfectly on my mobile home axles under my car trailer. Saving big on being able to run 15" tires. Just extremely happy with them. 153112



- 8-213-5UC1

by: Morgan Paul01/21/2017


Perfection. Good service and great products. These hubs were just what I needed and have about 20,000 miles on them with no troubles 334214



- 8-213-5UC1

by: buck05/08/2017


everything fit great converting old mobile home trailer hubs to these 6 lug.now I got a legal width trailer to haul my jeep.. 377718



- 8-213-5UC1

by: Wesley C.06/04/2015


Needed it fast, so I wouldn't miss any fishing. Got here in 2 days and is better quality than the original. Very happy!!! 200531



- 8-213-5UC1

by: L. Pounds05/28/2015


Perfect. Exactly what i needed great guality fast service friendly personnel. thanks for great service. It's rare today! 198372



- 8-213-5UC1

by: Fred W02/07/2015


Used these to change my trailer over from mobile home style wheels...worked great. Great customer service. Thanks 172779



- 8-213-5UC1

by: Lew B.04/02/2015


Ordering was easy and delivery was much earlier than I expected. I would absolutely order from E trailer again. 182430



- 8-213-5UC1

by: Stan S.10/21/2014


Parts were as described and fit. Shipping was fast ( 3 days) and saved about 40% over what I could find locally. 157227



- 8-213-5UC1

by: Eddy L.02/15/2017


Have not installed items at this time, but service has been GREAT so far. Waiting for a few more parts. 344140



- 8-213-5UC1

by: Dana B.11/05/2014


Packaged great and received it faster than the site said! Thanks guys! Will be shopping here again! 159370



- 8-213-5UC1

by: Gail03/04/2015


They were 'exactly' what they were suppose to be! And the packaging surpassed EXCELLENT !!! 176935



- 8-213-5UC1

by: Bobby03/24/2015


Everything I needed to convert to standard wheels. 14 inch Nissan wheels fit perfectly. 180743



- 8-213-5UC1

by: Jrs06/02/2017


Product is probably fine. The 2 day shipping I paid for was actually like 5 days. 387758



- 8-213-5UC1

by: Rick04/26/2015


"E3XCELLENT PRODUCT,SERVICE FAST SHIPPING" I will buy from this company again. 188357



- 8-213-5UC1

by: Richard W.06/02/2016


Items were as descibed. Fast shipping, very satisfied with trailer experience. 255856



- 8-213-5UC1

by: Rick campbell08/12/2011


Exactlly as described and delivered ahead of expected time. 21740



- 8-213-5UC1

by: Ivan T04/11/2016


I'm very happy, mi trailer runs like new now. 243721



- 8-213-5UC1

by: shane06/19/2015


fits my h&s stock trailer very good pri ceing 204554



- 8-213-5UC1

by: Ray03/24/2013


Perfect fit, easy installation, good pr ice 72145



- 8-213-5UC1

by: Drahthaar04/12/2015


Perfect fit thanks for a great product. 184811



- 8-213-5UC1

by: kenny02/23/2017


Great product. 347380


50
50

Ask the Experts about this Dexter Axle Trailer Hubs and Drums
Do you have a question about this Trailer Hubs and Drum?


  • Parts for Lugged Hubs on a Mobile Home Axle with 15123 inner and 25880 Outer Bearings
  • It sounds like you have a spindle that uses the Inner Trailer Hub Bearing, item # 25580, that has a 1.750 inch inner diameter. The outer # 15123 bearing has a 1.250 inch inner diameter. I would check the seal surface on the spindle to be sure that it matches the # RG06-070 seal inner diameter of 2.250 inches. Many times mobile home axles use non- standard parts so careful measurement of all of the parts is required. If all of these dimensions match, then you will need to determine whether...
    view full answer...

  • Replacement Trailer Hubs to Fit Bearing Set 25580/LM67048
  • Since the hub assembly you referenced, part # 8-213-5UC1 from Dexter, includes bearings that match those in your current hubs, as long as the bolt pattern (6-on-5-1/2) and the axle weight rating (5200 to 6000-lbs) matches also, then these should be fine as replacements for your existing idler hubs. This kit is shown in the linked video. The linked article will help you confirm your wheels' bolt pattern.
    view full answer...

  • Capacity of Axle Using Outer Bearing LM67048 and Inner Bearing 25580
  • For an axle using outer bearing # LM67048 and inner bearing # 25580 I can narrow it down to having a capacity of 5,200 or 6,000 lbs. In the case of replacement hubs for the axle, the hub assemblies for either will work for you. I have included a link to these for you. You'll need your wheel bolt pattern in order to narrow the results. The most common is going to be the 6 on 5-1/2 bolt pattern. For this you could use # 8-213-5UC1 for a wheel hub assembly and # 8-201-5UC3 for a hub and...
    view full answer...

  • Which Wheels Fit On Dexter Trailer Hub Assembly, # 8-213-5UC1
  • When fitting wheels to a Dexter Trailer Hub Assembly, # 8-213-5UC1, you would need to measure the wheels you are trying to use. You would measure the bolt pattern, the center hole diameter, and the stud size. To measure the bolt circle on a 6 lug application you would measure from the center of one bolt hole to the center of the bolt hole directly across from it. So on the Dexter hub you referenced that measurement would have to be 5.5 inches. I have included a link to our FAQ article...
    view full answer...

  • Replacement Idler and Hub Drum Using LM67048 and 25580 Bearings with 2.25 I.D. Grease Seal
  • It sounds like you have two 5200 or 6000 lb capacity axles with a 6 on 5-1/2 bolt pattern. If this is the case, we have some hubs that will work for you. If you have EZ lube spindles, you would need the # 8-213-5UC1-EZ idler hub, and the # 8-201-5UC3-EZ hub/ drum. If you have standard spindles, you would need the # 8-213-5UC1 idler hub, and the # 8-201-5UC3 hub/ drum. The hubs include bearings, races, a grease seal and dust cap but the included grease seal will have the wrong inside...
    view full answer...

  • Which Size of Bearing Buddy Will Fit the Dexter Trailer Hub Assembly # 8-213-5UC1
  • The grease cap included in this hub kit # 8-213-5UC1 has an outer diameter of 2.44-inches. So the correct Bearing Buddy would be part # BB2441 or if you want the stainless steel version that will resist corrosion much better you would want the # BB2441SS instead.
    view full answer...

  • Using 6000 lb Hubs on 7000 lb Axle
  • As long as bearings on the hub you choose are compatible with the existing spindle on your axle, you can indeed change to hubs that have the desired wheel bolt pattern. The first step would be to confirm the dimensions of your spindles using an accurate measuring device like a digital caliper. Using a ruler would not provide a measurement that is precise enough. I have provided a diagram that will will show you where to take the measurements. The # 8-213-5UC1 hub would be compatible with...
    view full answer...

  • Why is the Spindle Nut Not Included with the Hub Assembly
  • You can reuse the same spindle nut and cotter pin with the Dexter Hub Assembly, # 8-213-5UC1. The reason hub assemblies do not typically come with new spindle nuts is because there are different types of spindles that require different types of spindle nuts and cotter pins or washers. For example, if you have an EZ lube spindle (see photo) with a grease fitting on the end, you will not want a cotter pin going through the spindle. In place of a cotter pin, you would use a castle nut and...
    view full answer...

  • Can Dexter 8-213-5UC1 Hub Replace Dexter 8-133 Hub
  • I spoke with my contact at Dexter to find the bearing and seal information on the 8-133 hub. She confirmed that the 8-133 hub uses inner bearing # 25580 and outer bearing # LM67048 with the 10-1 # GS-2125DL grease seal. These match with the hub you referenced # 8-213-5UC1. The Dexter Trailer Hub Assembly # 8-213-5UC1 will work well for you.
    view full answer...

  • Replacement Hub with Bearings LM67048 25580 and 2-1/4 inch Grease Seal
  • Actually we have a fit as a replacement for the hub you have based on the bearing and seal dimension you listed. It looks like you have a number 42 spindle which is very common. For a hub without a drum the part # 8-213-5UC1 would fit but you would need to swap out the seal with the part # GS-2250DL.
    view full answer...

  • Recommended Hubs for 5200-lb Timbren Axle-Less Trailer Suspension System
  • Timbren does offer two 5200-lb-rated axle-less suspension systems that can be seen by clicking on the link provided. These accept either 6-on-5-1/2 idler hub # 8-213-5UC1-EZ or hub/drum assembly # 8-201-5UC3-EZ if your trailer will have brakes. Please note that these systems may require reinforcement of the trailer frame. These hubs' bolt pattern is slightly different than your Ford F-150's 6-bolt hubs. The two are not interchangeable and odds are that your wheels would not fit, or at...
    view full answer...

  • What Size Lug Nuts Fit Trailer Hub Assembly, Part # 8-213-5UC1
  • The lug nuts, grease cap, bearings, races and grease seals are included with the # 8-213-5UC1 hub you mentioned. The wheel studs are 1/2 inch diameter, 20 threads per inch.
    view full answer...

  • Hub Size and Axle Weight Rating to Fit Bearings 25580 and LM67048
  • Based on the bearing sizes # 25580 and # LM67048, there are two possible hubs that will fit. The first has a wheel bolt pattern of 6 on 5-1/2 and fits axles rated for 5,200 lbs to 6,000 lbs. This hub can be purchased with the standard hub assembly # 8-213-5UC1 or the E-Z Lube axle hub assembly # 8-213-5UC1-EZ. Your bearing combination indicates that your axle capacity is 5,200 lbs. The other hub option has a bolt pattern of 6 on 6 and fits axles rated for 6,000 lbs. This hub can...
    view full answer...

  • How to Pick Out Replacement Hubs for a 6k Dexter Axle
  • You can switch your hub and drums to a higher rated setup, its just a matter of finding the correct hub to fit the spindle on your trailer. The only way to do that is to pull your current hubs, pull out both of the bearings and get the numbers stamped on them so we can determine what spindles you have to get a hub that will match. Check out the picture I attached that shows where these numbers are. You also need to determine what bolt pattern you have on your current wheels so that your...
    view full answer...

  • Could the Trailer Hub Assembly # 8-213-5UC1 fit on an ALKO H-52 Axle
  • You can use a Dexter hub assembly on the ALKO axle provided that the bearing numbers match. You will need to go by the inner and outer bearing numbers on the trailer to find the correct hub and drum. The bearing numbers of the Trailer Hub Assembly # 8-213-5UC1 that you referenced are 25580 inner and LM67048 outer.
    view full answer...

  • Dexter Hub # 8-213-5UC1 Recommendation
  • I would recommend you go with the same hub you currently have, this way it will match your spindle and current wheel setup. For that I would recommend you get a Trailer Hub Assembly # 8-213-5UC1 since it is the same as what you have.
    view full answer...

  • Replacement Hub Needed for Lippert 122093 Hub on 5,200 lbs Axle
  • If you are needing the hub and drum assembly then you will want to go with the Dexter Trailer Hub and Drum Assembly # 8-201-5UC3-EZ but if you are just looking for an idler hub then you will want part # 8-213-5UC1 instead. These come with the correct bearings that you need for your spindle but you will need to also purchase the correct Grease Seal, part # RG06-070, as the seal that comes with either hub is slightly too small. I have confirmed these parts with my contact at Lippert to make...
    view full answer...

  • Is the Distance Between Bearings In a Hub an Important Measurement When Finding a Replacement Hub
  • First, thanks for the kind words. We work hard to provide the best online experience in the industry. If the axle you have is a MOBILE home axle and not a motor home axle, then you will have to replace the axle. Mobile home axles are designed for one time use only and should not be reused. As a result of this one time use, there are very few replacement parts available. Now if it is an axle from a motor home then it is most likely a trailer axle and you will not need to replace it. If...
    view full answer...

  • Replacement Seal, Bearings, and Hub Assemblies For Dexter Axle 5200 lb
  • For your replacement parts, you will want the Replacement Trailer Hub Bearing # 25580 for your inner bearing and outer bearing # LM67048. For a seal, you will want # GS-2125DL or # RG06-090. If you want the entire hub assembly, we have the Dexter Trailer Idler Hub Assembly for 5,200-lb and 6,000-lb Axles - 6 on 5-1/2 # 8-213-5UC1 or the hub and drum assembly # 8-201-5.
    view full answer...

  • Replacement Hubs With Bearing Numbers 25580 and LM67048
  • The bearing LM67028 is likely # LM67048, which has an inner diameter of 1.250", though you'll want to measure using a digital caliper to make sure they are the same. We do have idler hubs that use # LM67048 as the outer bearing and # 25580 as the inner bearing. Dexter Trailer Idler Hub Assembly # 8-213-5UC1 uses those bearings along with grease seal # GS-2125DL which has a 2.125" inner diameter. This assembly has a 6 on 5-1/2 bolt pattern and is for 5,200 lb to 6,000 lb axles. The...
    view full answer...

  • Replacement Grease Seal for Boat Trailer Hub
  • The grease seal in the back of your hub should be a snug fit; otherwise grease could escape and leave your bearings without sufficient lubrication. You should be able to find a part number on the grease seal itself to help you locate the correct replacement. The seal's outer diameter should be a snug fit with the hub's inner bore. You can measure the rear hub bore with a caliper like # PTW80157 to determine the correct outer diameter for the seal; and you can measure the spindle where the...
    view full answer...

  • Trailer Idler Hub that Uses Bearings 25580 and LM67048 with a 2-1/8 Inch Inner Diameter Seal
  • For an idler hub that takes inner bearing # 25580 and outer bearing # LM67048 you can use # 8-213-5UC1 which is rated for 5,200 to 6,000 pound axles and has a 6 on 5-1/2 bolt pattern. This is the only regular idler hub we have that takes those bearings and a seal with 2-1/8 inch inner diameter. I have linked a video review of this hub for you.
    view full answer...

  • Replacement Idler Hub And Tire/Wheel Combo For Trailer With # 42 Spindle
  • The Dexter Trailer Hub Assembly, part # 8-213-5UC1 will be a good replacement for the hub you have on your trailer. The seal will be a little tighter but will work on your spindle. The Provider Radial Tire/Wheel Combo, part # A15R6SMD Will work great with this hub. This is an 8-ply Load Range D tire with a maximum load rating of 2,150-lbs at 65 psi.
    view full answer...

  • Idler Hubs to Fit a Mobile Home Axle on a Gooseneck Trailer with Bearings 25580 and LM67048
  • We do have some idler hubs, without the drums, that fit bearings # 25580 and # LM67048. All of them have a 6 lug bolt pattern. We have two, part # 8-213-5UC1 for standard axles and # 8-213-5UC1-EZ for E-Z Lube axles, that use grease seals 10-10, part # RG06-090 and have a 6 on 5-1/2 bolt pattern. The other is an agricultural hub and is more likely what fits your mobile home axles. It's a 6 on 6 bolt pattern and uses the same bearings but instead fits a 42385 grease seal, part # GS-2250DL....
    view full answer...

  • Replacement Hubs With Bearings 25580 and LM67048 and Brakes Which Fit
  • To replace your idler hubs with a hub and drum for electric brakes, what you can do is use Dexter Trailer Hub and Drum Assembly # 8-201-5UC3 and replace its grease seal with # GS-2250DL, which has the same outer diameter as your current seal so it will work for you. This hub has a 6 on 5-1/2 bolt pattern so finding wheels to fit should be no problem. The idler hub assembly would be # 8-213-5UC1. The hub and drum takes 12" brake assemblies, and the electric brakes that will work are #...
    view full answer...

  • Can Hubs be Replaced with Hub and Drum Assemblies on a Mobile Home Axle
  • Mobile home axles are meant for one-time use only according to the manufacturer. I advise against continuing to use them. Also, there isn't a hub and drum assembly that would fit (unless the inner and outer bearings on the axle are standard. I would have to know the bearing numbers to check). It might actually be more cost effective to replace the axles with some that come with hubs and drums and electric brakes. That way you get all new parts that are all standard and compatible with...
    view full answer...

  • Is Dexstar Steel Mini Mod Trailer Wheel # AM20746 Compatible with Dexter Hub # 8-213-5UC1
  • The Dexstar Steel Mini Mod Trailer Wheel # AM20746 that you referenced has a 6-on-5-1/2-inch bolt pattern that does match that on the 6000-lb-rated Dexter Hub Assembly # 8-213-5UC1. The grease cap included in this hub kit, which also does come with bearings and races, has an outer diameter of 2.44-inches, so the hub's bore will naturally be very slightly larger than that. For your 12-inch front wheels we offer hubs with 2 different 4-bolt bolt patterns, 4-on-4-inch and 4-on-5-inch. The...
    view full answer...

  • Compatible Spindles for Dexter Hub 8-213
  • For a Dexter 8-213 hub like # 8-213-5UC1 you can use Redline spindle # R50642 or for an EZ-Lube kit like # 8-213-5UC1-EZ you can use spindle # R50342EZ. Both spindles work with bearings 25580 and LM67048.
    view full answer...

  • Replacement Hubs for a 2003 Venture Boat Trailer Model 2250 with 6-Lug Hubs
  • I did a little research and found that your 2003 Venture Boat trailer model 2250 has a capacity of 2,250 pounds but the 6-lug hubs and bearing information I found indicate that it uses hubs normally seen on 5,200 pound axles. Since you have a boat trailer you might be interested in Kodiak hub # KH42655S which is stainless steel so it won't corrode. It uses inner bearing 25580 and outer bearing 15123. Another option is hub # 8-213-5UC1 which uses the same inner bearing but a different...
    view full answer...


Do you have a question about this Trailer Hubs and Drum?




  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality trailer hubs and drums for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate trailer hubs and drum information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Photos by:
Theodore B
Expert Research:
Michael L
Installed by:
Patrick B
Expert Research:
Michael H
Expert Research:
Jeff D
Expert Research:
Jameson C
Expert Research:
John H
Expert Research:
Adam R
Expert Research:
Jeffrey L
Photos by:
Sam P
Updated by:
Sarah W
Updated by:
Alexander C

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.




^
About Us
photos and videos
1,056,204

Original Photos & Videos

Produced to make sure you know what you are getting and you get exactly what you need.

installations
35,570

Installations Completed

To make sure products work and fit the way they are supposed to.

etrailer call center
2,476,511

Phone Calls & Emails Answered

1,125,924 phone calls and 1,350,587 emails to help find the right solution.

etrailer training
400+

Average Hours of Product Training

We get to know our products firsthand so experts can better help you.

etrailer service
71

Years of Quality Customer Service

Assisting our neighbors and customers, face to face at the counter.

etrailer experts
193,357

Pages of Expert Information

Created to make sure you have all the answers to your questions, from real experts.
