Dexter Trailer Hub and Drum Assembly - 5,200-lb and 6,000-lb E-Z Lube Axles - 12" - 6 on 5-1/2

Item # 8-201-9UC3-EZ

lowest price pledge

Retail:$134.95

Our Price: $95.59

This item qualifies for Free Shipping

Select Ground or 3 Day Shipping for delivery before Christmas

Quantity:

In Stock
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

dexter axle trailer hubs and drums for 5200 lbs axles 6000 6 on 5-1/2 inch hub drum assembly - 5 200-lb 000-lb e-z lube 12
dexter axle trailer hubs and drums ez lube for 5200 lbs axles 6000 8-201-9uc3-ez
dexter axle trailer hubs and drums hub with integrated drum for 5200 lbs axles 6000 assembly - 5 200-lb 6 000-lb e-z lube 12 inch on 5-1/2
dexter axle trailer hubs and drums hub with integrated drum 6 on 5-1/2 inch
dexter axle trailer hubs and drums hub with integrated drum 6 on 5-1/2 inch assembly - 5 200-lb 000-lb e-z lube axles 12
dexter axle trailer hubs and drums ez lube for 5200 lbs axles 6000

Customer Photos

dexter axle trailer hubs and drums hub with integrated drum for 5200 lbs axles 6000 8-201-9uc3-ez
dexter axle trailer hubs and drums hub with integrated drum for 5200 lbs axles 6000 8-201-9uc3-ez

  • 6 on 5-1/2 Inch
  • For 5200 lbs Axles
  • For 6000 lbs Axles
  • Hub with Integrated Drum
  • EZ Lube
  • 14-1/2 Inch Wheel
  • 15 Inch Wheel
  • 16 Inch Wheel
  • 16-1/2 Inch Wheel
  • 25580
  • Dexter Axle
  • 15123
Install this hub-and-drum assembly on your trailer. For electric or hydraulic brakes. Fits 5,200-lb and 6,000-lb E-Z Lube axles. Inner bearing (25580) and race, outer bearing (15123) and race, grease seal, grease cap, wheel bolts, and nuts included. Lowest Prices for the best trailer hubs and drums from Dexter Axle. Dexter Trailer Hub and Drum Assembly - 5,200-lb and 6,000-lb E-Z Lube Axles - 12" - 6 on 5-1/2 part number 8-201-9UC3-EZ can be ordered online at etrailer.com or call 800-298-8924 for expert service.



Dexter Axle Trailer Hubs and Drums - 8-201-9UC3-EZ

Install this hub-and-drum assembly on your trailer. For electric or hydraulic brakes. Fits 5,200-lb and 6,000-lb E-Z Lube axles. Inner bearing (25580) and race, outer bearing (15123) and race, grease seal, grease cap, wheel bolts, and nuts included.


Features:

  • Trailer hub-and-drum assembly provides surface area for brake shoes to grip when brake is activated
    • Compatible with electric and hydraulic drum brakes
  • E-Z Lube-compatible grease cap makes lubricating bearings fast and easy
    • Remove rubber plug to access zerk fitting on spindle - no need to disassemble hub
  • Sturdy iron construction
  • Bearings, races, grease seal, grease cap, wheel bolts, and lug nuts are included
  • Made in the USA


Specs:

  • Application: 5,200-lb and 6,000-lb E-Z Lube trailer axles with #42 spindles
  • Drum dimensions: 12" diameter x 2" wide
  • Bolt pattern: 6 on 5-1/2"
  • Grease cap flange diameter: 2.44"
  • Wheel bolt diameter: 1/2"
  • Weight capacity: 3,000 lbs


Bearing, Race, and Seal Information

  • Bearings (included)
    • Inner bearing: 25580 (1.75" inner diameter)
    • Outer bearing: 15123 (1.25" inner diameter)
  • Races (included)
    • Inner race: 25520
    • Outer race: 15245
  • Grease seal (included): GS-2125DL
    • Inner diameter: 2.125"
    • Outer diameter: 3.376"

Exploded View

E-Z Lube-Compatible Assembly for Simple Lubrication

The grease cap on this hub-and-drum assembly is specially designed to work with your Dexter E-Z Lube axle to make lubricating bearings quick and easy. Just remove the plug on the grease cap, attach a grease gun to the zerk fitting on the end of the spindle, and inject the grease. It will flow easily to both inner and outer bearings. Not only does this make lubricating the bearings easy, but it also helps to prevent corrosion of the hub. This is because you can lubricate the bearings without the mess of taking apart the entire assembly.


Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.


Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)


Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)


Bolt Pattern - Side

Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"


K08-201-95 Dexter 12" Hub and Drum Assembly for 5.2K and 6K Axles with Hardware - 6 on 5-1/2 - EZ Lube

Replaces 8-201-9UC3-EZ







Value - This item

Dexter Trailer Hub and Drum Assembly - 5,200-lb and 6,000-lb E-Z Lube Axles - 12" - 6 on 5-1/2


Dexter Trailer Hub and Drum Assembly - 5,200-lb and 6,000-lb E-Z Lube Axles - 12" - 6 on 5-1/2
Dexter Axle Trailer Hubs and Drums

64 reviews

Code: 8-201-9UC3-EZ

In Stock

Retail:$134.95

Our Price: $95.59


  • Trailer Hubs and Drums
  • Hub with Integrated Drum
  • EZ Lube
  • 25580
  • 15123
  • For 5200 lbs Axles
  • For 6000 lbs Axles
  • 6 on 5-1/2 Inch
  • 14-1/2 Inch Wheel
  • 15 Inch Wheel
  • 16 Inch Wheel
  • 16-1/2 Inch Wheel
  • Dexter Axle


Install this hub-and-drum assembly on your trailer. For electric or hydraulic brakes. Fits 5,200-lb and 6,000-lb E-Z Lube axles. Inner bearing (25580) and race, outer bearing (15123) and race, grease seal, grease cap, wheel bolts, and nuts included.

more information →
Compare Similar Products
Economy
Price: $59.00
$36.59 Less

Trailer Hub and Drum Assembly - 5,200-lb and 6,000-lb E-Z Lube Axles - 12" - 6 on 5-1/2


Trailer Hub and Drum Assembly - 5,200-lb and 6,000-lb E-Z Lube Axles - 12" - 6 on 5-1/2
etrailer Trailer Hubs and Drums

54 reviews

Code: AKHD-655-6-EZ-K

In Stock

Retail:$84.42

Our Price: $59.00


  • 1/2 Inch Stud
  • etrailer


Install this hub-and-drum assembly on your trailer. For electric or hydraulic brakes. Fits 5,200-lb and 6,000-lb E-Z Lube axles. Inner bearing (25580) and race, outer bearing (15123) and race, grease seal, cap, and nuts included.

more information →
Value
Price: $64.57
$31.02 Less

Trailer Hub and Drum Assembly - 5,200-lb and 6,000-lb Axles - 12" Diameter - 6 on 5-1/2


Trailer Hub and Drum Assembly - 5,200-lb and 6,000-lb Axles - 12" Diameter - 6 on 5-1/2
etrailer Trailer Hubs and Drums

35 reviews

Code: AKHD-655-6-K

In Stock

Our Price: $64.57


  • Standard
  • 1/2 Inch Stud
  • etrailer


Install this hub-and-drum assembly on your trailer. Compatible with electric or hydraulic brakes. Fits 5,200-lb and 6,000-lb axles. Inner bearing (25580) and race, outer bearing (15123) and race, grease seal, grease cap, and lug nuts included.

more information →
Premium
Price: $317.95
$222.36 More

Related Products



Customers compare 8-201-9UC3-EZ to these similar products





Customers Who Purchased This Trailer Hubs and Drums Also Bought...



Replacement parts available for this product

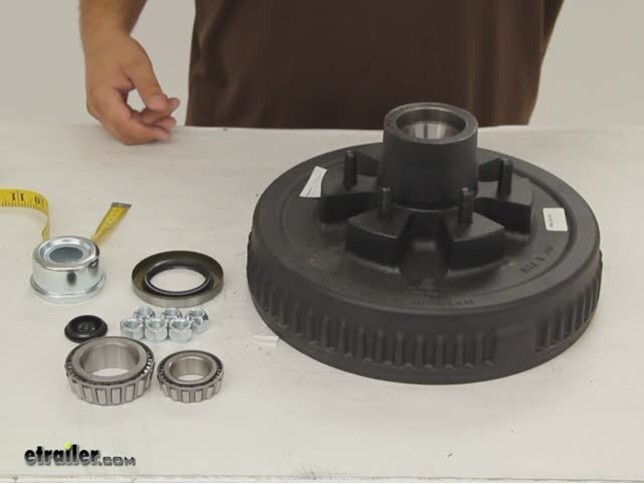

Video of Dexter Trailer Hub and Drum Assembly - 5,200-lb and 6,000-lb E-Z Lube Axles - 12" - 6 on 5-1/2


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Dexter Trailer Hubs and Drums 8-201-9UC3-EZ Review

Today, we're going to take a quick look at Dexter Axles, Trailer Hub and Drum Assembly, part number 8-201-9UC3-EZ. This drum is designed to work on 5200 and 6000-pound axles. The drum's capacity itself is 3000 pounds so when you pair it up with another drum on the other side of the axle, you'll get your 6000 pounds total capacity. Included with this drum are all the parts that you'll need to mount it to your axle. The races are already pressed inside the hub bore. You also have your bearings.

The inner bearing is 25580 and the outer bearing is 15123. You have a grease cap with a 2.44-inch outer diameter and a removable rubber plug so that you can access the grease zerk on your EZ lube spindle. There are also six conical lug nuts for securing the wheel to the drum and your grease seal. The hub and drum assembly has a 6 on 5-1/2 bolt pattern. There are six lugs or six studs and if we're able to accurately measure across from one stud directly across to the other, we get our 5-1/2-inch measurement.

Now, we'll take a look inside the drum and take a couple of measurements. Our depth measures in at about 2-1/4 inches. Our diameter across the inside is 12 inches, which means that this drum should be used with 12-inch by 2-inch brake assemblies. And that's it for our quick look at Dexter Axles, Trailer Hub and Drum Assembly, part number 8-201-9UC3-EZ.
