Dexter Trailer Idler Hub Assembly for 6,000-lb Axles - 6 on 5-1/2

Dexter Trailer Idler Hub Assembly for 6,000-lb Axles - 6 on 5-1/2

Item # 42655UC1

lowest price pledge

Retail:$146.50

Our Price: $111.51

You Save: $34.99
Trailer Hubs and Drums

This item qualifies for Free Shipping

Shipping Weight: 14 lbs

Quantity:
In Stock, Ships Today
Trailer Hub Assembly for 5200 and 6000 lb. Axle 6 on 5-1/2
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Videos


  • 6 on 5-1/2 Inch
  • For 6000 lbs Axles
  • Hub
  • Standard
  • 14-1/2 Inch Wheel
  • 15 Inch Wheel
  • 16 Inch Wheel
  • 16-1/2 Inch Wheel
  • 25580
  • Dexter Axle
  • 15123
  • 1/2 Inch Stud
Hub is designed for use on trailer idler axles. Fits 6,000-lb axles with #42 spindles. Inner bearing (25580) and race, outer bearing (15123) and race, grease seal, grease cap, wheel bolts, and lug nuts included. Lowest Prices for the best trailer hubs and drums from Dexter Axle. Dexter Trailer Idler Hub Assembly for 6,000-lb Axles - 6 on 5-1/2 part number 42655UC1 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (11)
  • Q & A (123)
  • Videos (1)
  • Photos
  • Why etrailer?

Dexter Axle Trailer Hubs and Drums - 42655UC1

Hub is designed for use on trailer idler axles. Fits 6,000-lb axles with #42 spindles. Inner bearing (25580) and race, outer bearing (15123) and race, grease seal, grease cap, wheel bolts, and lug nuts included.


Features:

  • Trailer hub assembly fits idler axles
    • Bearings, races, seal, grease cap, wheel bolts, and lug nuts are included
  • Sturdy iron construction
  • Hub and drum are made in the USA


Specs:

  • Application: 6,000-lb trailer axles with #42 spindles
  • Wheel size: 16" to 18-1/2"
  • Bolt pattern: 6 on 5-1/2"
  • Grease cap flange diameter: 2.44"
  • Wheel bolt diameter: 1/2"
  • Weight capacity: 3,000 lbs


Bearing, Race, and Seal Information

  • Bearings (included)
    • Inner bearing: 25580 (1.75" inner diameter)
    • Outer bearing: 15123 (1.25" inner diameter)
  • Races (included)
    • Inner race: 25520
    • Outer race: 15245
  • Grease seal (included): 10-36
    • Inner diameter: 2.25"
    • Outer diameter: 3.376"

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.


Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)


Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)


Bolt Pattern - Side

Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"


K08-213-9C Dexter Trailer Idler Hub Assembly for 6K Axle with Hardware - 6 on 5-1/2

Replaces 42655UC1






Video of Dexter Trailer Idler Hub Assembly for 6,000-lb Axles - 6 on 5-1/2


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Dexter Axle Trailer Hubs and Drums - Hub - 42655UC1 Review

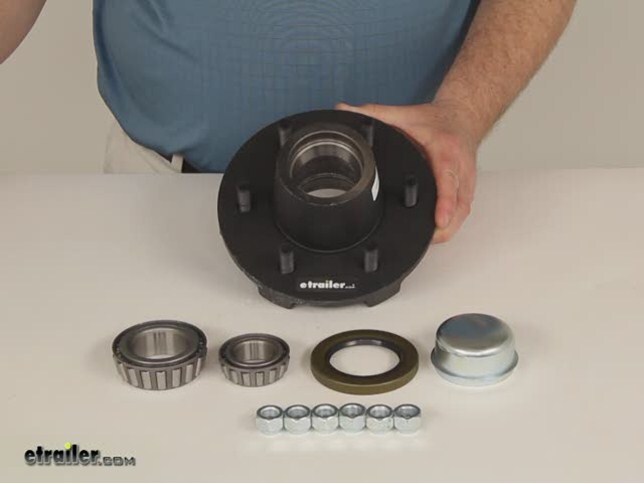

Today, we're going to review part number 42655UC1. This is the Dexter Trailer Hub Assembly. It's a 6 on 5-1/2-inch bolt pattern. This trailer hub will include six of the 1/2-inch lug nuts. It will include the inner bearing, part number 25580, the outer bearing, part number 15123. It will include the grease cap and the grease seal, part number 42385.

Now, this trailer hub assembly is designed to fit 5200-pound and 6000-pound axles with spindles that will require a 2-1/4-inch inside diameter grease seal. Again, this bolt patter is six lugs, 5-1/2-inch pattern. The capacity is 3000 pounds so when paired with another hub assembly of the same on the other side of the axle, it will give you your maximum of 6000 pounds. Now, the bearing races are included and they are preinstalled and pressed into the hub already. All of our hub assemblies that we sell from eTrailer will include the bearing races preinstalled into the hub.

You can see here is the outer bearing race. In the end right there is the inner bearing race, and again, we mentioned this is a 6 on 5-1/2-inch bolt pattern and the best way to measure that--usually, on a hub that will have six lugs, an even amount of lugs, you could just measure across from one center of one lug bolt to the center of the other and that would give you the 5-1/2-inch measurement. Because this hub sticks up so high, it will be hard to get a measurement that way. So the next best way is if you measure from the center of one stud to the center of one right next to it either way. It would measure 2-3/4 inches and if you go to the product page for this part number at the bottom of the page, it will show you determining the bolt pattern and there will be a chart that says when you measure from one stud next to the next stud if it measures 2-3/4 inches.

That would be a 6 on 5-1/2-inch bolt pattern. And that should do it for the review on part number 42655UC1.


Customer Reviews

Dexter Trailer Idler Hub Assembly for 6,000-lb Axles - 6 on 5-1/2 - 42655UC1

Average Customer Rating:  4.9 out of 5 stars   (11 Customer Reviews)

Hub is designed for use on trailer idler axles. Fits 6,000-lb axles with #42 spindles. Inner bearing (25580) and race, outer bearing (15123) and race, grease seal, grease cap, wheel bolts, and lug nuts included.

- 42655UC1

by:


Still rolling. No complaints 340584



- 42655UC1

by:


worked fine 282250



- 42655UC1

by:


Product as expected, delivery sooner than expected, overall very good. Replaced old hubs on moblie home axles. Very easy to do. Great service. 230167



- 42655UC1

by:


What a fast turn around 213291



- 42655UC1

by:


Couldnt be happier with these hubs! First one I pulled out of the box, I just verified that the races were seated, and installed after packing the bearings. One hub out of the four had a damaged bearing and seal, but it was due to packing. No biggie, was able to "coerce" the bearing and seal to look "normal". Had all four corners done and back on the road in less than 4 hours, which included uninstall of old hubs, cleaning, packing and installing new parts. Quick shipping as well. eTrailer is a great place to shop! 176900



- 42655UC1

by:


Very helpful and pleasant purchase expe rience. 141220



- 42655UC1

by:


very good 139645



- 42655UC1

by:


Great service and fast shipping - Ricky was a big help making sure that everything fit together - thanks a lot! 129106



- 42655UC1

by:


I've not have a chance to use them. 120620



- 42655UC1

by:


I used 42655UC1 hubs on mobile home axles just required different size seal to fit spindle, great product & you guys were very helpful with helping find a hub that would fit,very pleased with this product and service. 45032



- 42655UC1

by:


Good Experiene Website laid out good, when ordering, it showed me what products went together instead of searching to find out like which hub goes to what axle and vise versa. Fast shipping and good products. Recommend them to anyone and everyone looking for trailer parts. 4231
