See what our Experts say about this Draw-Tite Trailer Hitch

• Trailer Wiring Harness and Mounting Brackets for a 2016 Nissan Frontier
  We do have a variety of trailer connectors and mounting brackets that you can use on your 2016 Nissan Frontier. If you need a 4-Way Flat connector then the Hopkins # HM43575 will work if you have the tow package. If you don't have the tow package then I recommend the Curt # C56225. You can mount either of these using the Tow Ready # 18144 with a no-drill bracket like part # 18140. I have attached some installation videos and the instructions for you to check out.
  view full answer...

• Hitch Size Recommendation for 2014 Nissan Frontier
  Is there a reason you need the smaller hitch size? For your vehicle there are only the larger hitch size of 2 inch which the Draw Tite part # 75282. Most of the time people are wanting the larger hitch size like this. This hitch size has higher capacities and has more accessories made for it so it generally preferred.
  view full answer...
• Best Hitch For A 2020 Nissan Frontier
  Both hitches are class 3 with 2x2 inch receiver openings and both can use weight distribution systems. I recommend the etrailer Trailer Hitch Receiver - Custom Fit - Matte Black Finish - Class III - 2" # e98869. A notable difference is the safety chain loops, on the etrailer hitch they are a horizontal welded loop under the receiver opening that will not take away from your ground clearance. The Draw-Tite Max-Frame Trailer Hitch Receiver - Custom Fit - Class III - 2" # 75282 has welded...
  view full answer...

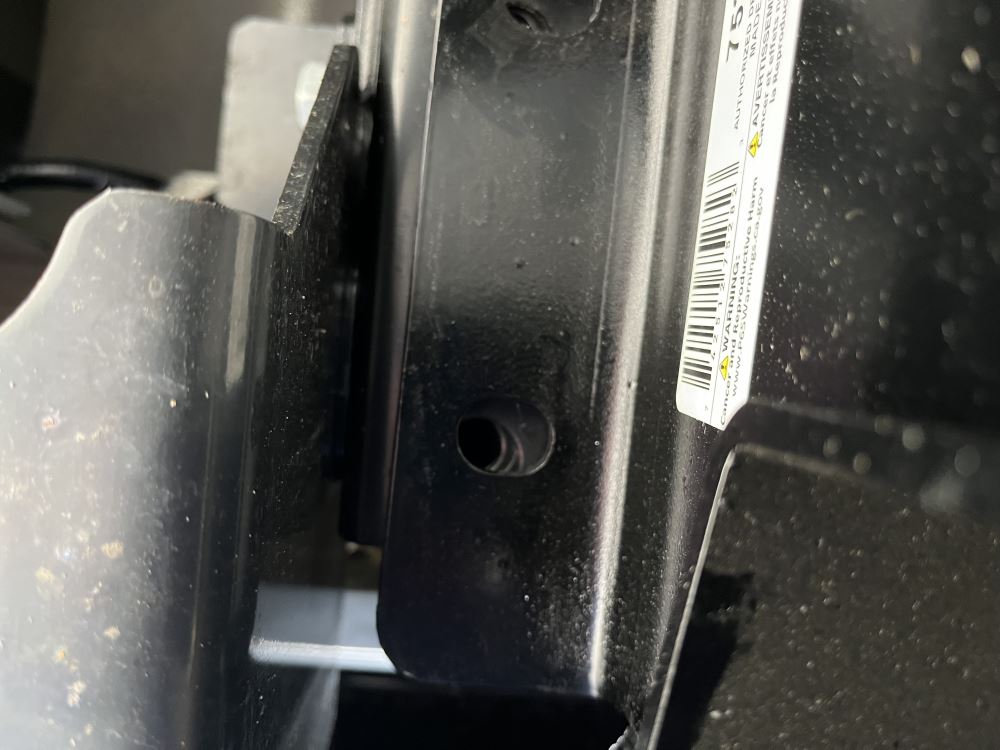

• Trailer Hitch Bolt Too Big for Weld Nut on 2018 Nissan Frontier
  I definitely recommend installing and torquing down all 6 bolts for the Draw-Tite Trailer Hitch Receiver # 75282 on your 2018 Nissan Frontier. Using only 5 of the 6 bolts will reduce the hitch's capacity to an unknown number since it was tested and rated with all the hardware in place, potentially leading to damage and injury while also voiding the hitch's warranty. The issue you are experiencing where it looks as if the hole isn't large enough for the bolt is actually not too uncommon....
  view full answer...
• Trailer Hitch and 7-Way Wiring Fitment for a 2023 Nissan Frontier
  From what I'm seeing it looks like the parts that are compatible with the 2022 Frontier are also compatible with a 2023 Nissan Frontier. So for your application I recommend using the following: Draw-Tite Trailer Hitch Receiver - # 75282 T-One Vehicle Wiring - # 118266 Mounting Bracket - # PK12711U If you don't already have a ball mount I also recommend checking out the B&W Tow & Stow 3-Ball Mount # BWTS10048B because of it's versatility. I usually recommend securing your investment with...
  view full answer...
• Recommended Hitch and Wiring Harness for a 2022 Nissan Frontier
  Yes, the Draw-Tite Max-Frame Trailer Hitch Receiver item # 75282 is a confirmed fit for your 2022 Nissan Frontier. It has a maximum gross trailer weight of 5,000 lbs and a maximum tongue weight of 750 lbs. I have attached an installation video and picture so you can follow along with the install process and see what the final product will be. You're going to need the Curt Wiring Harness with 4-Pole Flat Trailer Connector item # C56225. The connector plugs directly into your Frontier's...
  view full answer...

• Does Draw Tite Hitch part # 75282 Fit 2009 Nissan Frontier and Allow Full Sized Spare to Fit
  Yes, the Draw Tite hitch part # 75282 is a confirmed fit for your 2009 Nissan Frontier and will work just fine with a full sized spare like what you see in the picture I attached.
  view full answer...

• Comparing Trailer Hitch Receivers For A 2024 Nissan Frontier
  We currently offer three options for a 2024 Nissan Frontier; the etrailer # e98869, Draw-Tite # 75282, and Curt # 13241. Of the three the Curt and etrailer hitch options only real difference is just the finish with the etrailer having a matte black finish and the Curt having a gloss black finish. The Draw-Tite hitch has a gloss finish like the Curt does but also comes with a slightly higher tongue weight capacity and bracket welded to the cross tube to mount your trailer connector to. Because...
  view full answer...
• Bolt Hole Dimensions For Mounting Draw-Tite Max-Frame Trailer Hitch Receiver # 75282
  The Draw-Tite Max-Frame Trailer Hitch Receiver # 75282 will have the following bolt hole dimensions for your 2015 Nissan Frontier. The Bolt holes from drivers side to passenger side frame rails are 43-5/8" on center. The holes running from front of the hitch to back are spaced 3-1/2" on center. I have included the picture with measurements for you to reference.
  view full answer...

• Dimensions of Draw-Tite Class III Hitch 75282
  Center hole to center hole, the distance apart for all three holes measured from the holes on one flange across to the other is 43-5/8 inches. The flanges measure 41-1/8 apart, measured inside to inside and the 3 holes along each flange are 3-1/2 inches apart, measured center to center. The hitch is a fit for the 2009 - 2012 Suzuki Equator and the 2005 - 2019 Nissan Frontier. You can see these dimensions in the photo I've edited for you.
  view full answer...

• 7-Way For 2022 Nissan Frontier Without Tow Package For Brake Controller
  We can get your 2022 Nissan Frontier without the factory tow package set up with a 7-way and brake controller, and for the 7-way there is one part that is needed, though it will not be factory style, it will be a 7-way that you plug in and will attach with a mounting bracket. The correct part for your '22 Frontier is the following: - T-One Vehicle Wiring Harness with 7-Way Trailer Connector # 118266 This has the needed relays to activate the tow package, and to mount it to a hitch like...
  view full answer...
• Why Would Trailer Hitch Mounting Holes not Perfectly Line Up with Vehicle Frame
  Sometimes hitches can get slightly bent during shipping and this can be fixed by bending the hitch back into place as long as the hitch only has a slight bend to it. If yours isn't lining up I can almost guarantee that is what happened. Some people will use open steps for leverage, vices and even car jacks to apply controlled force to bend the hitch back. You will want to look for flaking paint and physical stress marks on the hitch before and after you attempt to bend the hitch back....
  view full answer...
• Can Trailer Hitch be Installed Upside Down?
  A trailer hitch, such as the Draw-Tite # 75282 that fits your 2017 Nissan Frontier, will need to be installed right side up. If you need height you can always use a ball mount that will give you the necessary amount of rise to line up with your trailer's coupler. In order to choose the correct ball mount, there are a couple measurements you'll need to take. First, make sure both your vehicle and trailer are parked on level ground; you'll then want to measure from the ground to the top...
  view full answer...
• Trailer Hitch That Fits 2006 Nissan Frontier LE
  I checked with the manufacturers and both the Curt # 13241 and Draw-Tite # 75282 are fits for the LE model of 2006 Nissan Frontier so you do not need to have a custom built hitch. I would not be able to speak to how far out the receiver sticks out. If you do decide to go with one of these hitches I recommend the Draw-Tite due to the 750 lbs of tongue weight capacity it offers though you will want to check your owners manual to find your vehicles towing capacity. It is a Class III hitch...
  view full answer...
• Trailer Hitch Recommended for 2018 Honda CR-V
  I'd recommend going with a Class III hitch, because their 2 inch receiver size is the most common and would provide the greatest selection of hitch mounted accessories like bike racks or cargo carrying trays. When the capacity, the hitch appearance once it's installed and cost are compared, I'd personally choose the Curt Class III, part # C13397. The hitch is a concealed crossbar design, which means that the only portion of the hitch that will be visible from the rear is the receiver...
  view full answer...
• Recommended Trailer Hitch Receiver For 2019 Nissan Frontier SL
  For your 2019 Nissan Frontier SL I recommend the Draw-Tite Max-Frame Trailer Hitch Receiver - Custom Fit - Class III - 2" # 75282 as it has the highest tongue weight rating of 750lbs, and a trailer weight rating of 5000lbs. If you use a weight distribution hitch those ratings get bumped up to 800lbs tongue weight and 8000lbs trailer weight. From what I was able to find on your Frontier, the towing capacity range is 3500-6500lbs, so I recommend contacting your local Nissan dealership with...
  view full answer...
• Installation Torque Values/Specs for Draw-Tite Trailer Hitch # 75282
  The Draw-Tite Max-Frame Trailer Hitch Receiver - Custom Fit - Class III - 2" # 75282 requires all hardware be torqued to 68 foot pounds according to the instructions. I've attached a photo in case you need anything else for this installation as well as a video.
  view full answer...

• Are Holes Already There for Trailer Hitch Installation on 2019 Nissan Frontier
  Correct; the holes will already be there on your 2019 Nissan Frontier when installing any of the trailer hitches that fit this truck. If you take a look at the accompanying photo you can see where these holes are being pointed out by our installer. This photo is from the linked installation video, at about the 3:30 mark. This will be the same for each of the trailer hitches that fit your 2019 Nissan Frontier: - etrailer Trailer Hitch Receiver # e98869 - Curt Trailer Hitch Receiver #...
  view full answer...

• How Does Class III Hitch attach to Frame of 2013 Nissan Frontier
  To install a Class III hitch like the Draw Tite part # 75282 on your 2013 Nissan Frontier you will use the existing weldnuts that are on the truck frame. The weldnuts are the threaded holes you have already found on the frame. I attached a picture that has a diagram that shows this for you to check out as well. I attached an install video for this hitch for you to check out as well. If you wanted to do some towing you might be interested in etrailer ball mount kit # 989900. It comes with...
  view full answer...

• Recommended Trailer Hitch For A 2023 Nissan Frontier
  When choosing the correct trailer hitch for your 2023 Nissan Frontier we do offer three different choices that are confirmed for your vehicle. All three hitches are very similar but out of the three I recommend The Draw-Tite Max-Frame Trailer Hitch Receiver # 75282 because it has a higher tongue weight capacity at 750 pounds when The Curt Hitch # 13241 and The etrailer hitch # e98869 sit at 500 pounds. Having a higher tongue weight will allow you to carry heavier hitch accessories like...
  view full answer...
• Trailer Hitch For A 2011 Tiffin Phaeton Motorhome
  No, we do not have the Curt hitch that would work with your 2011 Tiffin Phaeton Motorhome but we do have The Draw-Tite Ultra Frame Service Body Trailer Hitch Receiver # 41990-07. This trailer hitch has a weld-on installation with included side brackets. The hitch has a black powder coat finish that covers an e-coat base that offers a superior rust protection. The maximum gross trailer weight of this hitch is up to 16,000 pounds and has a maximum tongue weight up to 1,600 pounds.
  view full answer...
• Trailer Hitch and Wiring Recommendation for 2022 Nissan Frontier
  Hey Matthew, so I didn't find a previous message from you but I can definitely help you find what you are looking for. For a hitch for your 2022 Nissan Frontier I would go with the Draw Tite part # 75282 as it has an easy install and the best towing capacities. Then for trailer wiring you would want the Curt kit part # C59236. The prices are down below at the part links. I also attached a link that you can use to help find an installer if that's what you are looking for as well.
  view full answer...
• Does Wiring Get Added Behind Kick Panel of 2019 Nissan Frontier
  Yep, you will need to add the relays from the jumper harness to the connector behind the kick panel of your 2019 Nissan Frontier in order to add either the 7-way wiring harnesses that fits: - T-One Vehicle Wiring Harness with 7-Way Trailer Connector # 118266 Other than that, they do just get plugged in; you can mount either to the tab of the Draw-Tite Max-Frame Trailer Hitch Receiver # 75282 that fits your '19 Frontier with the 7-Way Mounting Bracket # PK12711U or 4-Flat Mounting Bracket...
  view full answer...
• What Size Bolts Does the Hitch for a 2010 Nissan Frontier Use
  The weld nuts in the frame on a 2010 Nissan Frontier are indeed M12 x 1.25 x 35mm which is what the Draw-Tite Max-Frame Trailer Hitch Receiver part # 75282 will use. I'd simply pick up a 12 mm x 1.25 Tap locally and clean the holes out beforehand.
  view full answer...

Do you have a question about this Trailer Hitch?
